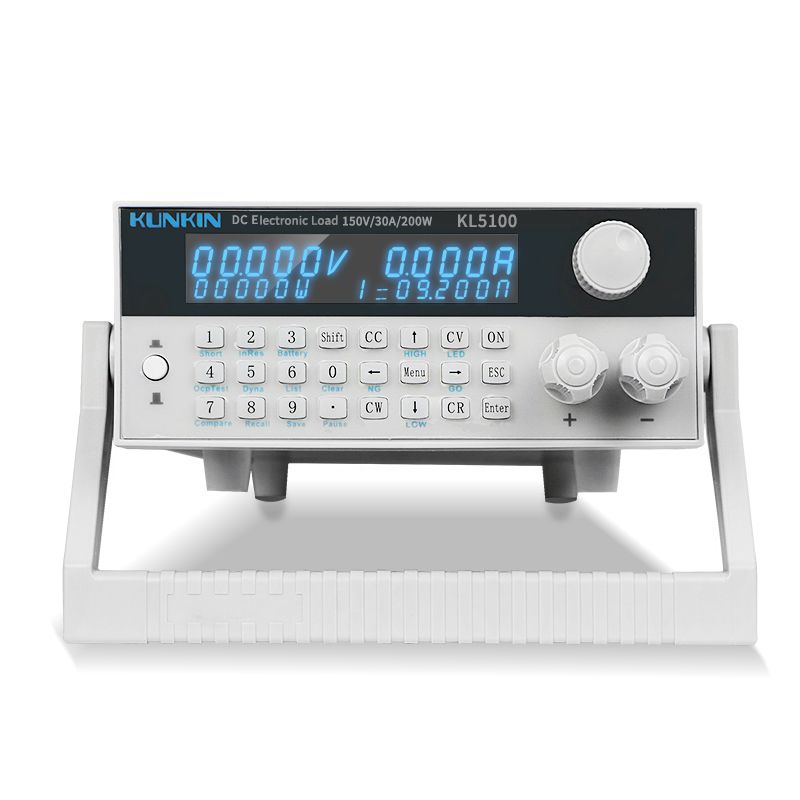

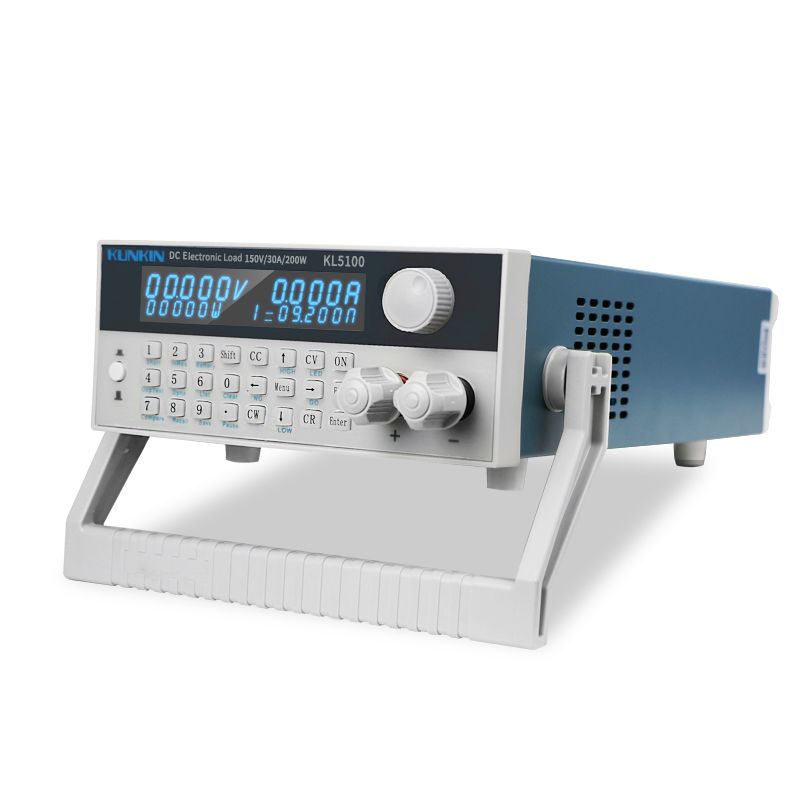

KL5100/KL5101/KL5102/KL5104/KL5105 110V/220V 500W Programmable DC Electronic Load Load Meter Battery Capacity Internal Resistance Tester 1-500V 0-60A Battery Tester

Based on 0 reviews. - Write a review

$311.99

Ex Tax: $311.99

Stock: In Stock
Model: EB003306
SKU: EB003306

Available Options

Type.

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

KL5100 electronic load series is designed for laboratory engineer and simple test of production and development of new electronic load, complete function convenient operation test of high precision is the main feature of the performance of control costs, the ratio of outstanding at the same time, the budget is not enough and require higher ideal choice of the client.

Main features:

Level, car LCD liquid crystal display, brightness is adjustable;
• digital keyboard;
High-speed communication interface;
• measurement with high resolution and high accuracy;
/ over-current, over-voltage/power/overheating/reverse polarity protection;
With constant voltage and constant current, constant resistance and constant power four basic working mode;
With a rotary coding switch, fast easy operation;
• far terminals measurement function;
• automatic testing function;
• battery test functions;
• resistance test functions;
• editable multi-step suite test function;
• short circuit test functions;
Dynamic test function;
Test, short circuit protection function;
, in the case of temperature control, PWM control of high-speed fan;
A built-in buzzer as warnings or tips;
The setting of the power, keep memory function;

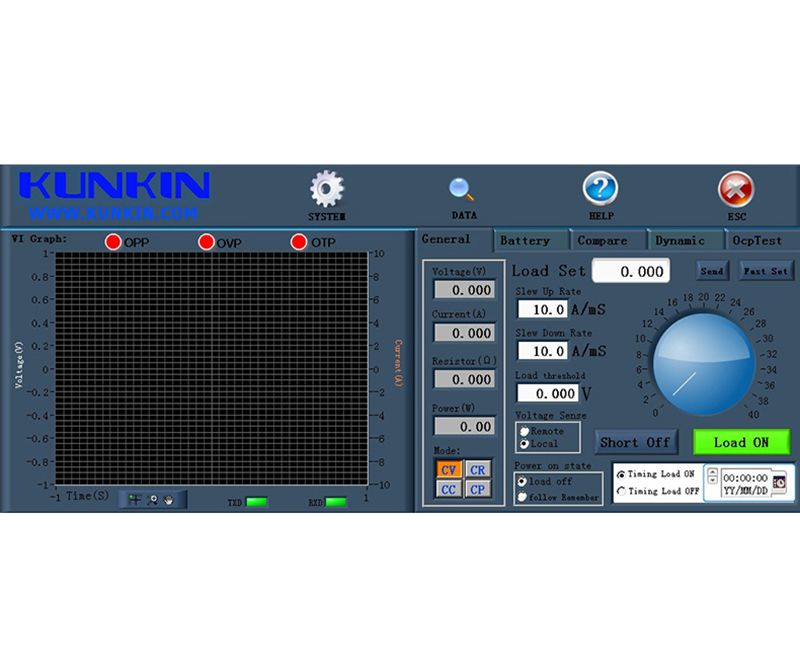

, can through the computer software to monitor;
, the machine can be configured 110 v / 220 v ac power supply.

Specification table:

Refers to the standard type No.		KL5100	KL5101		KL5102	KL5104	KL5105
The input	The input voltage	AC 110V/220VPlus or minus10%,50Plus or minus2Hz
	Power consumption	Less than20 W
The load input	Load voltage	1-150V	1-150V		1-150V	1-300V	1-500V
	Load current(Dual channel)	0-30A	0-40A		0-60A	0-30A	0-30A
	The maximum load power	200W	300W		400W	400W	500W
Accuracy of measurement	The main current	Plus or minus0.1%+5Ma(24bit A/D,15ppm/Benchmark °)
	The primary voltage	Plus or minus0.1%+5Mv(24bit A/D,15ppm/° benchmark,The input impedance400KΩ)
Control precision	The main current	Plus or minus0.1%+5Ma(16bit D/A, 15ppm/Benchmark °)
	The primary voltage	Plus or minus0.1%+5Mv(16bit D/A, 15ppm/Benchmark °)
To protect the	overpressure	155V				310V	520V
	A temperature	85°
	A power	220W	320W		420W	420W	520W
	Over current	30.5A	40.5		60.5A	30.5A	30.5A
Communication interface	Programmable interface	TTLLevel full duplex serial interface (by converter converts232or485)
function	Working mode	CC.CV.CR.CW
	Normal function	Automatic test, dynamic test, battery test,OCPTest etc.
	A list of test functions	List of test, trigger test, cycle test, automatically increase or decrease in test and so on
Extend the functionality	External trigger	Square root	Square root		Square root	Square root	Square root
	Far end voltage measurement	Square root	Square root		Square root	Square root	Square root
Using the environment temperature range		0~500C
Using the environment humidity range		10~90%RH
DCThe input of casing pressure		Plus or minus250VDC
DCThe input to the chassis insulation resistance		>20MΩ,500VDCwhen
ACThe input to the chassis insulation resistance		>20MΩ,500VDCwhen
Overall dimensions (mm)LxBxH		about400x260x110
Weight (Kg)		4.0		5.0

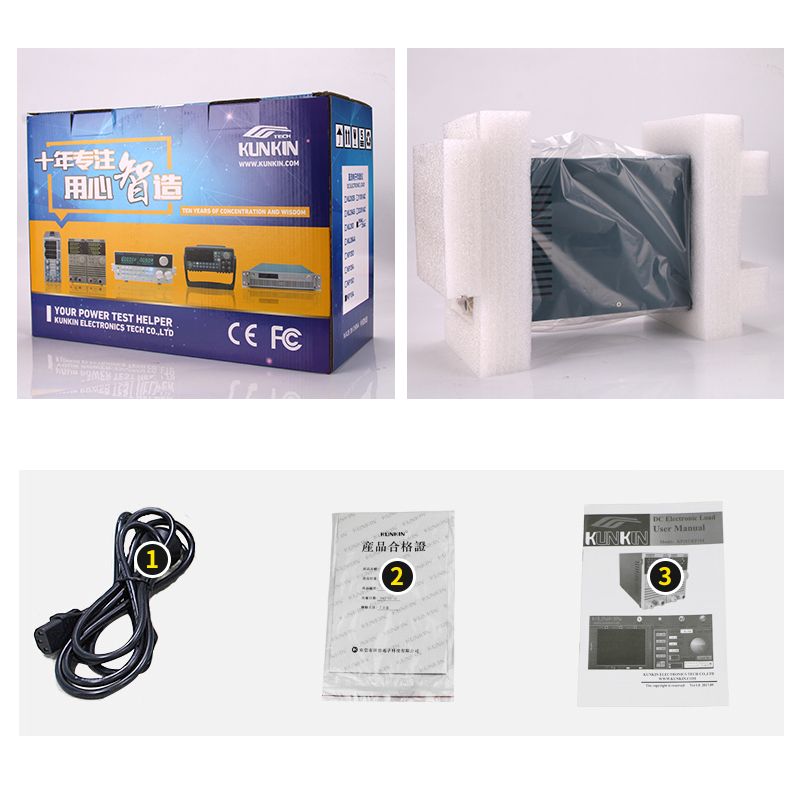

Package includes:

1 X Load Meter

1 X Patch Cord (NOTE:Product input voltage: 110V / 220V, and we will send you a plug and adaptor to your country.)

1 X English User Manual

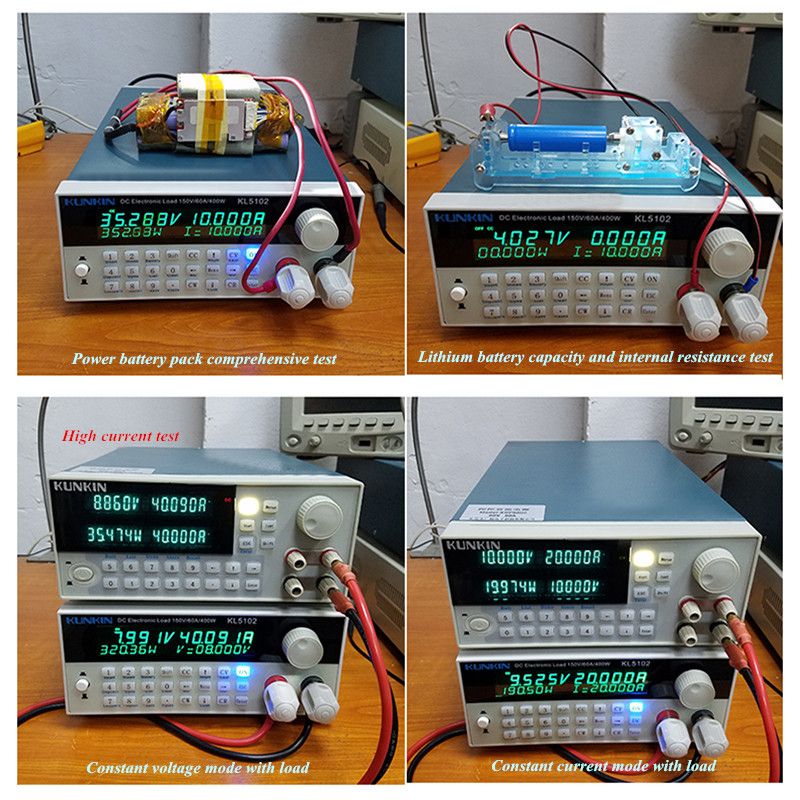

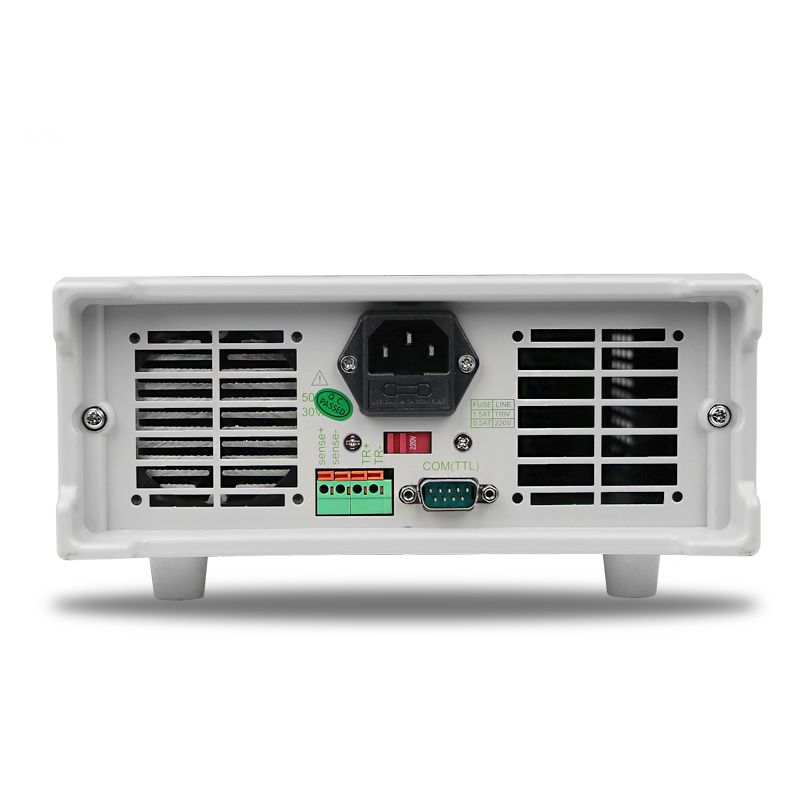

Details pictures:

KL5100KL5101KL5102KL5104KL5105-110V220V-500W-Programmable-DC-Electronic-Load--Load-Meter-Battery-Cap-1620005
