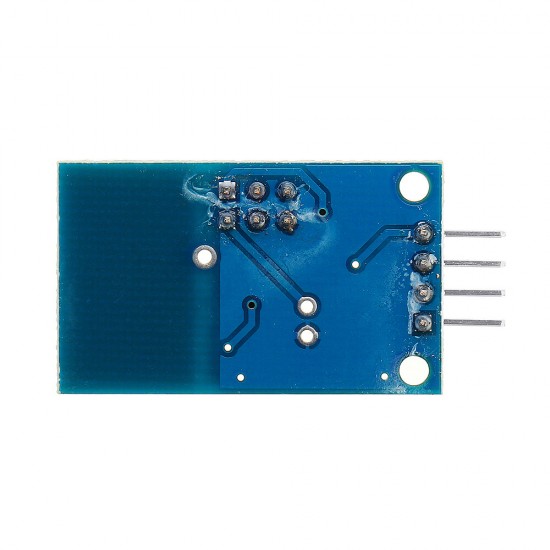

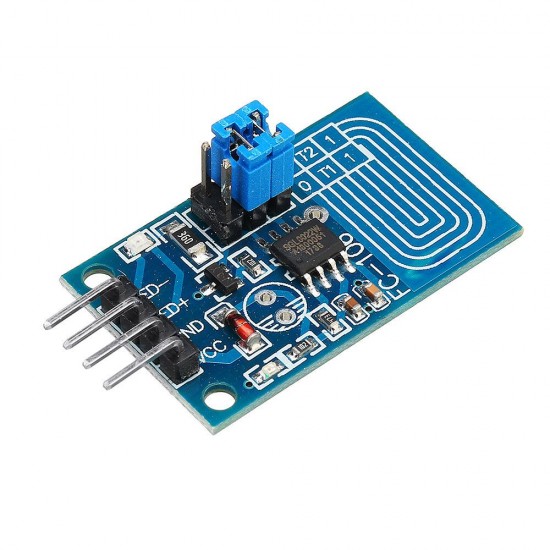

LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane

LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
LED Dimmer Switch Module Capacitive Touch Dimmer Constant Pressure Stepless Dimming PWM Control Pane
$5.99
Ex Tax: $5.99
  • Stock: In Stock
  • Model: EB0048134
  • SKU: EB0048134
  • Price Tag: US$ 0.00 - US$ 5.99
    Precise details>>
    >
    Features:

    - Single touch,using the principle of capacitance touch .The default function is switch,dimming,with brightness memories LED touch dimming.It will light slowly when turn on the lights,and become dark slowly when turn off,which effectively avoid the stimulation to eyes.
    - The lamp brightness can be adjusted by requirement,it is very to operate.
    - It can touch in medium protection,such glass,acrylic,plastic,ceramics and so on,which is very safe.
    - Wide application of voltage range,you can choose arbitrarily between 2.4V to 4.5V.
    - Simple applied circuit,less peripheral devices, easy processing, low cost.
    - Anti power and phone interference,the can reach above +/-2KV;the touch response sensitivity and reliability will not affected by the close distance or multi-angle mobile phone interference.
    - Needn't to touch copper foil directly,the dimming can be processed across acrylic glass(above 3mm) or plastic.
    - It can control LED module,light and so on.It is available for indoor LED,lighting lamp,DIY automotive lights dimming refit.

    Usage:

    - Click touch(touch duration time is less than 550ms) can control the lamp.Click once, the lamp lights;click again,the lamp off.The initial brightness of lights lit the fixed for the whole brightness of 90%.
    - Press the touch at long time (touch duration time is more than 550ms), you can achieve stepless dimming the lights. Press long time once, light levels gradually increase light levels when released after the release time parked in the corresponding brightness, long time if more than three seconds, the light levels to achieve maximum brightness does not change; again long press touch, light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time, if a long time more than three seconds, the light levels after reaching the minimum brightness does not change.

    Package Included:

    1x Capacitive Touch Dimmer Switch Module


    LED-Dimmer-Switch-Module-Capacitive-Touch-Dimmer-Constant-Pressure-Stepless-Dimming-PWM-Control-Pane-1373149

    LED-Dimmer-Switch-Module-Capacitive-Touch-Dimmer-Constant-Pressure-Stepless-Dimming-PWM-Control-Pane-1373149

    LED-Dimmer-Switch-Module-Capacitive-Touch-Dimmer-Constant-Pressure-Stepless-Dimming-PWM-Control-Pane-1373149

    LED-Dimmer-Switch-Module-Capacitive-Touch-Dimmer-Constant-Pressure-Stepless-Dimming-PWM-Control-Pane-1373149
