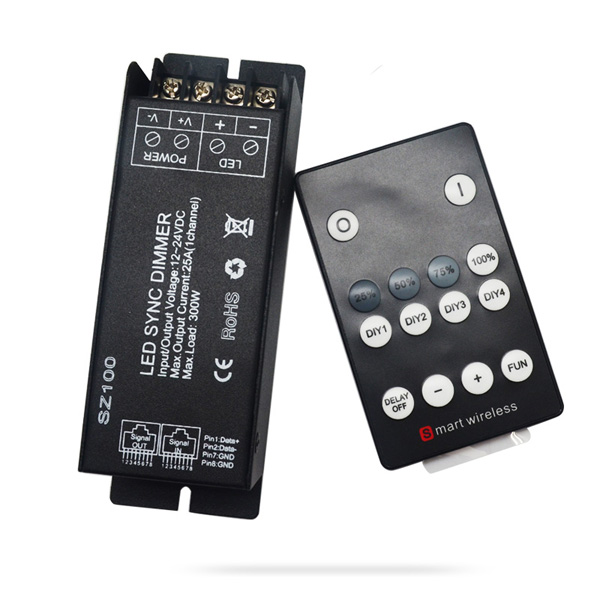

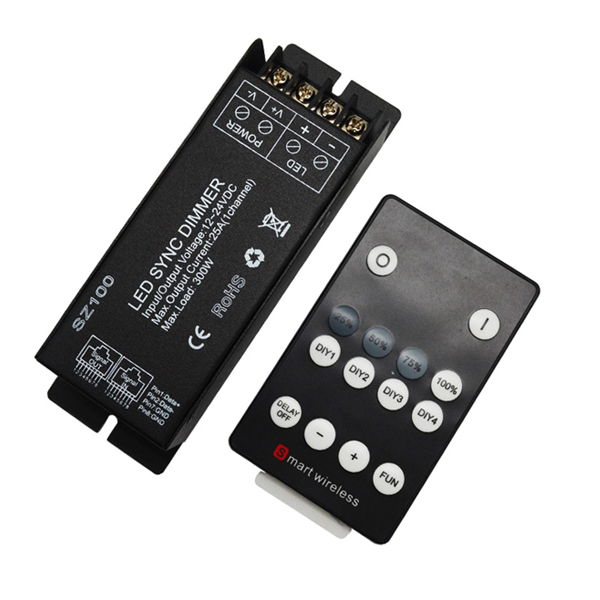

RF Wireless Remote LED DIY Controller Dimmer 1 Channel 25A DC12V-24V For Single Strip Light Lamp
- Stock: In Stock
- Model: EB0040128
- SKU: EB0040128
The rf touch dimmer,adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip.
Adopt full touch RF remote control.
5 function buttons and 1 dimming ring in the center, all buttons are in the touch form, and the dimming ring has 128 levels in different brightness value.
Particularly, there is a sense light in the remote control center. It shows the exactly light which was be touched.
As the led strip is the same brightness level. Further, there are 3 dynamic modes in the mode button, and the speed is adjustable.

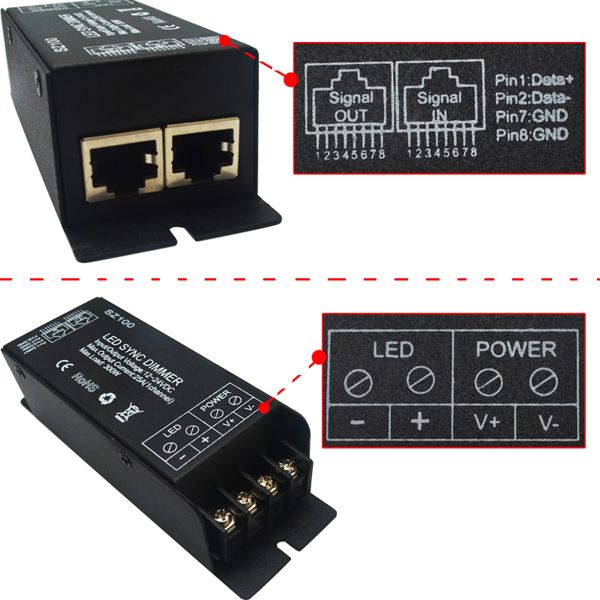

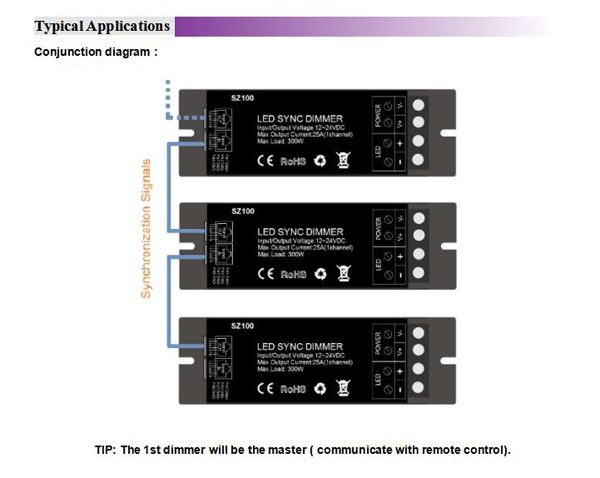

In order to achieve the market need, the synchronization work of more lamps, it is designed the conjunction-sync-work function with RJ45 connecter, user-friendly.
Specification:

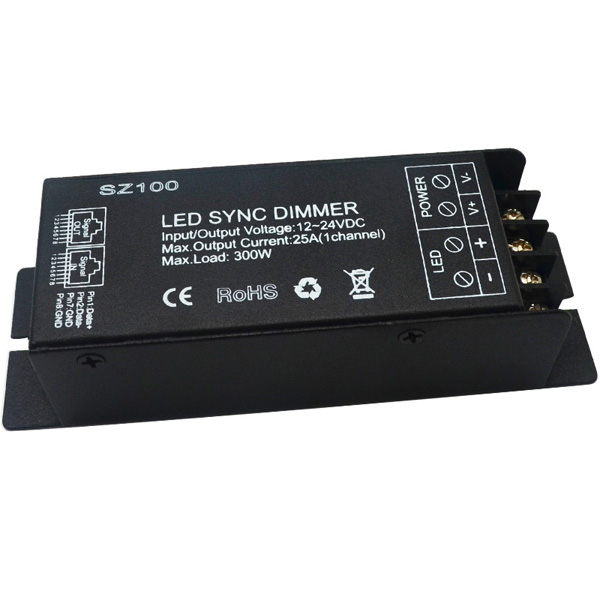

LED controller
Working voltage:DC12-24V
Working temperature:-20-60℃
Output power:12V≤300W, 24V≤600W
Output current:≤ 25A*1channel
Connecting mode:common anode
Output gray:256 levels
Frequency:433.9MHz
Controller size:L127*W41*H32mm

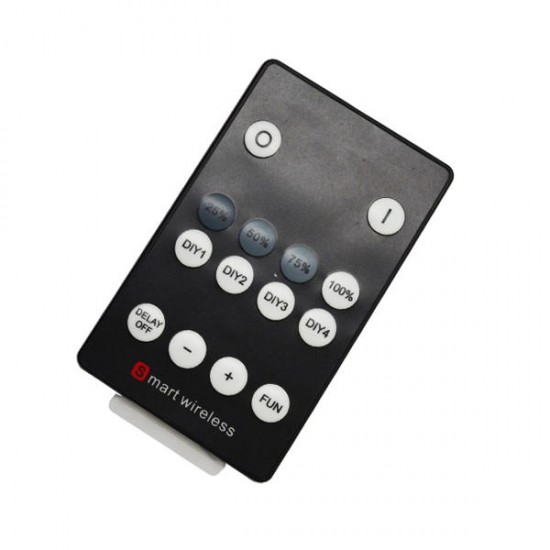

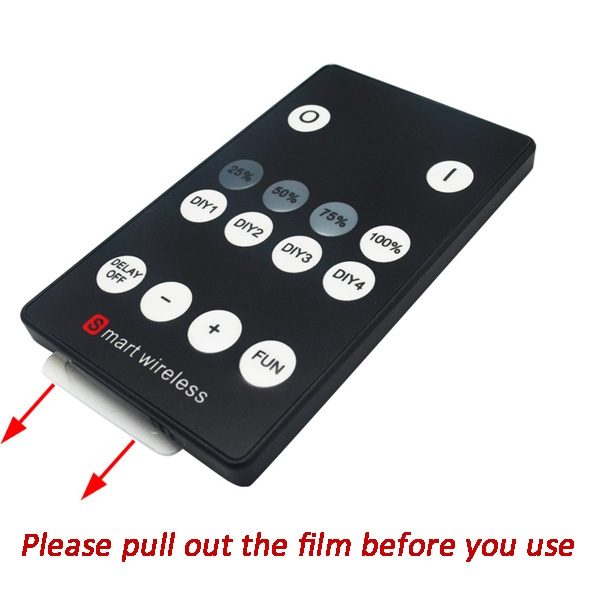

Remote controller
Working voltage:DC12-24V
Working temperature:-20-60℃
DIY range:brightness 3%-100%
Memory function:yes
Remote controller size:L91*W88*H24 mm
Why lamp does not light after power:
(A)Power cord is not properly connected, or there is not output switching power supply.
Connect the power cord properly or replay the power.
(B)Lamp power cord is not connected or short circuit.
Connect lighting power cord.
Package Included:
1 X LED Controller
1 X Romote Controller
1 X English User Manual
