OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel

OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
OSCH02 USB PC Virtual Digital Oscilloscope 100MHz Bandwidth 1GSa/s Sampling Rate Logic Analyzer 2 Channel
$199.99
Ex Tax: $199.99
  • Stock: In Stock
  • Model: EB004630
  • SKU: EB004630

>>Please Click Here to Download the English User Manual<<


Features:

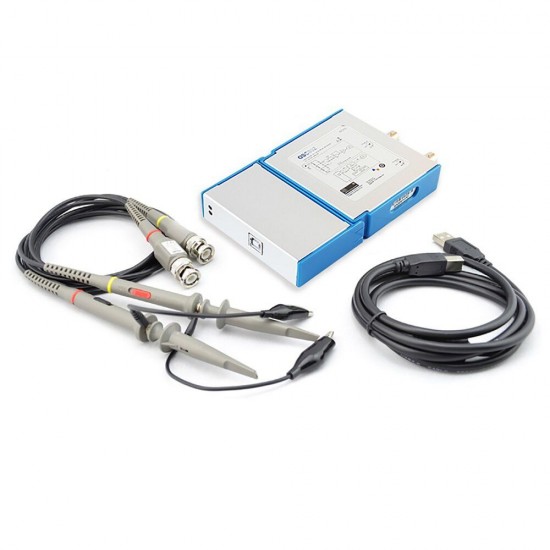

Hand-held portable, 153(L) x 93(W) x 30(H) mm
1G/250M Maximum sampling rate, 100M bandwidth,2 channels.
8 Bit ~ 13 Bit vertical resolution.
Open source hardware interface to support expansion modules.
USB 2.0 interface, USB powered.Comes with PWM output.
72 hours long time data logger.

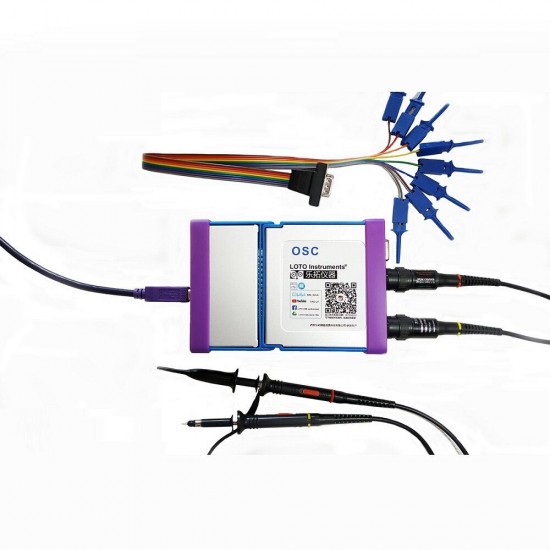

Optional logic analyzer, Signal generator,and isolated differential input   support module.

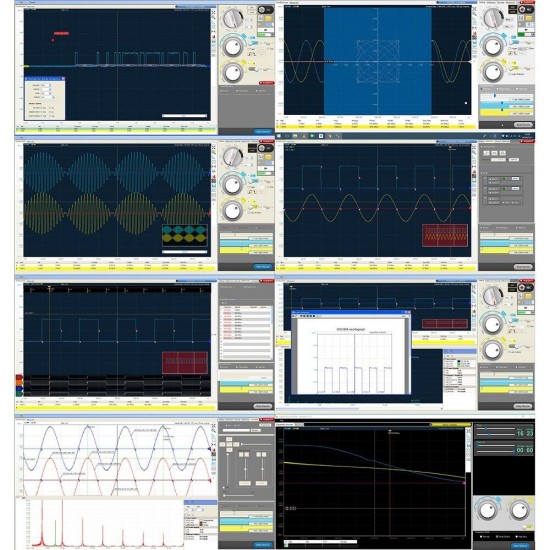

Waveform recording and playback review.
Support waveform image import as the comparison reference for real-time waveform.
Support Serial bus decoding (RS-232,RS-485/422, I²C, CAN,SPI).
Supports a variety of current clamps and other physical volume custom probes.

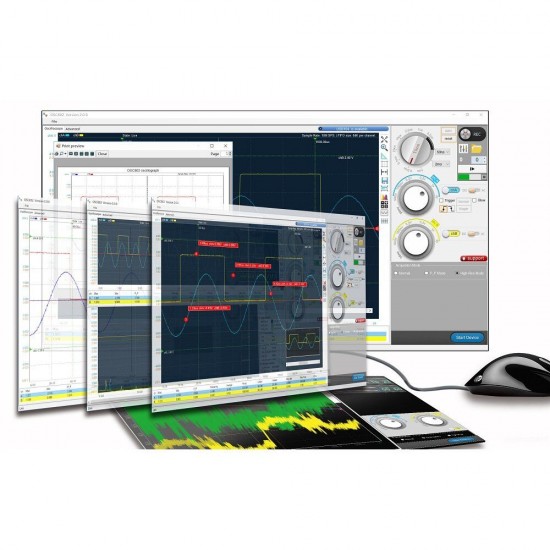

Support buffer waveform preview and mouse wheel operations.
Historical change trend statistics and analysis functions.
Pass / Fail detection.
Support spectrum analysis and frequency response curve mapping.
Support FIR Digital Filtering function.

Application:
General-purpose and precision testing.
Embedded in industrial testing equipment for use.
Embedded electronics courses for the educational market.
Ripple and noise measurements for power supply characterization.
Multi-sensor systems and Serial bus decoding.
Car inspection and maintenance.
Current/Voltage recording and analysis System for Solar Power Supply and Lighting System.
Diagnosis device for field engineers.
Basic equipment for DIY makers to develop their own modules.

Specifications:


 Connector type :

2 channels with BNC sockets20 mm spacing.

 Vertical resolution:

8 Bit ~ 13 Bit .

 Maximum sampling rate (S/s):

250M (real time), 1G (equivalent)

 Bandwidth ( −3 dB):

100MHz

 Input coupling:

AC/DC.

 Input characteristics:

1MΩ || 25pF.

 PC OS requirements:

Windows XP, Win 7, Win 8.1, Win10 (32 bit and 64 bit).

 Over-voltage protection:

±60.0v (x1)±600.0v (x10). (DC + AC peak)

 Triggering type:

Rising/falling edge according to trigger levelPulse width trigger.

 Triggering mode:

Noneauto, normal, single.

 Pre-trigger capture:

1%~99% of capture size.

 Automatic measurements:

Maximum, minimum, average, RMS, frequency, period, positive pulse width, negative pulse width, duty cycle, rise time, peak-to-peak value.

 Frequency response mapping

Scanning the frequency, record the process frequency and magnification data, and draw the frequency response curve.



 Measurement statistical curve:

The historical trend of the automatically measured quantities can be plotted for statistics and analysis.

 Pass / Fail detection:

You can set the upper and lower limits of the measurement quantity, and perform Pass / Fail detection and fault alarm function on the measured signal.

 Deep measurement:

With this function, the waveform jump points are automatically numbered and marked, and the time difference between the two adjacent numbers is automatically displayed.

 Samples Interpolation:

Linear or sin(x)/x.

 FFT:

1024 ~ 16K points.

 FFT window function:

Rectangle, Hanning, Hamming, Blackman.

 Math:

A+B, A-B, AxB, X-Y.

 Acquisition Modes:

Normal mode / High Resolution mode / Peak detect mode.

 Waveform recording and playback:

File format :

*.oscxxx.

Record depth:

50 ~ 450 frames.

File size:

6 MB
