Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader

Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
Long Range RFID Card Reader 13.56MHZ/125KHZ Proximity Card Access Control Reader Wiegand34 IP65 Waterproof NFC Reader
$21.85
Ex Tax: $21.85
  • Stock: In Stock
  • Model: EB0025035
  • Dimensions: 116.00mm x 75.00mm x 17.30mm
  • SKU: EB0025035

Available Options

Features :

Proximity 125KHz /13.56MHz  Card Reader
Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
34bit Wiegand code output
External LED Control
External Buzzer Control
Indoor / Outdoor Operation
Solid Epoxy Potted
Waterproof IP65
Reverse Polarity Protection

Specification :

Read Range Up to 5 - 10CM
Reading Time (Card) <=300ms
Power / Current DC 6-14V / Max.70mA
Input Port 2ea (External LED Control, External Buzzer Control)
Output Format 34bit Wiegand (default)
LED Indicator 2 Color LED Indicators(Red and Green)
Beeper : Yes
Operating Temperature -20° to +65°C
Operating Humidity 10% to 90% relative humidity non-condensing
Color : Black
Material ABS+PC with texture
Dimension(W x H x T)mm : 116*75*17.3
Waterproof level : IP65

Package includeds :

1 x Long Range RFID Card Reader

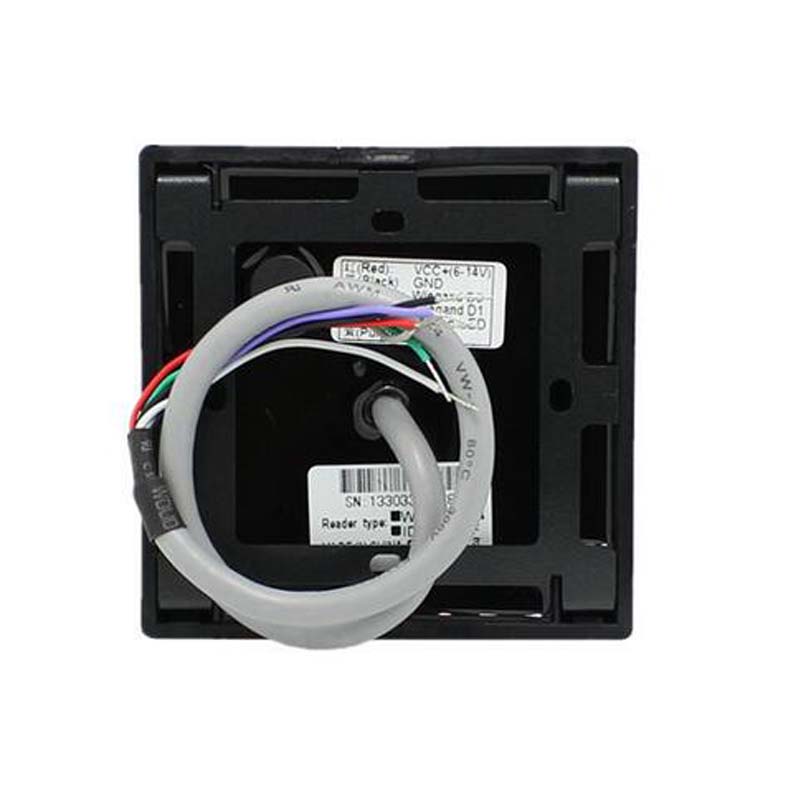

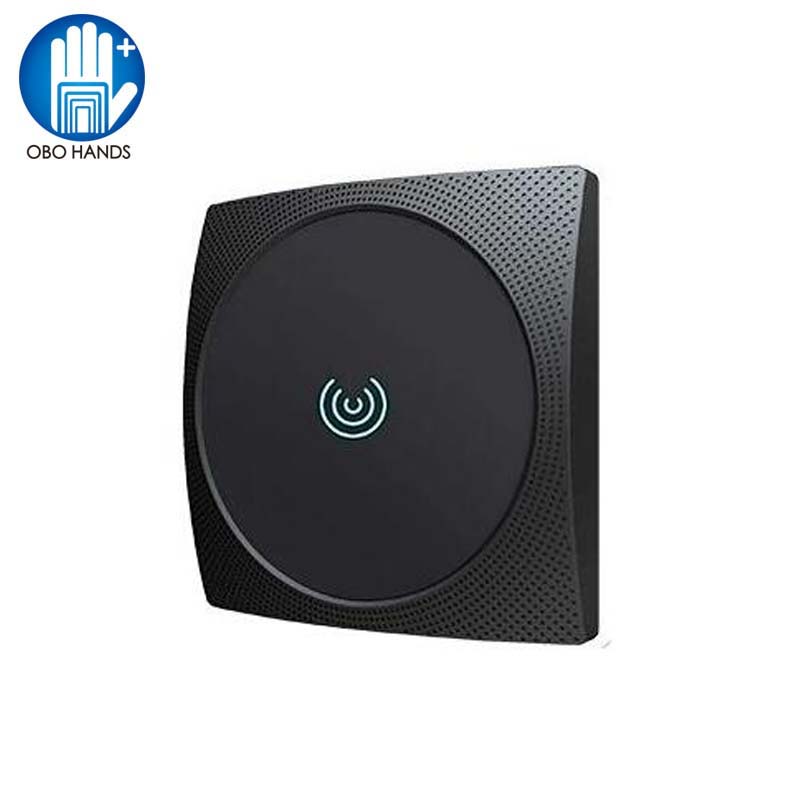

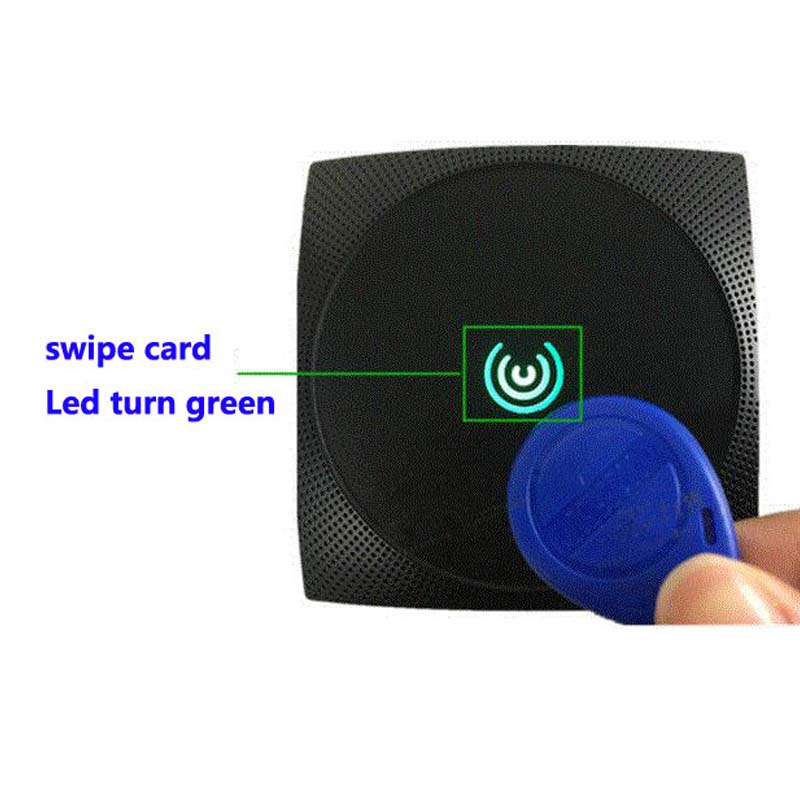

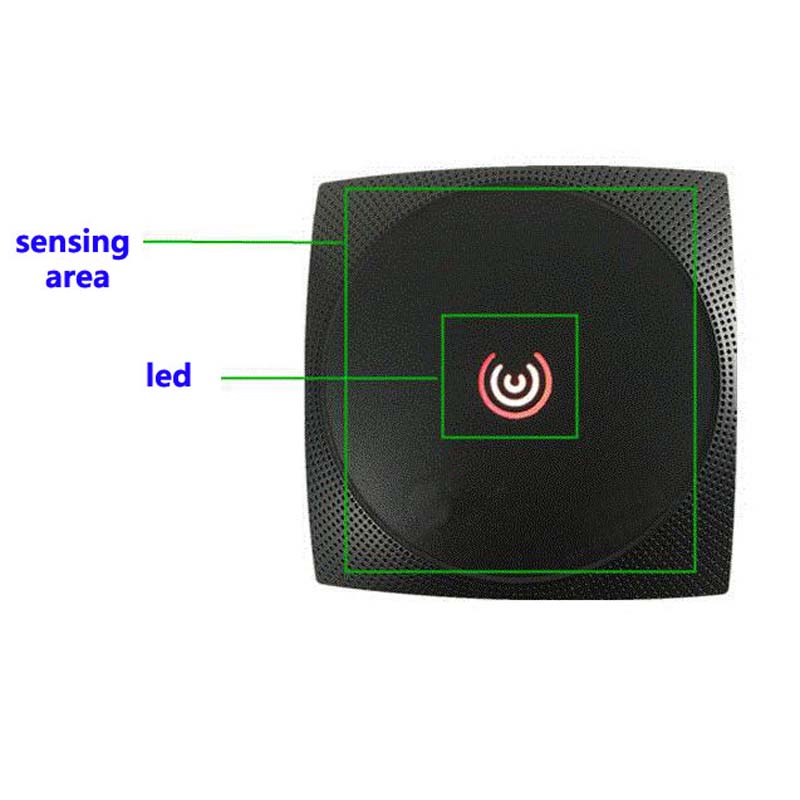

Details pictures :



Long-Range-RFID-Card-Reader-1356MHZ125KHZ-Proximity-Card-Access-Control-Reader-Wiegand34-IP65-Waterp-1534554
Long-Range-RFID-Card-Reader-1356MHZ125KHZ-Proximity-Card-Access-Control-Reader-Wiegand34-IP65-Waterp-1534554
Long-Range-RFID-Card-Reader-1356MHZ125KHZ-Proximity-Card-Access-Control-Reader-Wiegand34-IP65-Waterp-1534554
Long-Range-RFID-Card-Reader-1356MHZ125KHZ-Proximity-Card-Access-Control-Reader-Wiegand34-IP65-Waterp-1534554
