MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector

MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
MC4Y-B2 Solar Panel 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector
$8.68
Ex Tax: $8.68
  • Stock: In Stock
  • Model: EB000346
  • SKU: EB000346
Description:

MC4Y-B2 Solar Panel Y Type 1 to 2 MC4 Connectors M-FF and F-MM Branch Cable MC4 Solar Panel Connector

Features:

For connecting solar panels.
Compatible with MC4 connector.
Sturdy and durable.
Cable length: 32cm
Working current: 20A(4mm²), 30A(6mm²)
Withstand voltage: DC1000V
Contacting resistance: <2 m
Insulation resistance: > 500M
Suitable single core cable section: 2.5mm², 4mm², 6mm²
Cable outer diameter: 5mm - 7mm
Ambient temperature: -40~ + 105℃
Protection class: IP67
Safety class: II
Shell material: PPO
Contacting material: Copper, tin plated
Terminal connecting method: Pressure Welding

Package included:

1 x MC4Y-B2  MC4 Solar Panel Connector

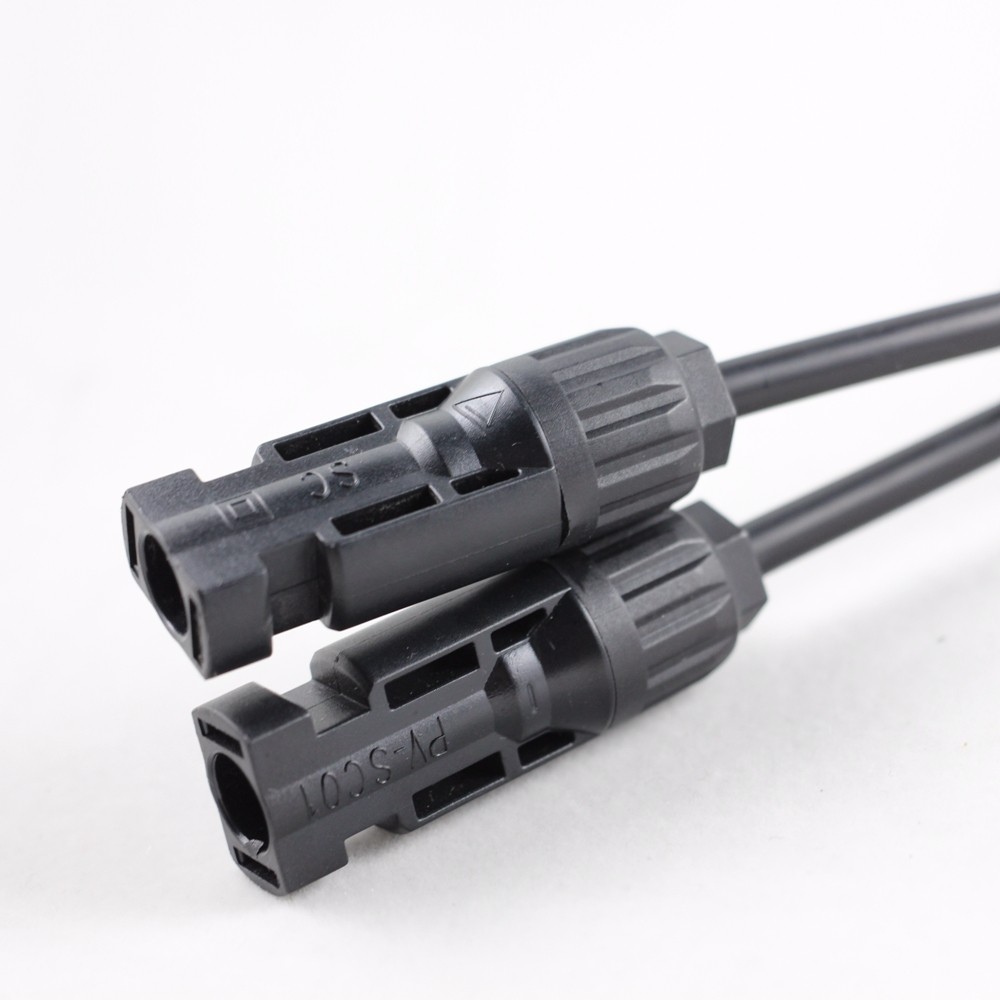

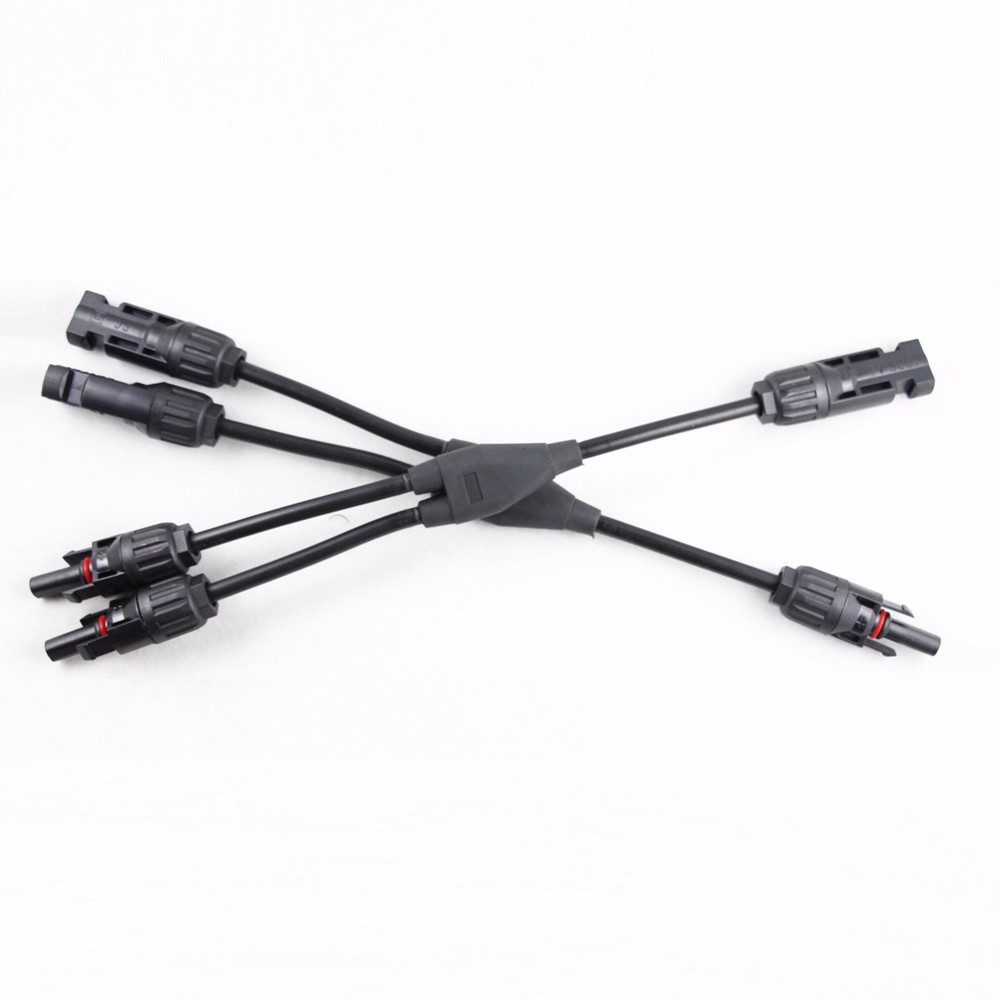

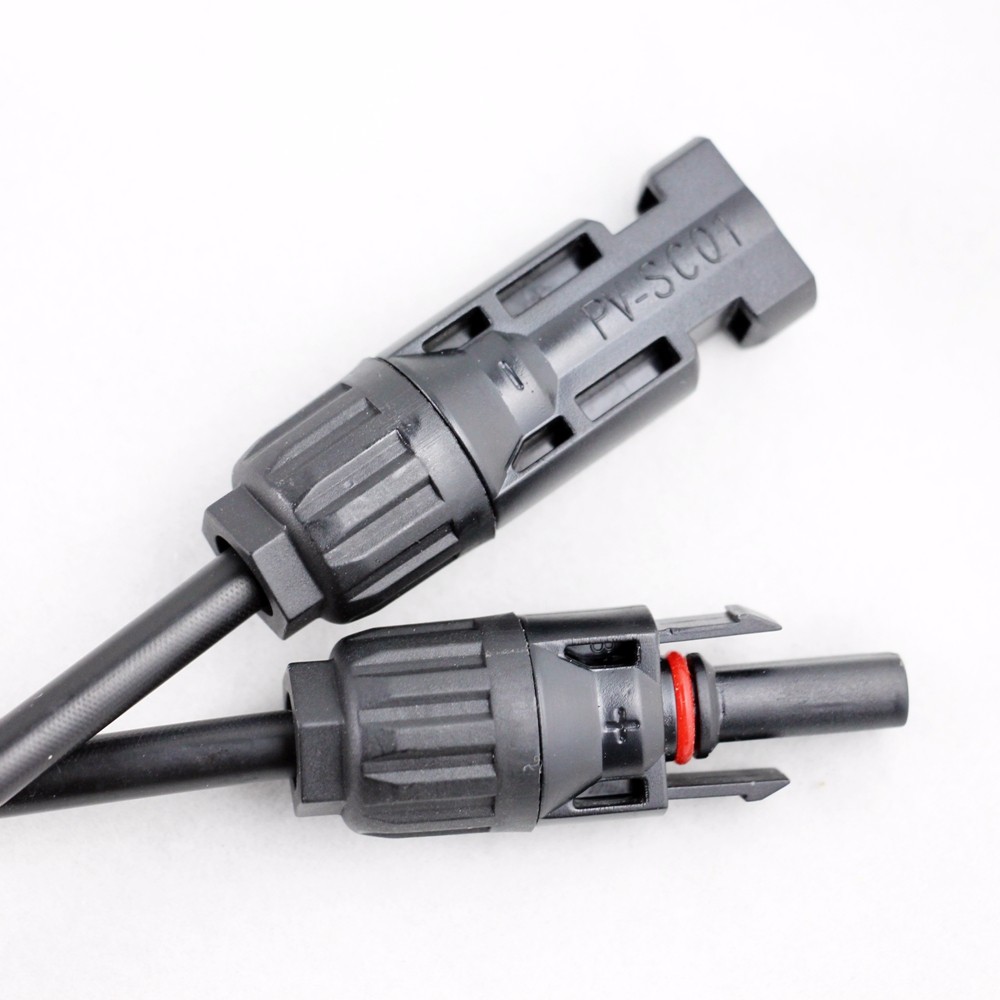

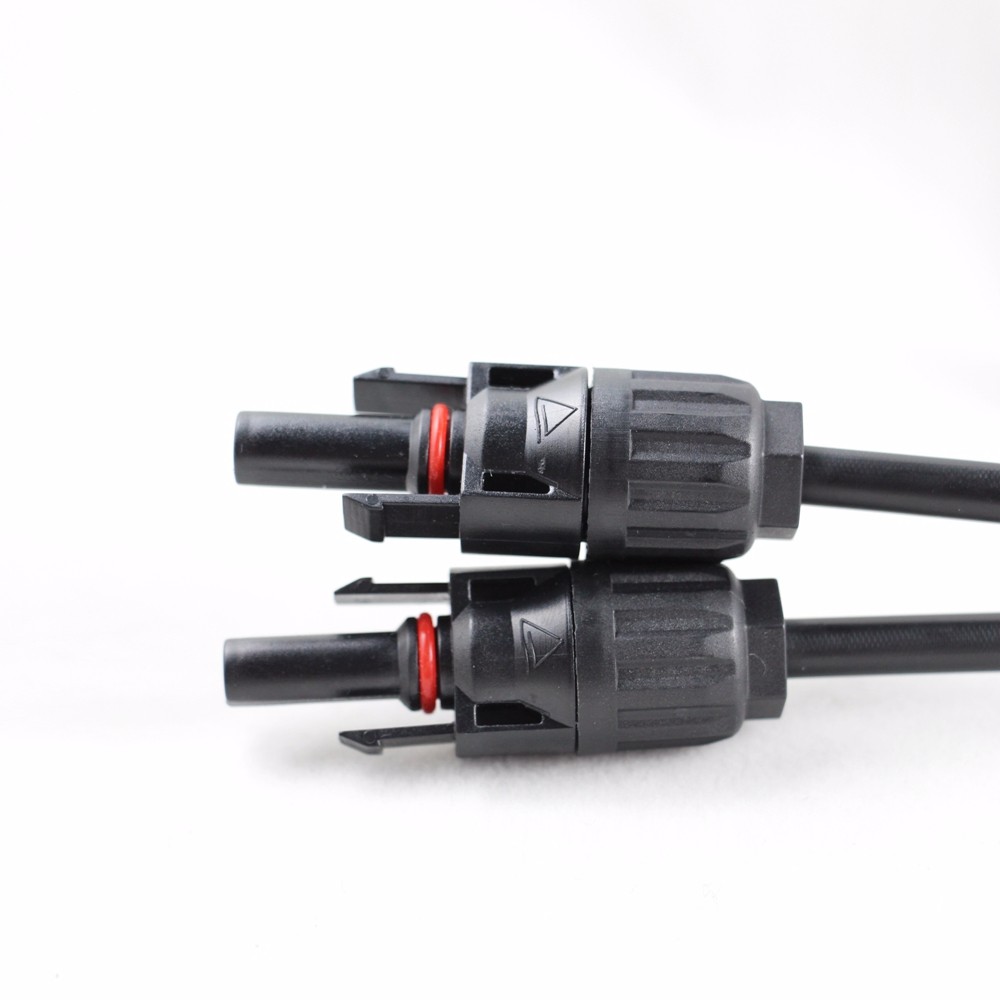

Details pictures:

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106

MC4Y-B2-Solar-Panel-1-to-2-MC4-Connectors-M-FF-and-F-MM-Branch-Cable-MC4-Solar-Panel-Connector-1053106
