ISDS205A 2CH 20MHz 48MSa/s Virtual PC USB Oscilloscope FFT Analyzer Data Logger
- Stock: In Stock
- Model: EB004585
- SKU: EB004585

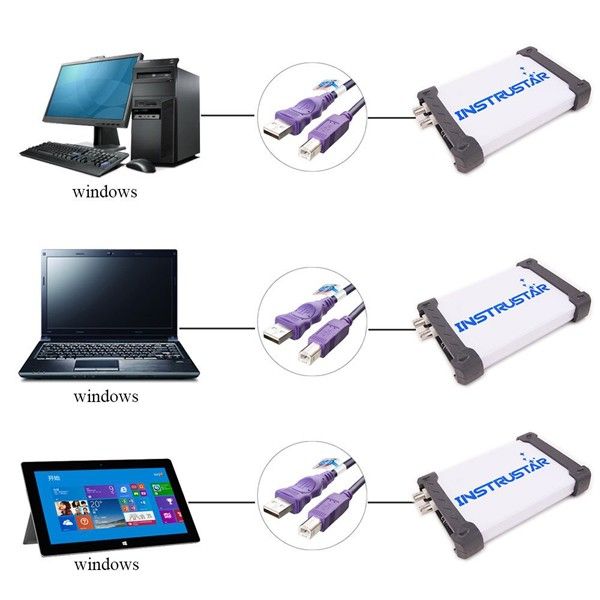

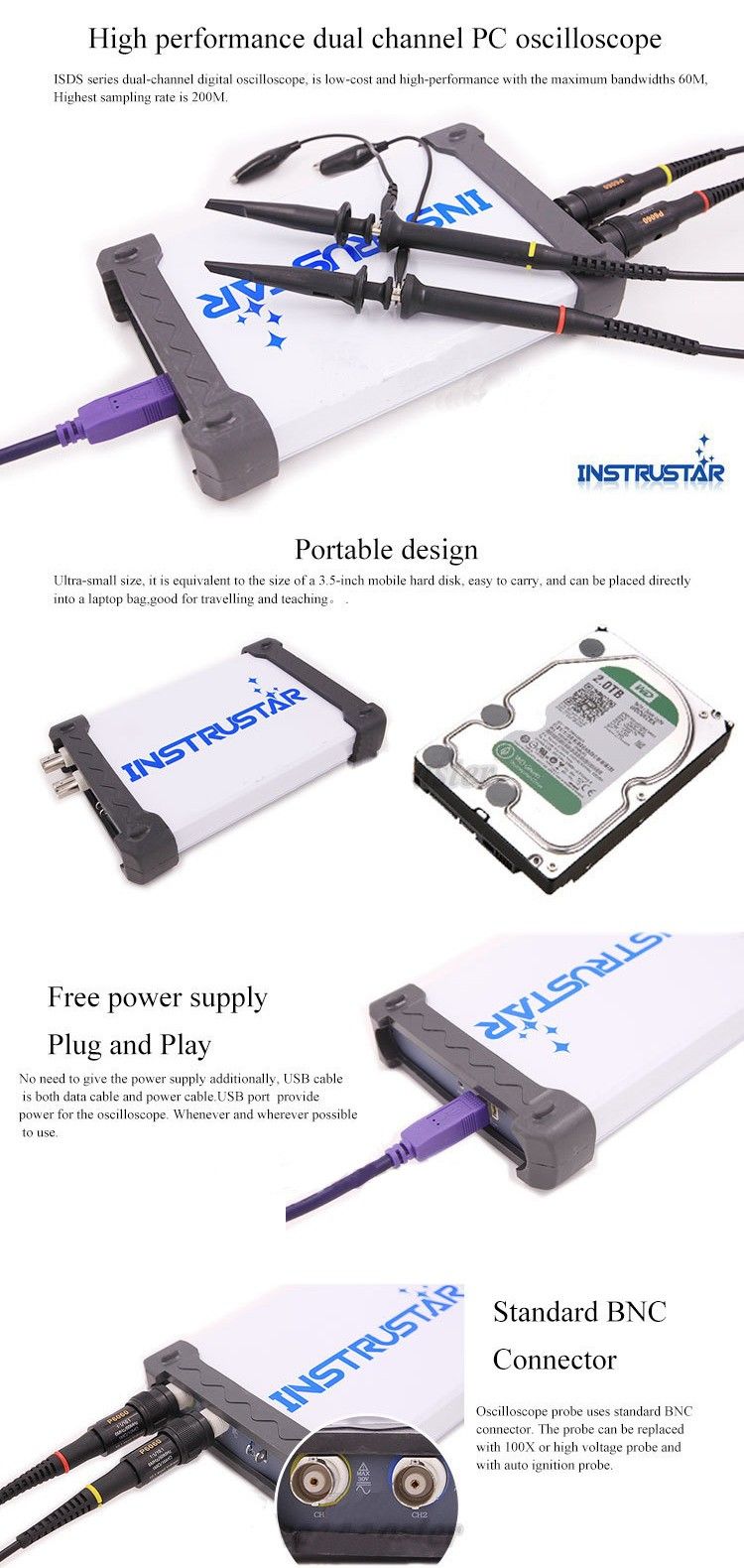

ISDS205A dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer, data recorder. The device communicate with the PC via high speed USB2.0.
It is suitable for Xp, Win7(32), Win7(64), Win8(32), Win8(64), Win10(32), Win10(64) .
Specification:
| Model | Digital oscilloscope | Spectrum analyzers | Data recorder |
| ISDS205A | √ | √ | √ |
| Digital oscilloscope | |
| Channels | 2 |
| Impedance | 1MΩ 25pF |
| Coupling | AC/DC |
| Vertical resolution | 8Bit |
| Gain range | -6V ~ 6V (probe X1) -60V ~ 60V (probe X10) |
| Vertical accuracy | ±3% |
| Timebase range | 1ns-20s |
| Input Protection | Diode, 50Vpk |
| Autoset | Yes(10Hz to 20MHz) |
| Trigger Mode | Auto, Normal and Signal |
| Trigger Type | No, Rising edge, Falling edge, Rising edge or Falling edge |
| Trigger level | Yes |
| Trigger Source | CH1, CH2 |
| Buffer Size | 1MB/CH |
| Bandwidth | 20MHz |
| Max sample | 48MS/s |
| Vertical mode | CH1, CH2, ADD, SUB, MUL |
| Display Mode | X, Y-T & X-Y |
| measurements | Yes |
| Wave save | Osc(Private), Excel and Bmp |
| Spectrum analyzers | ||
| Channels | 2 | |
| Bandwidth | 20MHz | |
| Algorithm | FFT(18 windows), correlation, power spectrum | |
| FFT points | 8-1048576/CHN | |
| FFT measure | Harmonic(1-7), SNR, SINAD, ENOB, THD, SFDR | |
| Filter processing | FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design | |

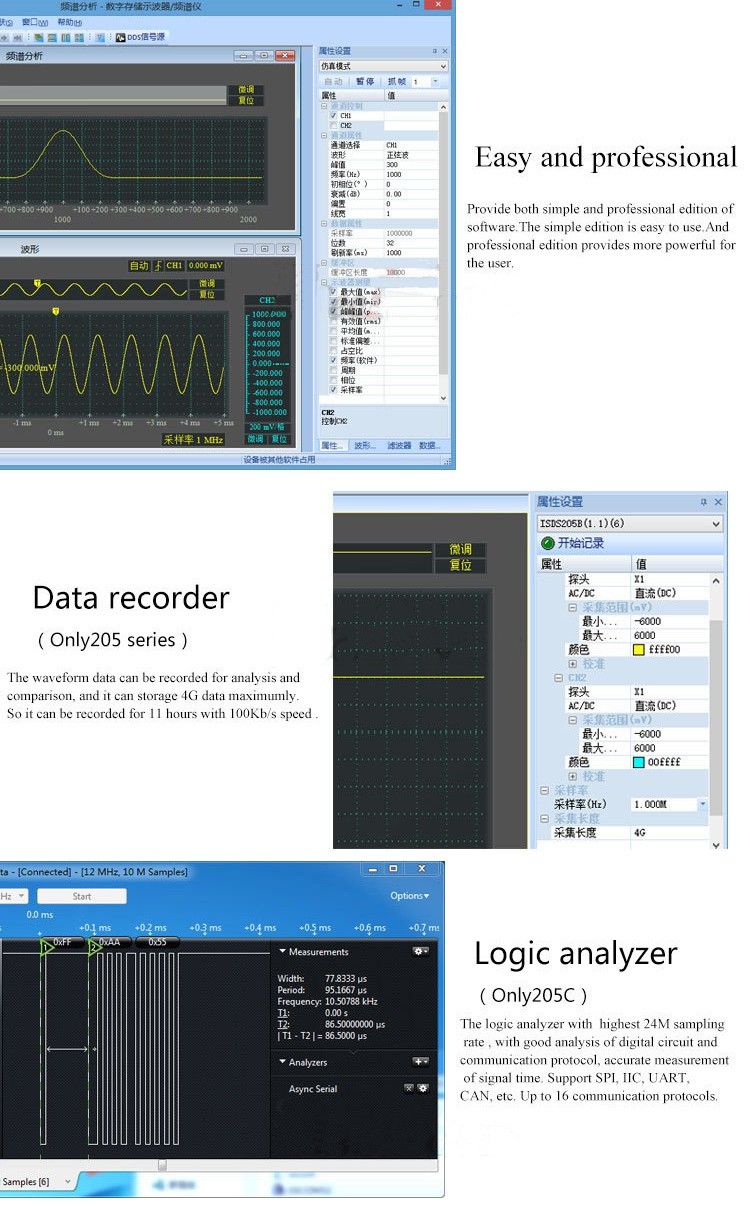

| Data recorder | |
| Channel | 2 |
| Impedance | 1MΩ 25pF |
| Coupling | AC/DC |
| Vertical resolution | 8Bit |
| Gain range | -6V ~ 6V (probe X1) -60V ~ 60V (probe X10) |
| Sample | 1 channel : 1K~24M Hz 2 channel : 1K~16M Hz |
| Save File | The maximum 4G, recording time associated with the sampling rate |
►English User Manual

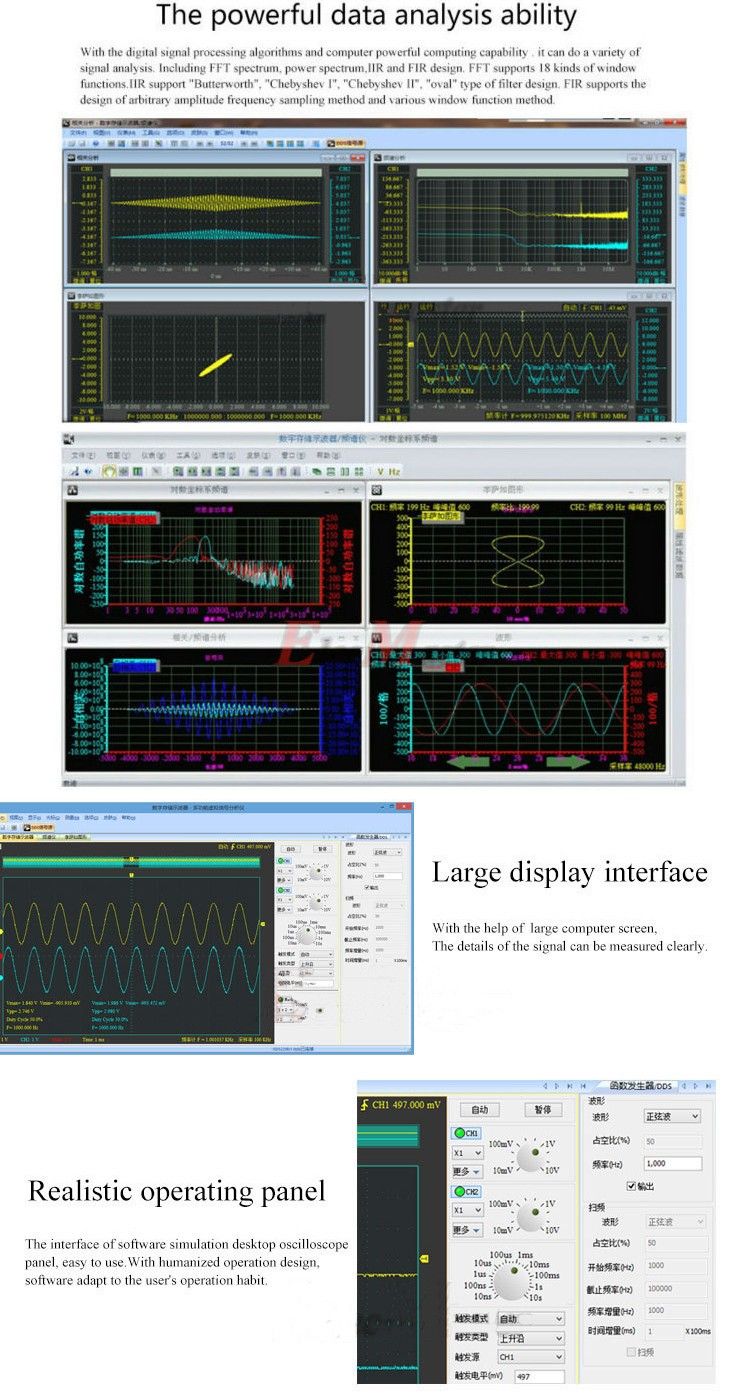

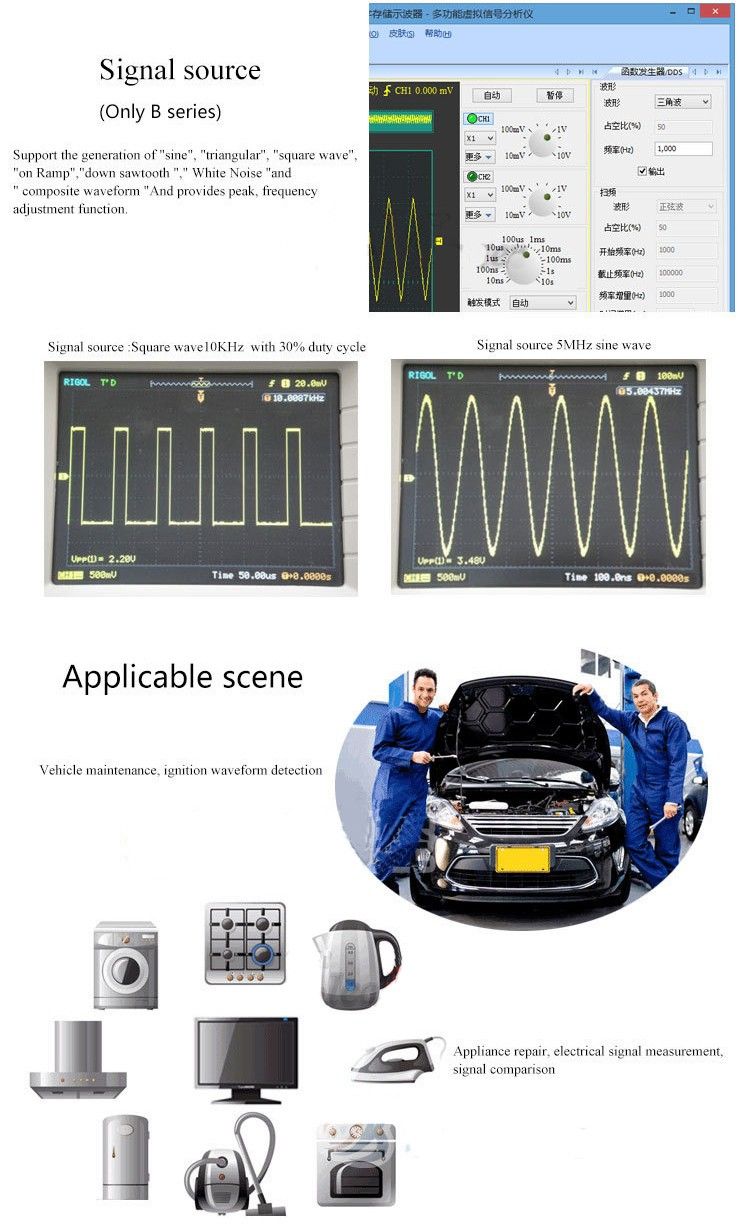

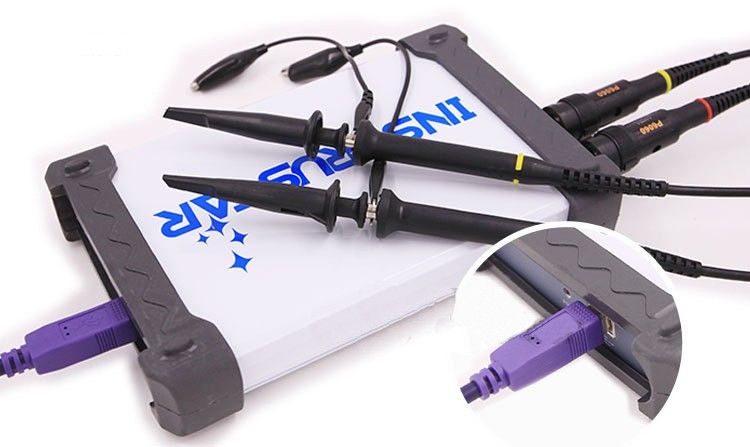

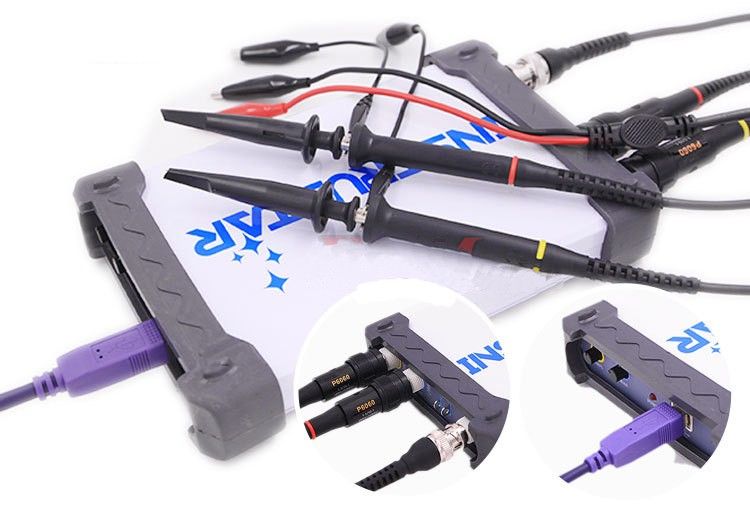

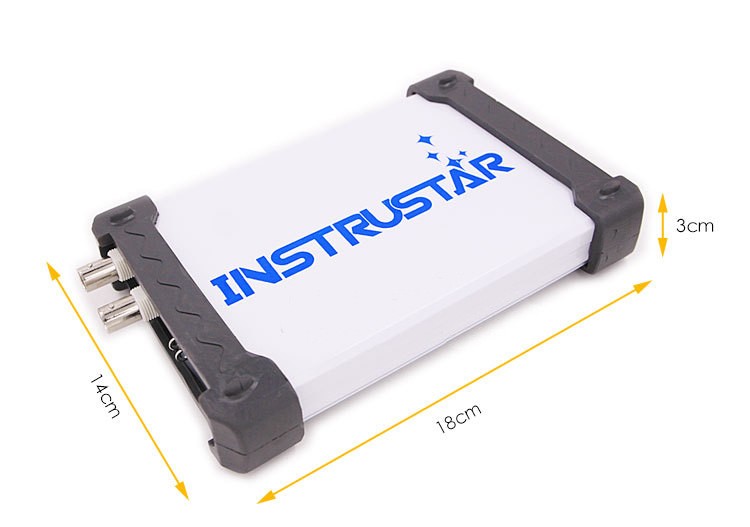

Details pictures:
,
,
,
,
,
,
,
,
