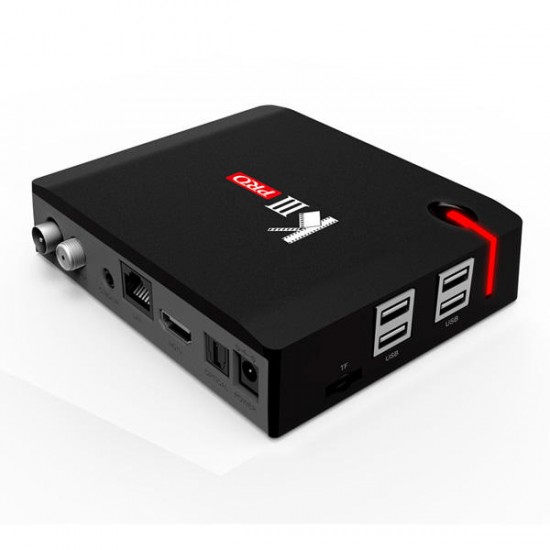

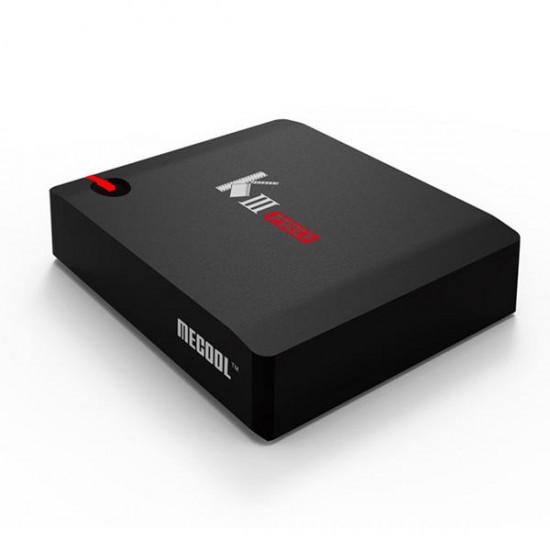

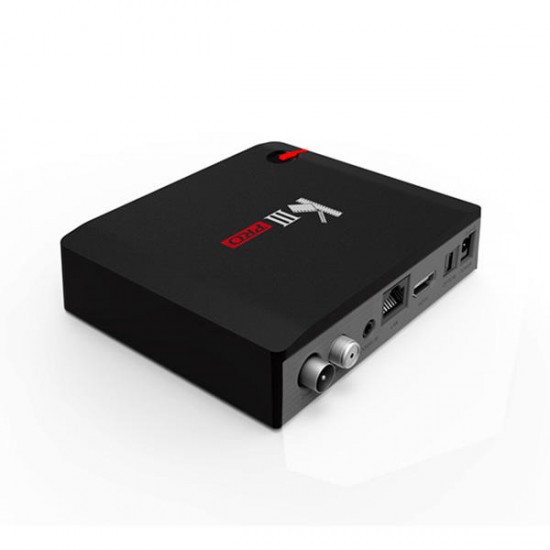

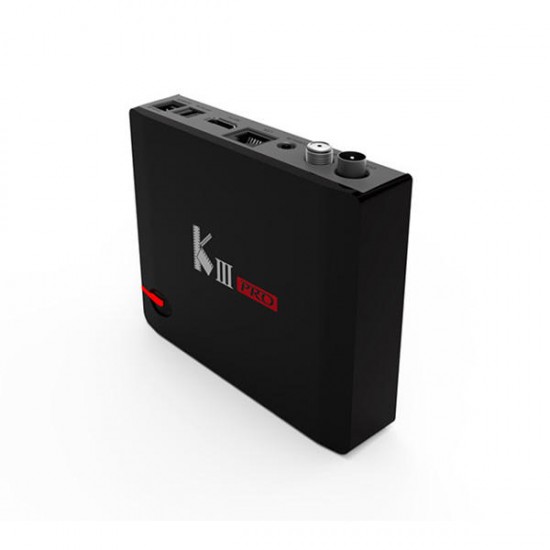

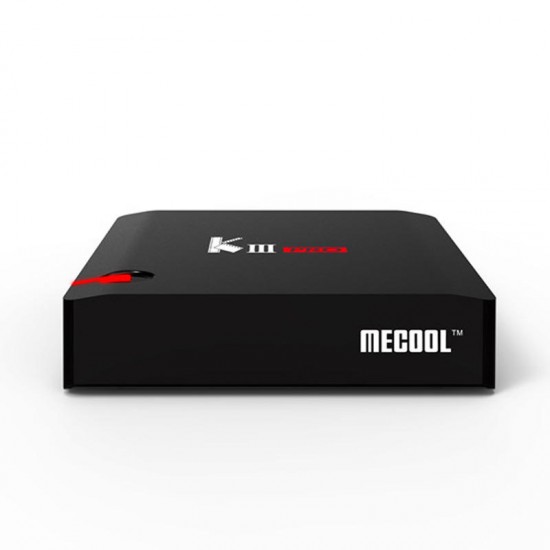

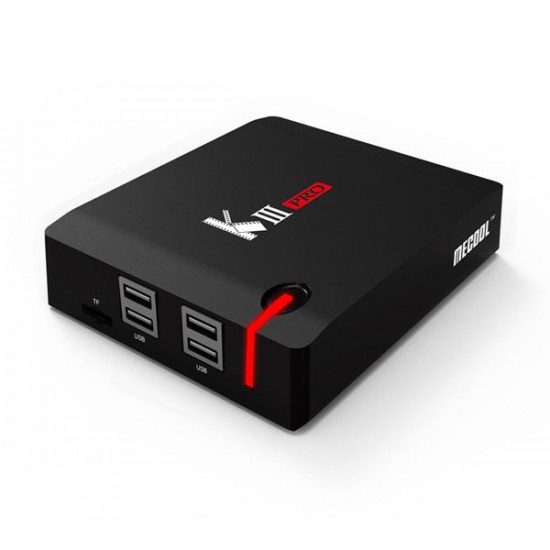

KIII Pro Amlogic S912 3GB RAM 16GB ROM DVB-T2 DVB-S2 CCcam Newcam Biss Key TV Box
- Stock: Out Of Stock
- Model: EB0018060
- SKU: EB0018060
MECOOL KIII Pro Amlogic S912 Octa Core 3GB DDR3 RAM 16GB ROM DVB-T2 DVB-S2 CCcam Newcam Biss Key Android 6.0 2.4G 5.0G WiFi 1000M Gigabit LAN 4Kx2K 60fps bluetooth 4.0 HDR10 H.265 HEVC VP9 Android TV Box Mini PC
Features:
| Hardware Specifications | |
| CPU | Amlogic S912 64 bit Octa core ARM Cortex-A53 CPU up to 2 GHz |
| GPU | ARM Mali-T820MP3 GPU up to 750MHz (DVFS) |
| RAM | 3GB DDR3 |
| ROM | 16GB EMMC Flash |
| WiFi | Built in 2.4G/5G WiFi Support IEEE 802.11 a/b/g/n/ac |
| Blutooth | bluetooth 4.0 |
| LAN Ethernet | 10/100M/1000M |
| Main Features | |
| OS | Android 6.0 marshmallow |
| DVB-S2 | DVB-S2 system standard: ETS 302 307 |
| Symbol Rates: QPSK, 8PSK | |
| Forward error correction rate 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | |
| Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | |
| Symbol Rates: 1- 55 Msps | |
| Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 | |
| Input Signal level: -84 dBm to 0 dBm (average power) | |
| ANT. Connector:IEC TYPE F | |
| DVB-T2 | DVB-T2 system standard: ETSIEN 302 755 |
| Support MPLP | |
| Demodulation: QPSK, 16QAM, 64QAM or 256QAM | |
| Forward error correction rate 1/2, 2/3, 3/4, 3/5, 5/6 | |
| Guard interval :1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 | |
| Bandwith: 6/7/8MHz | |
| Input Frange range:54--860MHz Input Impedance:75 Ω | |
| Input Signal level: -84 dBm to 0 dBm (average power) | |
| ANT. Connector:IEC TYPE, female | |
| Video decorder | H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps |
| Video encorder | H.264 1080P @60fps |
| HDR | HDR 10, HLG HDR |
| Decoder format | HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6 , RealVideo8/9/10 |
| Media format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Music format | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
| Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
| Network Function | Miracast, , Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc. |
| Language | Chinese, English , Germany , Japanese, Korea etc. 24 languages |
| OTA | Support OTA update |

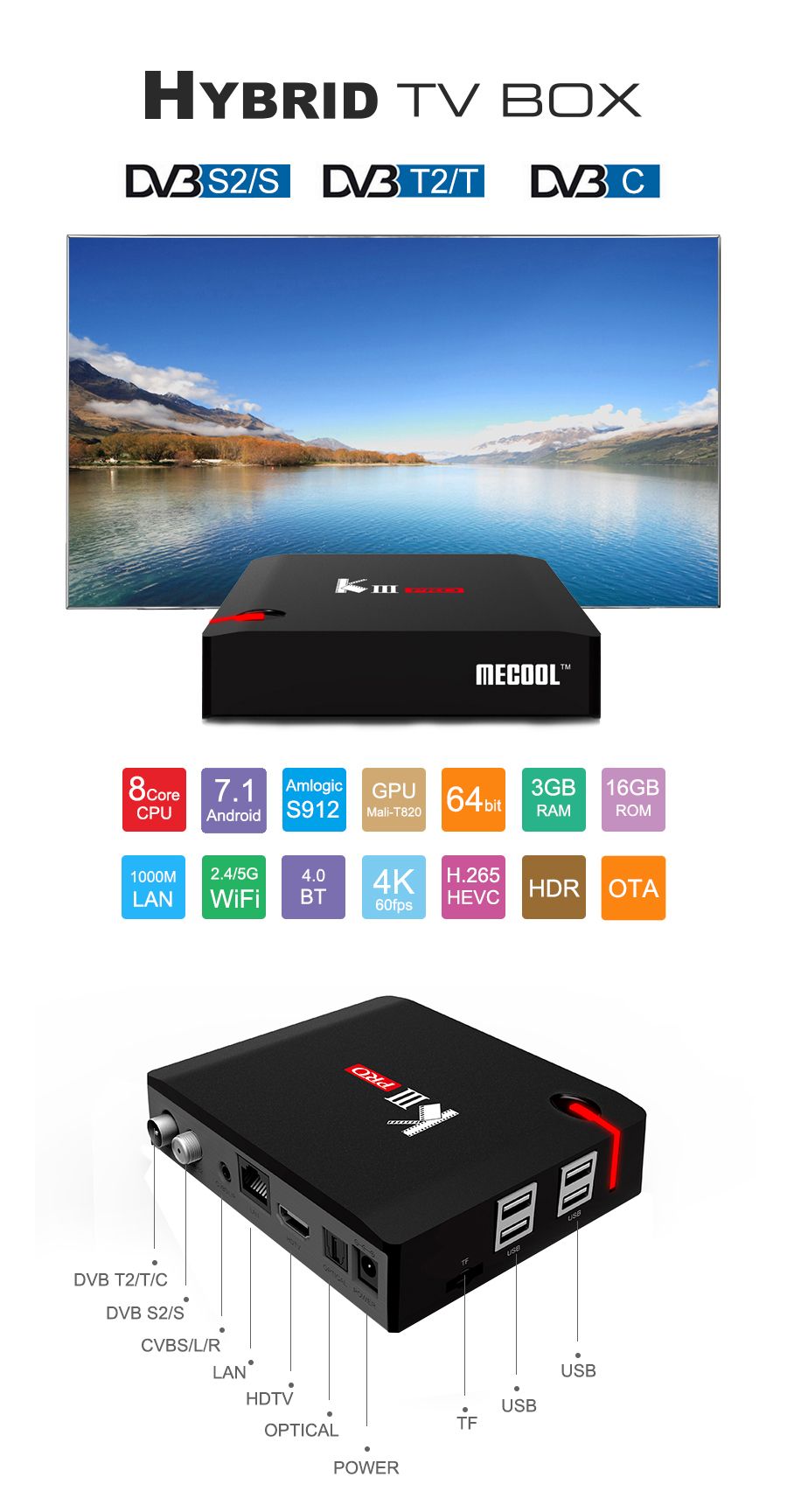

| Port Specifications | |
| I/O | 1 x HD output 2.0 4K*2K @ 60Hz |
| 2 x High speed USB 2.0, support U DISK and USB HDD | |
| 1 x TF CARD Support 1~32GB | |
| 1 x 3.5 Phone out CVBS&L/R output | |
| 1 x SPDIF output | |
| 1 x RJ45 LAN Ethernet 10M/100M/1000M | |
| Power Supply | DC 12V/1A |
| LED Indicator | Power ON :blue; Standby :Red |
How to install TV Center:
Package Included:
1 x Mecool KIII Pro S912 3G/16G DVB-T2/S2 CCcam Newcam Biss Key TV Box
1 x HDMI Cable
1 x Remote Control
1 x Power Adapter
1 x User Manual
