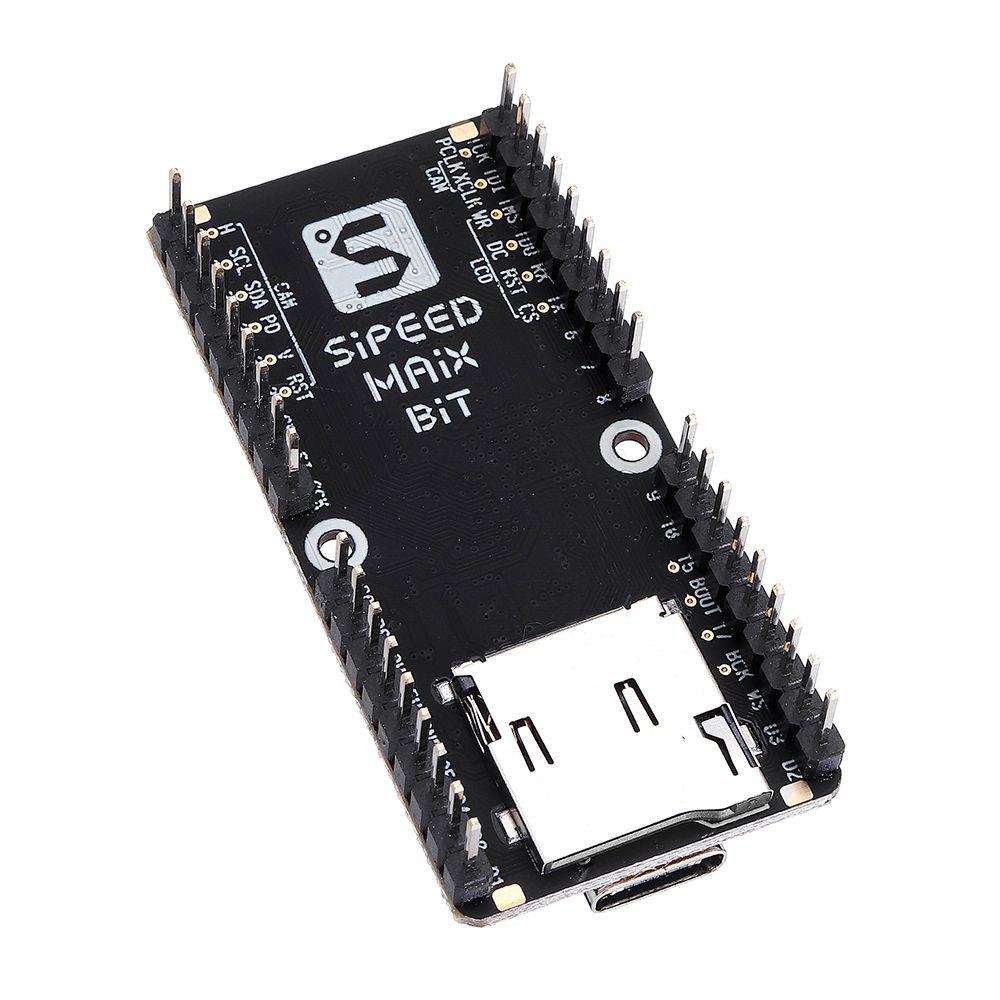

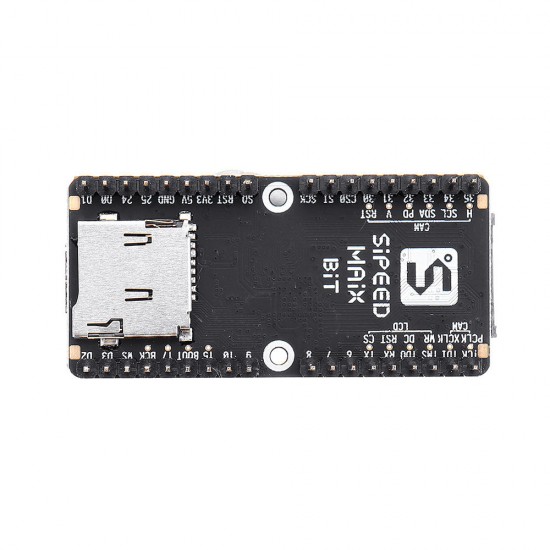

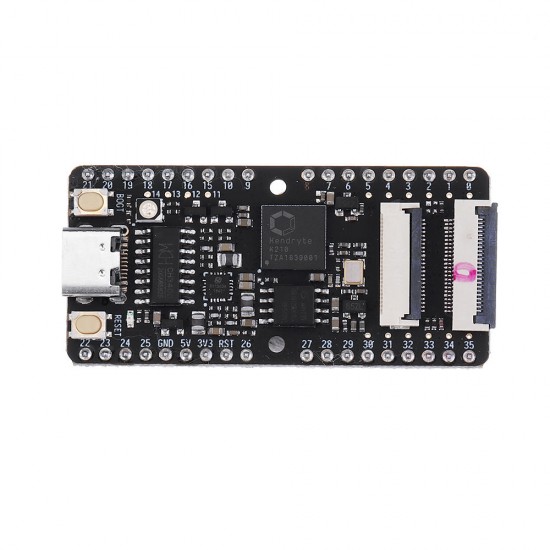

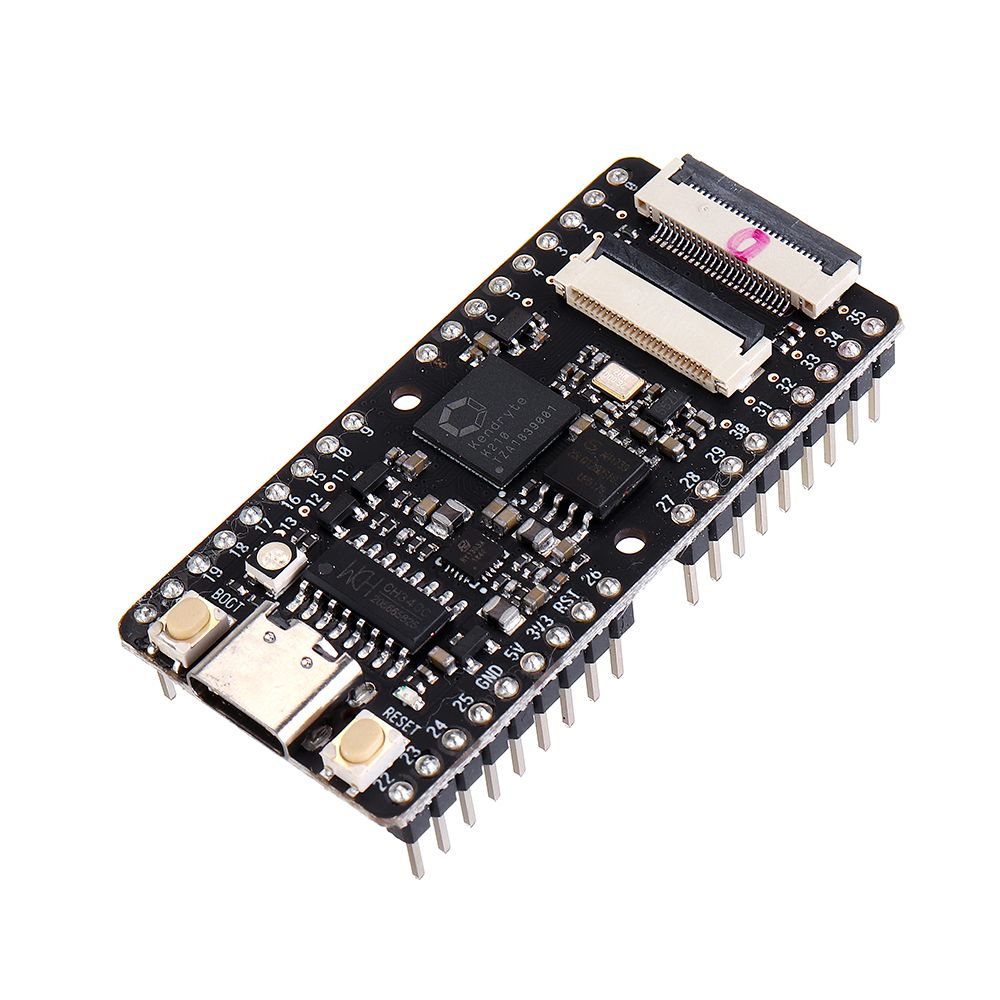

Maix-BIT RISC-V Dual Core 64bit CPU Development Board Mini PC + Large Lens + Display Screen Kit
- Stock: In Stock
- Model: EB0049489
- SKU: EB0049489
· CPU : RISC-V Dual Core 64bit, with FPU, 400Mhzstandard Frequence(Can be overclocked)
· 24P DVP connector

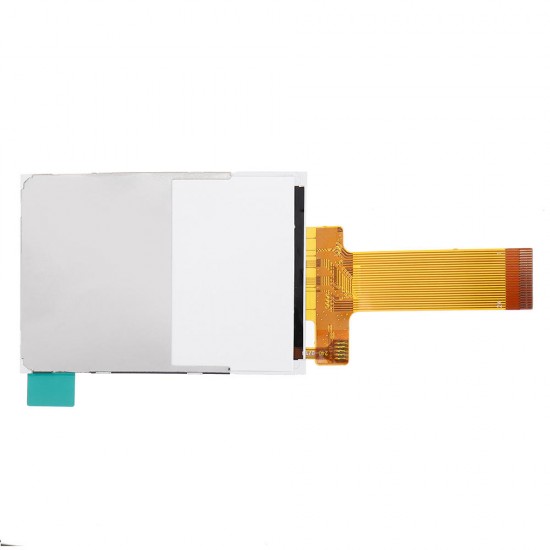

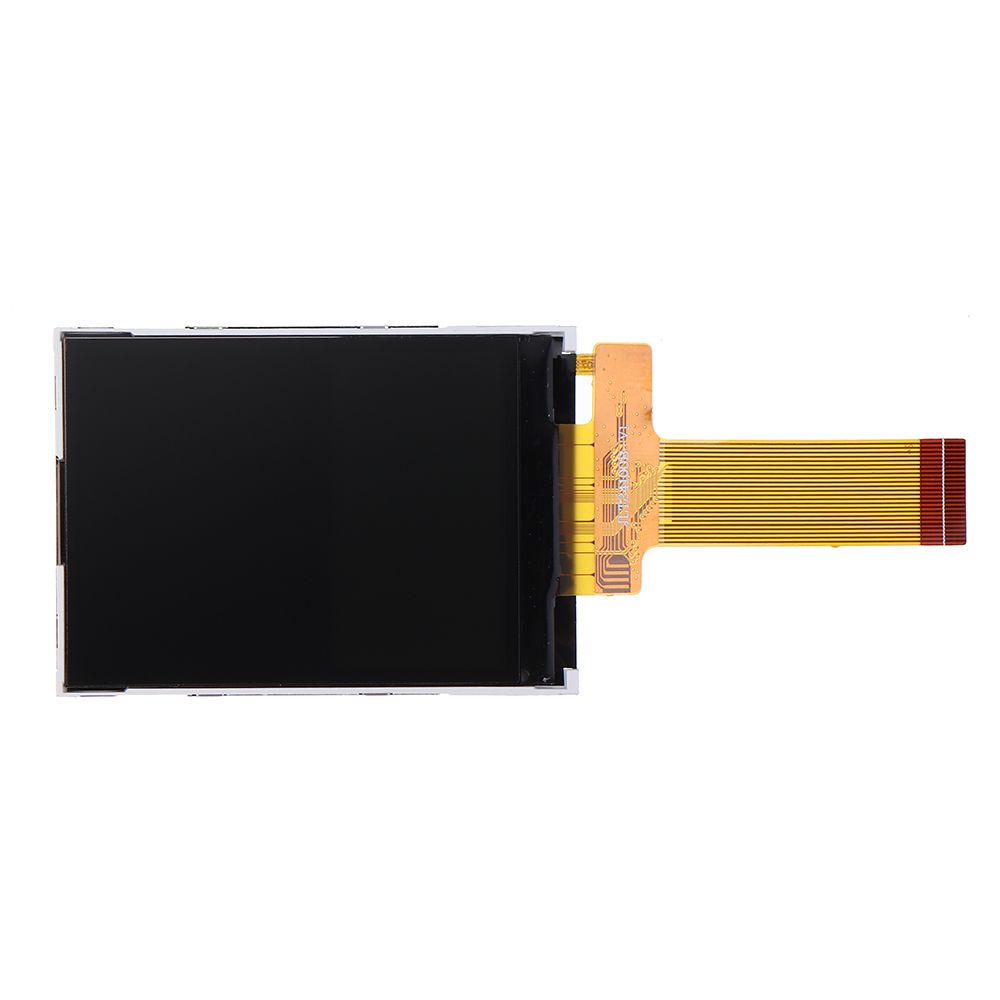

· 24P 8bit MCU LCD connector
· Compact size: 53.3*25.4mm. Can be connected to the breadboard directly
· Power IC: Provide 3.3V and 1.8V to developers
· Download circuit: Just connect the USB typeC cable to complete the download
· Onboard component: RGB LED RST button and USR button MicroSD card(TF card) slot
|
FEATURES OVERVIEW
|
|
| CPU: RISC-V Dual Core 64bit, 400Mh adjustable | Powerful dual-core 64-bit open architecture-based processor with rich community resources |
| Debugging Renhotec | High-speed UART and JTAG interface for debugging |
| GPIO interface | All GPIOs connected to header 2*20 2.54mm |
| Micro SD card (TF card) slot | Support Self-elastic card holder |
| One-click Download circuit |
Just connect the USB typeC cable to complete the download Onborad CH340, which support 2Mbps baudrate |

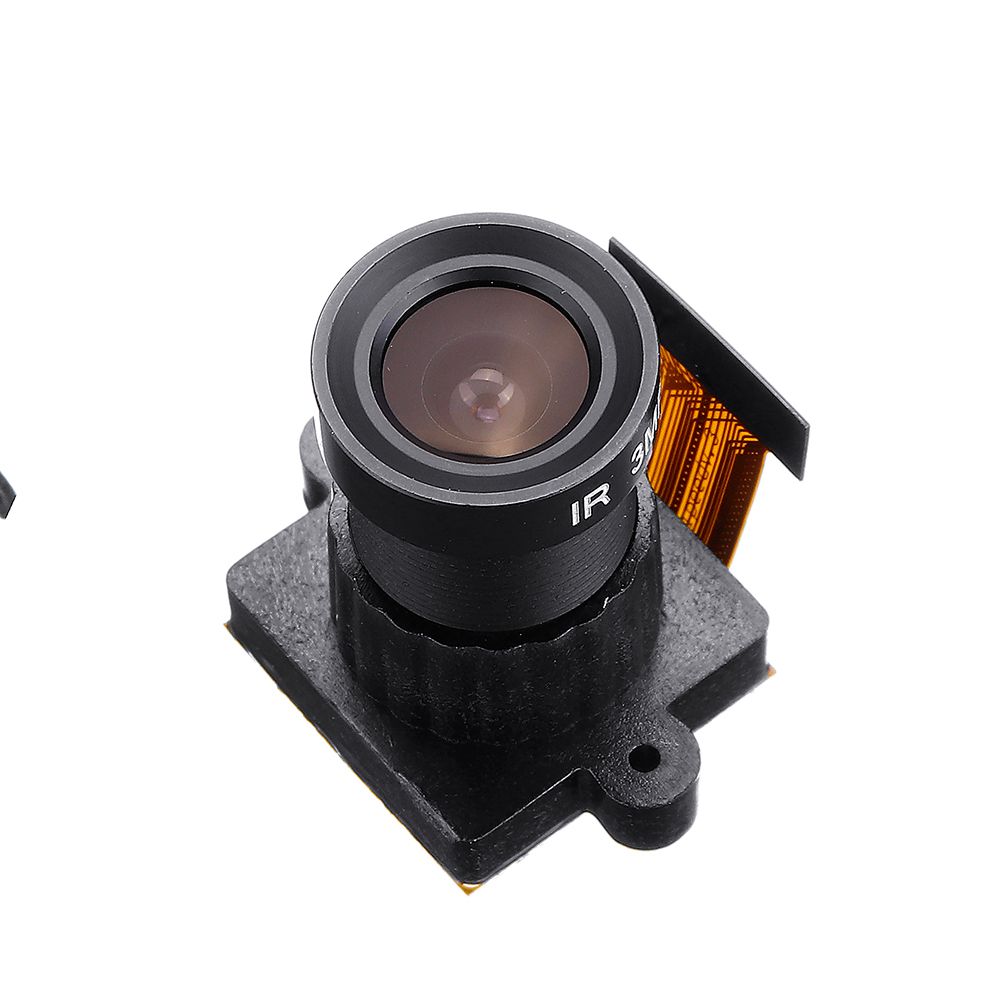

| DVP Camera connector | 24P 0.5mm FPC connector |
| LCD connector | 8bit MCU LCD 24P 0.5mm FPC connector |
| Button | RST button and USR button |
|
SOFTWARE FEATURES
|
|
| FreeRtos & Standard SDK | Support FreeRtos and Standrad development kit |
| MicroPython Renhotec | Support MicroPython on M1 |
| Machine vision | Machine vision based on convolutional neural network |
| Machine hearing | High performance microphone array processor |
|
HARDWARE FEATURES
|
|
| Supply voltage of external power supply | 4.8V ~ 5.2V |
| Supply current of external power supply | >600mA |
| Temperature rise | <30K |
| Range of working temperature | -30℃ ~ 85℃ |
Package included:

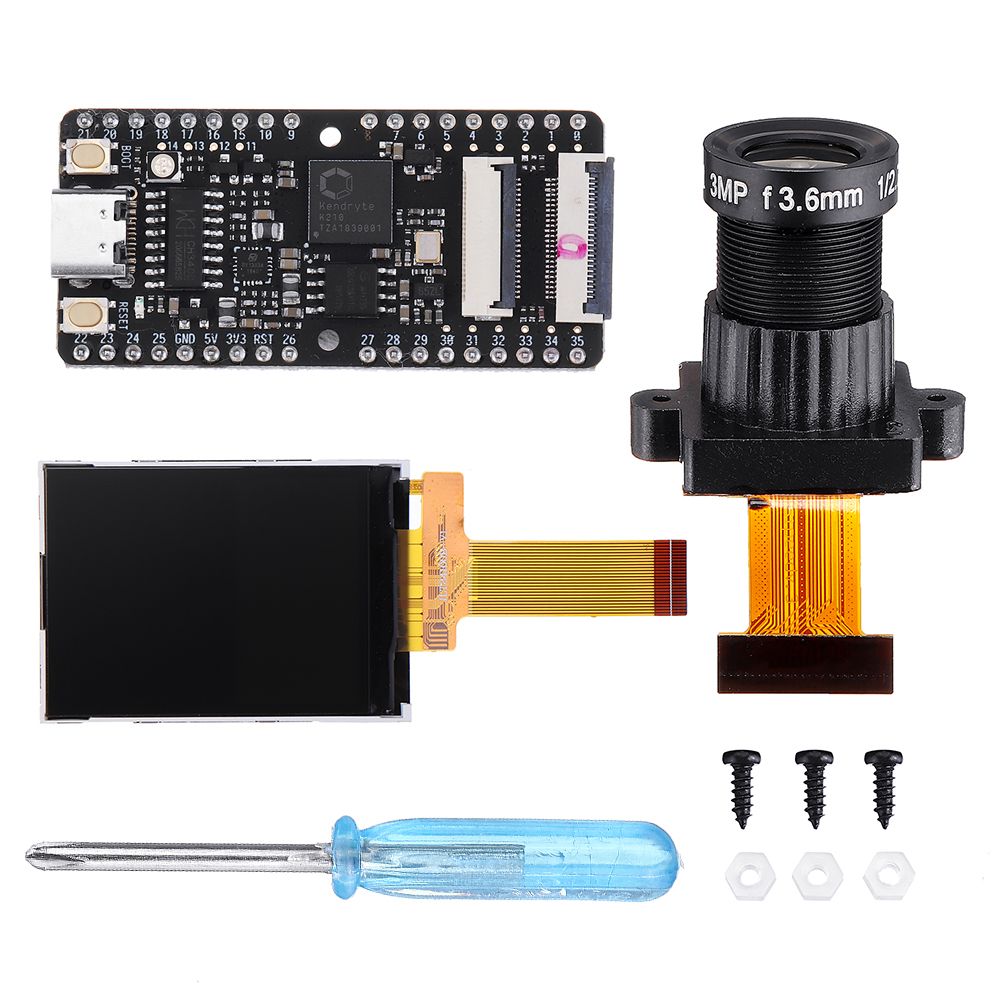

1 x Sipeed Maix-BIT Kit
