T186 1080P Black Box Multi-function Box Video Digital Security Monitor

Based on 0 reviews. - Write a review

$21.99

Ex Tax: $21.99

Stock: In Stock
Model: EB0024431
SKU: EB0024431

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

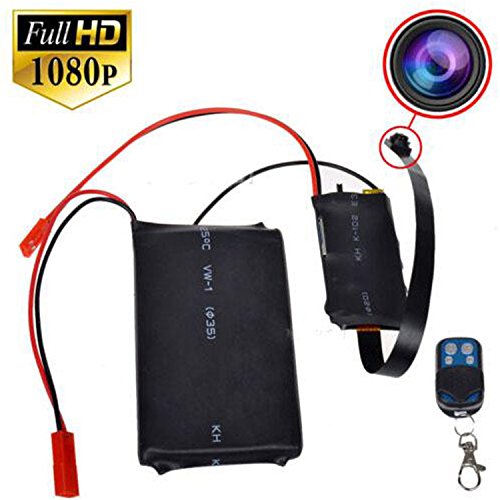

Thumb-sized hd video capture a small box, 180 mm in length, the United States imported cameras OV9712 without interference, 2500 milliampere high capacity polymer lithium battery, photo 12 million pixels, motion detecting camera, AV video output at the same time, video stabilization, long continuous uninterrupted video up to 17 hours, with filling while recording, remote control through walls.

Function:

1: switch machine:

ON/OFF power open (with card without card) without any prompt, have card click A button remote control (1st motor long shock, and red light ON standby). No card click A switch on the motor vibration under 5 red flash 5 under automatic shutdown, please insert the T card. Shutdown: click A button motor long one, A red light out the shutdown, (such as A card not enter any function on standby mode, 1 minute automatic shutdown, please dial A shutdown, otherwise the machine leakage) Hint: enter the camera state after 1 minute, need to stop, need according to the remote control 4 seconds long.

2: 720 p HD video:

on standby mode, click on the button 1 B (2) motor vibration under the red light flash 2, 1280 x720p videos, 5 minutes continuous recording a video automatic packing, not covered in circulation. Stop the video click the button once the motor vibration under 1 B long bright red light back to the standby mode.

3: photo:

standby mode, click the button once C (motor vibration one), flash lamp picture for even 1 piece of 12 million pixels, finished back to standby mode, a red light for photos without shake function, camera when you take a photo please remain relatively fixed, photo effect is good.

4: FULL 1080 p video:

Long standby mode, press the C key 3 seconds, switch to 1080 p video mode (motor length 1) start to video motor vibration under 2, red light flashing 2 out of 1920 x1080p video under 5 minutes 1 section of continuous recording video automatic packing, don't cover, stop button click C a long motor vibration under 1 return to standby mode.

5: motion detecting video:

standby mode, click the button 1 motor vibration under the 3 D for motion detecting mode under the red light flash 3 1280 x720 (HD) has detected moving objects video automatically, no mobile always standby no hint) at the same time, a video, every 5 minutes automatic packing down video, no cover, click D buttons (1) motor vibration back to standby mode.

6: T card format:

standby mode, long press D buttons 5 seconds (motor under seismic 3 after long 1 T card format) remove all T card content, back to the red light bright long standby mode. (suggest T card use format 1 time after time, speed is faster, without having to use a computer format, because the machine with a computer is not a system platform, after the computer format, T card will be more slow)

7: Filling record:

open the power switch, connect a USB 5 v 1 a charger (or mobile treasure) insert USB cable and the machine docking, motor long after 1 times start to camera motor vibration under 2 red light flash directly into 720 p mode under 2 video, (real charge while recording, don't consume battery to the battery at the same time). Also can be changed by remote control any schema.

8: charging:

charging only (remove the TF card) to open the electrical switches to insert the USB adapter (5 v 1 a) above, (insert USB micro vibration motor, red light, red light out for full. (hint: because of form a complete set of battery is true 2500 ma, to guarantee 100% slower, need about 10 hours, so please be patient) Dial a did not open the power, insert the USB line is normally on a red light, but can't charge, red lights out for filling.

Important note:

1) : strike did not open the card, an external USB line charging case, motor long one, the red light flashing, under 3 to video mode, (false charge while record) using the DC charger electricity, not to recharge the battery.

2) : strike did not open the card, an external USB line charging case, the red light is false not to recharge the battery charging mode.

3) : T card with low electricity situation, use the card is full or low power (motor vibration 4 consecutive stop) according to the function of remote control does not have any, please clean up the T card, without electricity, boot remote control to open the machine, open the automatic shutdown after a few seconds or minutes, please promptly to the charge of the unit.

4) : video condition encountered low electricity recorded a video file there is interference noise, noise is big, please give the machine charge as soon as possible.

5) : do not use the machine, please switch to OFF closed, because of long time upon open, there will be power consumption, long time no, electricity will run out.

Relevant parameter

Item	Relevant parameter
Video format	MJPG
Video coding	AVI
The video resolution	1280X720P HD 1920X1080 FULL
Video frame rate	30fps
Player software	The operating system or bring the mainstream video player software
Image format	JPG
Image scale	4:3
Support system	Windows me/2000/xp/2003/vista; M ac os; Linux;
Battery capacity	2500 mA
Working time	About 17 hours
Charging voltage	DC-5V
The interface type	Mini 5Pin USB
Storage support	TF card
The battery type	High capacity polymer lithium electricity

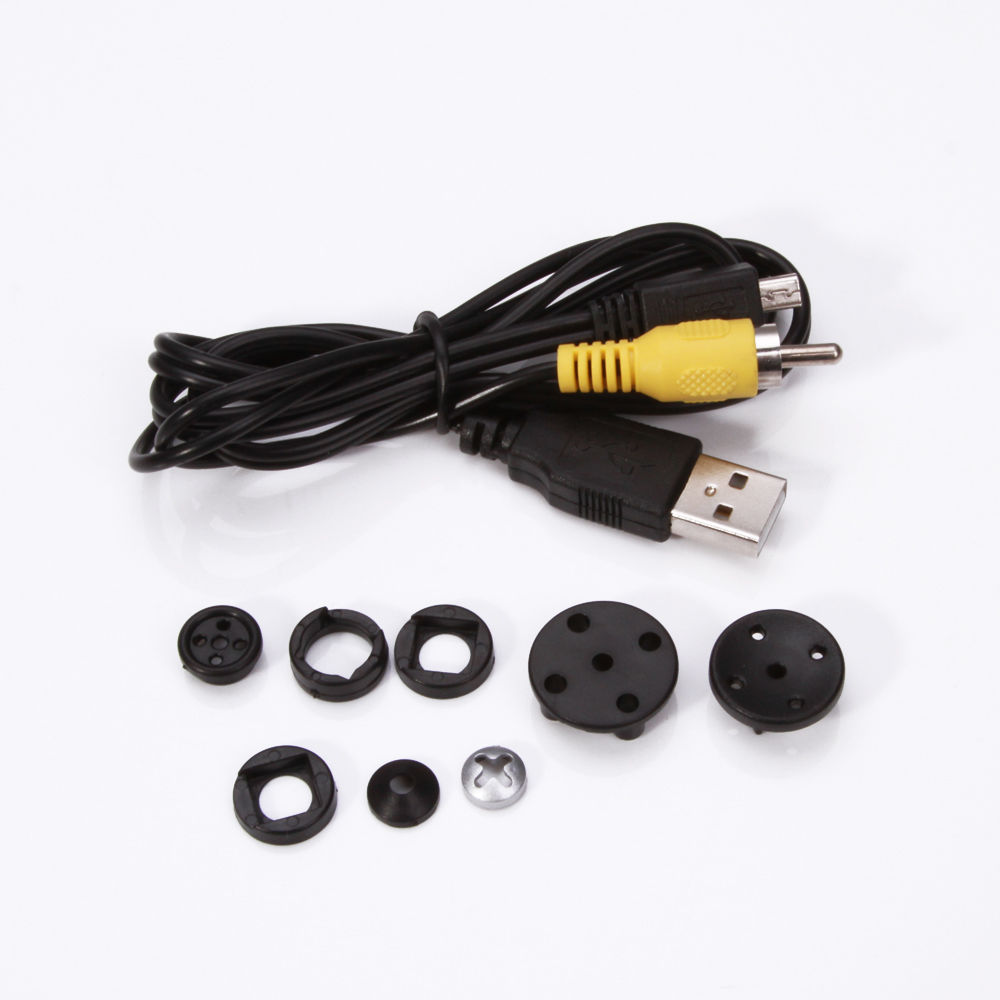

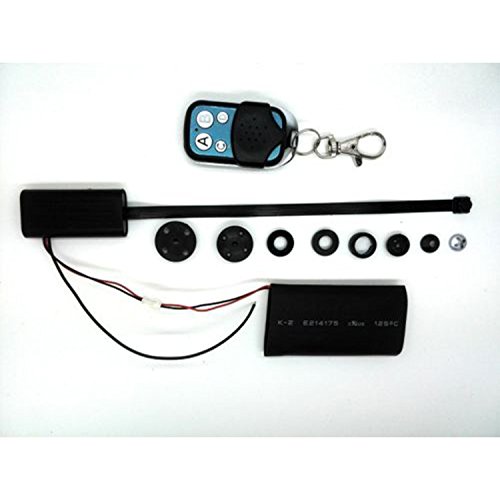

Package includeds :

1 x host OV9712 + 180 mm camera
1 x 2500 ma battery
1 x wireless remote control
1 x TV USB data line
1 x manual
all kinds of buttons
