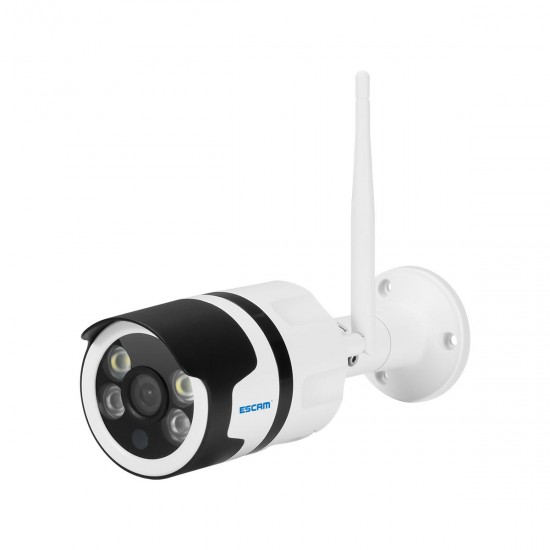

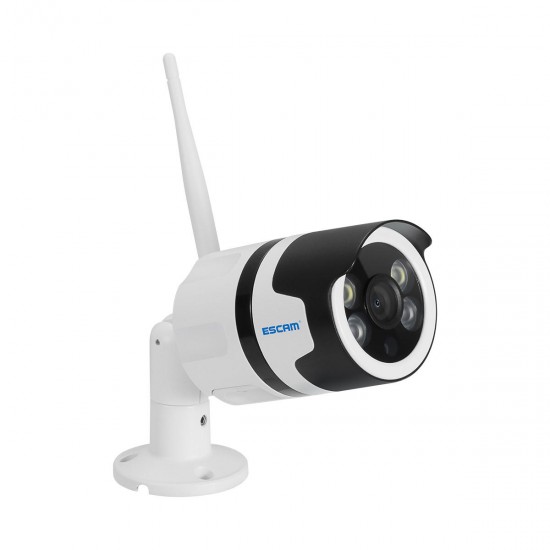

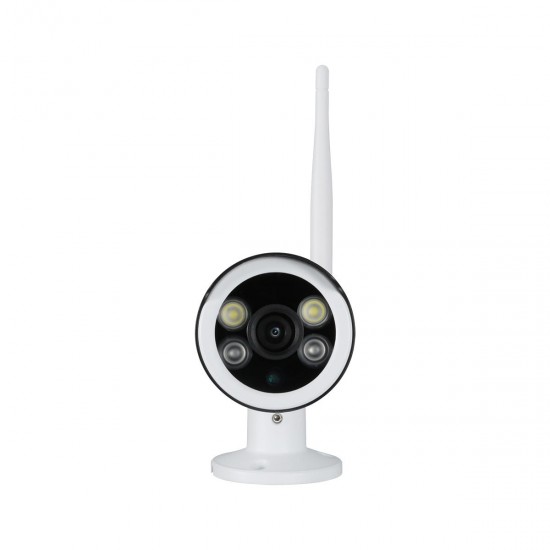

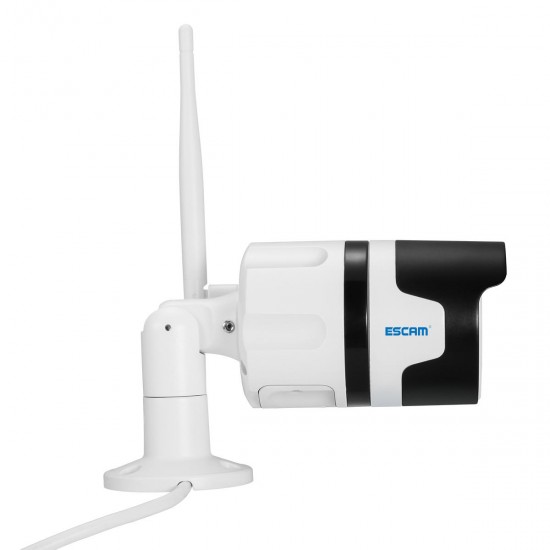

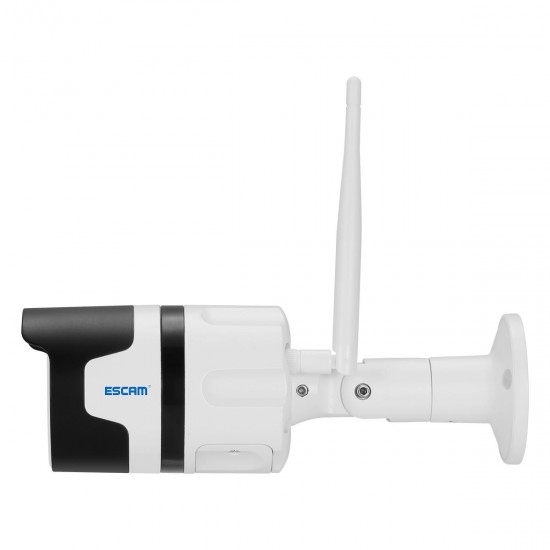

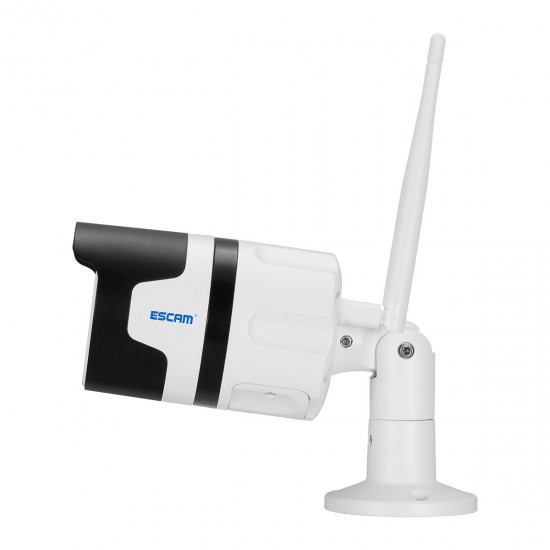

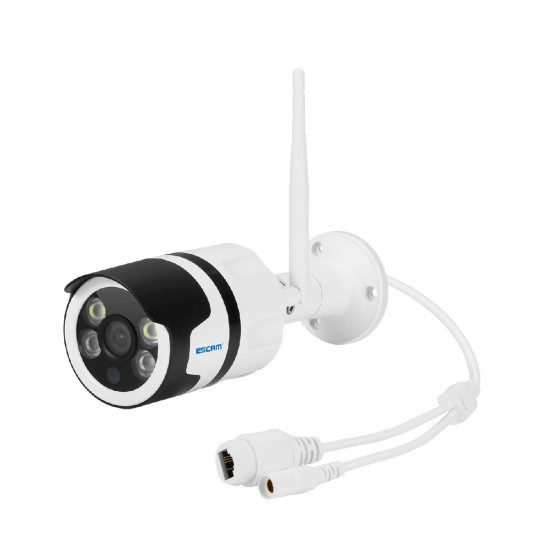

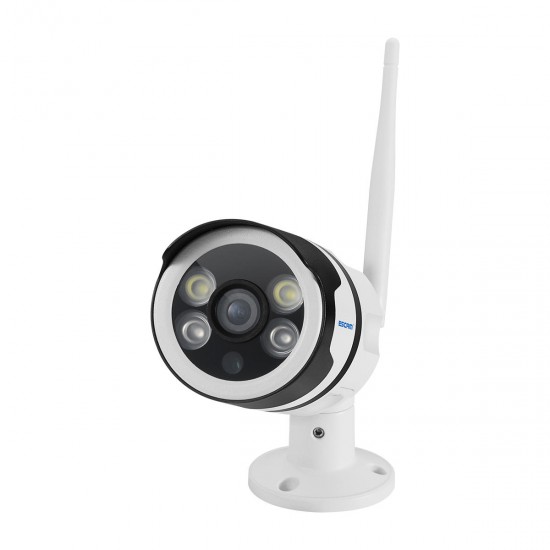

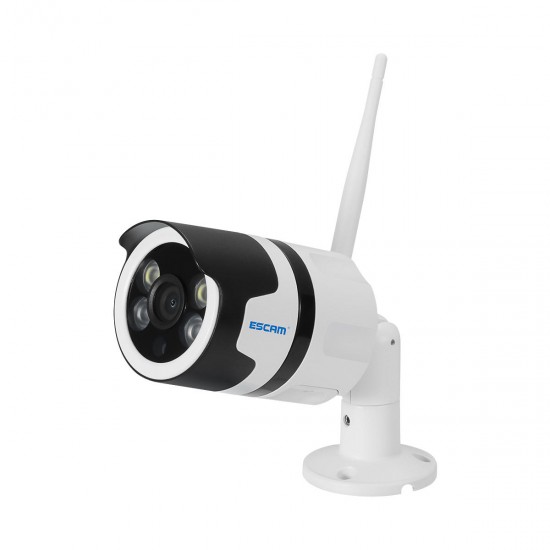

QF508 1080P Wireless IP Camera Waterproof Surveillance Security Cameras Infrared Camera
- Stock: In Stock
- Model: EB0023922
- Dimensions: 195.00mm x 65.00mm x 65.00mm
- SKU: EB0023922
| Model | ESCAM QF508 | ||
| Camera | |||
| Sensor | 1/2.7” 2 Megapixel progressive can CMOS | ||
| Electronic Shutter Speed | Auto/Manual, 1/25~1/10000s | ||
| Minimum illumination | Color: 0.1Lux@F1.2, B/W: 0.01Lux@F1.2 | ||
| Focal Length | 3.6mm | ||
| Angle of View | 75.7° | ||
| Functions | |||
| Day/night switch | 2pcs IR Leds,IR distance 15m | ||
| Illumination | 2pcs 1W white Led | ||
| White Balance | Auto white balance | ||
| BLC | Support BLC | ||
| Digital noice reduction | Support 3D noice reduction | ||
| WDR | Support D-WDR | ||
| Motion detection | Support motion detection | ||
| Privacy shelter | Support 4 zones | ||
| OSD | Support OSD setting | ||
| Sleeper | Support schedule reboot | ||
| Video | |||
| Compression | H.264/H.265 | ||
| Resolution | Mainstream:1080P(1920*1080),960P(1280*960),720P(1280*720) | ||
| Substream: D1(704*576),360P(640*360),CIF(352*288) | |||
| Video frame rate | 25fps(50HZ), 25fps(60HZ); | ||
| Biterate | 64Kbps~12Mbps CBR/VBR adjustable | ||
| Video adjustment | brightness,saturability,chromacity adjustment | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Wireless | Support WIFI 802.11b/g/n,2.4G band ;AP mode | ||
| IP type | Dynamic IP and Static IP | ||
| Network agreement | HTTP, TCP/IP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP | ||
| Access protocol | Support ONVIF 2.4 | ||
| Max user qty | 6 | ||
| Client | iPhone, iPad, Android, Windows PC | ||
| Audio | |||
| Compression format | G.711A | ||
| Input | Built in microphone | ||
| Output | Built in speaker | ||
| Interface | |||
| TF card | Support max to 128GB TF card(micro SD) | ||
| General | |||
| Power supply | DC12V 1A | ||
| Power Consumption | <6W | ||
| Working Environment | -20°C~+60°C, 10%~90% | ||
| Application environment | Indoor and outdoor | ||
| Dimension | 195mm * 65mm * 65mm | ||
| Weight | 0.36kg | ||
| Package Dimension | 220mm * 105mm * 100mm | ||
| Package Weight | 0.55kg | ||
| Accessories | IP Camera*1,Power adapter*1,Waterproof hat*1,Screws*1,Manual*1 |

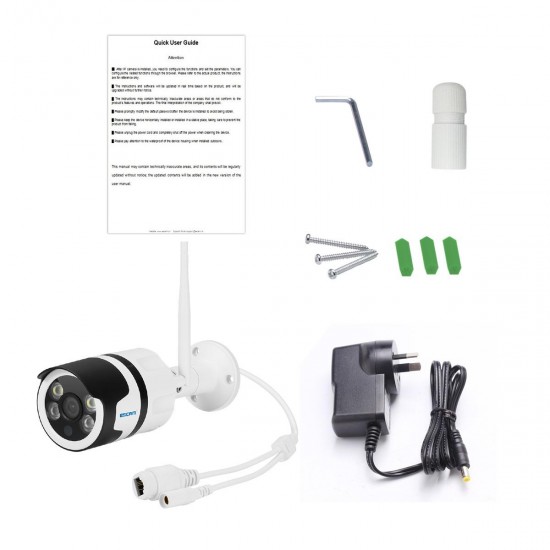

Package includeds :
1 x ESCAM QF508 IP camera
1 x Waterproof hat
1 x Set of Screws
1 x Power Adapter (EU/US/AU/UK Plug for Optional)
1 x User Manual
