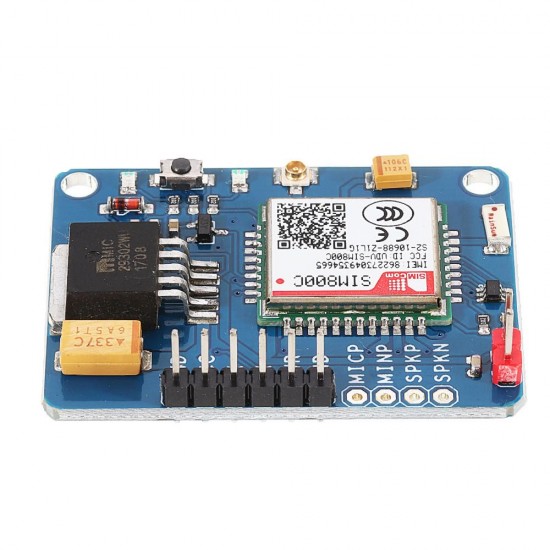

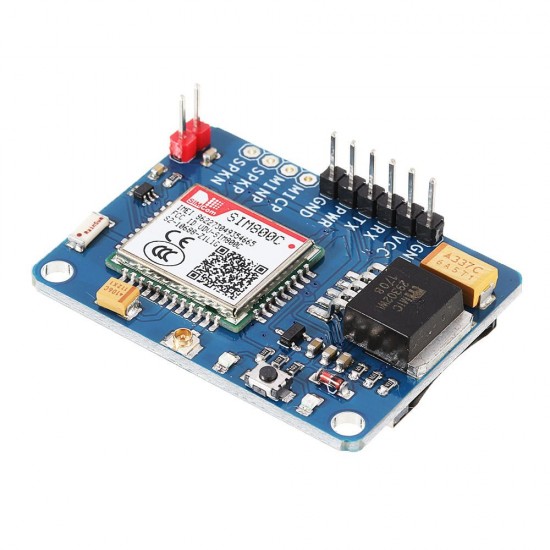

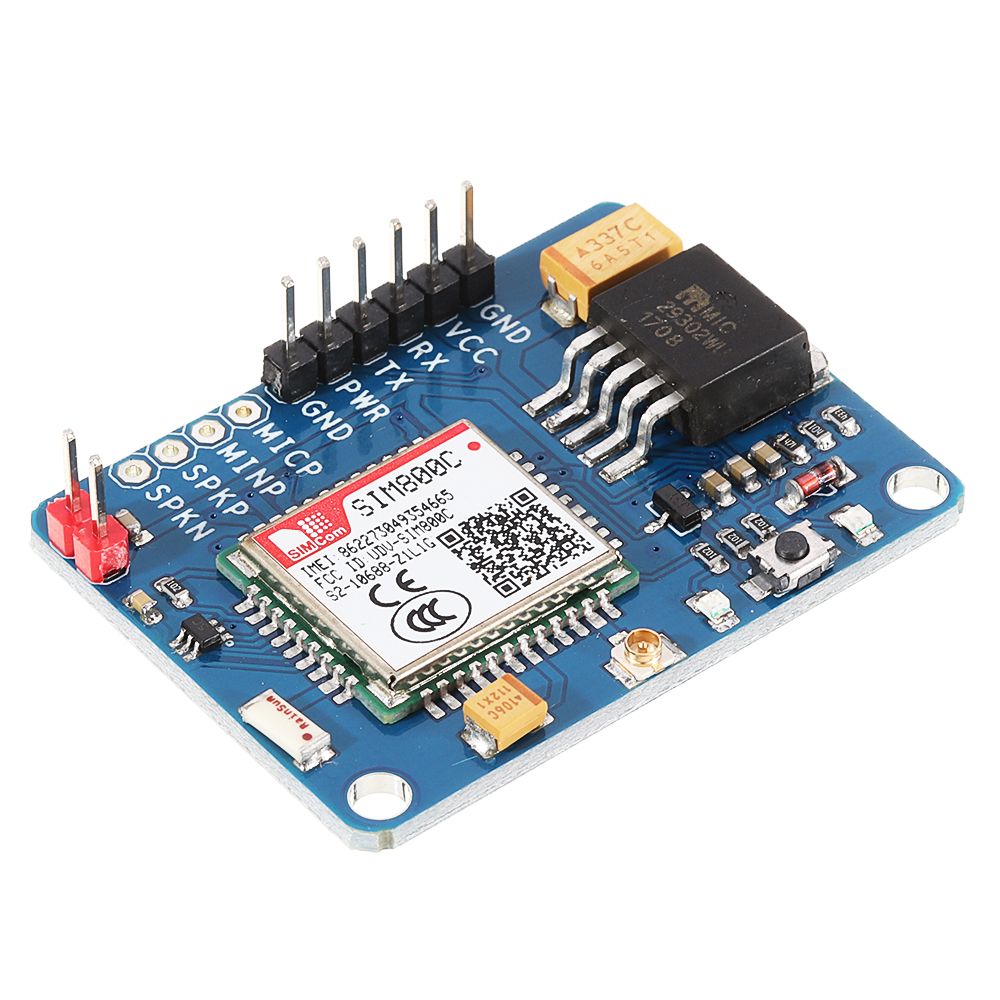

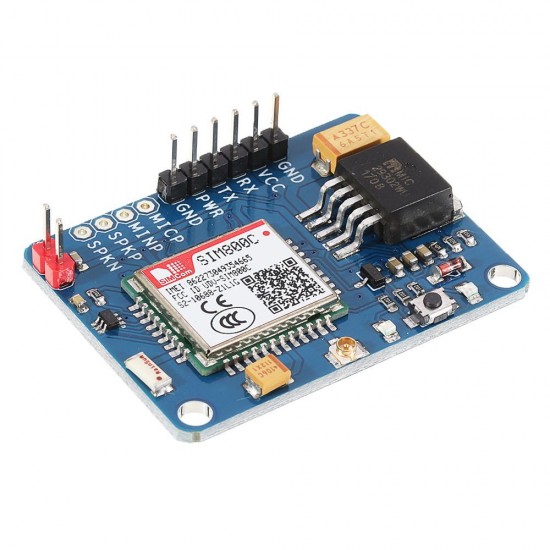

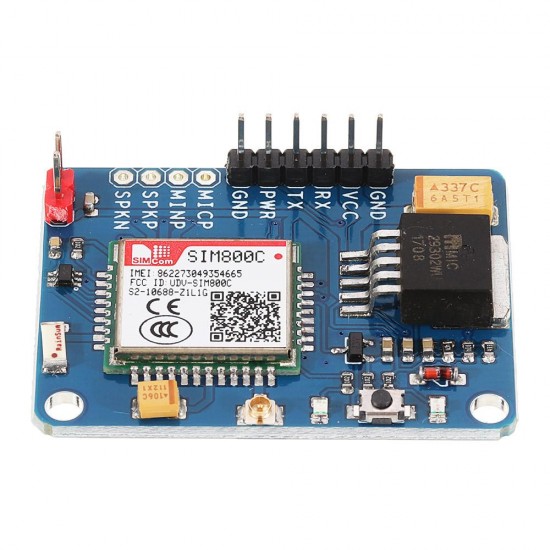

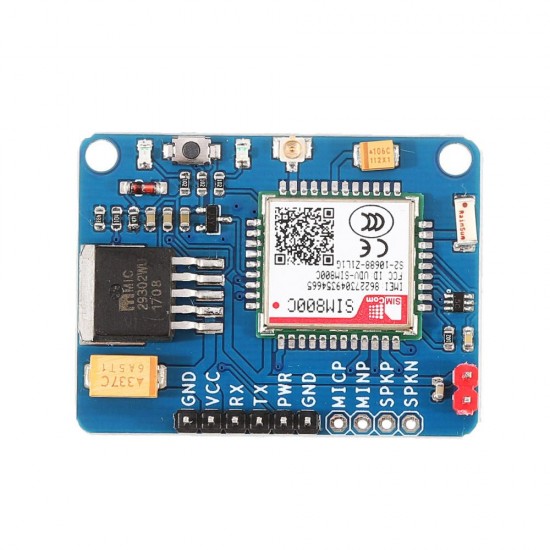

SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna

SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
SIM800C GPRS GSM Module SIM Wireless Module TTL Development Board Replace SIM900A with 2.4G IPX Antenna
$17.99
Ex Tax: $17.99
  • Stock: In Stock
  • Model: EB0041963
  • SKU: EB0041963

Features:

- With a regulator chip and a lithium power supply port, providing two power supply mode options.
- Small size suitable for all types of fists and inlays.

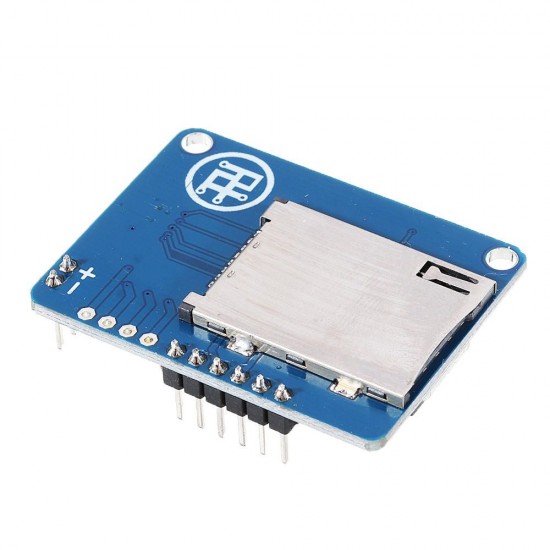

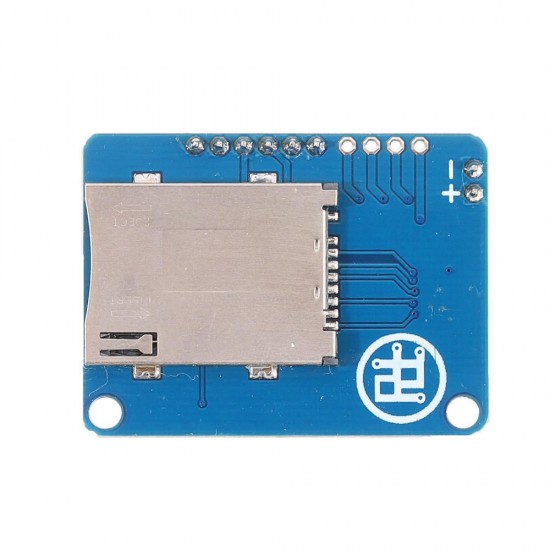

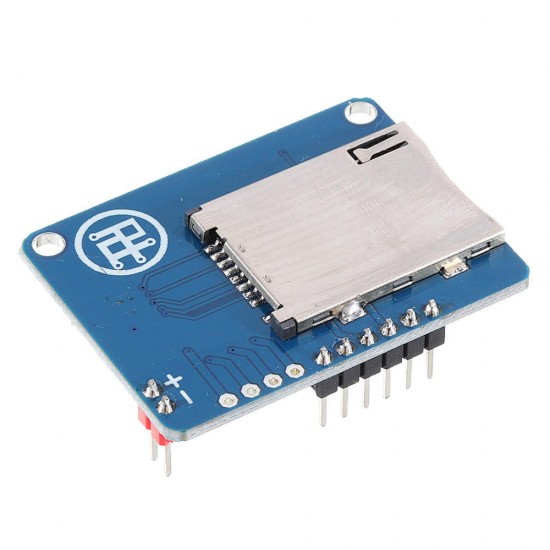

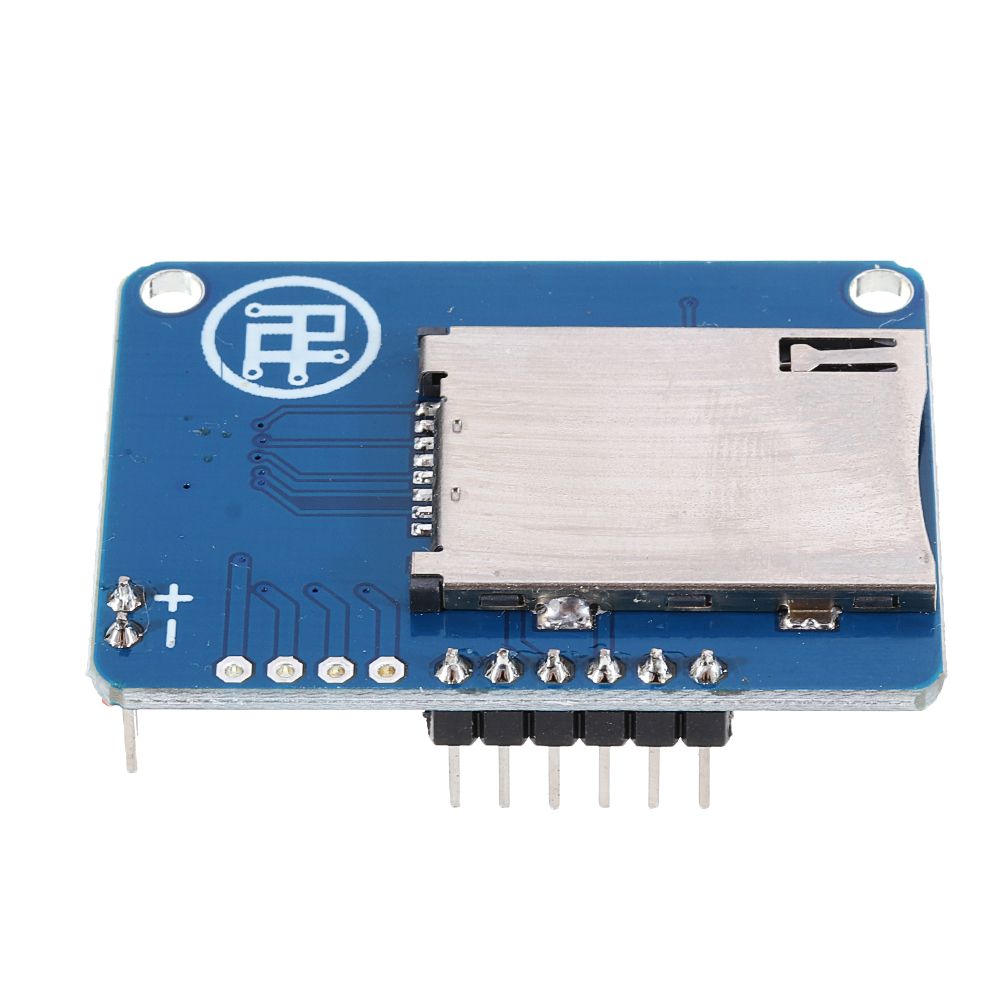

- Automatic game slot, easy to replace phone card.
- With the IPX interface, you can replace the antenna.
- Microphone and speaker interface reserved. With the Bluetooth function

Specifications:

VDC port supply voltage: 5V ~ 12V
Lithium port power supply voltage: 3.4 ~ 4.4v
Communication voltage: 3.3V / 5V
Operating current: 2.5A peak, 1A minimum
Baud rate: 9600 (can be modified)
Antenna interface: IPX interface
Operating frequency band: GSM850 / EGSM900 / DCS1800 / PCS1900
SIM card interface: support SIM card: 1.8V, 3V
Configuration: in command
SMS: MT / MO / CB / text PDU mode
Address book: compatible type: SM / FD / LD / RC / ON / MC
Audio Characteristics: Medium speed (ETS 06,20)
Full rate (ETS 06,10)
Enhanced full rate (ETS 06.50 / 06.60 / 06.80)
Adaptive Multivelocity (AMR)
Support echo cancellation
Supports noise suppression
GPRS connection features: GPRS: default time slot for level 12, there is class 8,10, 12 optional, mobile station level B
GPRS data characteristics: downlink transmission rate: maximum 85.6 kbps
Supports PAP (password verification protocol) protocols that are commonly used for PPP connections
Link transfer speed: up to 85.6 kbps
Coding format: CS-1 / CS-2 / CS-3 / CS-4
Size: 43.2*36.5*32.3mm

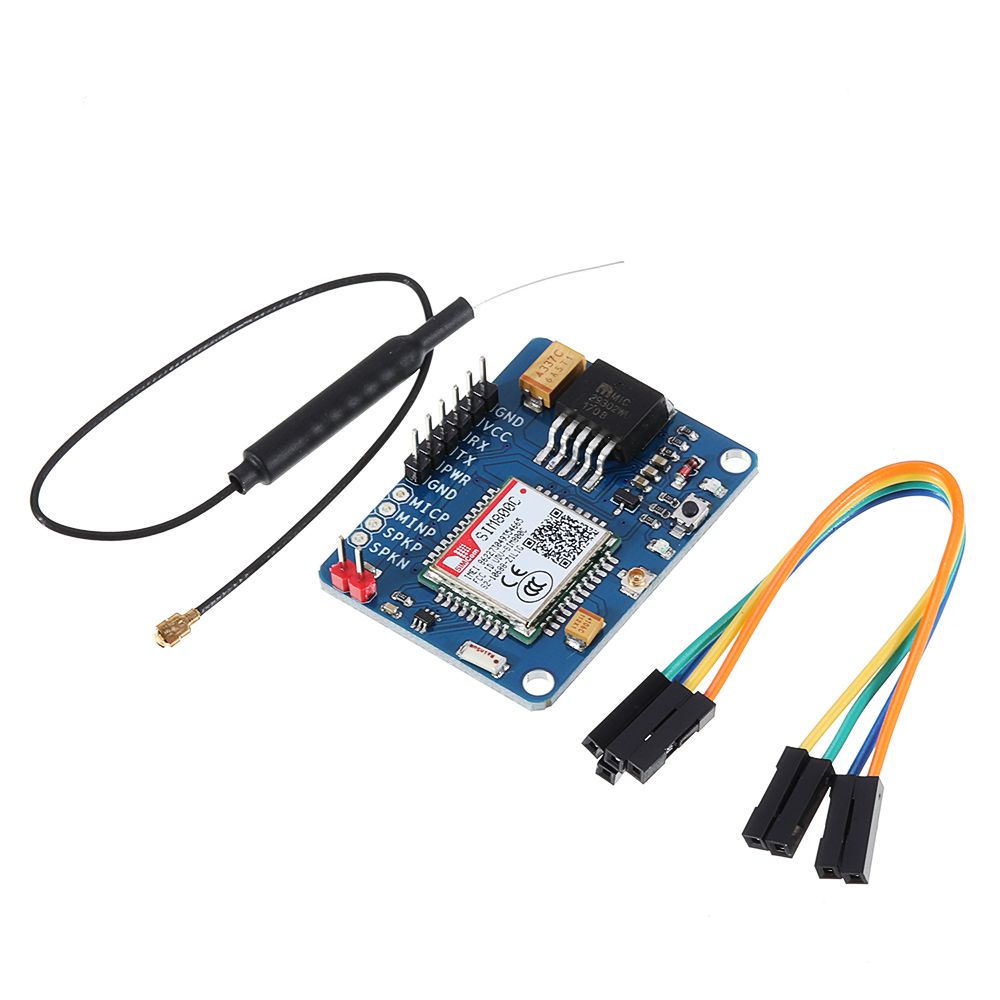

Package Included:

1 x SI4432 433MHz Wireless Serial Transceiver Module

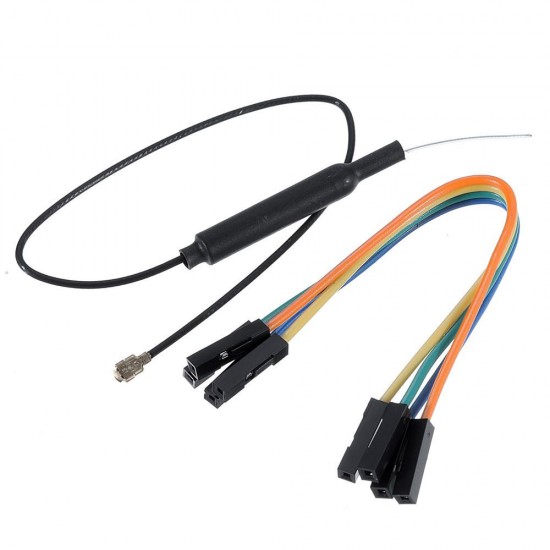

1 x DuPont Line
1 x Antenna
