NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power

NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
NE602 150K-30MHZ RTL.SDR HF Upconverter Receiver Voltage 5V 1.6W Power
$21.20
Ex Tax: $21.20
  • Stock: In Stock
  • Model: EB004780
  • SKU: EB004780
Features:

1. According to the circuit design and modification in the online radio discussion.
2. As long as it is used to receive short-wave broadcast, if there is a professional antenna, it can receive HAM communication.
3. Provide SDR# software and technical support

Specification:

RTL.SDR upconverter
1. Receiving frequency: 150K-30MHZ
2. Working voltage: 5V
3. Power: 1.6W
4. Local oscillator: 125MHZ, this is very important, need to be set in the software or +125M in frequency, such as 7.05M, which is 123.05M (7.05+125)
5. Mixing chip: NE602

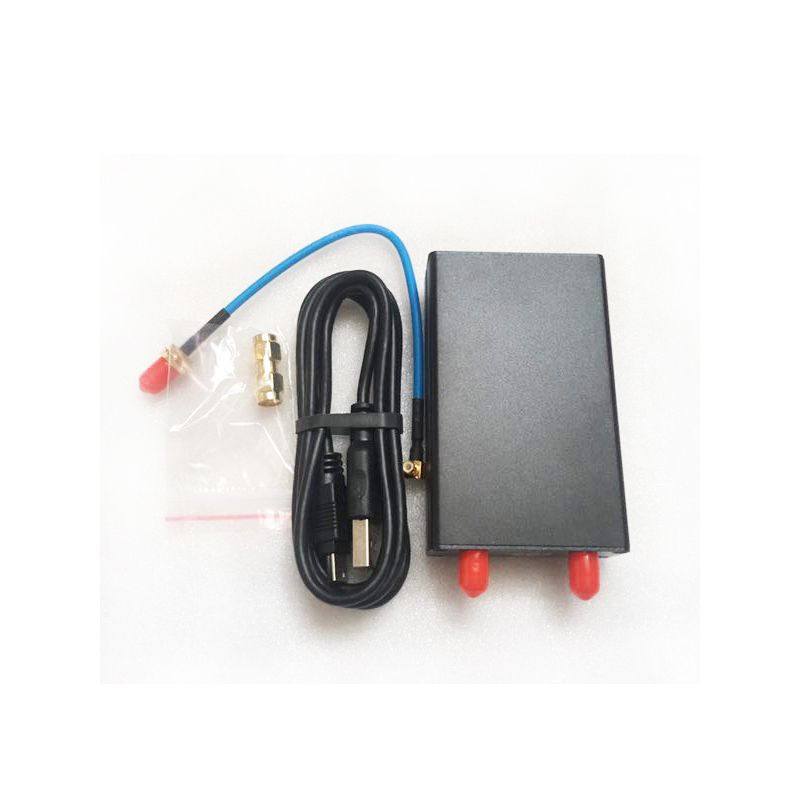

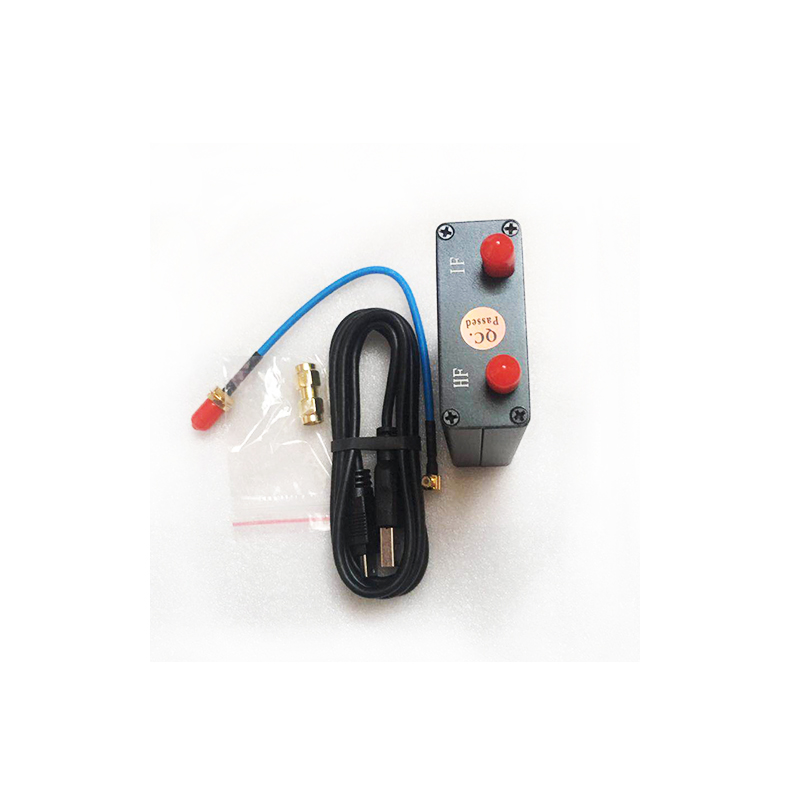

Package includes:

upconverter (without TV stick)*1
USB data cable (1M)*1
MCX revolution SMA female (20cm)*1
SMA revolution SMA*1

Details pictures:

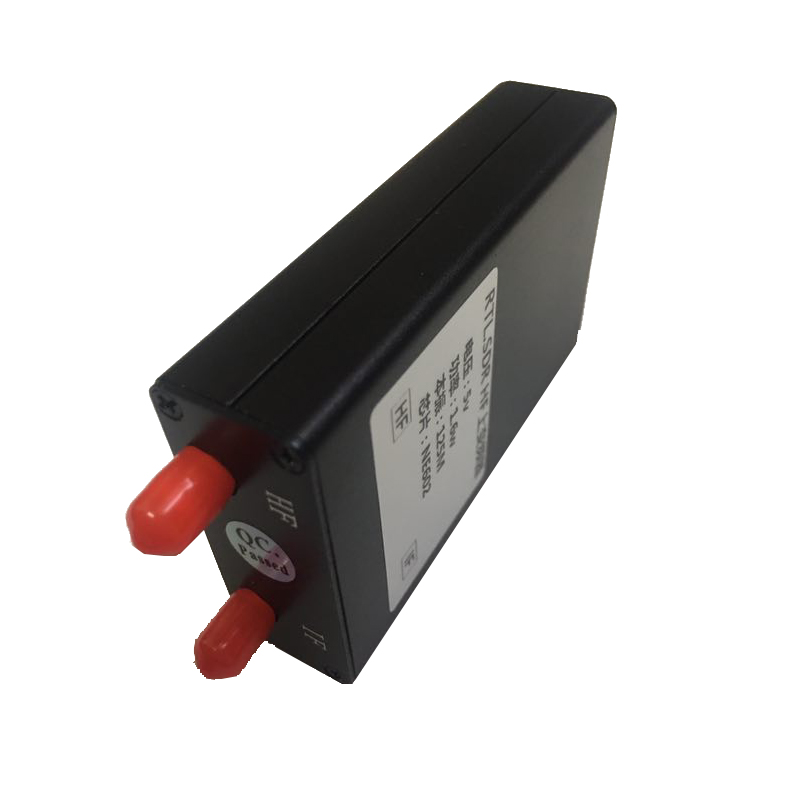

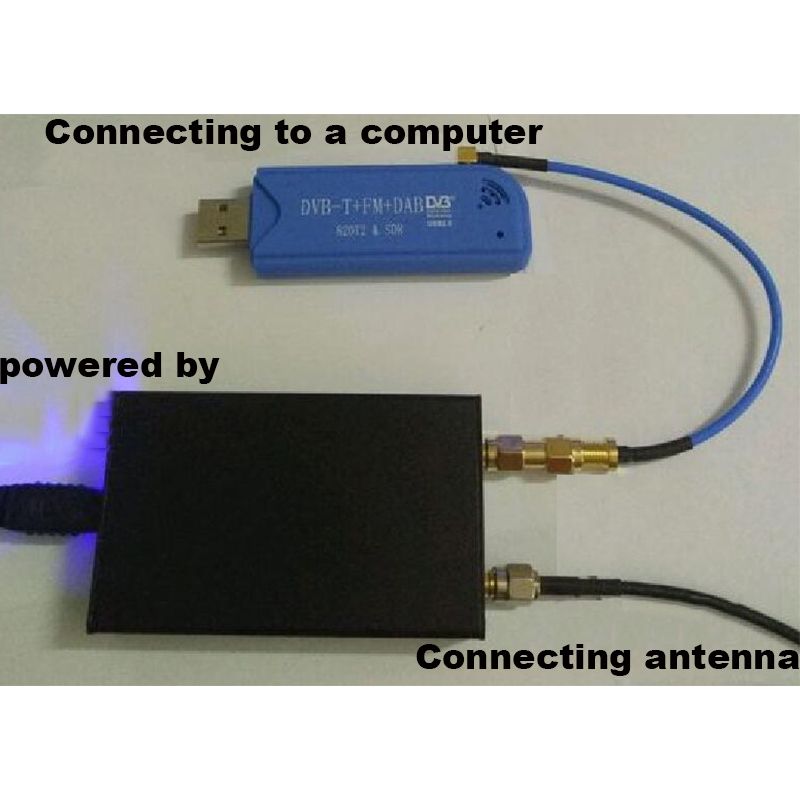

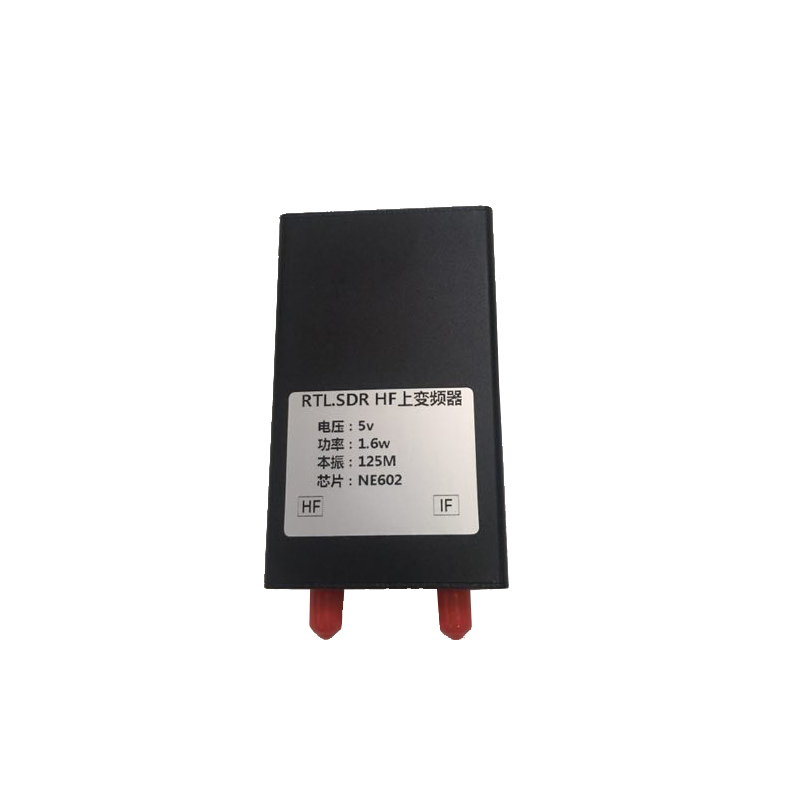

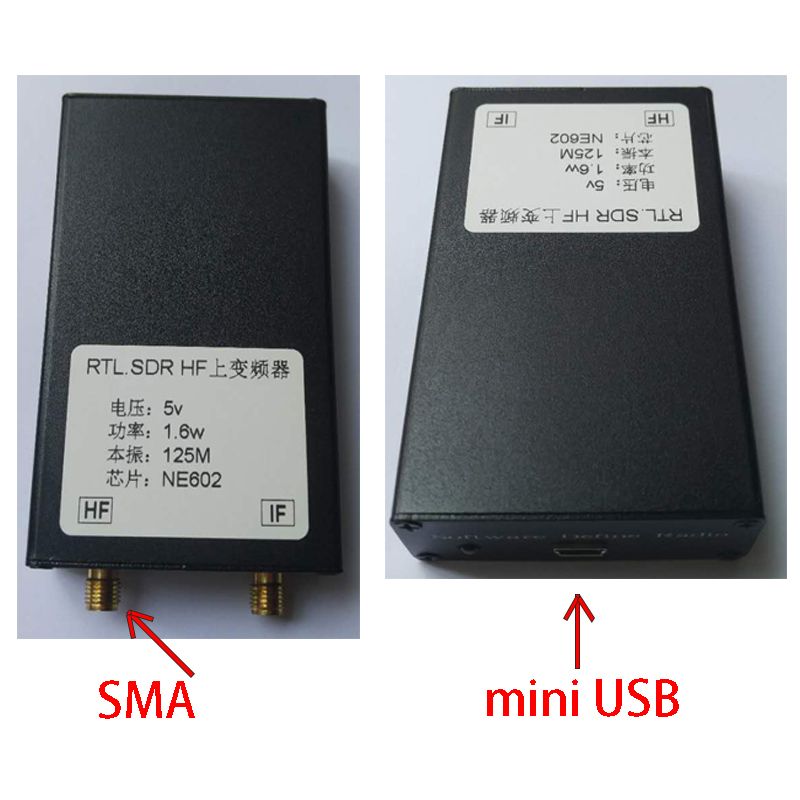

NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
NE602-150K-30MHZ-RTLSDR-HF-Upconverter-Receiver-Voltage-5V-16W-Power-1532428
