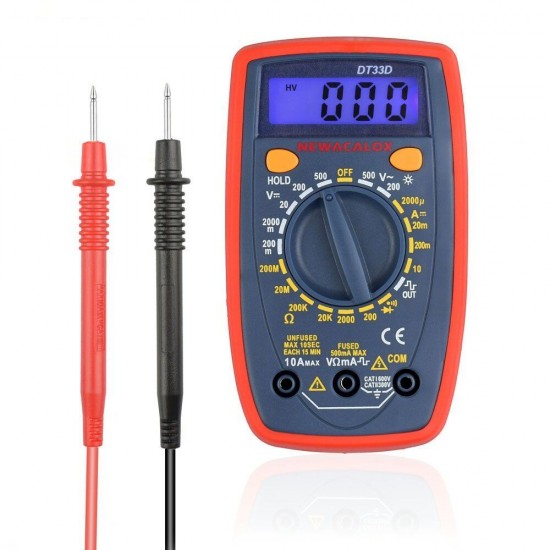

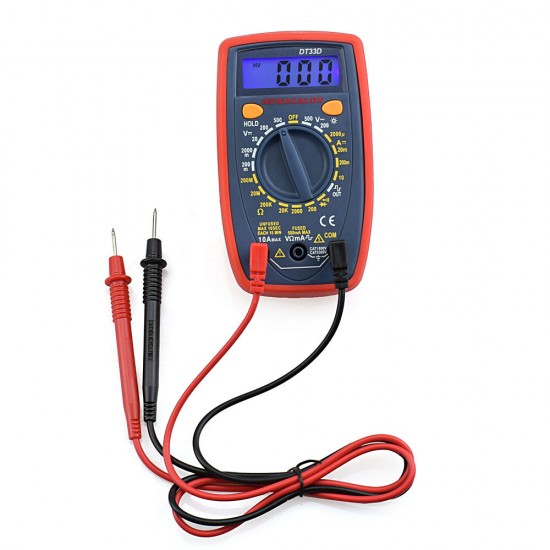

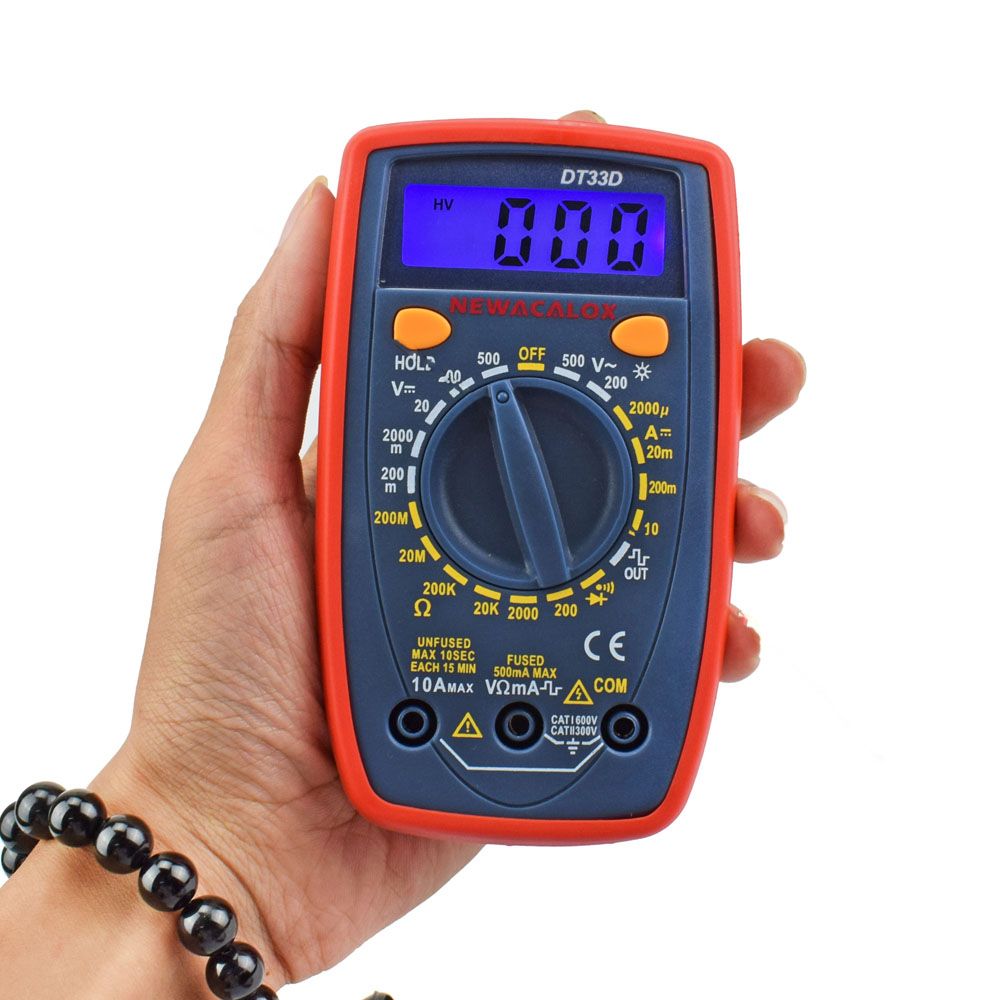

LCD Display Digital Multimeter Back Light AC/DC Ammeter Voltmeter Ohm Portable Clamp Meters Capacitance Tester Tool
- Stock: In Stock
- Model: EB004520
- SKU: EB004520
LCD size | 49*17mm | |
Sampling speed | 2 times per second. | |
Over-load indication | “1” is displayed | |
Operating Environment | 0 - 40, at < 80%RH | |
Storage Environment: | -10-50,at < 85%RH | |
Power | 9V NEDA 1604 or 6F22 | |

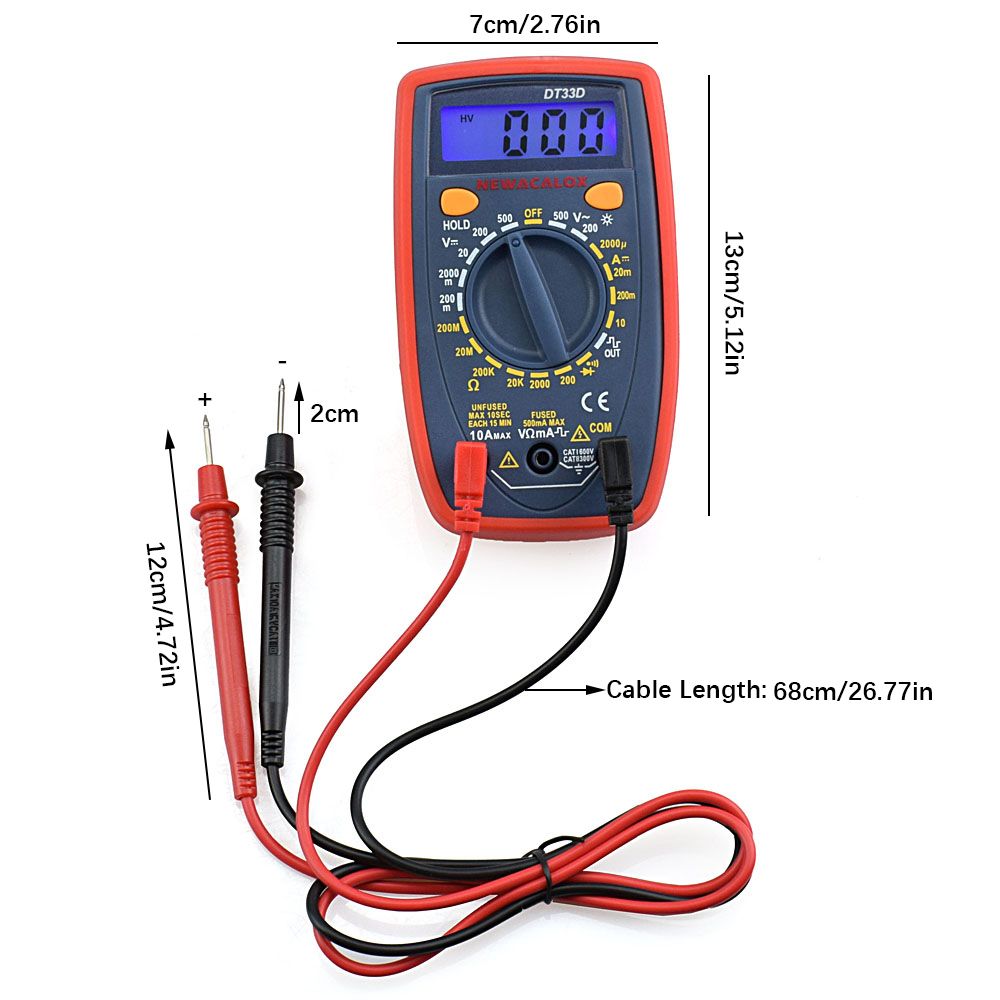

Product size | 130*73*37mm | |
Product net weight | 145g | |
Measurement ranges | Accuracy | |
DC Voltage | 200mV | ±(0.5% of rdg+3D) |
2000mV/20V/200V | ±(0.8% of rdg+5D) | |
500V | ±(1% of rdg+5D) | |
AC Voltage | 200V/500V | ±(2% of rdg+10D) |
DC Current | 200μA/2000μA/20mA | ±(1.8% of rdg+2D) |
200mA | ±(2% of rdg+2D) | |
10A | ±(2% of rdg+10D) | |
Resistance | 200Ω | ±(1% of rdg+10D) |
2000Ω/20KΩ/200KΩ | ±(1% of rdg+4D) | |
20MΩ | ±(1% of rdg+10D) | |
200MΩ | ±(5%*(rdg-10)+10dgts) | |
