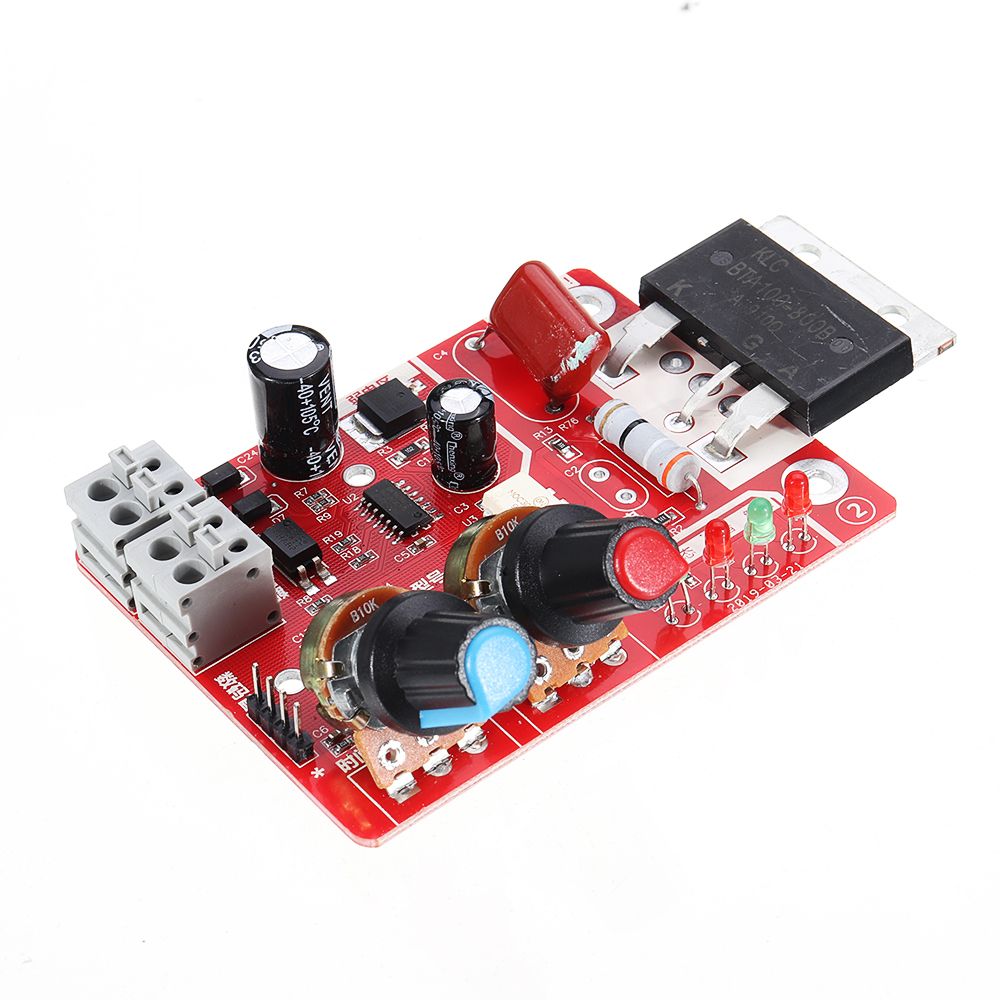

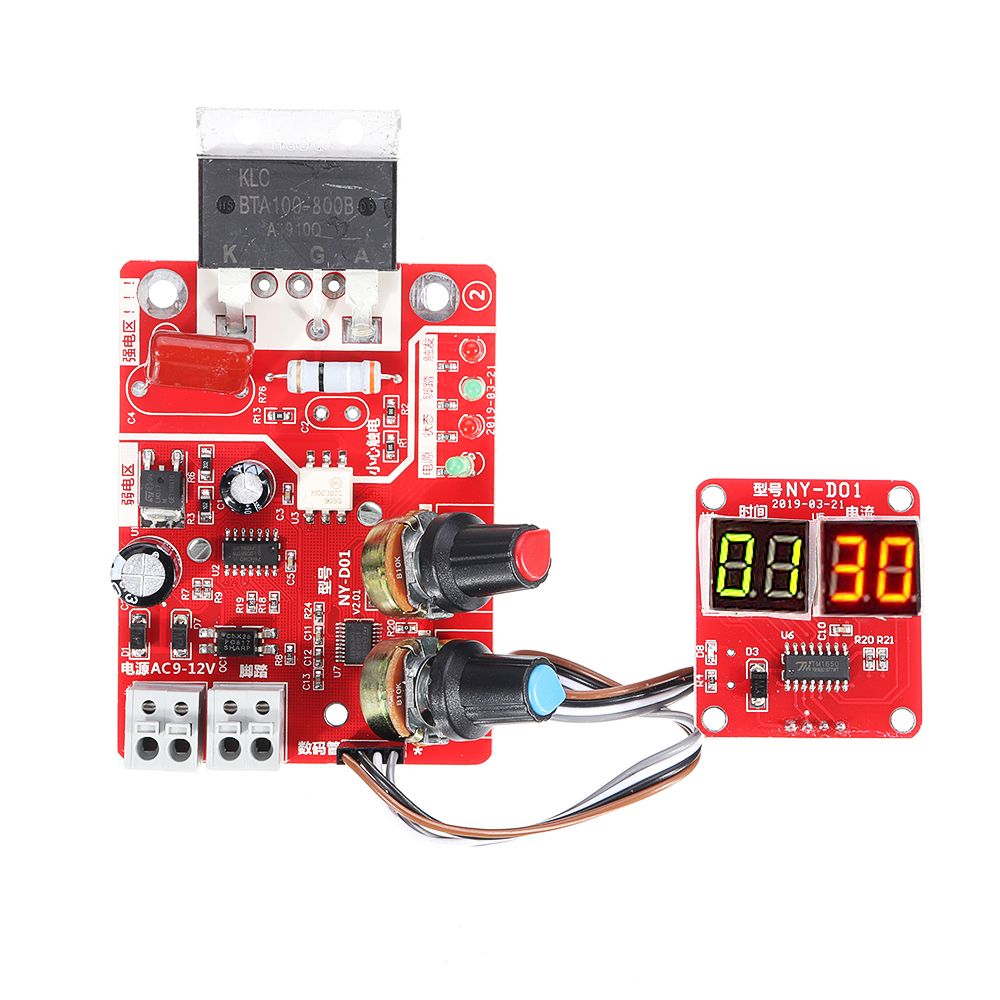

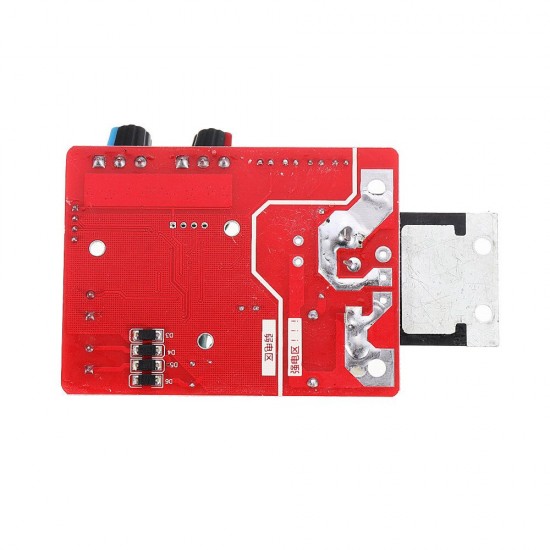

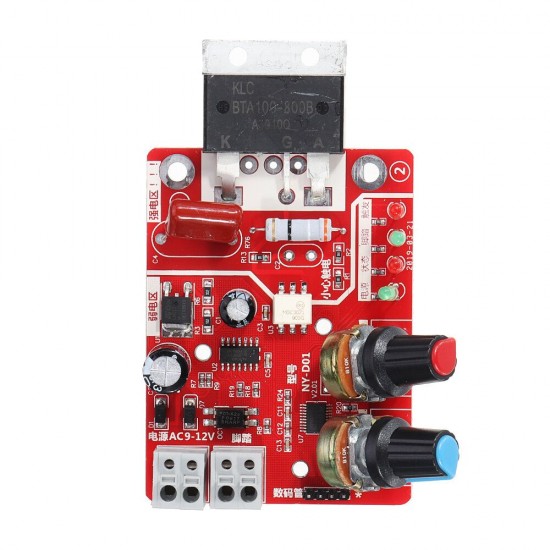

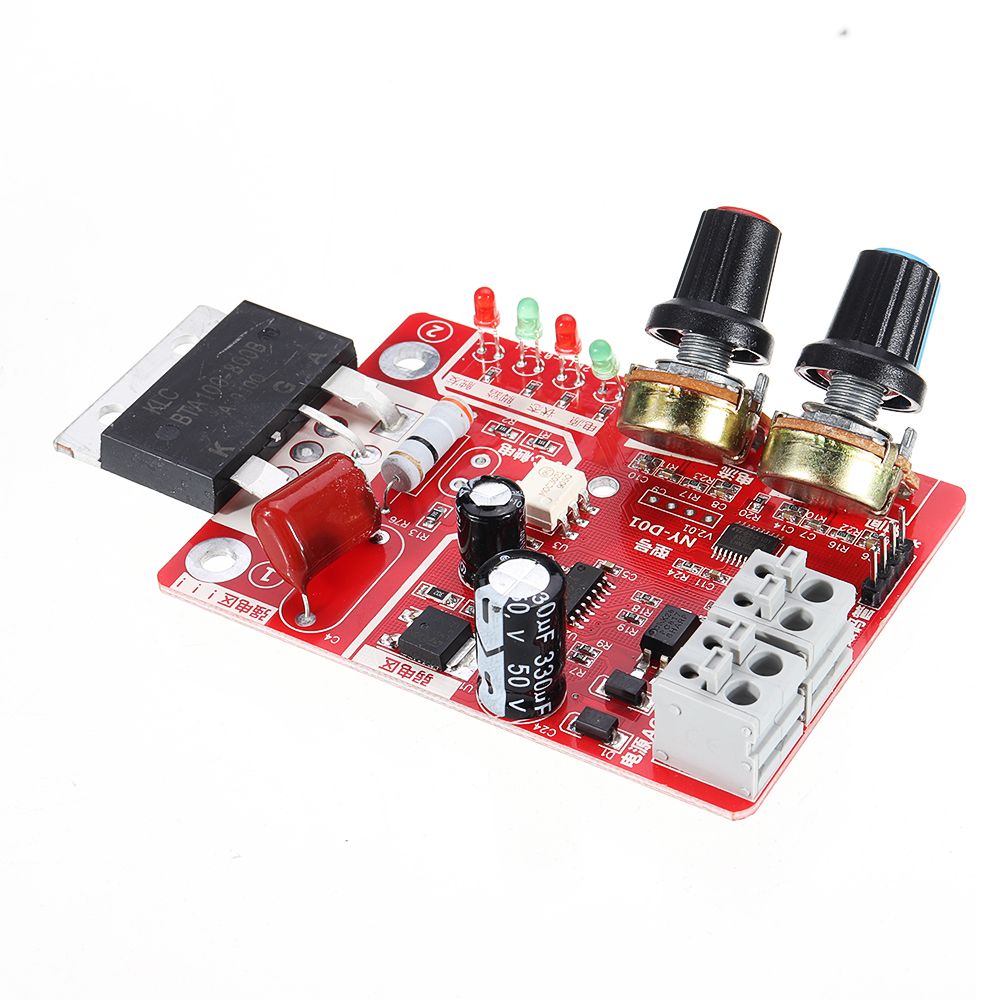

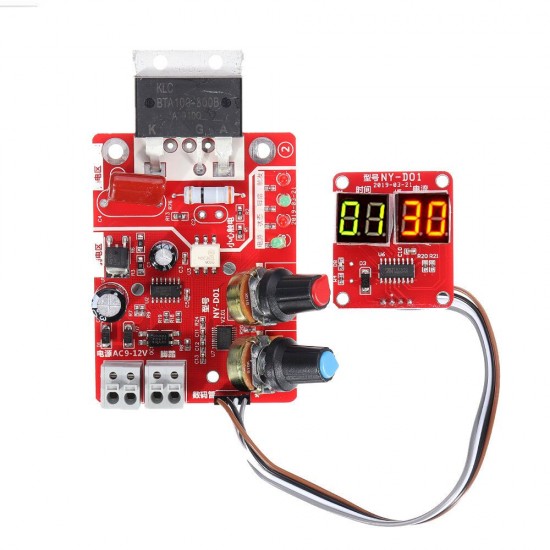

NY-D01 40A/100A Digital Display Spot Soldering Station Time and Current Controller Board Timing Ammeter Spot Welders Control Board

Based on 0 reviews. - Write a review

$13.99

Ex Tax: $13.99

Stock: In Stock
Model: EB0048726
SKU: EB0048726

Available Options

Current

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Voltage: 12V

Precise details>>

Overview:

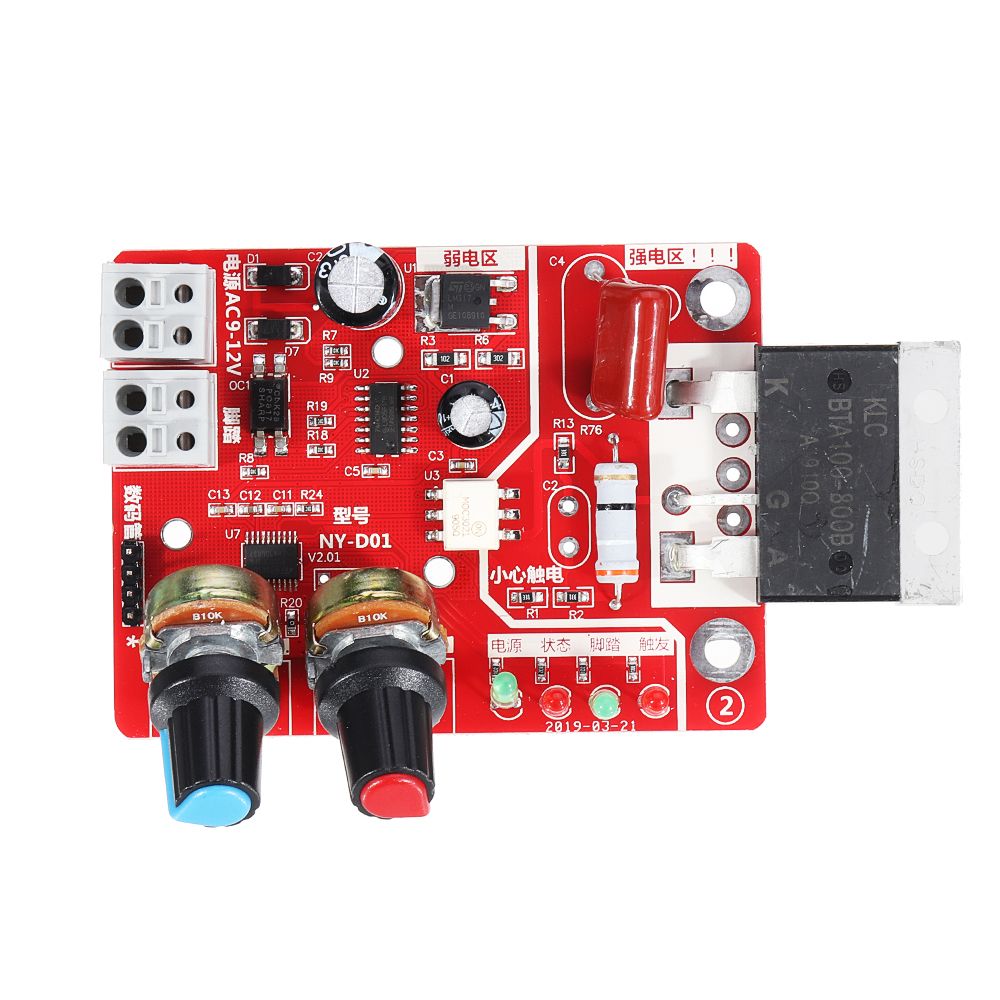

The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding.

The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.

The main features of this controller:

1. The use of STM8 industrial microcontroller control center.

2. Strong and weak electricity through optocoupler isolation, safe operation.

3. The power cable and the footswitch line adopts the screw-free fast connection terminal, more convenient and reliable.

4. Input time, current using high-precision single potentiometer, to ensure reliable input, convenient

5. On-board power supply, state, foot, trigger indicator, working state clearly visible.

6. The design of reliable zero-crossing detection circuit to ensure that the SCR phase shift accuracy.

7. The controller is compatible with 100A SCR.

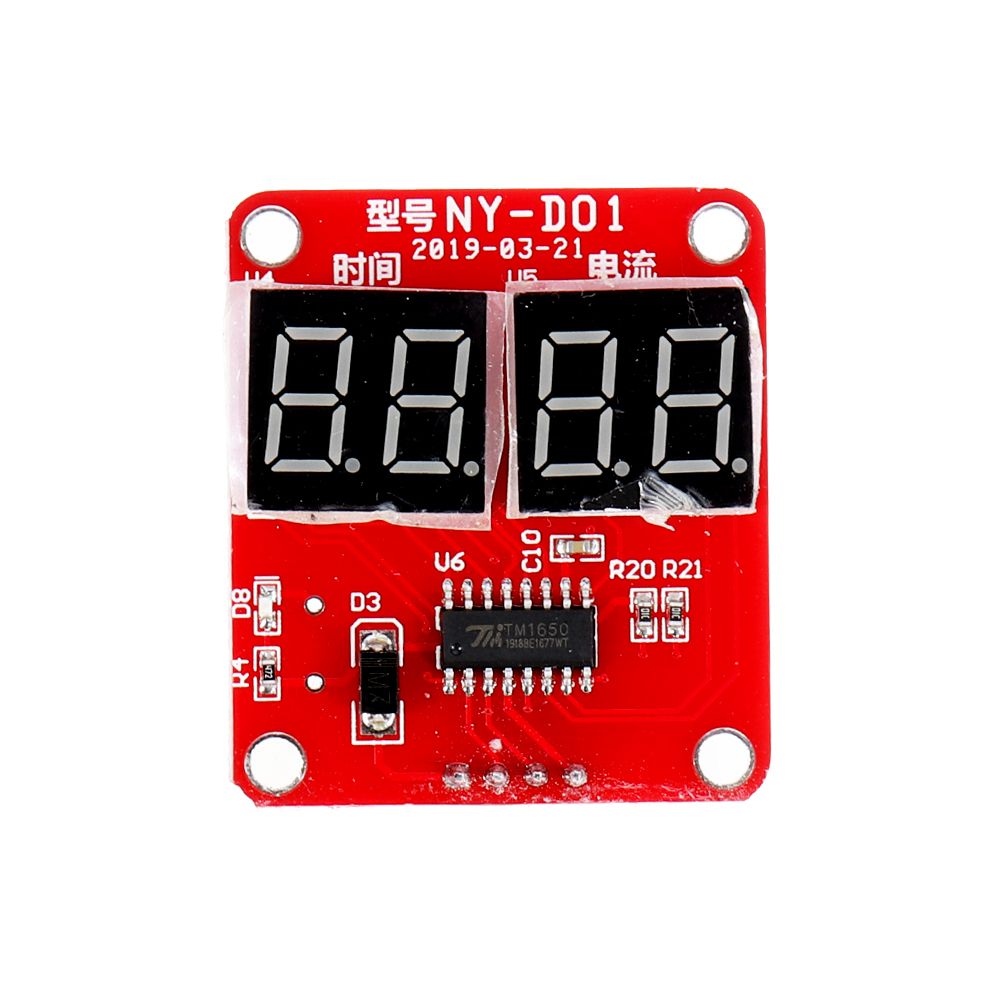

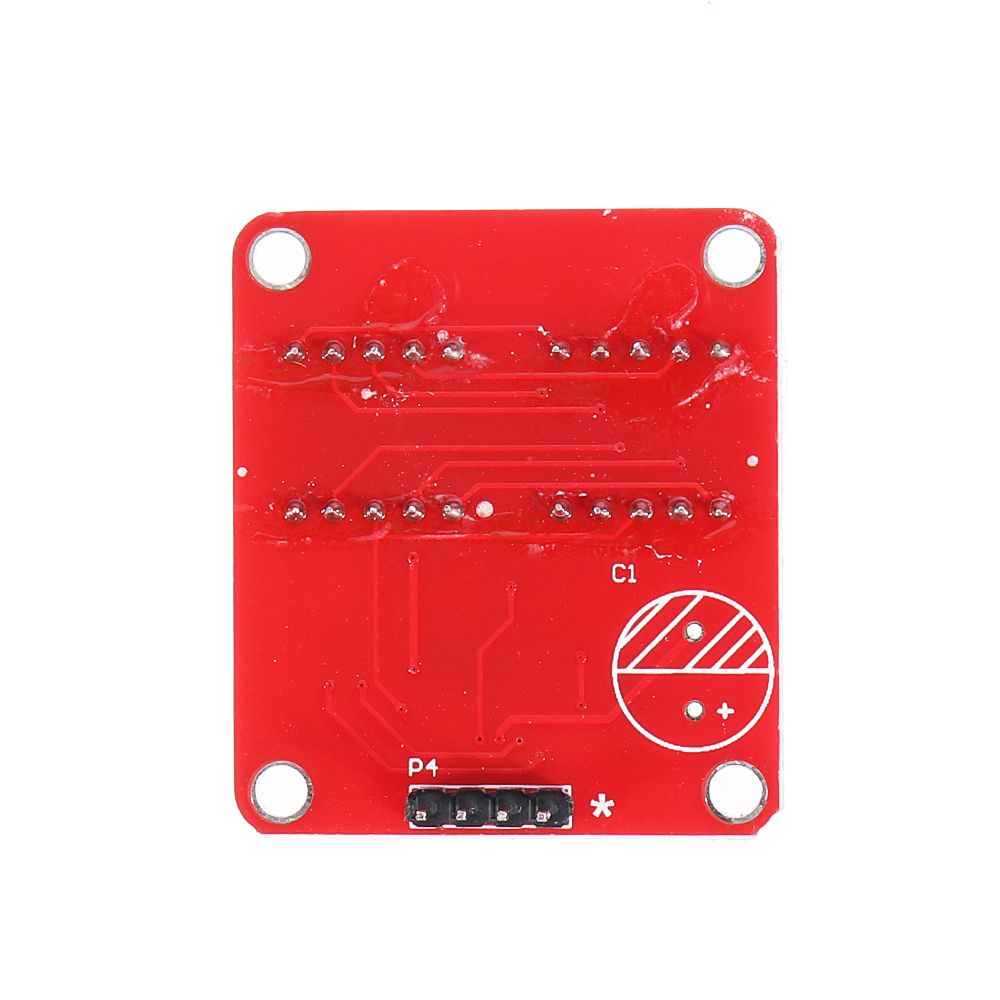

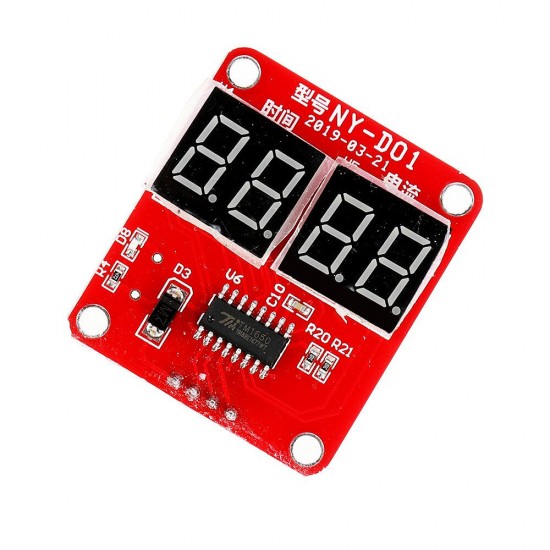

8. Digital control interface, you can display the current time and current settings.

9. Time input 1-50, unit cycle (1 cycles is 20ms), current input (30-99%)

Package includes:

1 x Spot Welders Control Board

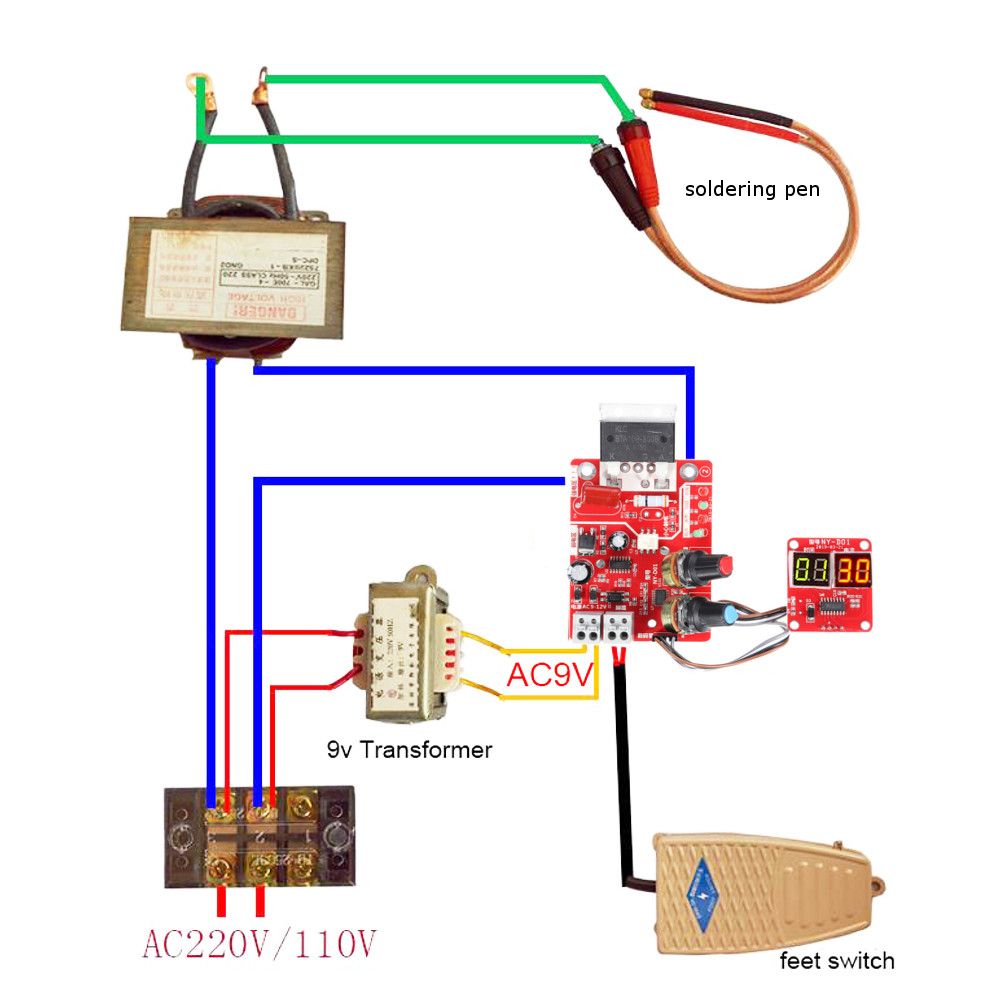

Wiring demo:

NY-D01-40A100A-Digital-Display-Spot-Soldering-Station-Time-and-Current-Controller-Board-Timing-Ammet-1570040
