TXA066 RTL8111H-T4 4 RJ45 Ports 10/100/1000Mbps Gigabit Network Card PCI-E PCI Express Network Adapter with Realtek 8111H
- Stock: In Stock
- Model: EB0026162
- SKU: EB0026162
| Brand | Renhotec |
| Model number | TXA066 |
| Chipset | RTL8111H*4 |
| Port number | 4* RJ45 |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Network media | 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP |
| Data rate | 10/100/1000Mbps |
| Interface | PCI Express 1x slot |
| Auto MDIX | YES |
| Full Duplex Renhotec | YES |
| MTBF | 376,212 Hours |
| Support Protocol | CSMA/CD |
| LED Indicator | 10/100/1000Mbps(Link/Act) |

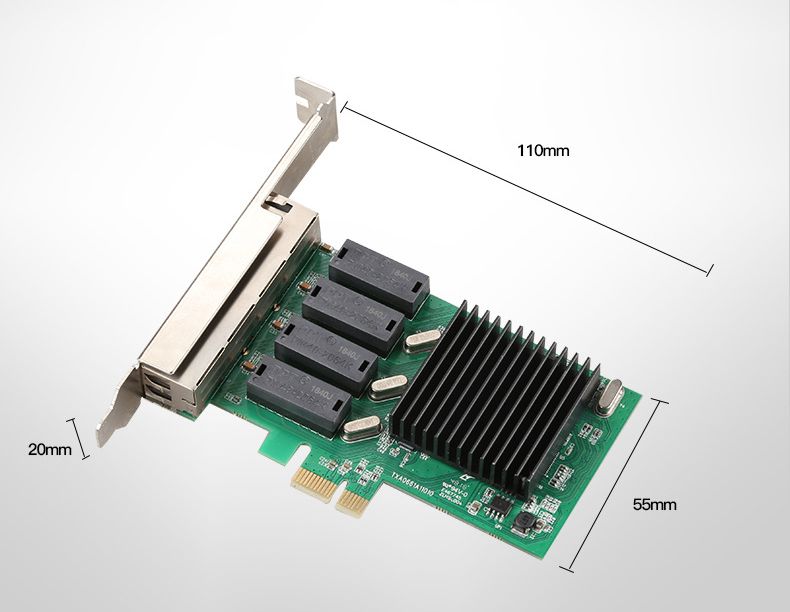

| PCB Dimension | 111*68.5*1.57mm |
| Support OS | Windows®10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server® 2012, 2008 R2, 2003(32/64) Mac® 10.x (Intel based, tested up to 10.9) Linux 2.4.x and later (Tested up to 3.5) |
| Environment | Operating Temperature: 0 ℃-70 ℃ |
| Relative Humidity: 10%-90%(non-condensing) | |
| Storage Temperature: -10℃-80℃ | |
| Relative Humidity: 5%-90%(non-condensing) | |
| Packing List | 1 * PCI Network Card |
