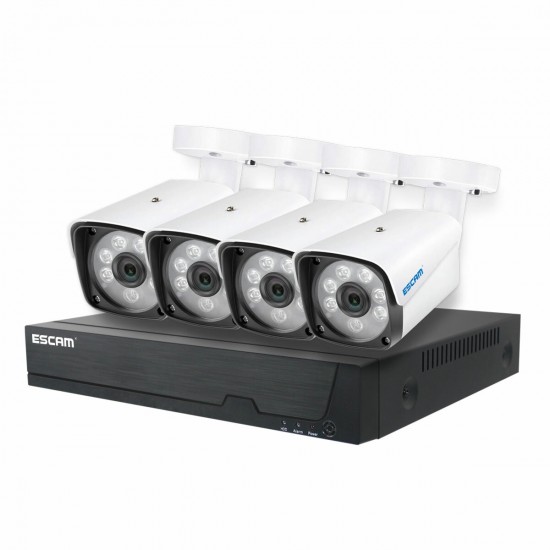

PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection

PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
PVR601 3MP POE 4CH PVR Camera Kit Surveillance Camera System without Humanoid Detection
$154.33
Ex Tax: $154.33
  • Stock: In Stock
  • Model: EB0024030
  • Dimensions: 255.00mm x 218.00mm x 43.00mm
  • SKU: EB0024030

Available Options

Model ESCAM PVR601
App P6SLite
Camera Parameter
Camera Image Sensor 1/2.5”CMOS
Effective Pixels 3MP
Lens 3.6mm
Angle of View Horizontal: 80°, vertical: 58°
Day/Night Mode Auto switchover
Min. Illumination 0.1Lux/F1.2(Color); 0.01Lux/F1.2(B/W)
IR Distance 15m(50 ft)
Backlight Compensation Support
DWDR Support
Video Compression H.265/H.264
Resolution Main stream:1920*1080(1080P),1280*720(720P)
Sub stream:800*448(448P),704*576(D1),640*360(360P),352*288(CIF)
Bit rate 64 Kbps~ 12Mbps
Frame Rate 25fps
Audio Interface Not support
Network Interface One 10M/100Mbps RJ45
Network Protocol HTTP,TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Browser Supported IE browser
OS Supported PC: Windows; Smart phone: iOS, Android
Onvif Support
General Power Supply DC12V & POE (IEEE 802.3at)
Power Consumption <6W
Working Environment  -30℃~+55℃(14°F~131°F), 10%~90%
Ingress Protection IP66
Dimensions 175*67*65mm
Weight 0.25KG

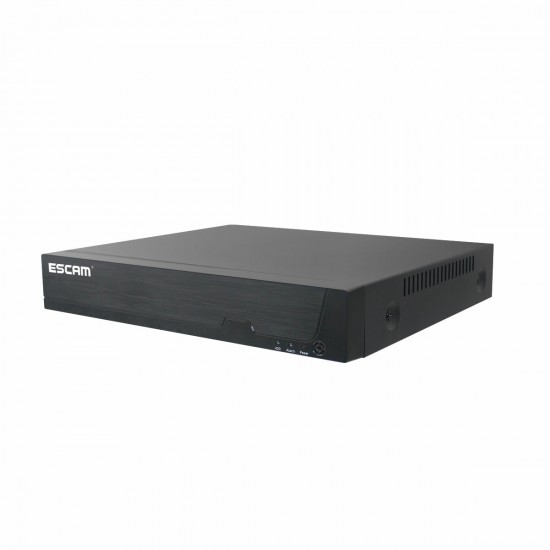

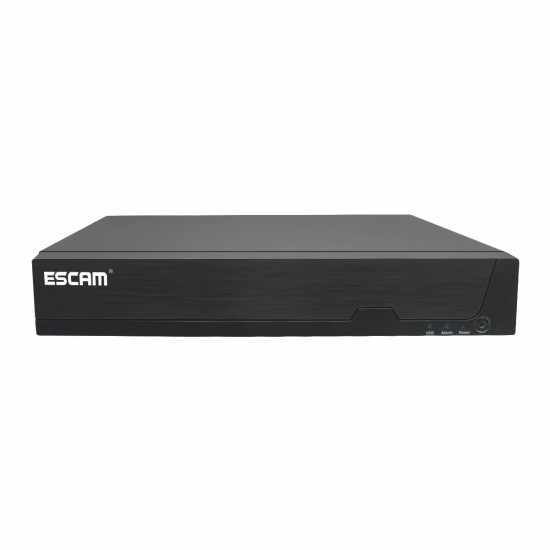

NVR Parameter
System GUI 16-Bit menu interface
Operating System Embedded linux OS
A/V Input Video Input 4 x POE IP camera
Audio Input Not support
A/V Output VGA Output 1024*768,1366*768,1280*1024,1920*1080 (1080P)
HDMI Output 1024*768,1366*768,1280*1024,1920*1080 (1080P)
Audio Output Not support
Playback Resolution 1080P/720P
Synchronous Playback 1 Channel

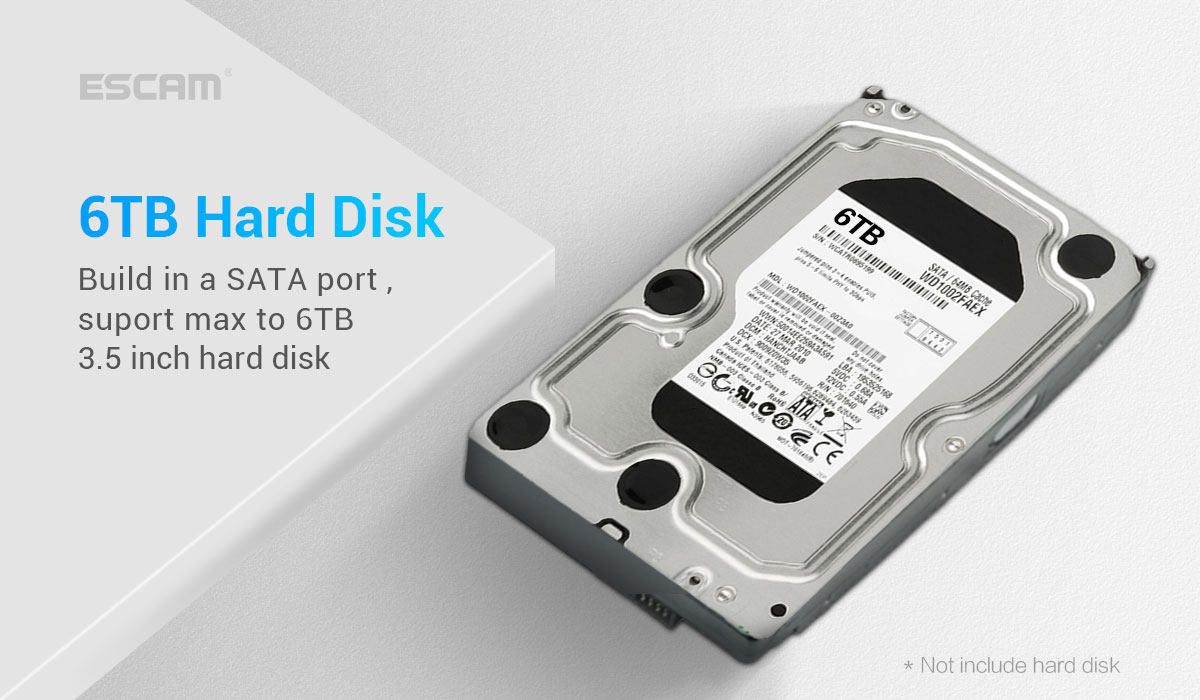

HDD Interface Type 1 SATA interface
Maximum Capacity 6TB(Not include HDD)

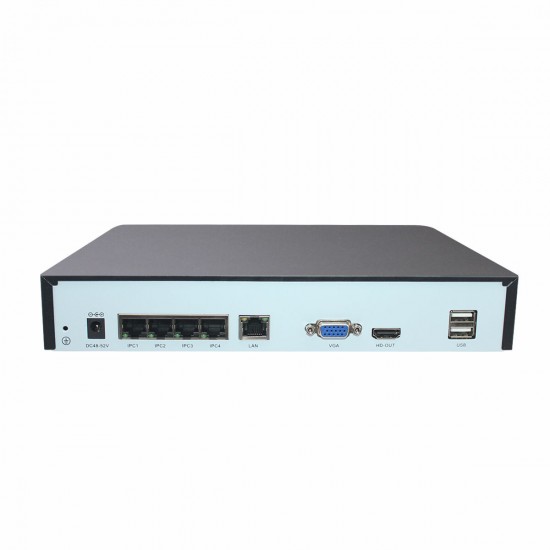

External Interface USB Connector 2 x USB 2.0

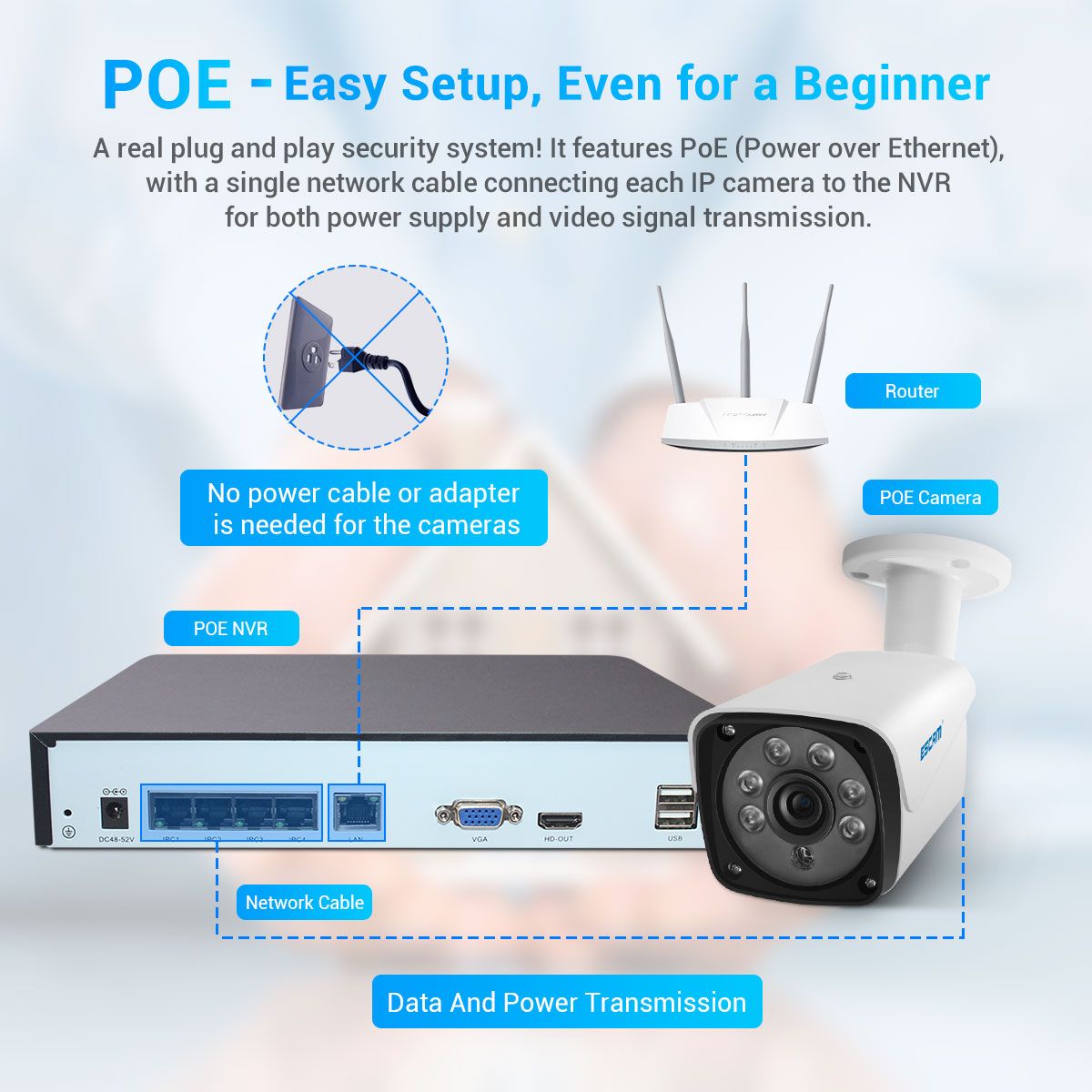

Network Interface One 10M/100M ethernet RJ45 port,  , four network POE ports for IP cameras
Network Network Protocol HTTP,TCP/IP, SMTP, NTP, DHCP, DNS, DDNS, P2P network protocol
Mobile Device iOS, Android Smartphones
Remote Software App, PC client (Windows)
Onvif Support
General Power Supply Input 110~260V, 52V 1.8A
Consumption <20W without POE Cameras
Working Environment -10°C~+45°C (14°F~113°F),10%~90%

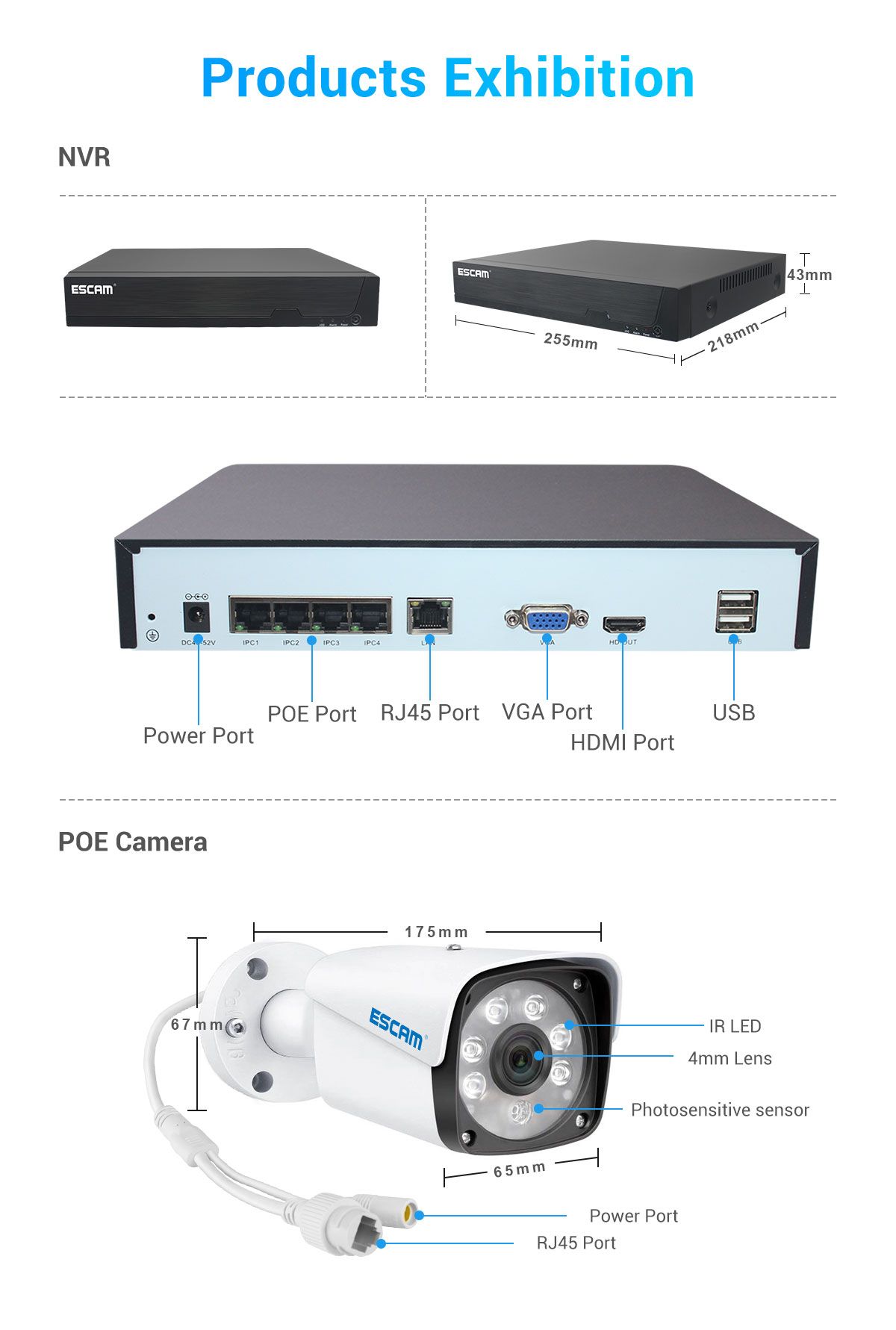

Dimension 255*218*43mm
Weight 0.75kg
Package information Dimension 345*275*188mm
Weight 3.9kg

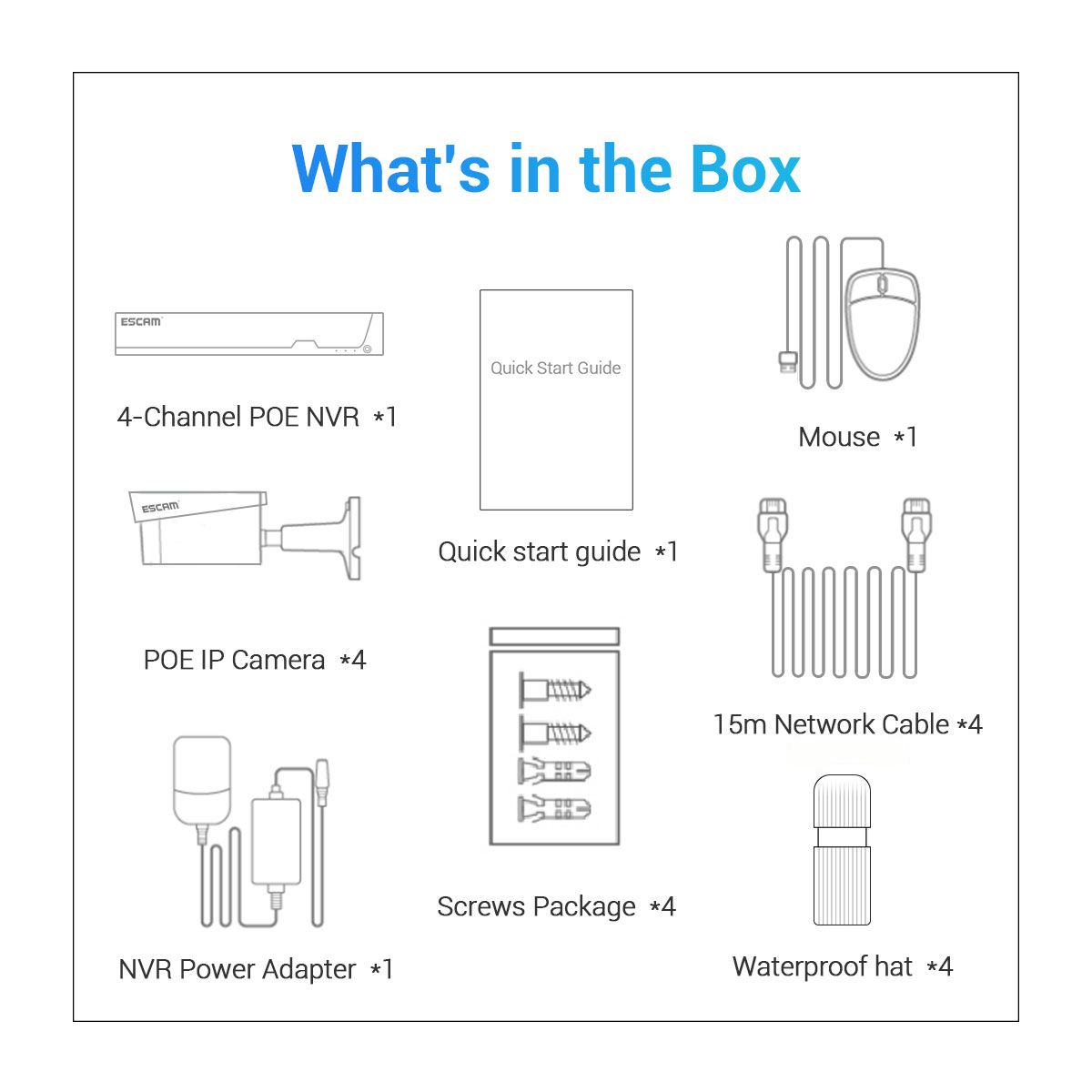

Packing List 4CH POE NVR x1 (Not include HDD), POE IP camera x 4, NVR power adapter x 1, Guide x 1,
15m network cable x 4, USB mouse x 1, Screws Package x 4, Waterproof hat x 4
