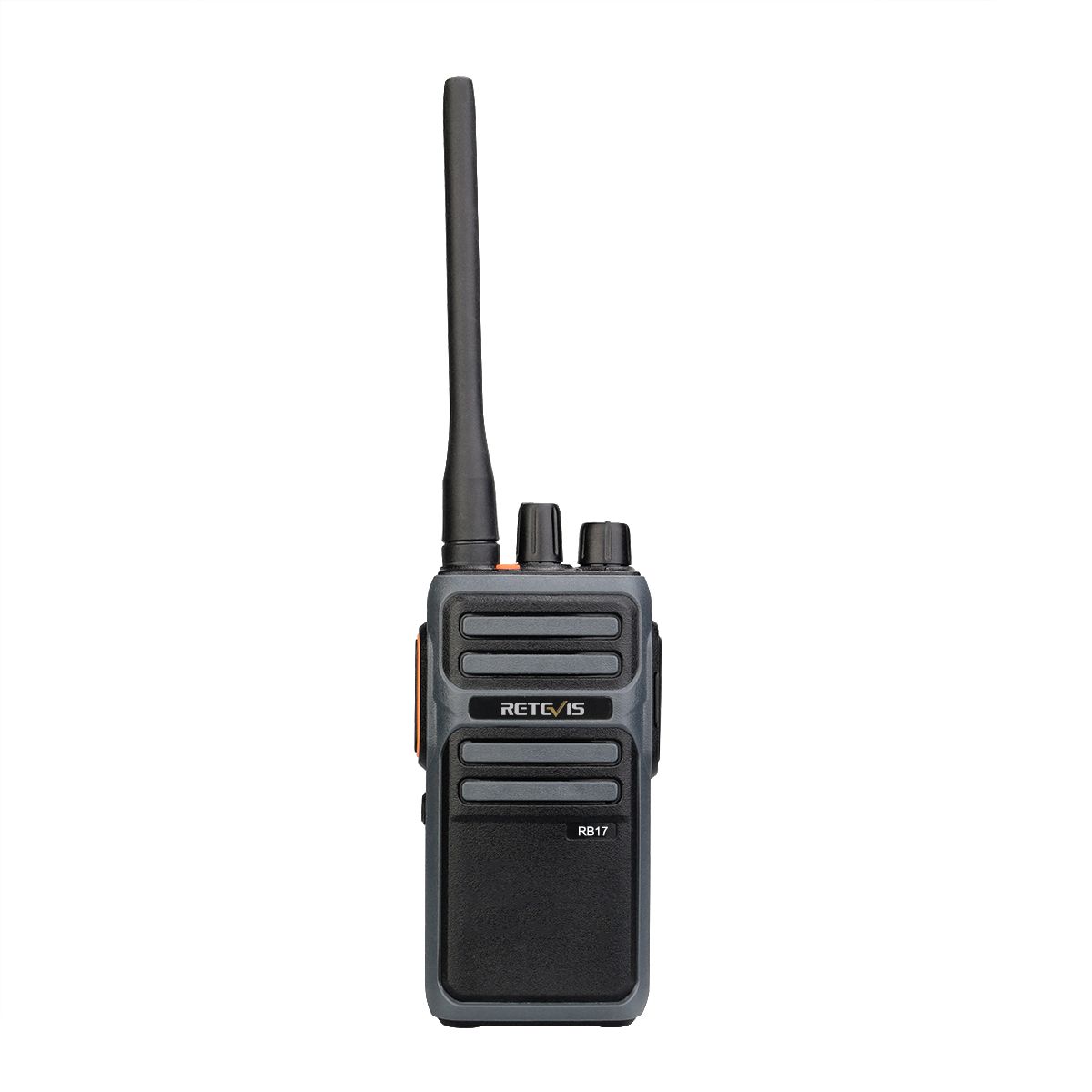

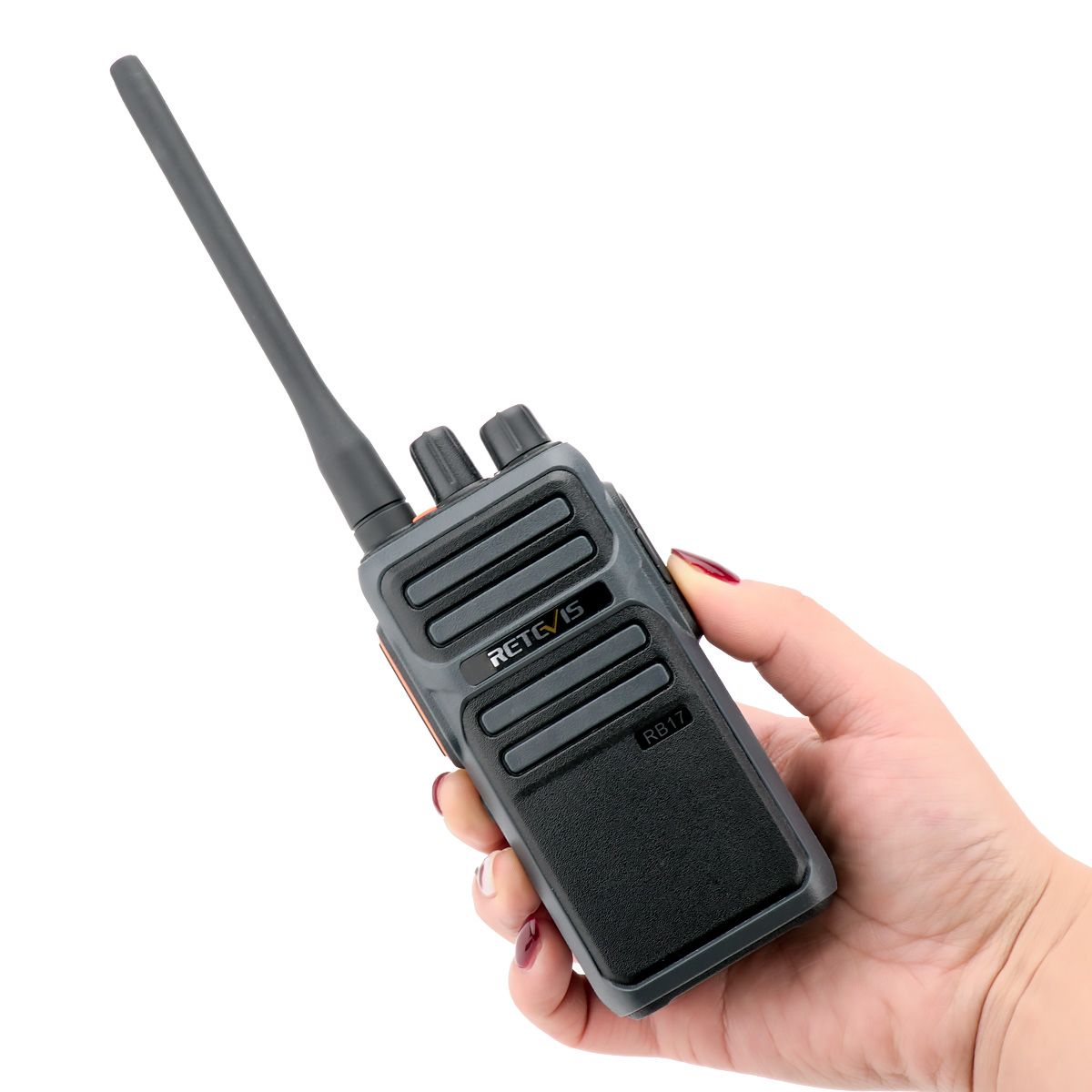

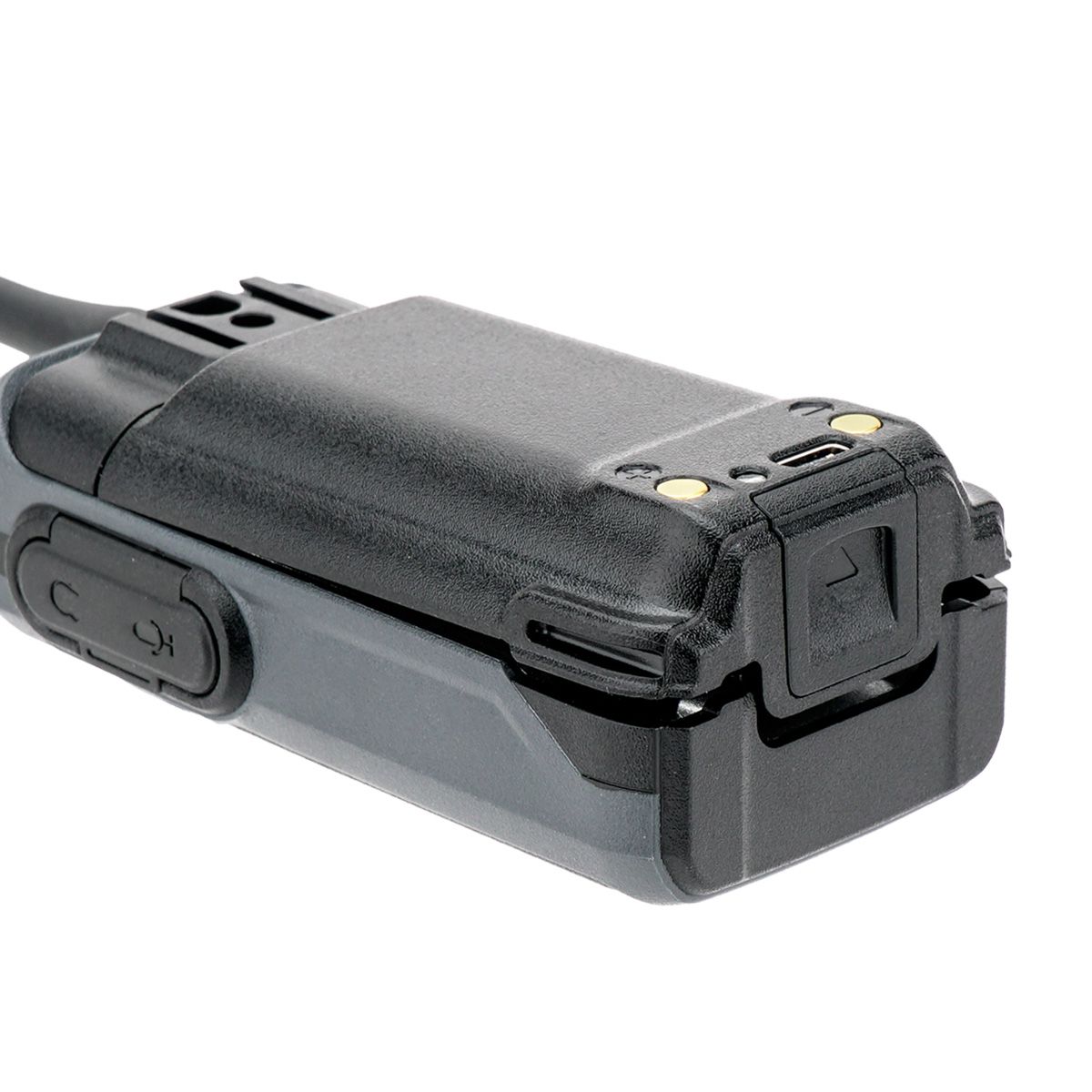

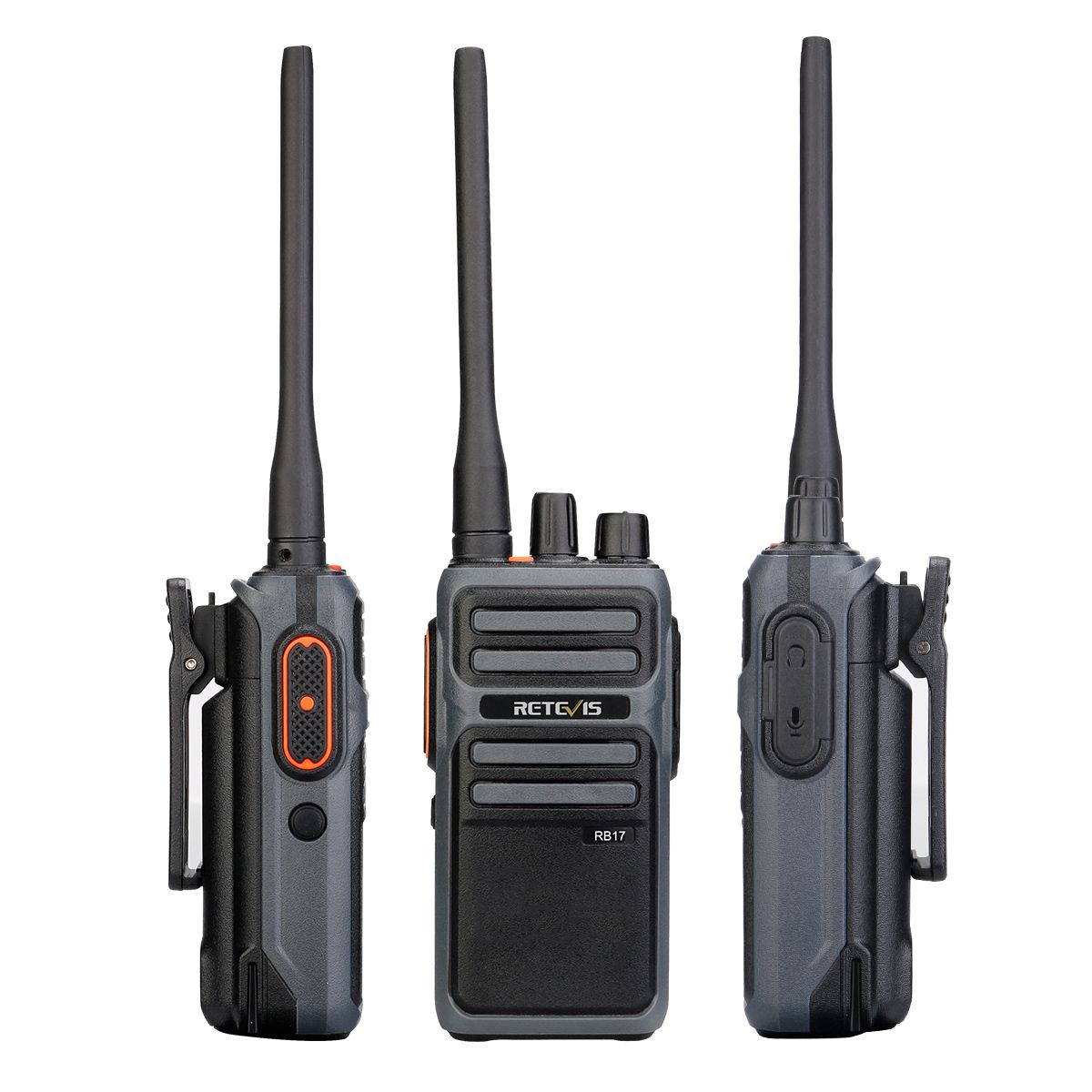

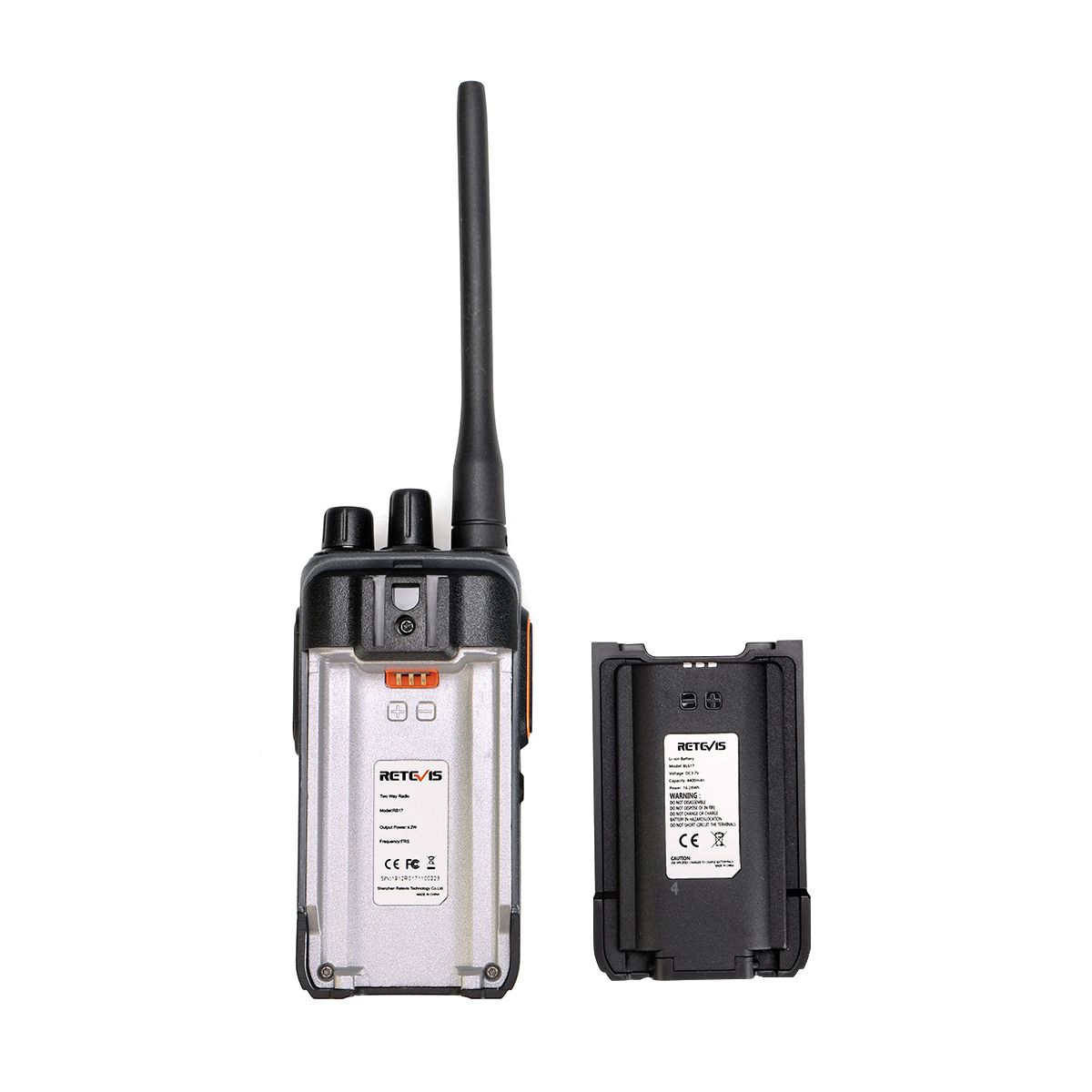

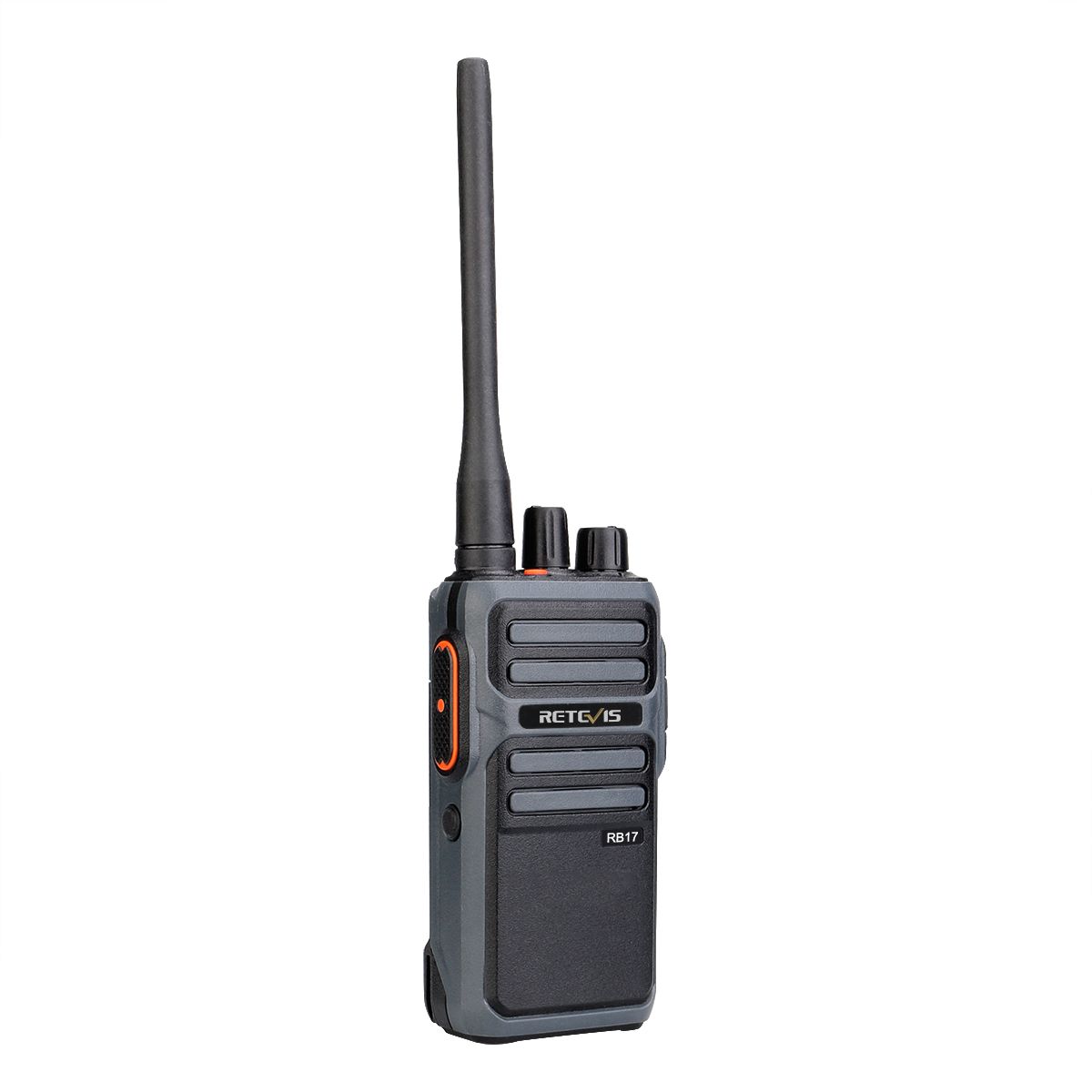

RB617 PMR FRS 446License-free 16 Channel Two Way Radio Intercom Console Large Capacity Type-c Charging Walkie Talkie
- Stock: In Stock
- Model: EB0024961

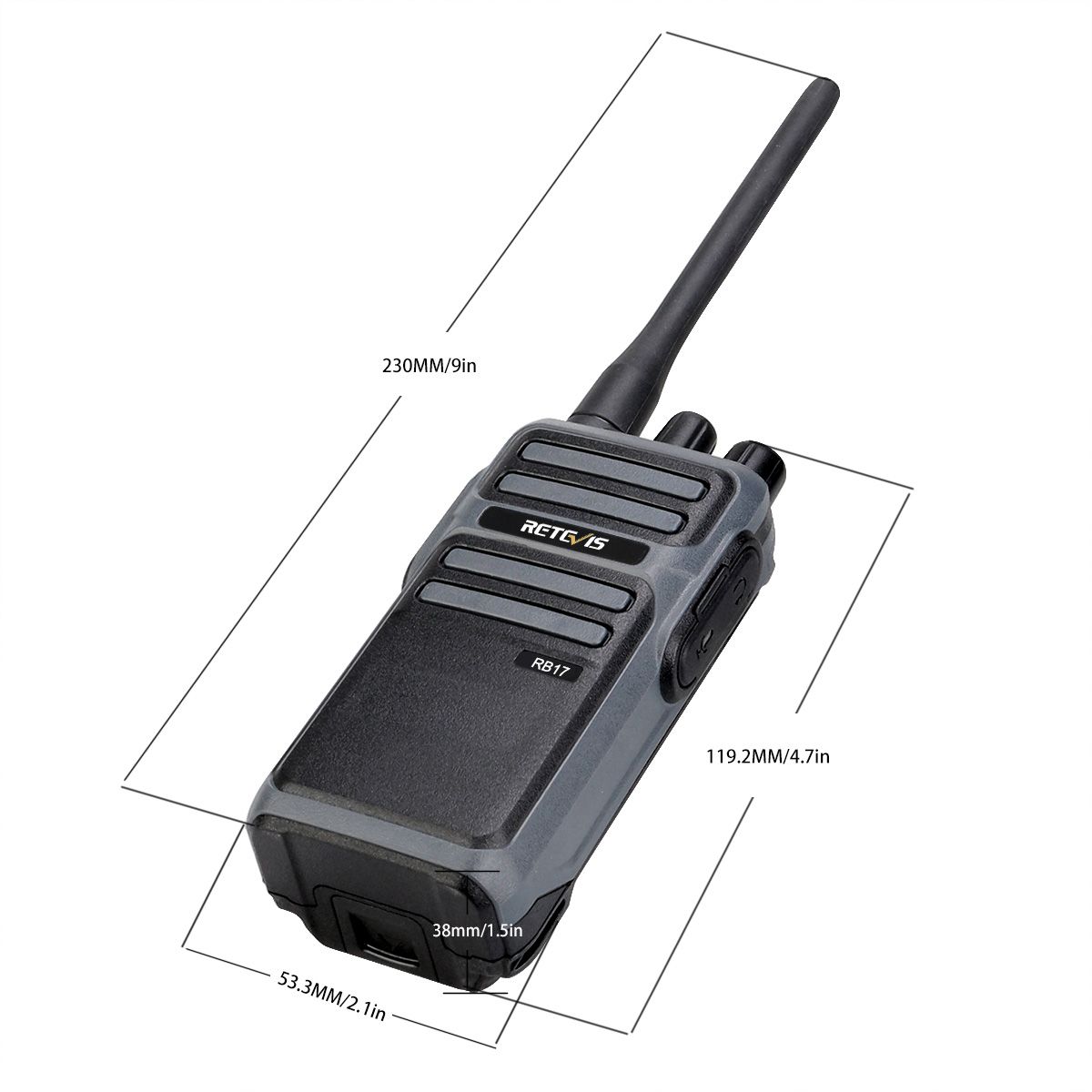

- Dimensions: 225.00mm x 56.00mm x 38.00mm
- SKU: EB0024961
| General Specifications | |
| Frequency Range | PMR446 |
| Channel Capacity | 16 |
| Channel Spacing | 12.5KHz |
| Antenna Impedence | 50Ω |
| MIC Impedence | 2.2kΩ |
| Working Voltage | -20~+60°C |
| Frequency Stability | ±2.5×10-6 |
| Net weight | 260g |
| Product Size | 225*56*38mm |
| Transmitter | |
| Carrier Frequency Tolerance | ±2.5×10-6 |
| Output Power | FRS≤2W, PMR≤0.5W |
| Modulation Sensitivity | 12±3mV |
| Modulation Distortion | ≤5% |
| Modulation Limit | ≤5kHz |
| Occupied Bandwidth | ≤16 kHz |
| Modulation Characteristic | ±3dB |
| Spurious Radiation | ≤7.5 μW |
| Adjacent Channel Selectivity | ≤-65 dB |
| Transmitting SNR | ≥40 dB |
| Receiver | |
| Reference Sensitivity | -121dBm |
| Squelch Sensitivity | ≤0.22 μV |
| Audio Power | 1W |
| Audio Distortion | ≤5% |
| Modulation RX Bandwidth | ≥∣±7kHz∣ |
| Audio Response | ≥+2dB, ≤-10dB |
| Co-channel Injection | ≥-8 dB |
| Block | ≥85 dB |
| Channel Selectivity | ≥65 dB |
| Receiving SNR | ≥40 dB |

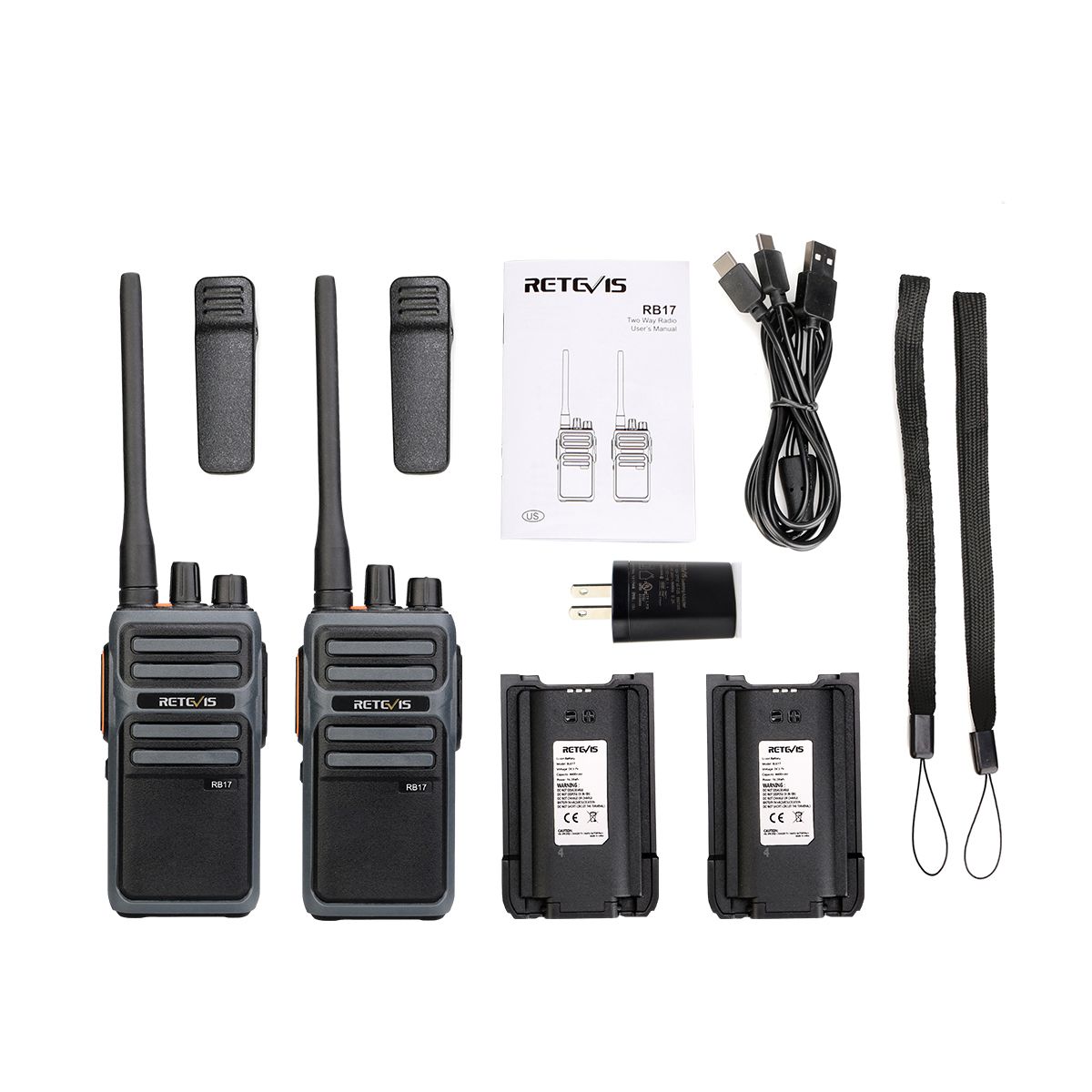

2 x RB17 two way radio
1 x User Manual
2 x Belt clip
2 x Lanyard
