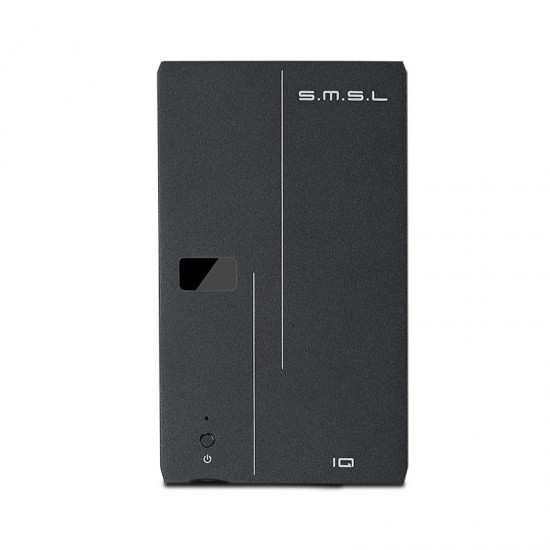

IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output

IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
IQ USB HI-RES Portable Headphone Amplifier with DAC DSD512 PCM 768kHZ 2.5mm 3.5mm Output
$144.21
Ex Tax: $144.21
  • Stock: In Stock
  • Model: EB0018579
  • SKU: EB0018579

Available Options

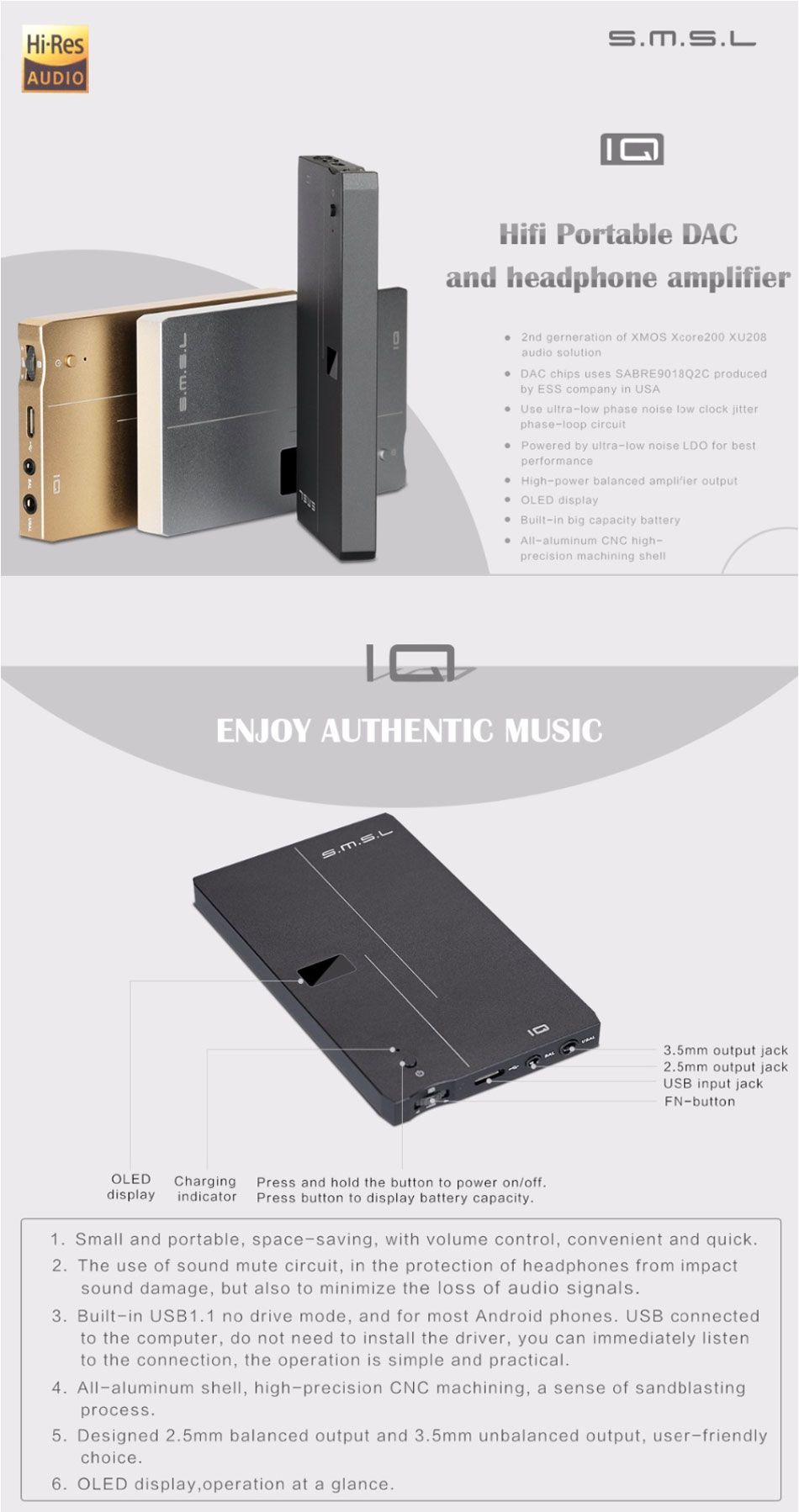

Features:

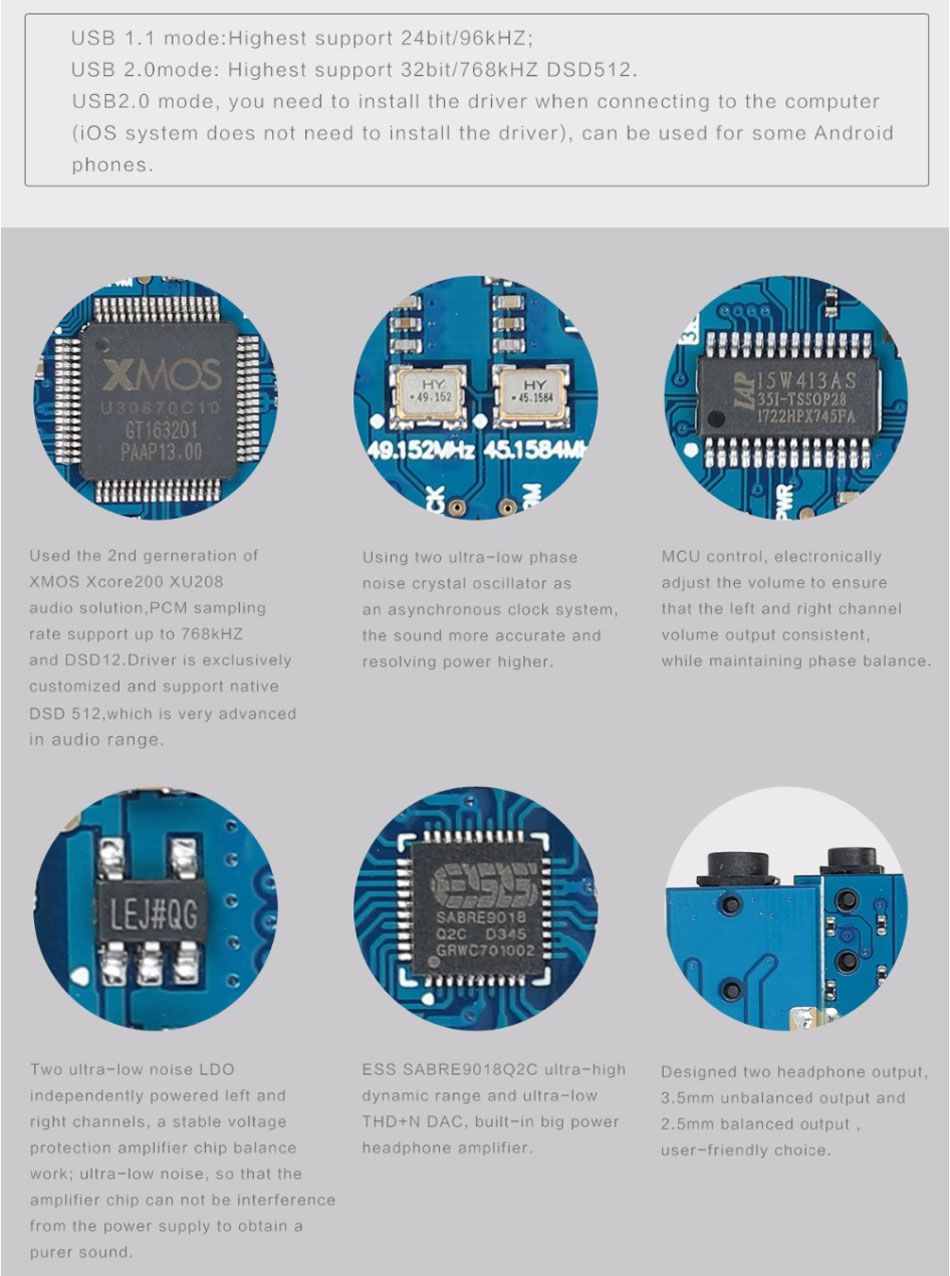

2nd gerneration of XMOS Xcore200 XU208 audio solution
DAC chips uses SABRE9018Q2C
Use ultra-low phase noise low clock jitter phase-loop circuit
Powered by ultra-low noise LDO for best performance
High-power balanced amplifier output
OLED display
Built-in big capacity battery
All-aluminum CNC high-precision machining shell

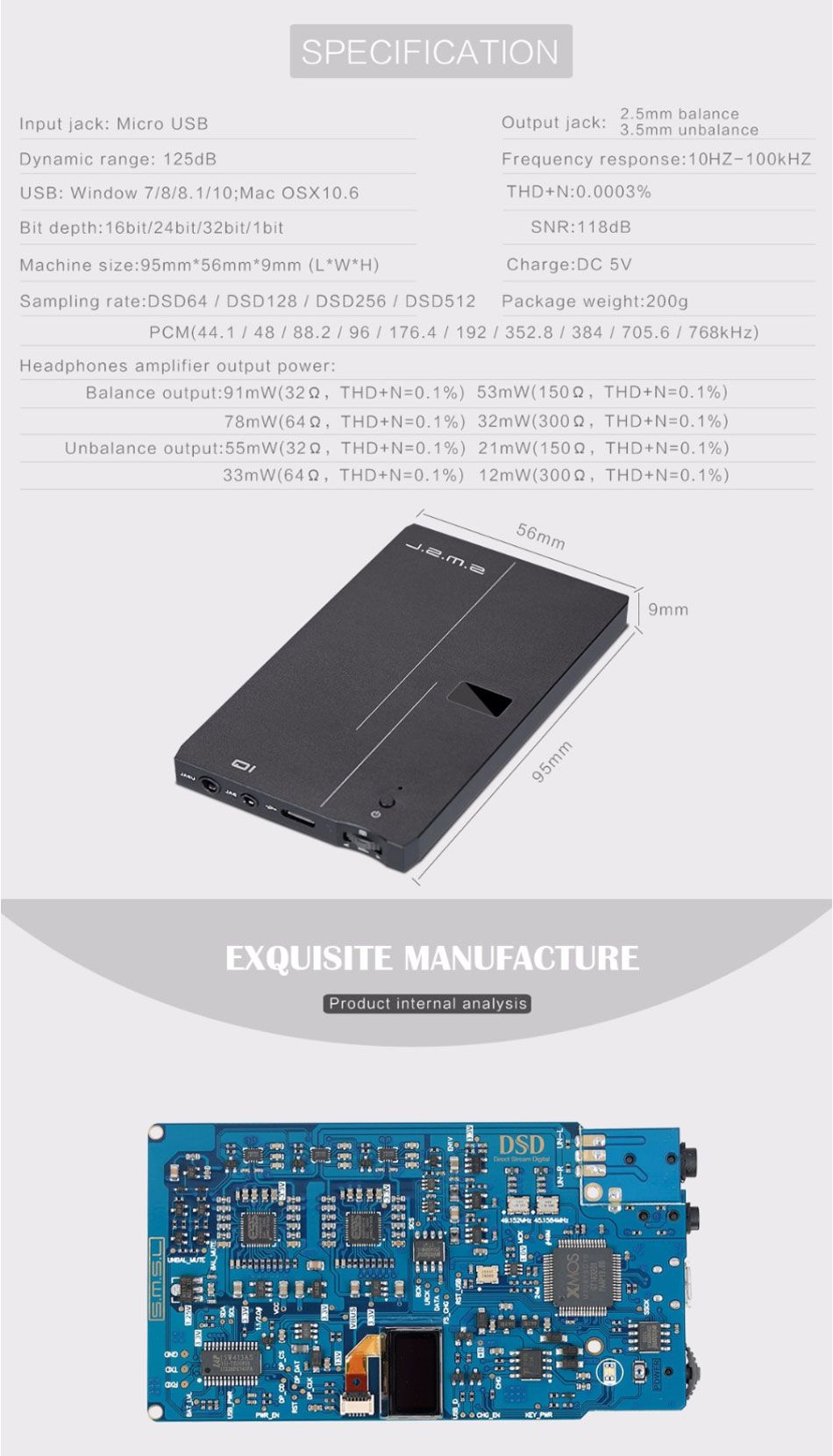

Specifications:


Input jack: Micro USB
Output jack: 2.5mm balance,3.5mm unbalance

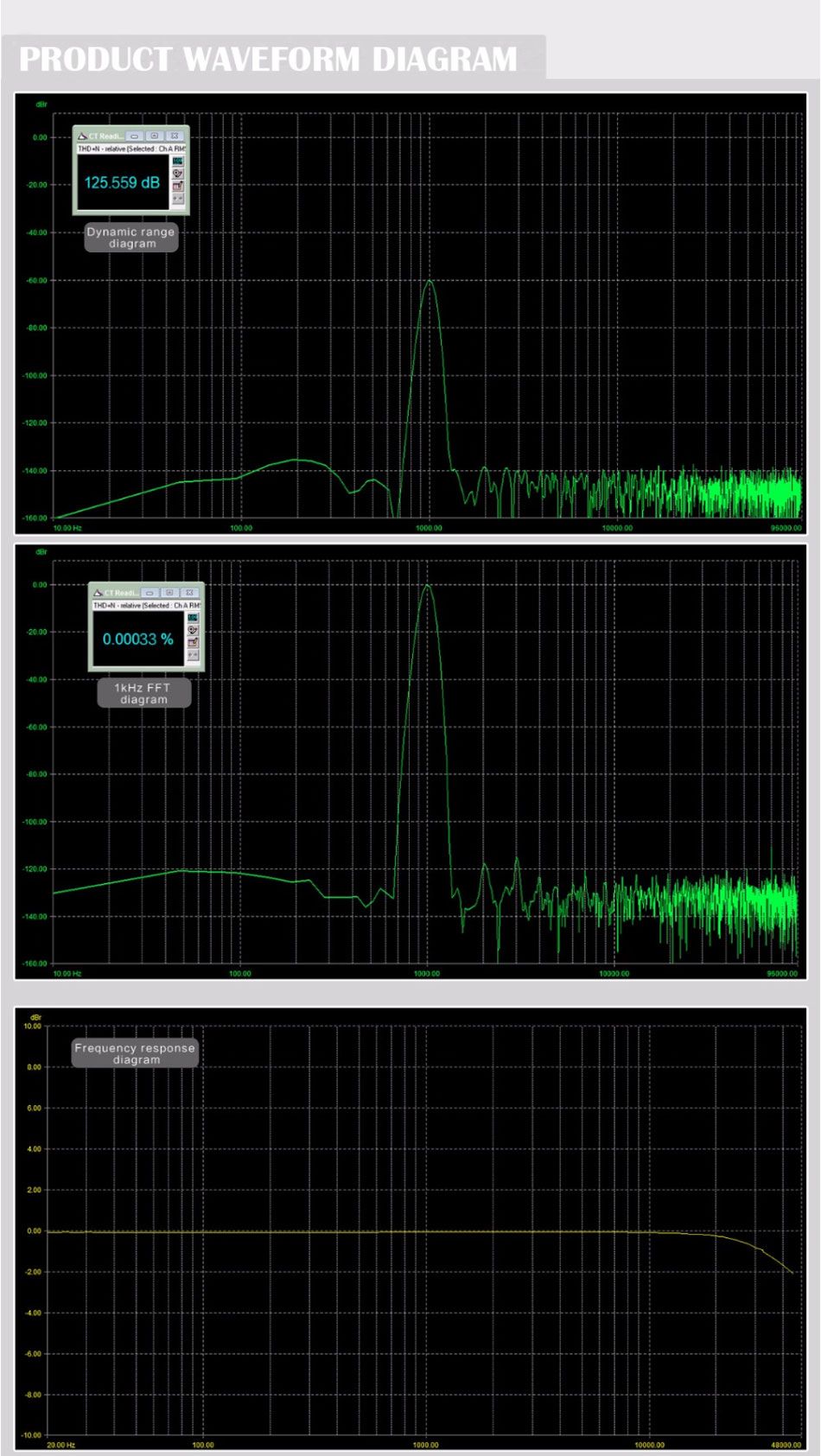

Dynamic range: 125dB
Frequency response: 10HZ-100kHZ
USB: for Window 7/8/8.1/10; for Mac OSX10.6
THD+N: 0.0003%
Bit depth: 16bit,24bit,32bit,1bit
SNR: 118dB
Machine size: 95mm*56mm*9mm (L*W*H)
Charge: DC 5V
Package weight: 200g
Sampling rate:
DSD64,DSD128,DSD256,DSD512
PCM(44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHZ)
Headphones amplifier output power(@THD+N=0.1%)
Balance output: 32Ω  91mW, 64Ω  78mW, 150Ω 53mW, 300Ω 32mW
Unbalance output: : 32Ω 55mW, 64Ω 33mW, 150Ω 21mW, 300Ω 12mW

Package Included:

1 x SMSL IQ Amplifier
1 x USB A to B Cable
1 x Micro USB to Micro USB
1x Micro USB to type C
