SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier

SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
SD-793II DIR9001 PCM1793 OPA2134 24bit/96khz Coaxial/Optical DAC Amplifier
$70.03
Ex Tax: $70.03
  • Stock: In Stock
  • Model: EB0018643
  • SKU: EB0018643

Available Options

Features:

All aluminum alloy shell, knob and button
Signal input can be chosen, with LED indicator
Built-in headphone amplifier, can mainstream low impedance fever headphone
Universal power adapter from 100V to 240V

Specifications:


Signal Input: Optical, Coaxial
Signal Output: RCA 2 Channel Output

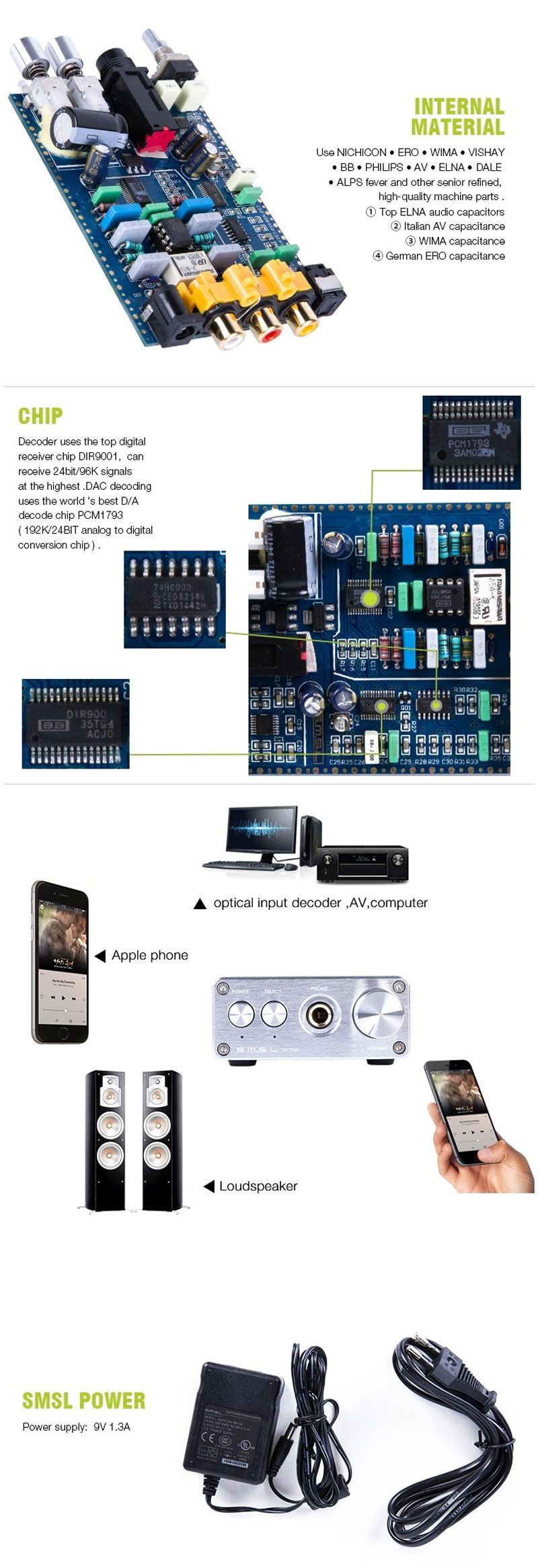

Digital Receiver: DIR9001
DAC Chip: PCM1793
OPA2134 and WIMA caps
Print: Laser Carve
Case: Aluminum
Power supply:DC9V
Technical indicators

Input interfaces: coaxial / Optical (with switch)
Input Frequency: 44.1,48,96 KHZ/16/24BIT
SNR:> 113db
Dynamic Range: 105db
Distortion: 1KHZ% 0.0006 following
Rated output: 1.7VPP
Frequency response: 20-20KHz (-0.2 dB)
Total power <8W
Earphone output power: 65mW @ 16Ω; 130mW @ 32Ω
Headphone output distortion: 0.01% THD + N _AT_ 100mW/32Ω
Machine size: 128 * 77 * 35mm (including protruding parts)
Weight: 0.5Kg
Voltage: 100-240ACV global power
User Guide

Connect Input, Output cable, Power on with (DC12V) power adapter
Switch on
Press input switch to shift optical & Coaxial input as necessary

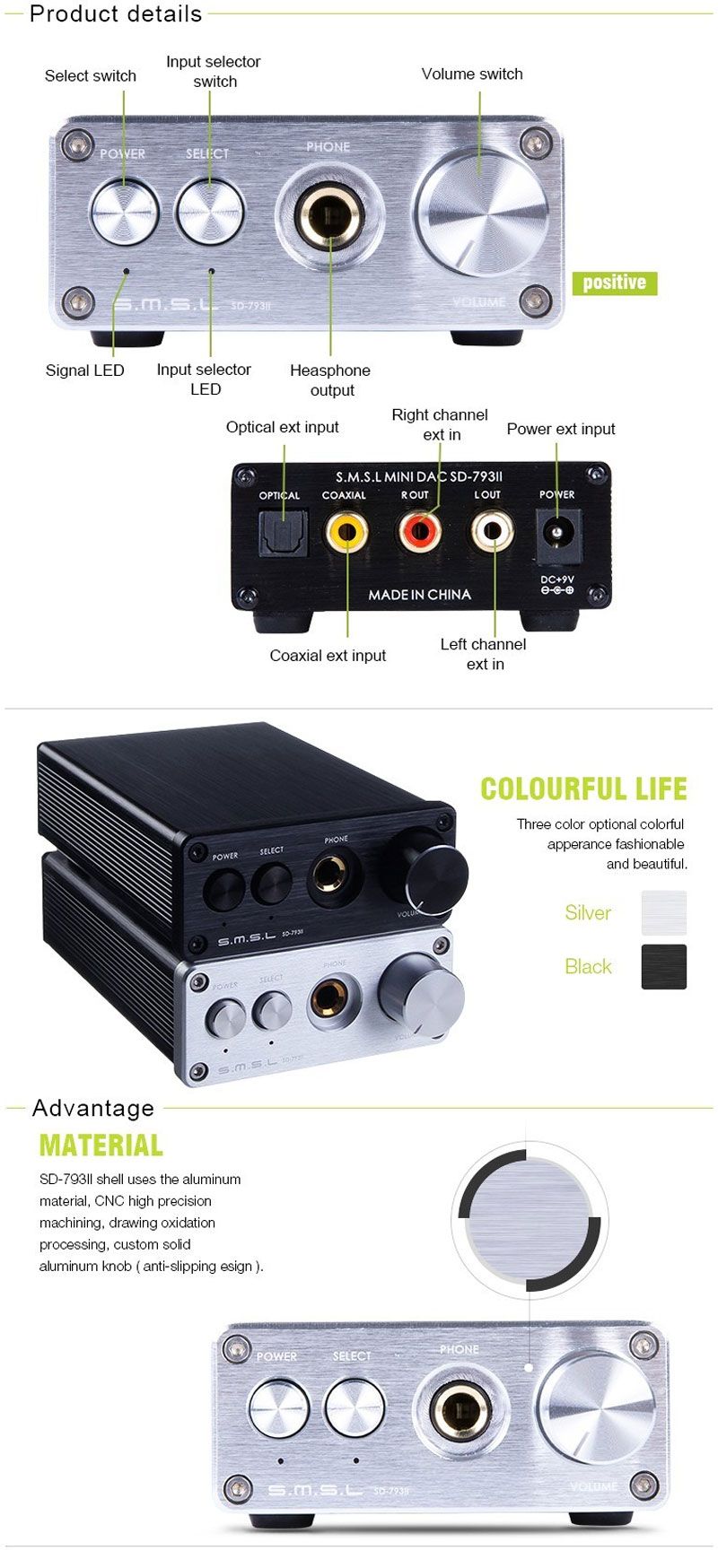

Switch

Power Switch--On / Off
Input Switch--Optical/Coaxial
Indicator LED

Power--Power On
Signal-- Light on means no signal
Input-- Optical  / Coaxial  input ( 2 color )

Package Included:

1 x SMSL SD-793II Amplifier
1 x Power Adapter


SMSL-SD-793II-DIR9001-PCM1793-OPA2134-24bit96khz-CoaxialOptical-DAC-Amplifier-1529141
SMSL-SD-793II-DIR9001-PCM1793-OPA2134-24bit96khz-CoaxialOptical-DAC-Amplifier-1529141
