SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter

SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
SHS820 Handheld Digital Oscilloscope 2 Channel 200MHz 500MS/s 32k Oscilloscope Multimeter
$712.90
Ex Tax: $712.90
  • Stock: In Stock
  • Model: EB004113
  • SKU: EB004113
Features:

Multimeter functions:
DC voltage and current
AC voltage and current
Resistance
Capacitance
Continuity check
Diode check
Memory depth 32 k

Specification:

Bandwidth 200 MHz
Rise time ≤ 3.5 ns
Real-time sampling rate 1 Ch: 500 MS/s
2 Ch: 500 MSa/s
Equivalent sampling range 50 GS/s
Vertical sensitivity 2 mV/div ~ 100 V/div
Memory depth 32 k
Scan time base 2.5 ns ~ 50 s/div
Trigger type Edge, Pulse, Video, Slope and Alternative
Frequency counter 6 digits frequency counter
Maths functions Add, Subtract, Multiply, Divide, FFT
Max. display 6000
LCD size :5.7" (320 × 234)
Ports USB interface, USB host
Power Lithium battery: 7.4 V, 5000 mAh
DC adapter: 100 - 240 V, 50/60 Hz, 9 V 4 A output
Dimensions 163.2 × 259.5 × 53.3 mm
Weight 1.5 kg

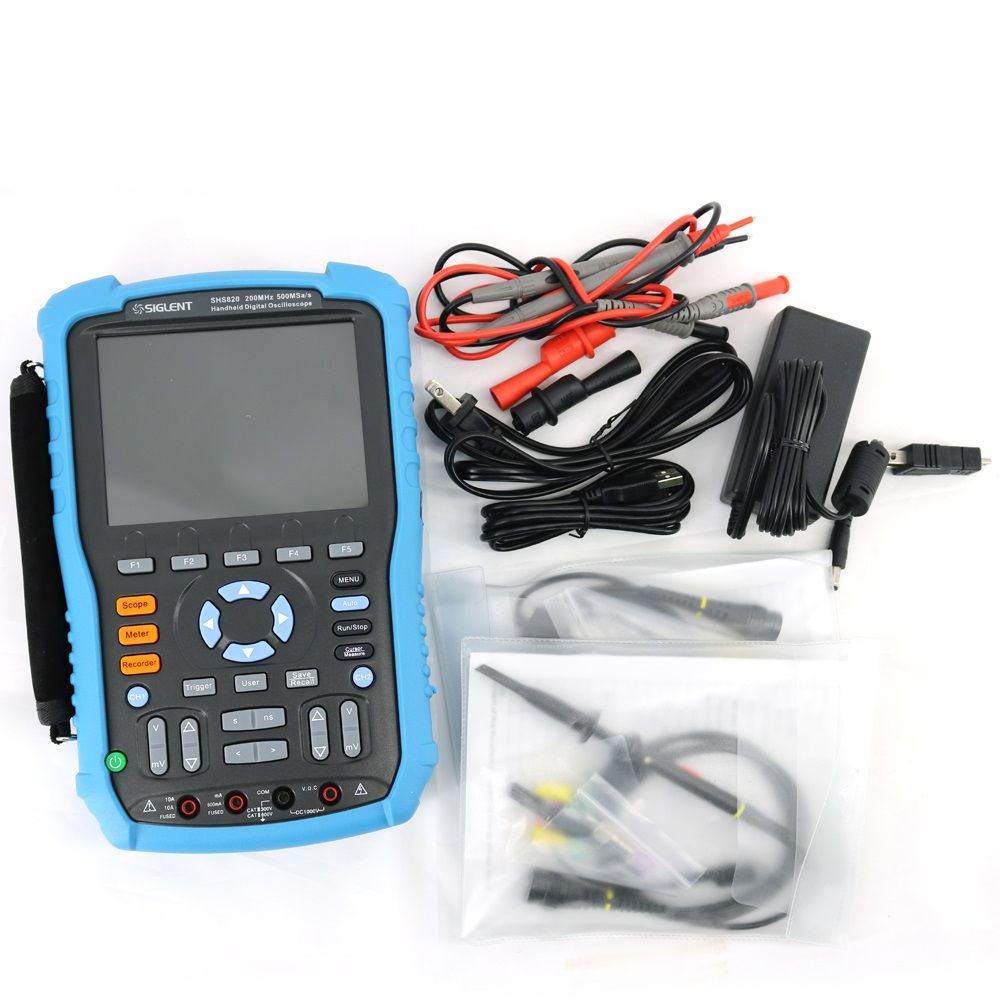

Package Includes:

1 x Digital oscilloscope SIGLENT SHS820
2 x Passive probe
1 x Power cord
1 x DC power adapter
2 x Multimeter test leads
1 x Probe calibrator accessory
1 x USB cable

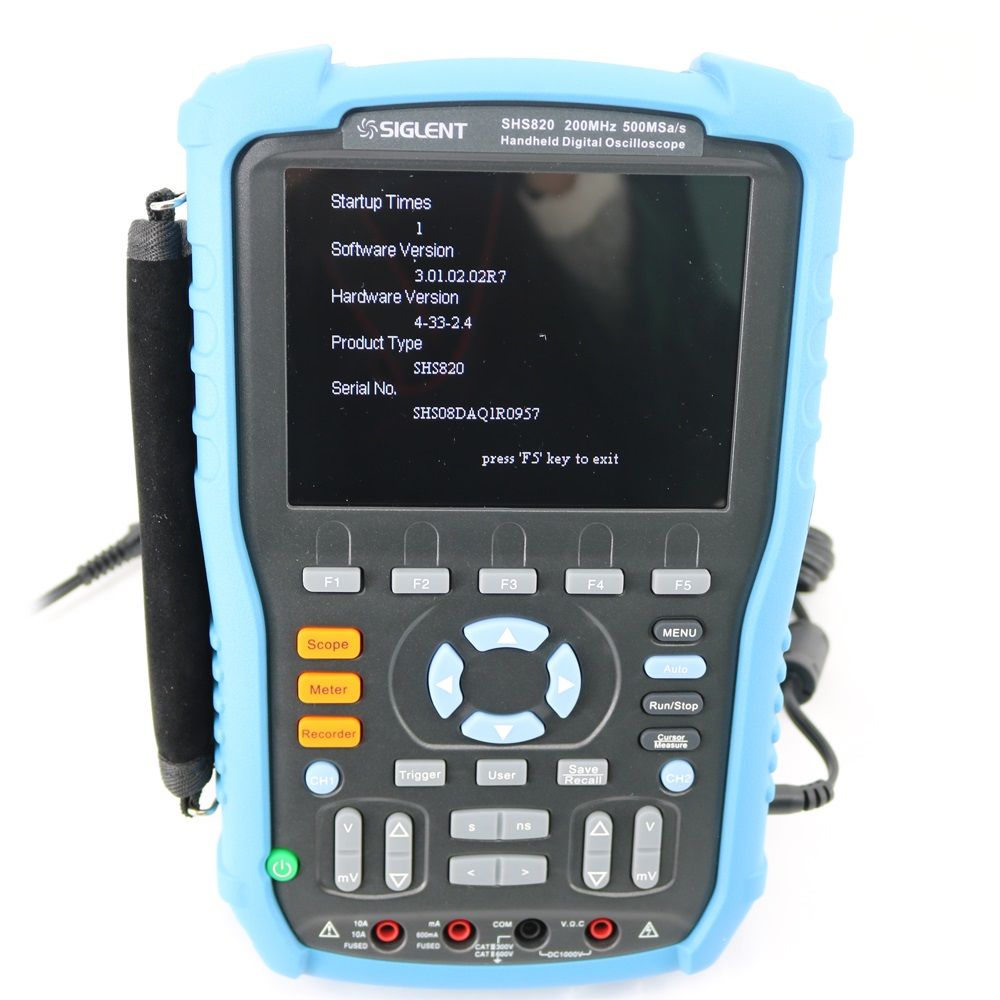

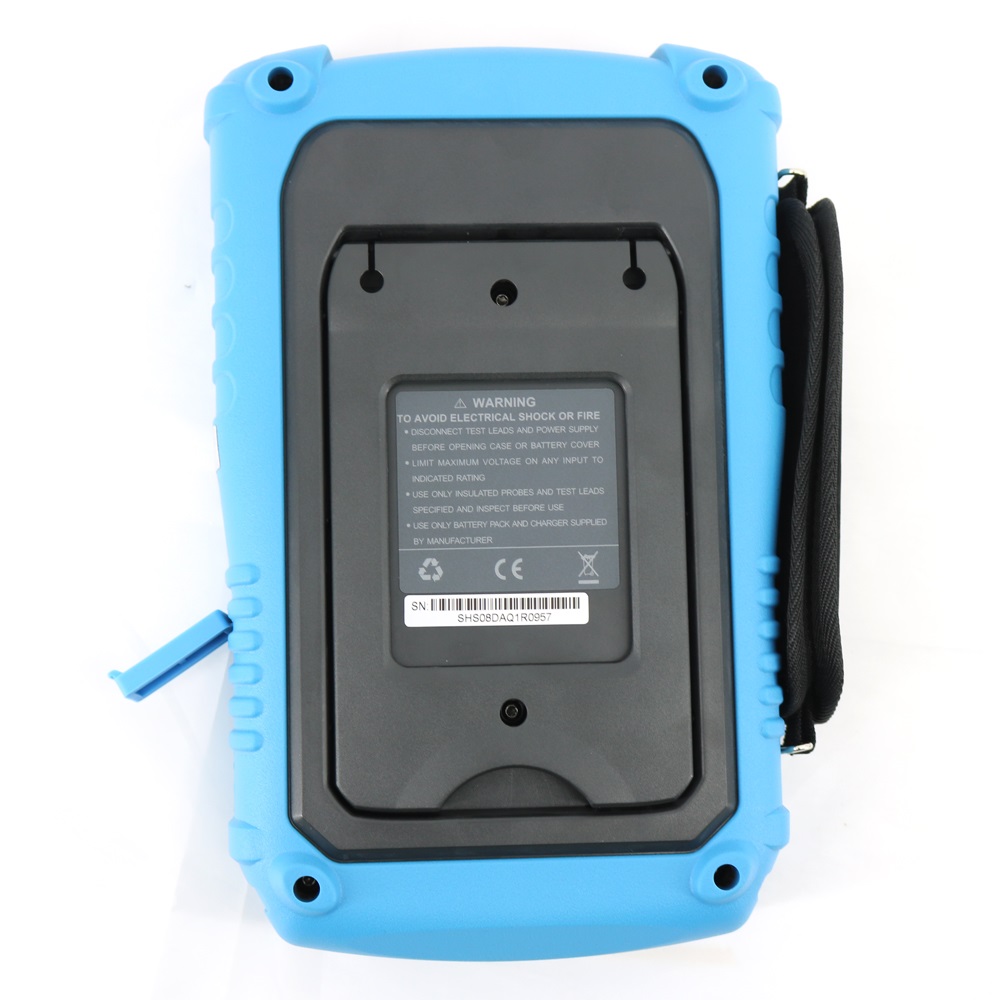

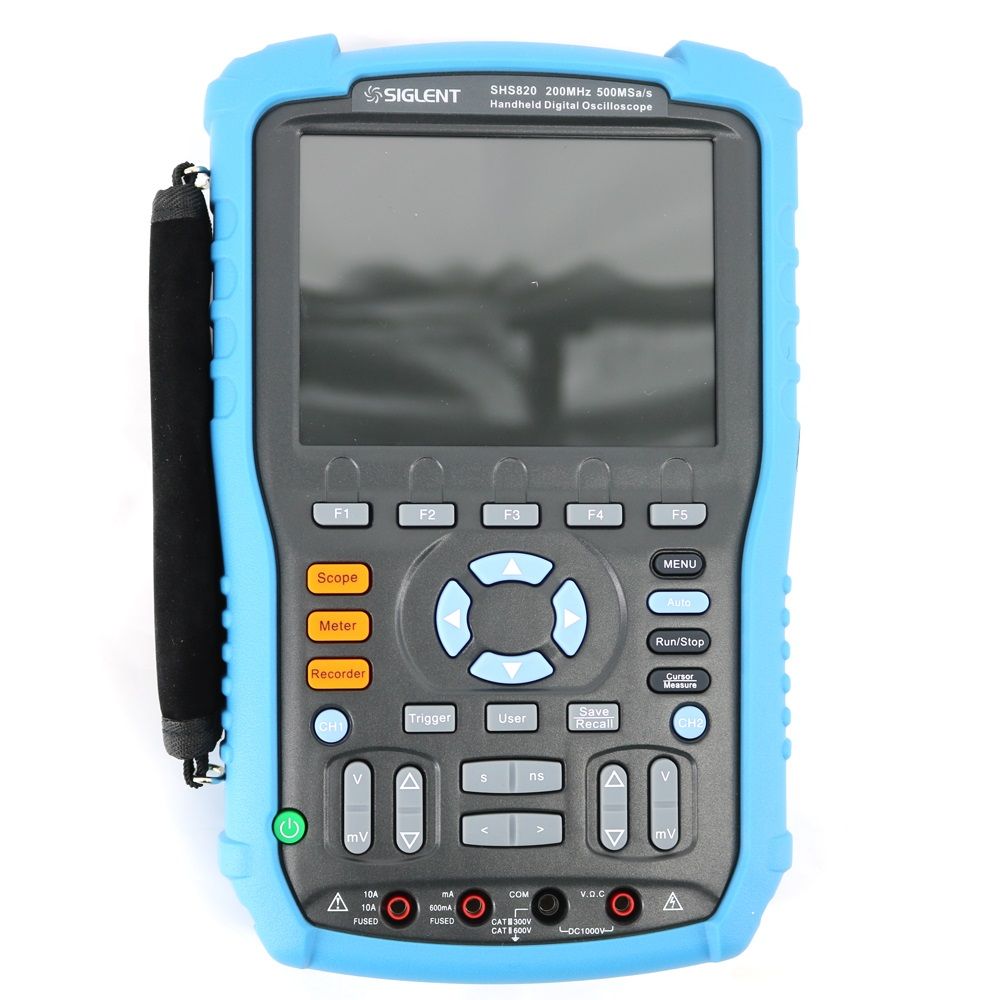

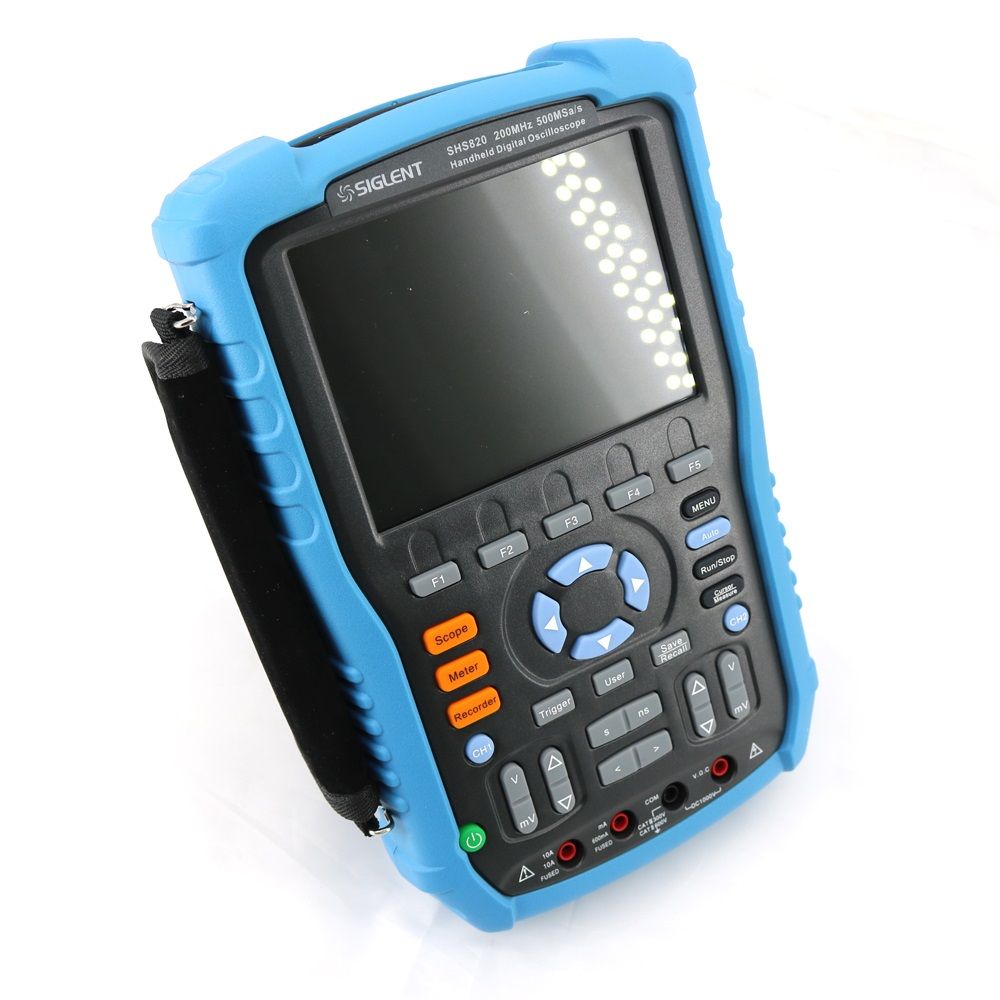

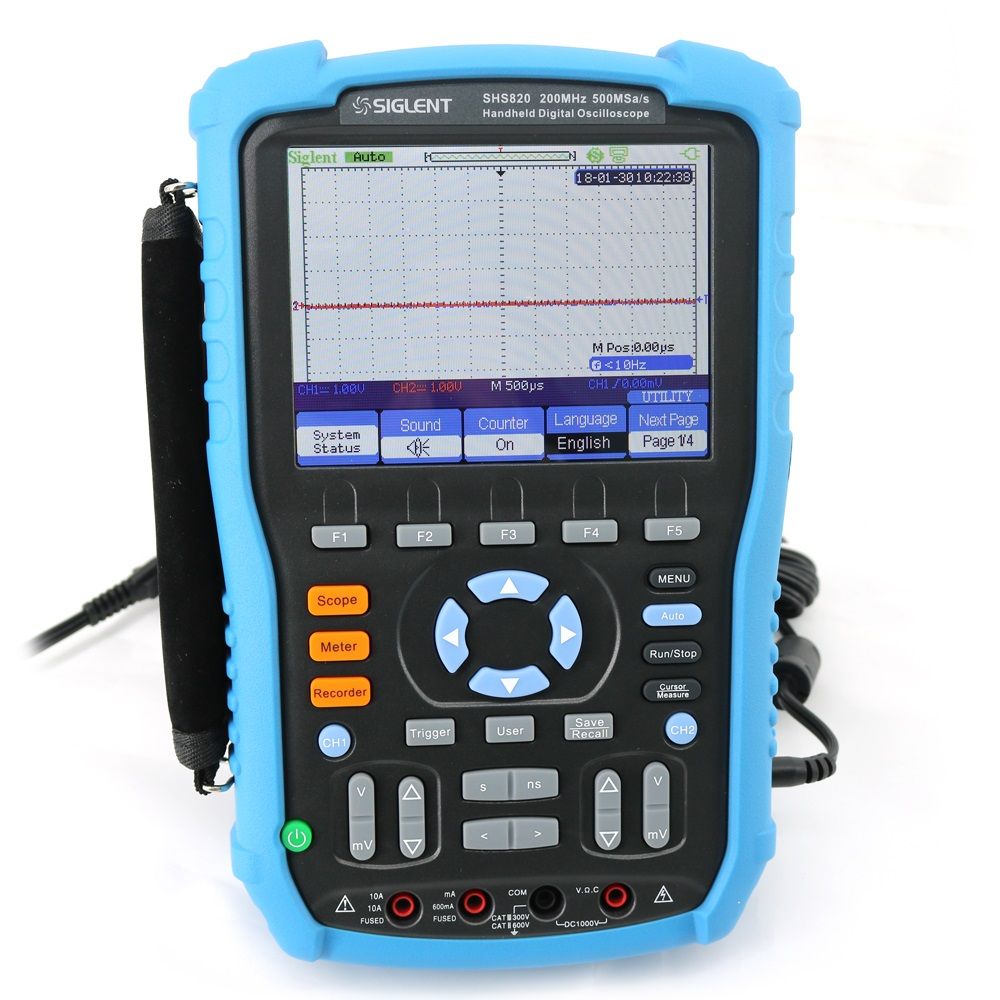

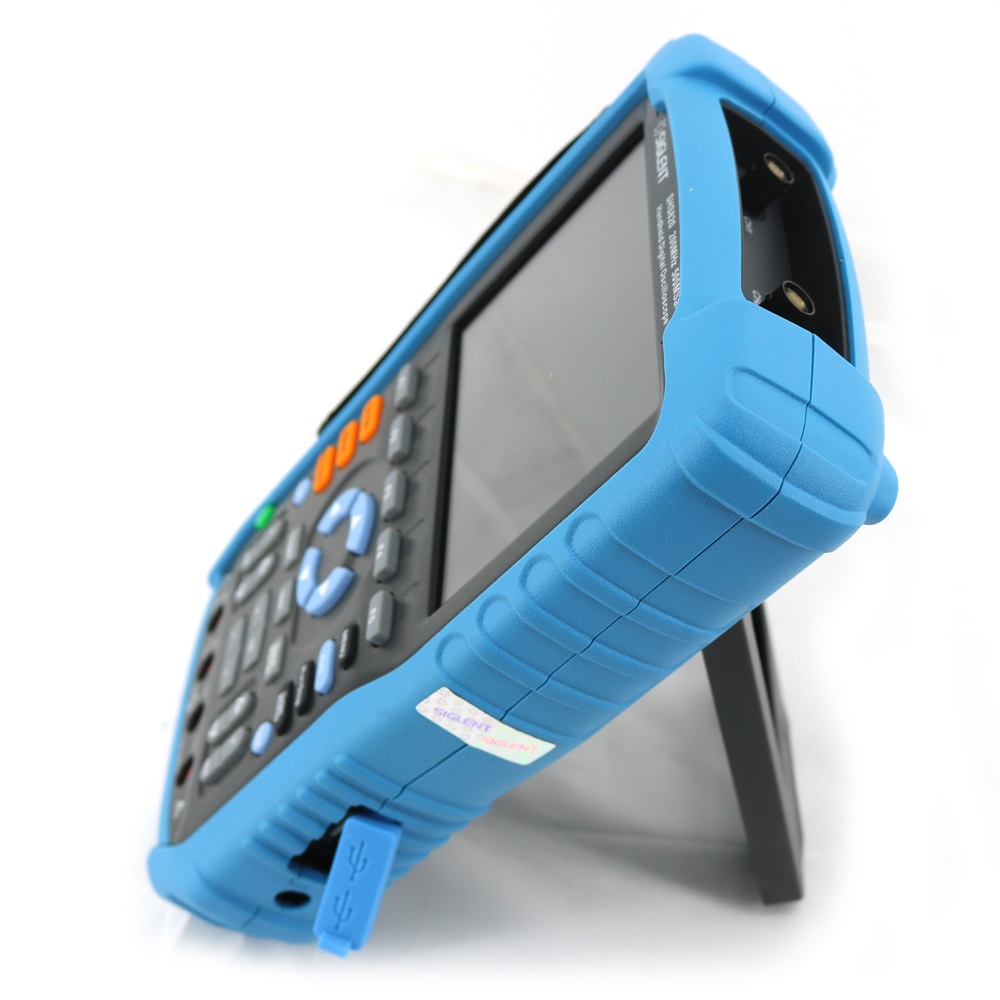

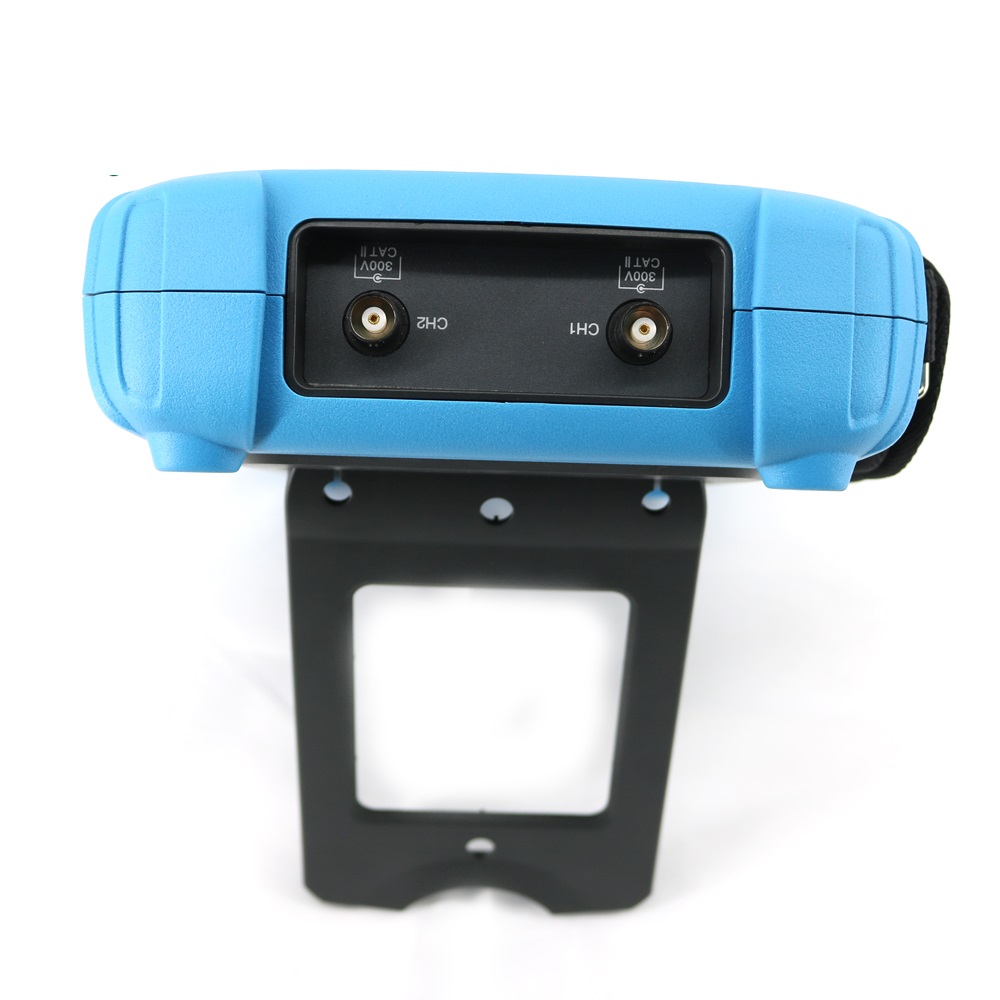

Details Pictures:




Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288

Siglent-SHS820-Handheld-Digital-Oscilloscope-2-Channel-200MHz-500MSs-32k-Siglent-Oscilloscope-Multim-1629288
