$51.99
Ex Tax: $51.99
  • Stock: In Stock
  • Model: EB0042620
  • SKU: EB0042620
Precise details:
Product Upgrade Content(Compared with V1.0)

Product Demonstration:

T-SX1262 wireless transceiver module, using Semtech SX1262 LORA RF transceiver chip design, works in the 915MHz ISM frequency band, integrates a highly stable TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, to -139dBm receiving sensitivity. Automatic switching of sending and receiving, isolation of internal sending and receiving channels, advanced LORA spread spectrum communication technology, with strong anti-interference and privacy, can realize long-distance wireless data sending and receiving.

Product Features:

ESP32:

Lastest ESP32 Version: REV1
WIFI
Bluetooth
8MB PSRAM
4MB Flash
3D Antenna

LORA:

Working voltage: 1.8~3.7V
Receiving current: 4.2~8.2mA
Working frequency: 915M
Transmitting power: +22dBm
Frequency error: +/-0.5ppm@TCXO crystal
FIFO space: 256Byte
Data rate: 0.6K~300Kbps@FSK, 0.018K~62.5Kbps@ LoRaTM
Modulation method: FSK, GFSK, MSK, GMSK, LoRaTM, OOK

GPS:

GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600

Power:

Power Supply Input USB 5V/1A
Charging current 500mA
Battery Input  3.7-4.2V
Charge IC AXP192

Electrical Parameters
Test conditions: power supply 3.3V, temperature 25℃
Parameter Minimum  Typical value  Max  Unit  Condition
Working conditions
Operating voltage 1.8 3.3 3.7
Working temperature -40 25 85 ℃
Power consumption
Emission current 89 100 114 mA  400~520MHz
124 130 135 830~945MHz
Receiving current 4.2 5.3 8.2 400~520MHz
Sleep current 0.016 1.2 1.5 uA  Sleep mode
RF parameters
Operating frequency 400 433.92/470  520 MHz  400~520MHz
840 868/915  945 830~945MHz
Transmit power 19.2 20.6 21.2 dBm  400~520MHz
21 21.3 21.5 830~945MHz
Receiving sensitivity -116 -118 -120 868MHz@GFSK DR=1.2Kbps,Δf=+/-35KHz
-133 -136 -139 868MHz@Lora BW=125KHz,SF=12,CR=4/5
Harmonic 0 -38 433.92MHz,2~6harmonics
0 -43 470MHz,2~6 harmonics
0 -37 868MHz,2~6 harmonics
0 -40 915MHz,2~6 harmonics
Frequency error -0.434 0 0.434 KHz  433.92MHz
-0.915 0 0.915 915MHz
Transmission rate 0.6K~300Kbps@FSK
0.018K~62.5Kbps@ LoRaTM
Modulation method FSK, GFSK, MSK, GMSK, LoRaTM,OOK
Data interface  SPI
Antenna interface Need to weld external antenna

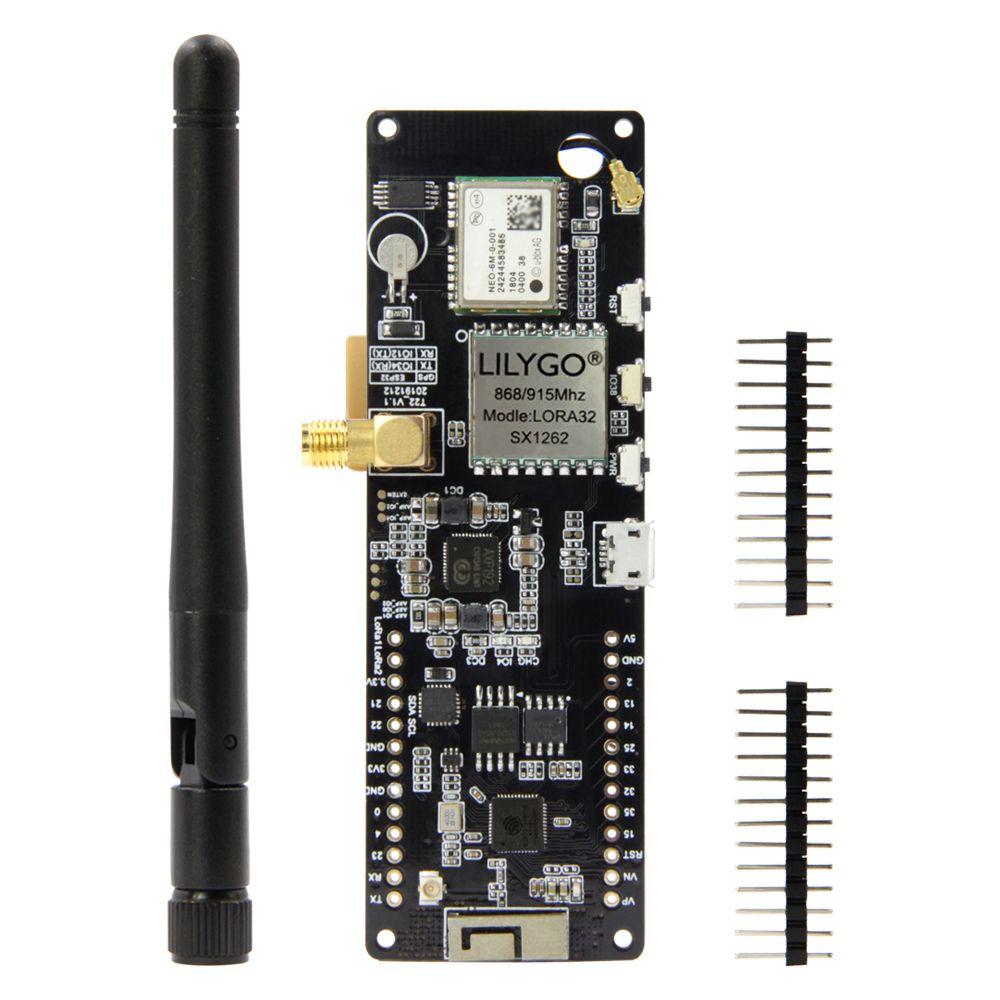

Package includes:

1 X TTGO T-Beam SX1262 868Mhz V1.1
1 X 868MHz Antenna
2 X Pin
