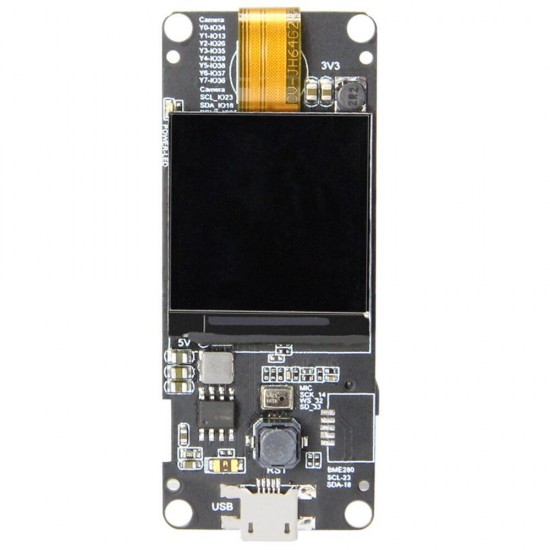

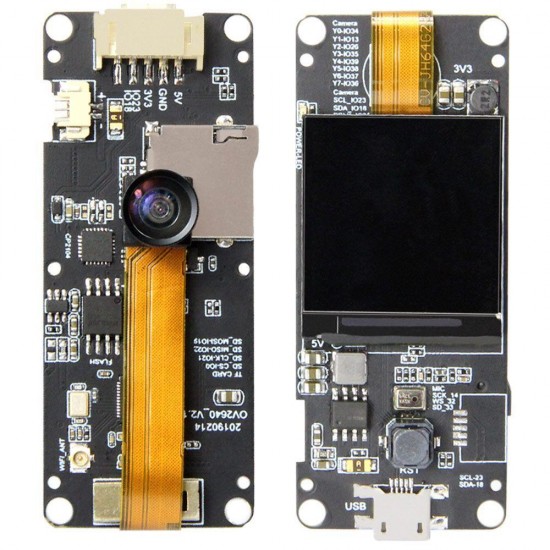

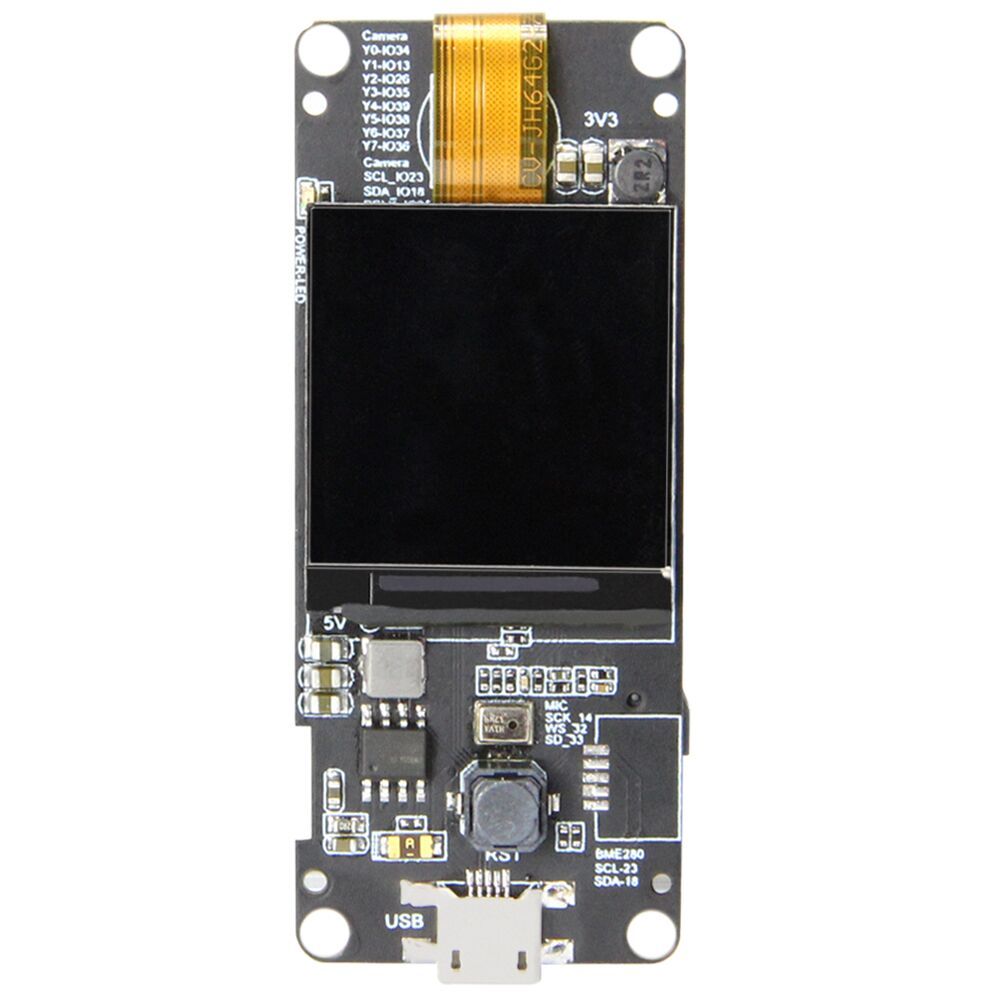

T-Camera Plus Line Extension Version ESP32-DOWDQ6 8MB SPRAM OV2640 Camera Module 1.3 Inch Display With WiFi bluetooth Board
- Stock: In Stock
- Model: EB0041913
- SKU: EB0041913
Update Functions:

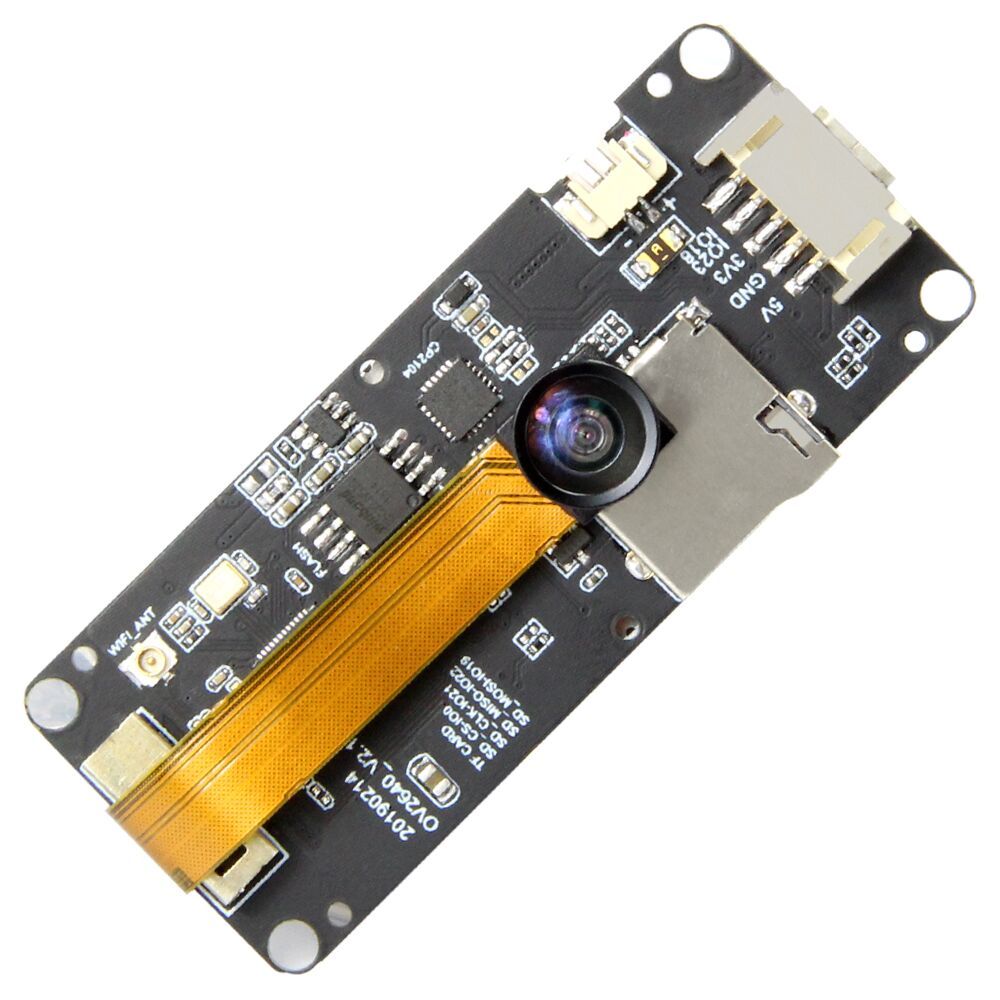

According to customer feedback suggestions, we have added a specification to increase the length of the camera cable, making the camera more flexible.
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI 4M flash / 8M SRAM |
| SRAM | 520 kB SRAM + 8MBytes External SPRAM |
| KEY | Reset |
| Dispaly | IPS Panel ST7789/1.3 Inch |
| Power indicator lamp | Red |
| USB to TTL | CP2104 |
| Camera | OV2640 2Megapixel |
| on-board clock | 40MHz crystal oscillator |
| Working voltage | 2.3V-3.6V |
| Working current | about 160mA |
| Working temperature range | -40℃ to +85℃ |
| Size | 69.13*28.41*8.45mm |
| Mic | MSM261S4030H0 |
| SDCard | Integrated external SD card slot |
| Sensor | BME280/humidity/pressure/temperature |
| Power management chip | IP5306 |
| Power Supply | USB 5V/1A |
| Charging current | 1A |
| Battery | 3.7V lithium battery |
| WIFI | Description |
| Standard | FCC/CE/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n/e/i (802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| communication distance | 300m |
| bluetooth | Description |
| Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | With -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | Description |
| Wifi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
TTGO Camera VS TTGO Camera Plus:
| Function | TTGO T-Camera (Product ID: EB0042664) | TTGO T-Camera Plus (Product ID: EB0042042) | TTGO T-Camera Plus Longer Cable Version (This item) |
| MIC | not supported | supported | supported |
| SDCard | not supported | supported | supported |
| BME280 | not supported | not supported | not supported |
| Charging | supported | supported | supported |
| I2C | supported | supported | supported |
| Screen | OLED SSD1306/0.96 | IPS Panel ST7789/1.3 | IPS Panel ST7789/1.3 |
| Camera | OV2640 | OV2640 | OV2640 |
| PIR | supported | not supported | not supported |
| User button | supported | not supported | not supported |
| Core | ESP32-WROVER-B | ESP32-DOWDQ6 | ESP32-DOWDQ6 |
| PSRAM | 8MBytes | 8MBytes | 8MBytes |
| FLASH | 4MBytes | 4MBytes | 4MBytes |
| UART | CP2104 | CP2104 | CP2104 |
Package includes:
1 x TTGO T-Camera plus (Fish-eye Lens)
