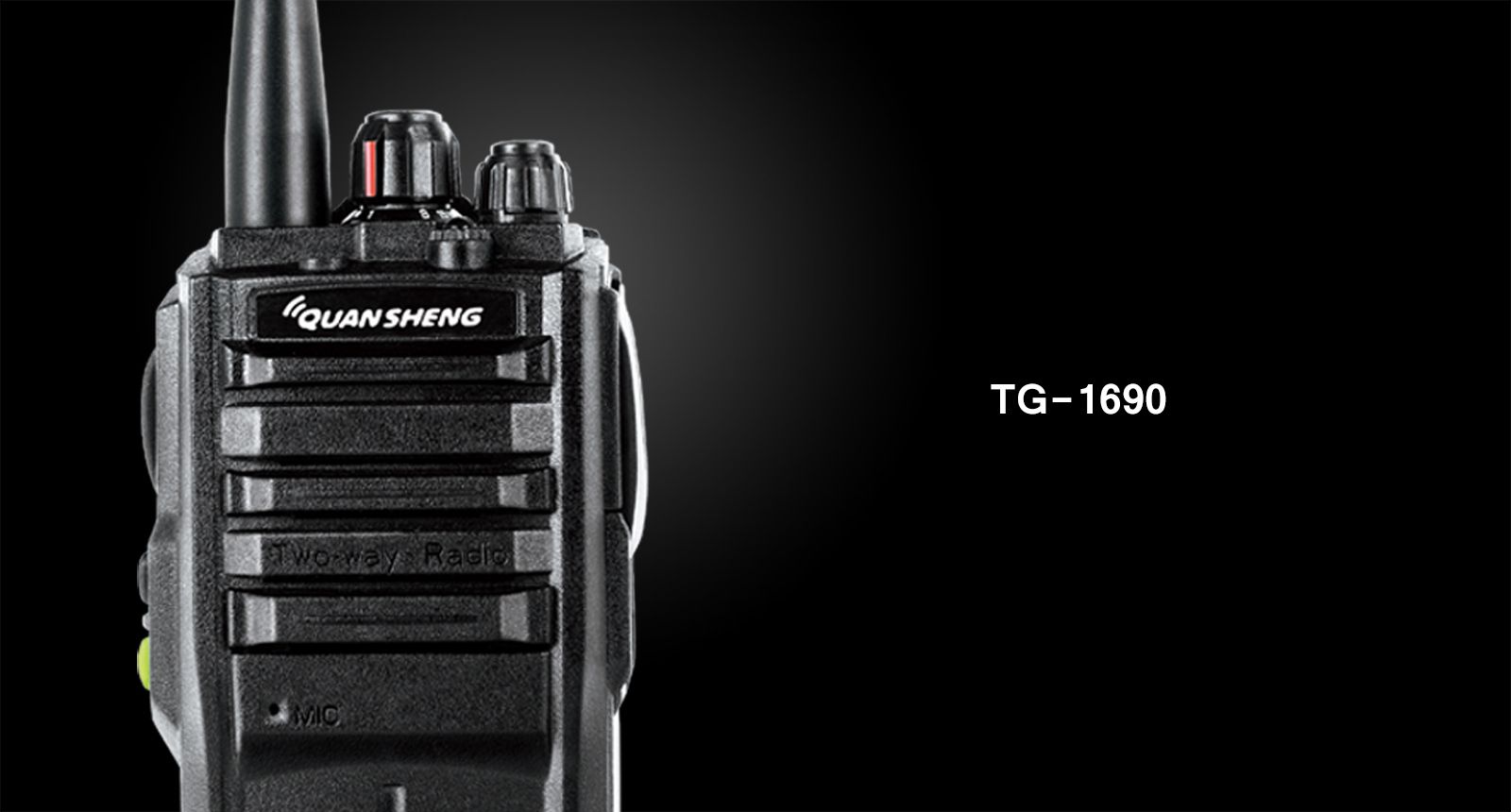

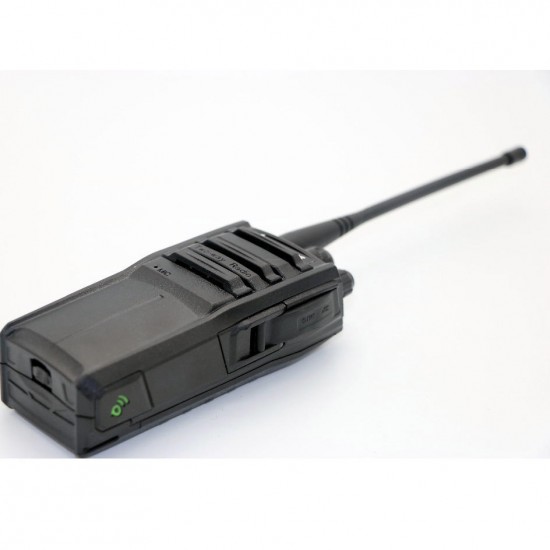

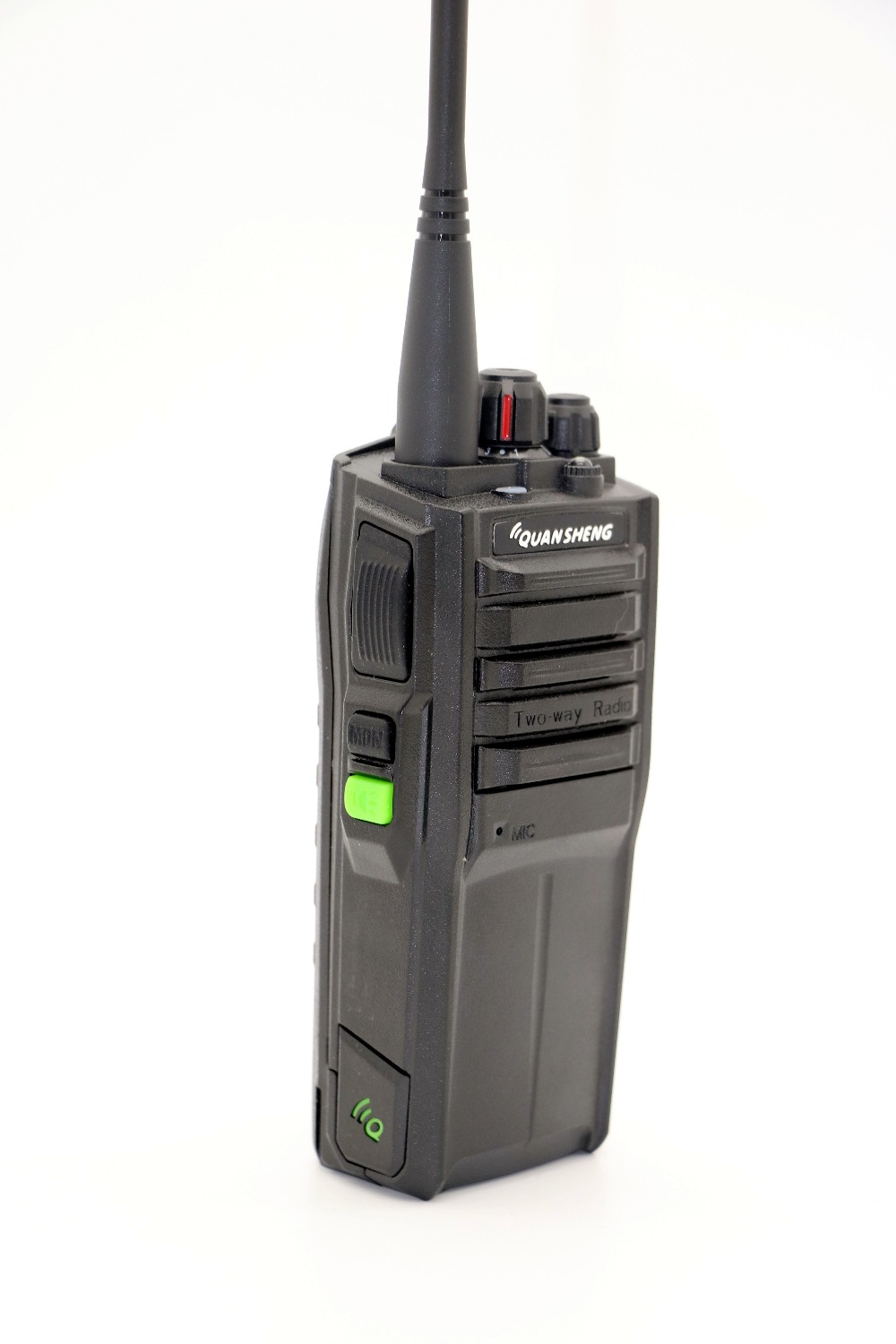

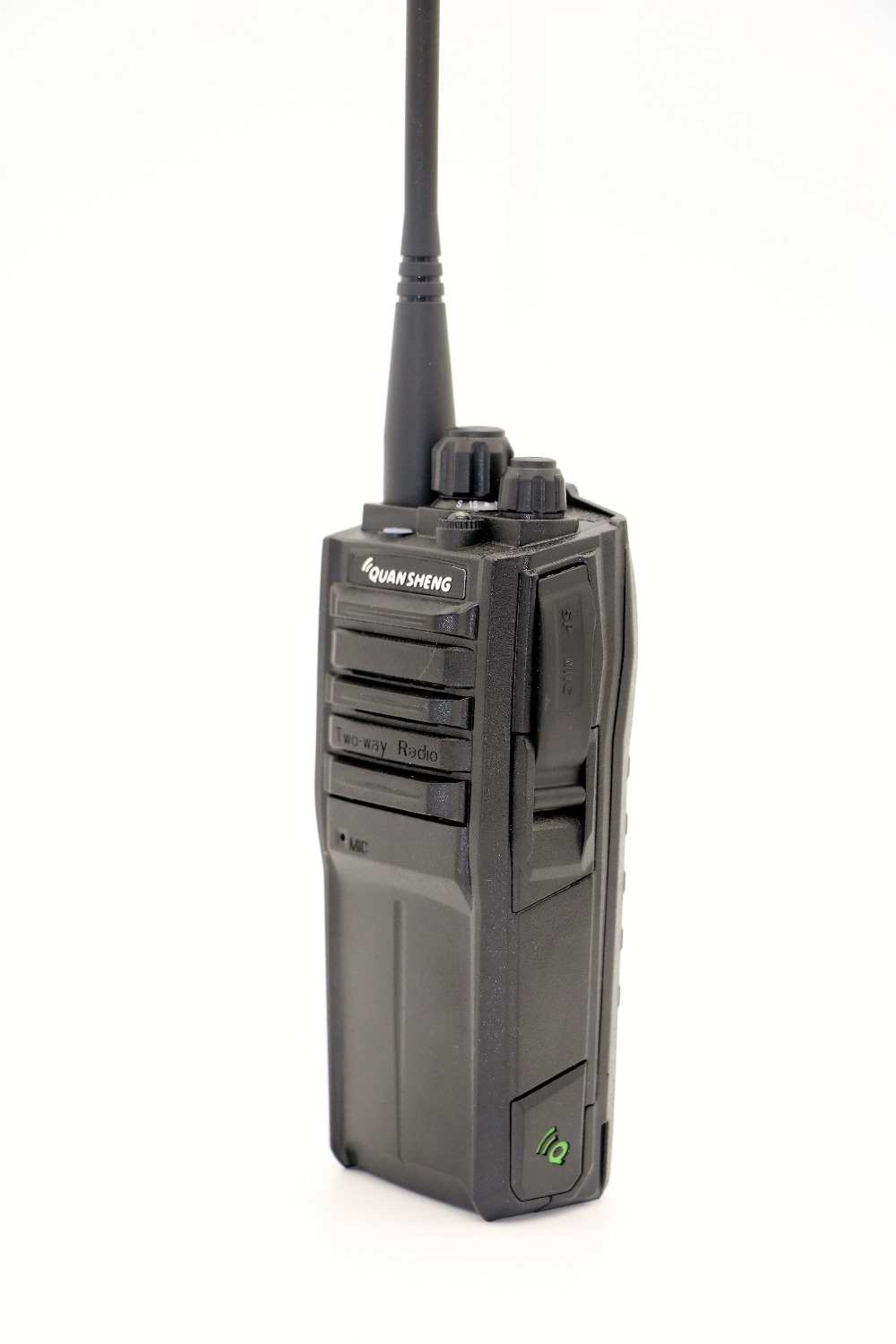

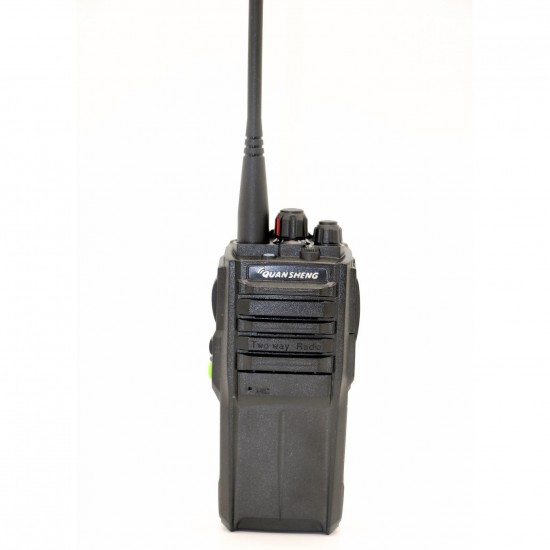

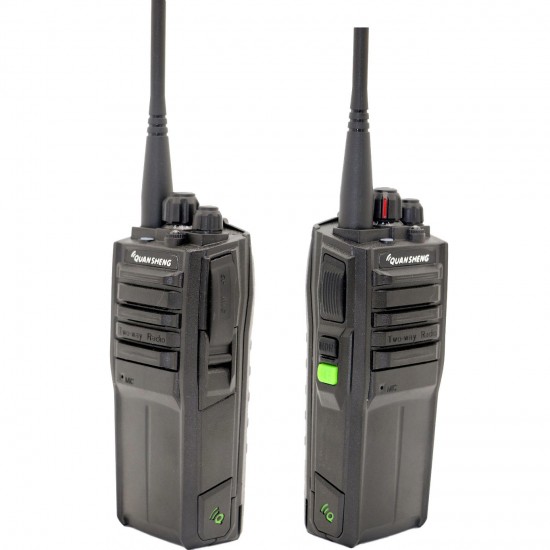

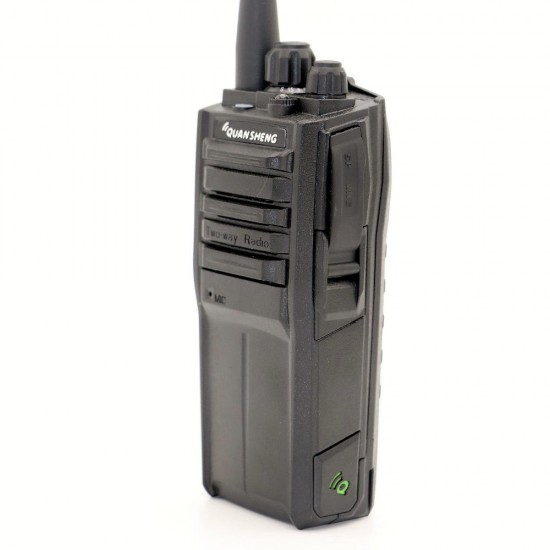

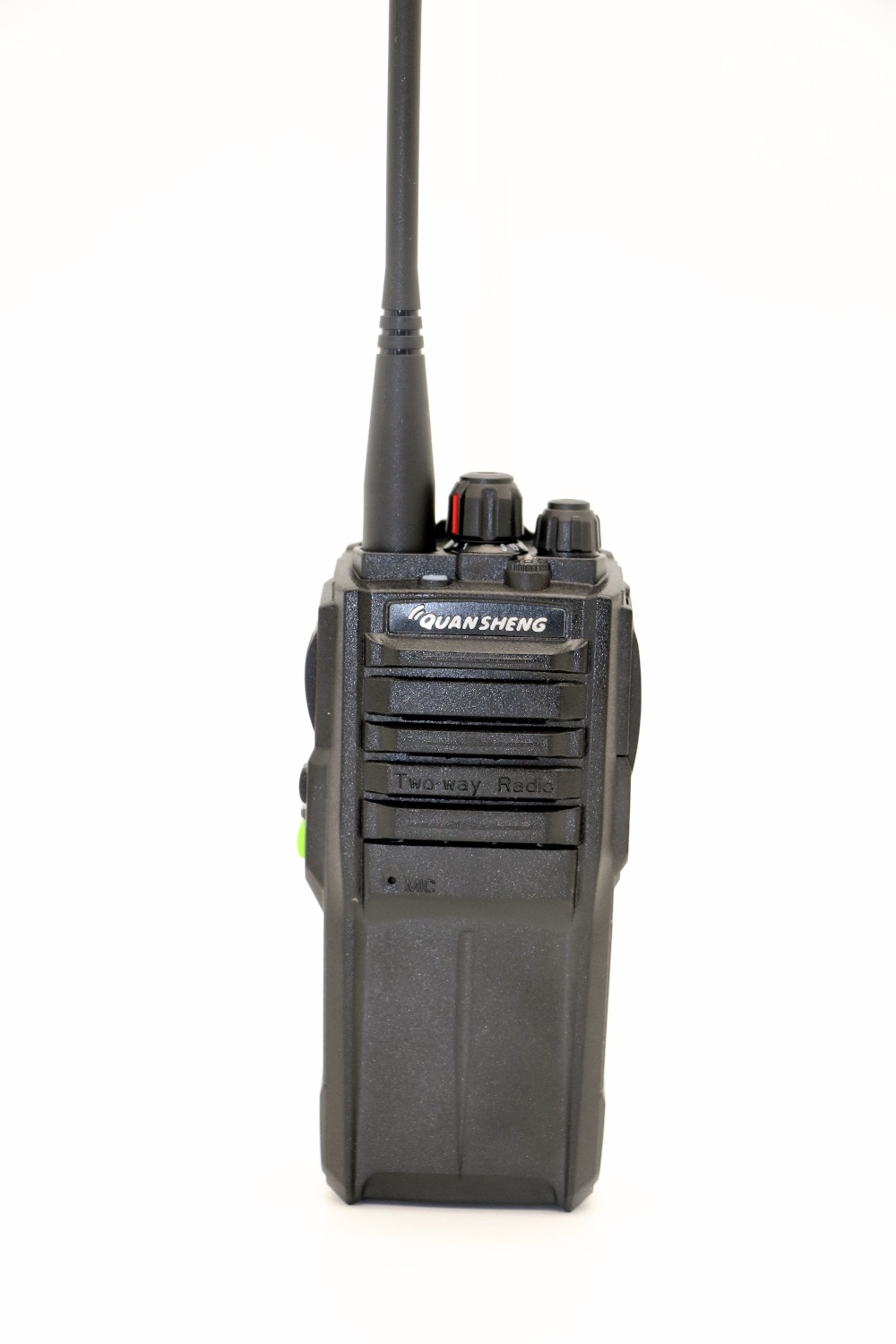

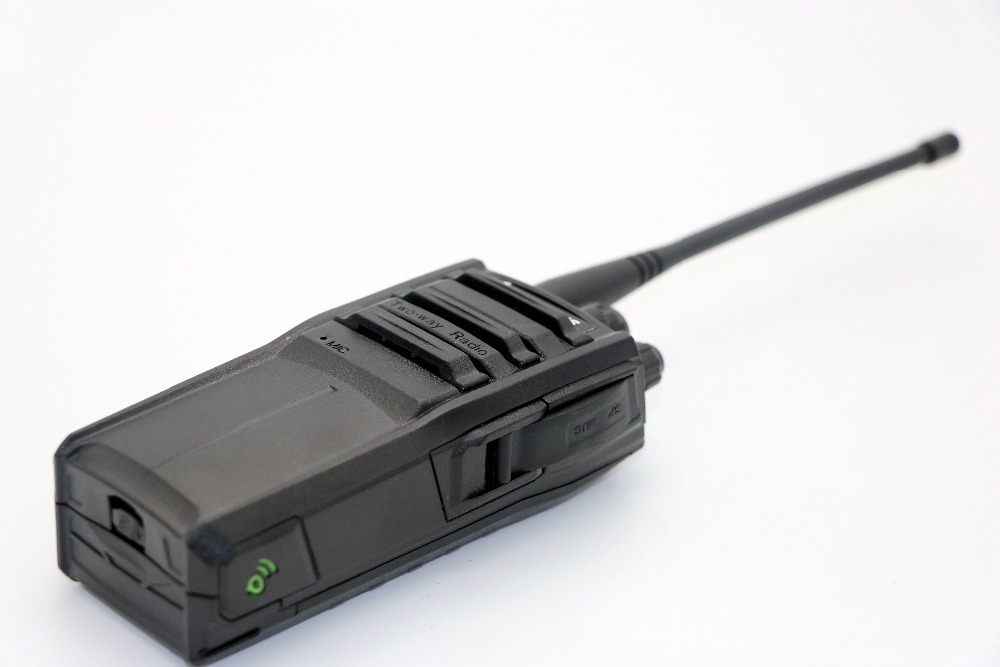

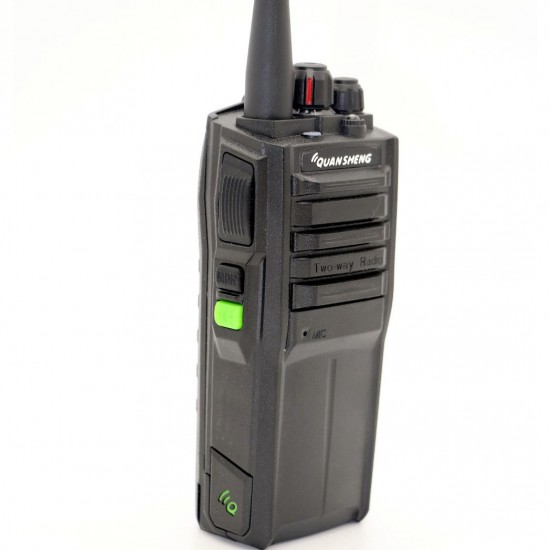

TG-1690 16 Channels 400-480MHz Mini Ultra Light Dual Brand Two Way Handheld Radio Walkie Talkie
- Stock: In Stock
- Model: EB0024853
- Dimensions: 127.00mm x 62.50mm x 42.00mm
- SKU: EB0024853
| Brand | Renhotec |
| Item | Radio Walkie Talkie |
| Size | 127mm×62.5mm×42mm |
| Channel Capacity | 16 |
| Frequency Range | UHF:400-480MHz |
| Antenna | Built-in Antenna |
| Antenna Impedance | 50Ω |
| Power | 7.2V |
| Mode of Operation | Simple or semi-duplex |
| Temperature | -25℃~+65℃ |
| Frequency Stability | ±2.5ppm |
| Output Power | 10W |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum Deviation | ≤5KHz / ≤2.5KHz |
| Spurious Power | ≤7.5μW |
| CTCSS/DCS Deviation | 0.7±0.1KHZ/0.4±0.1KHZ |
| Intermediation Distortion | ≤5% |
| Spurious Radiation | ≤7.5μW |
| Audio Power | ≤0.5W |
| Audio Distortion | Less than 10% |
| Current | ≤380mA |
| Pre-emphasis Characteristics | 6dB |
| Clutter Suppression | ≥65dB |
| Receive Current | ≤2.8A |
| Emission Current | ≤3.0A |
| Selectivity | ≤0.25/0.28μV |
| Modulation Sensitivity | 8-12mV |
| Modulation Distortion | ≤10% |
| Channel Spacing | 25/12.5KHz |
| Adjacent Channel Selectivity | ≥65dB≥60dB |
| Intermodulation | ≥60dB≥55dB |
| Weight (Antenna and battery included) | 250g |
| Battery | 4000mAh Polymer lithium battery |
| Usage | Calling, alarming, lightening (etc) |
Features:
Dual-Standby. Using newest Polymer lithium battery. Battery low alert.
English and Chinese voice prompt. Phone number voice funton.
Radio function and lightenning function. Scanning function.
16 channels. 1750 signal emission. ID code settings.
Package Included:
1 x Radio Walkie Talkie

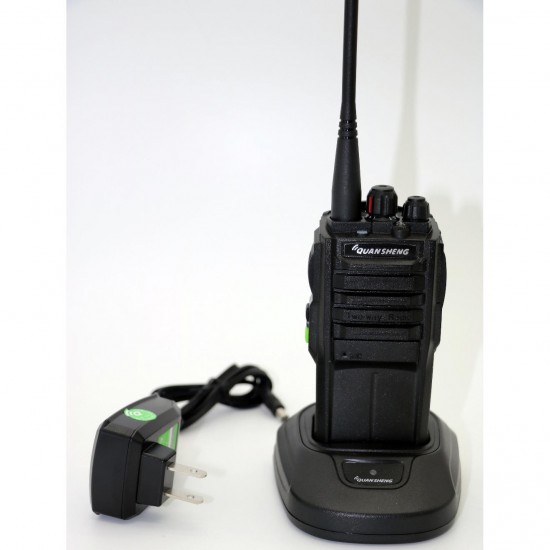

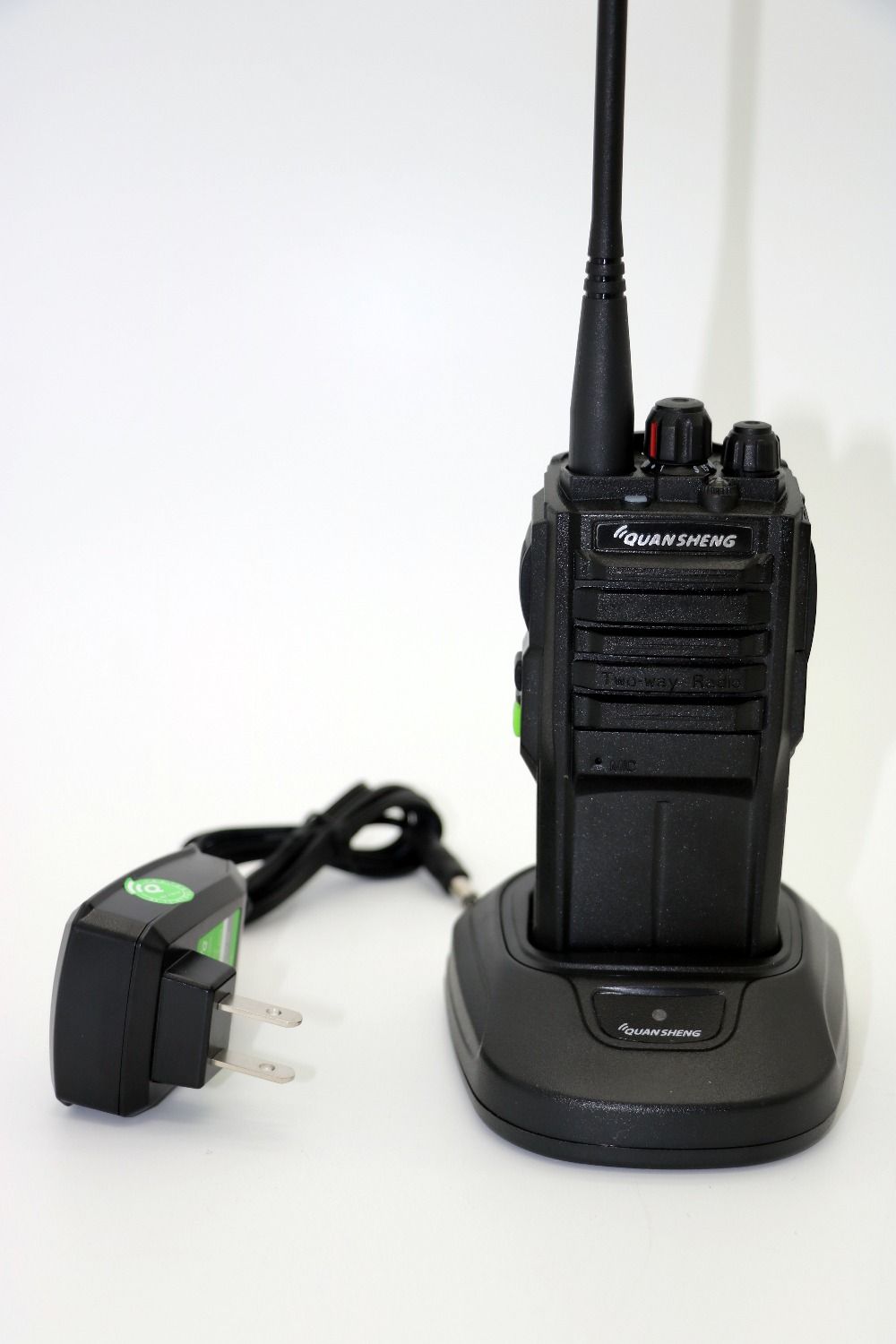

1 x Charger

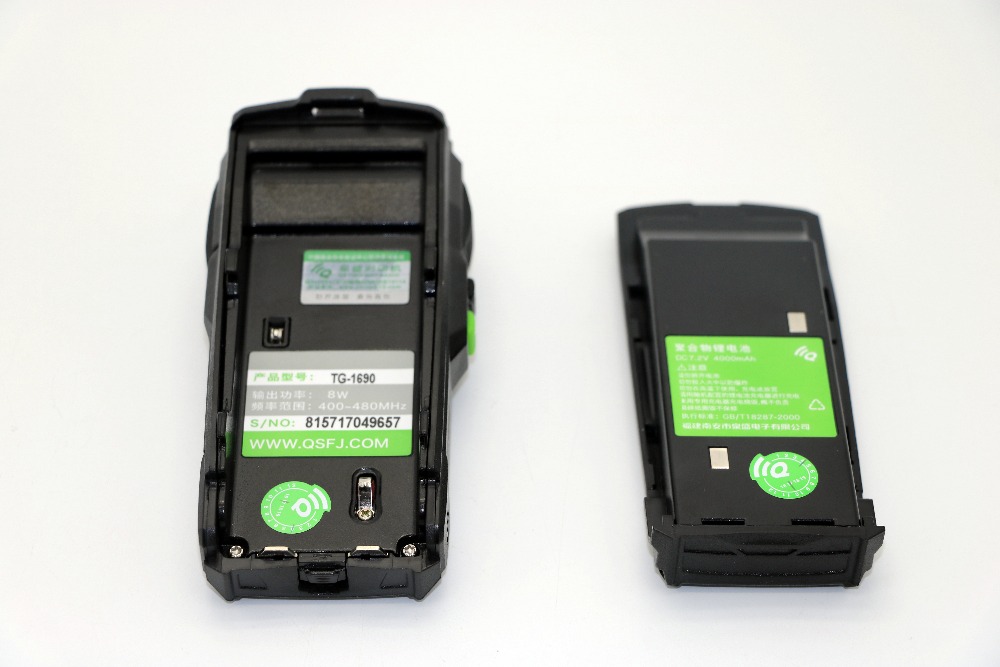

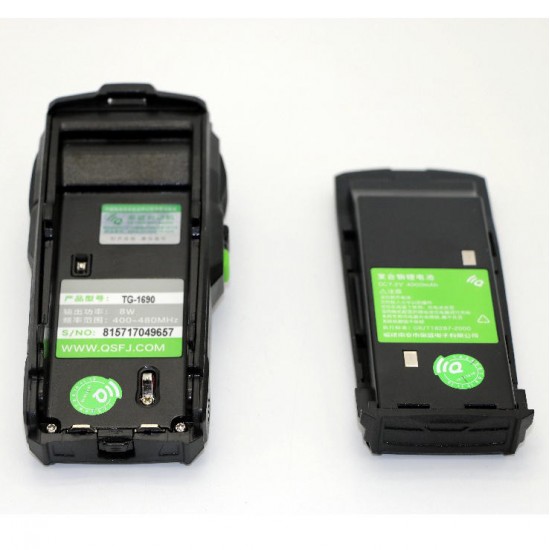

1 x 4000mAh Polymer Lithium Battery
