Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V

Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
Mana 3 Axis w/ Holder Stepper Motor Driver Laser Controller Board CNC Engraver Engraving Machine DC 12V
$39.99
Ex Tax: $39.99
  • Stock: In Stock
  • Model: EB0017386
  • SKU: EB0017386

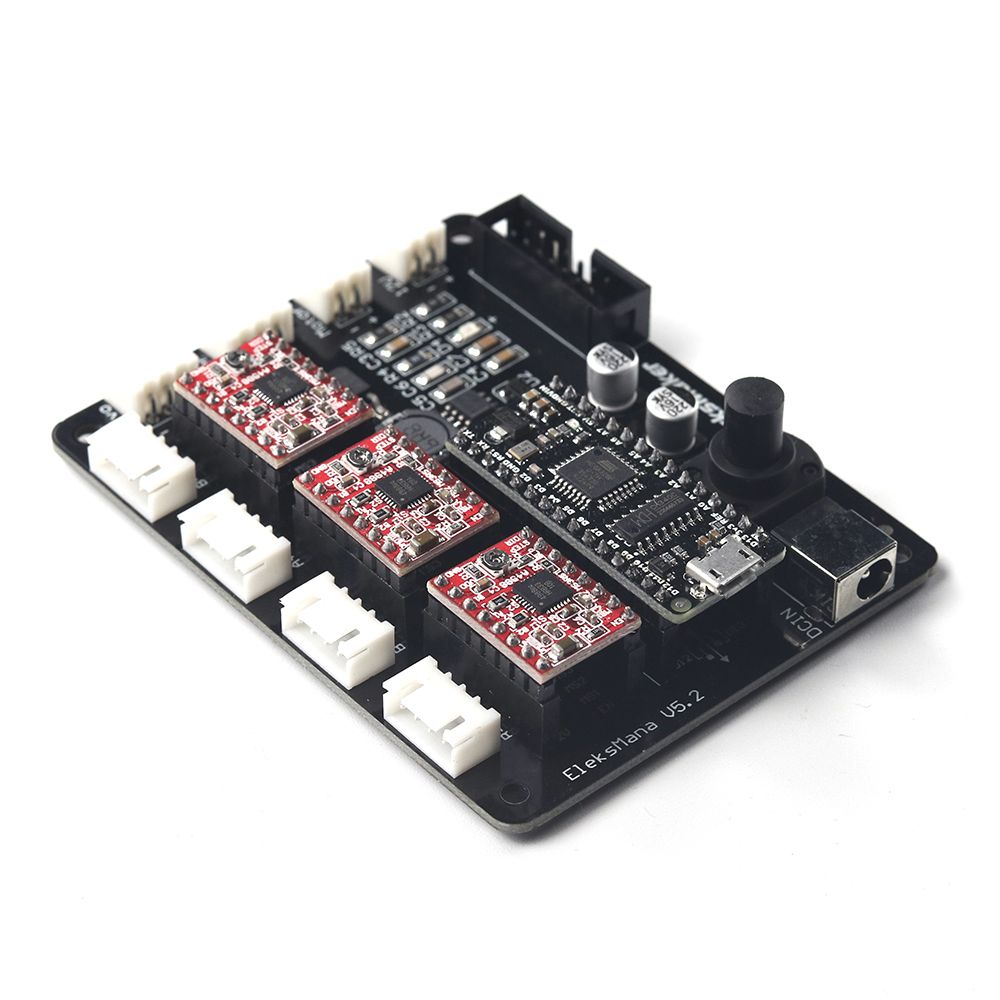

EleksMaker® Mana 3 Axis Control Board is not only for EleksMaker EleksMill Machine, but also suitable for most mini 3 axis cnc engraving machines of the market (such as 3018 / 2417 CNC Router).

Specification:
General Specification
 Brand  EleksMaker®
 Model  Mana
 Product Name  3 Axis Control Board
 Product Size  90mm*50mm*20mm
 Board Dimension (L*W)  80mm*77mm
 Technical Parameters
 Interface Port  Micro USB
 Supply Voltage   DC12V-5A
 Operating System   Windows 7/8/10
 Software Support   EleksCAM (Recommended) / Candle / T2-Laser...
 Support Axis   3 Axis
 Support Stepper Motor   Motor within 2A  2-phase 4-wire
 Power Interface   DC5.5 - 2.1  (Inside is positive  electrodes and ouside is negative electrodes)

Features:

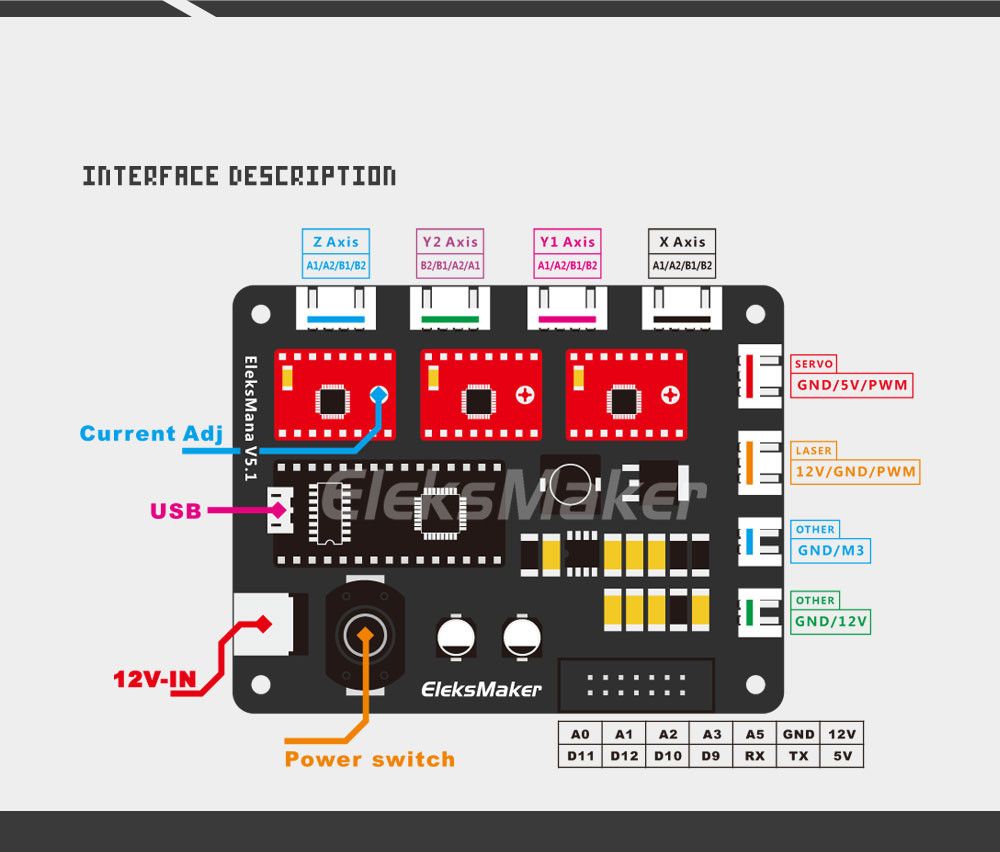

1. Expansion of functions: stop, pause, resume, fans, low light, external relay.
2. Fit for DIY desktop laser engraver,dispensing machines printer,plotter,tool CNC.
3. Three axis linkage, Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire.
4. Micro USB interfaces, 12V power supply, delivery lines! Send software! Technical support!
5. Large MOS tube, onboard DC buck module, wire jump ADJ can adjust manually the laser voltage to control the laser power.

Note:
1. There isn't  Voltage Regulator Module in this Laser board.
2. Please use EleksCAM software if you want to use this control board on 3018 router or other 3 axis cnc engraving machine.
3. The motor can not  work hight  than 2A, when the motor work for a long time in 1A to 2A , please pay attention to heat.

Package Included:

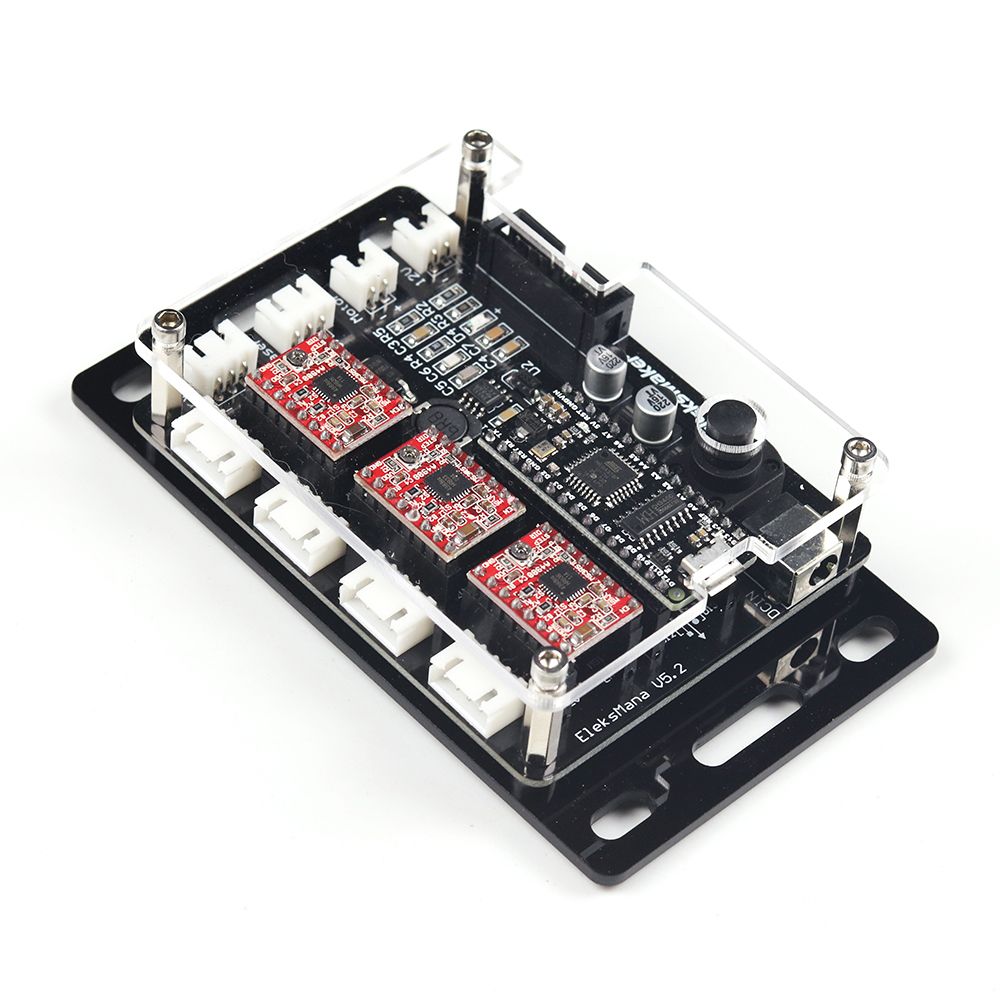

1 x Mana 3 Axis Controller Board w/ Mounting Holder

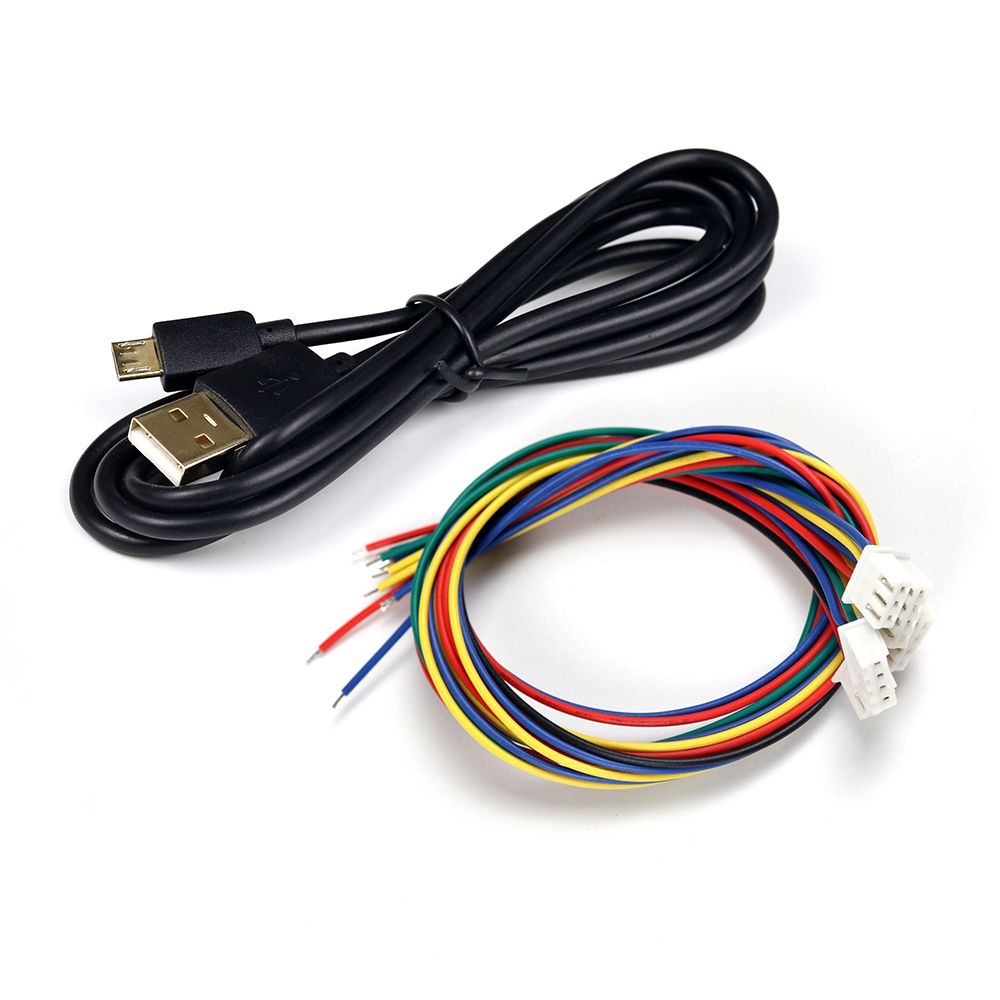

1 x USB Cable
5 x Connector Wires

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090

EleksMakerreg-Mana-3-Axis-w-Holder-Stepper-Motor-Driver-Laser-Controller-Board-CNC-Engraver-Engravin-1484090
