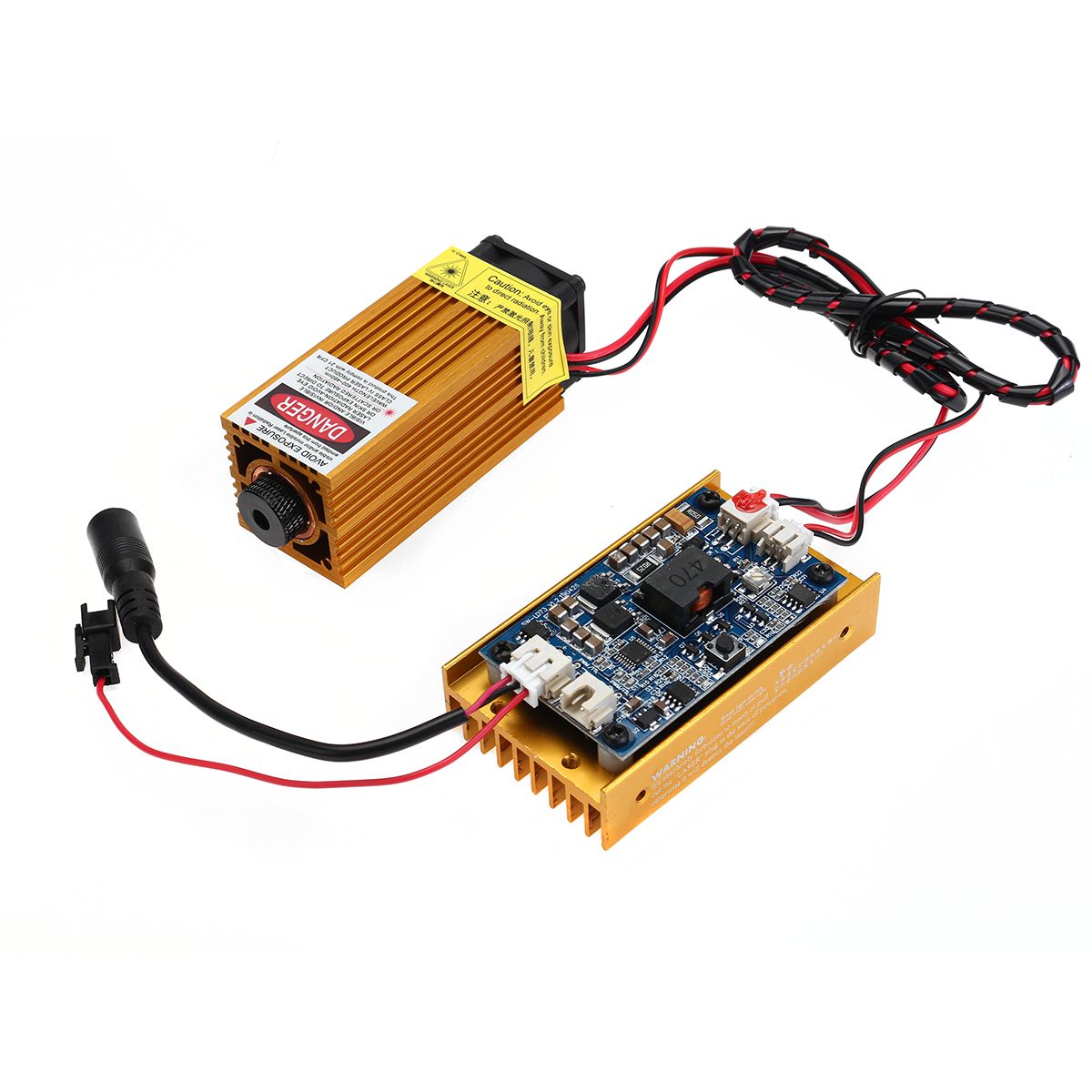

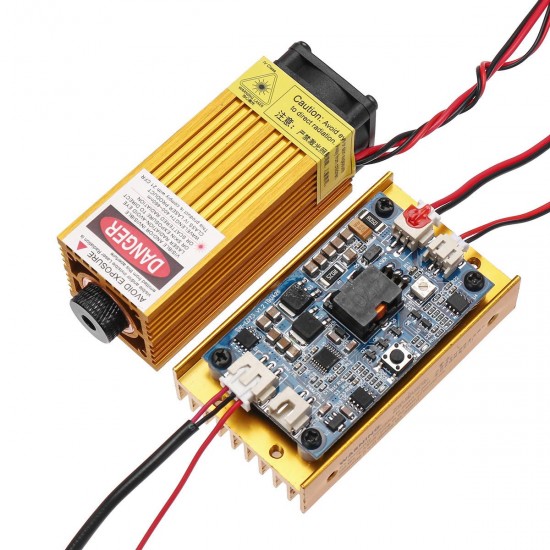

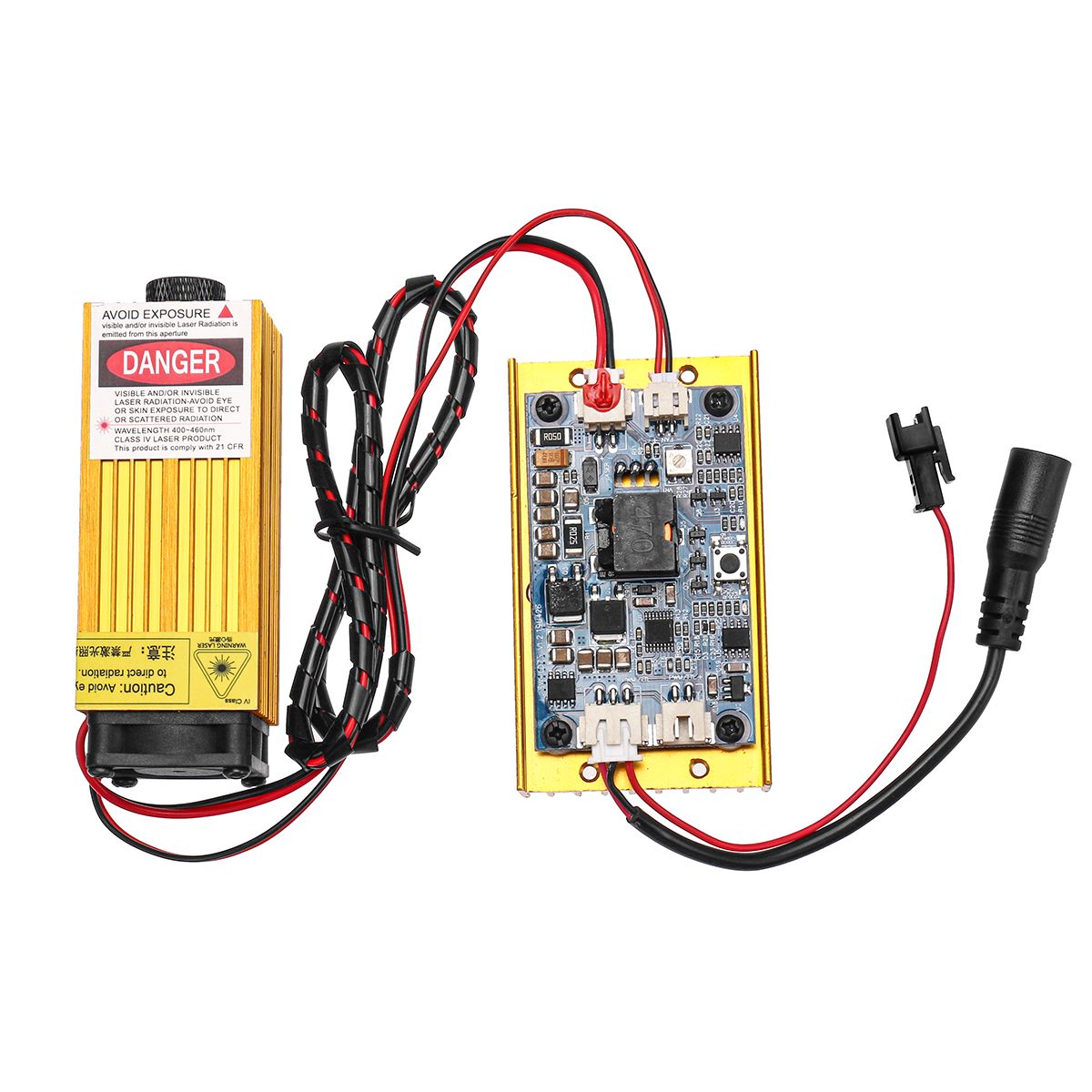

445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver

445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
445nm 5W Blue Laser Module Various Focus TTL & PWM Modulation w/ Heat Sink Controller Board 2.54-3P+2P Laser Engraver
$129.99
Ex Tax: $129.99
  • Stock: In Stock
  • Model: EB0017427
  • SKU: EB0017427
Specifications:
General Specification
Model LA03-5000
Heatsink Material Aircraft Aluminum + Gold Brass Shell
Luminous Color Blue
Section Size 33mm x 33mm

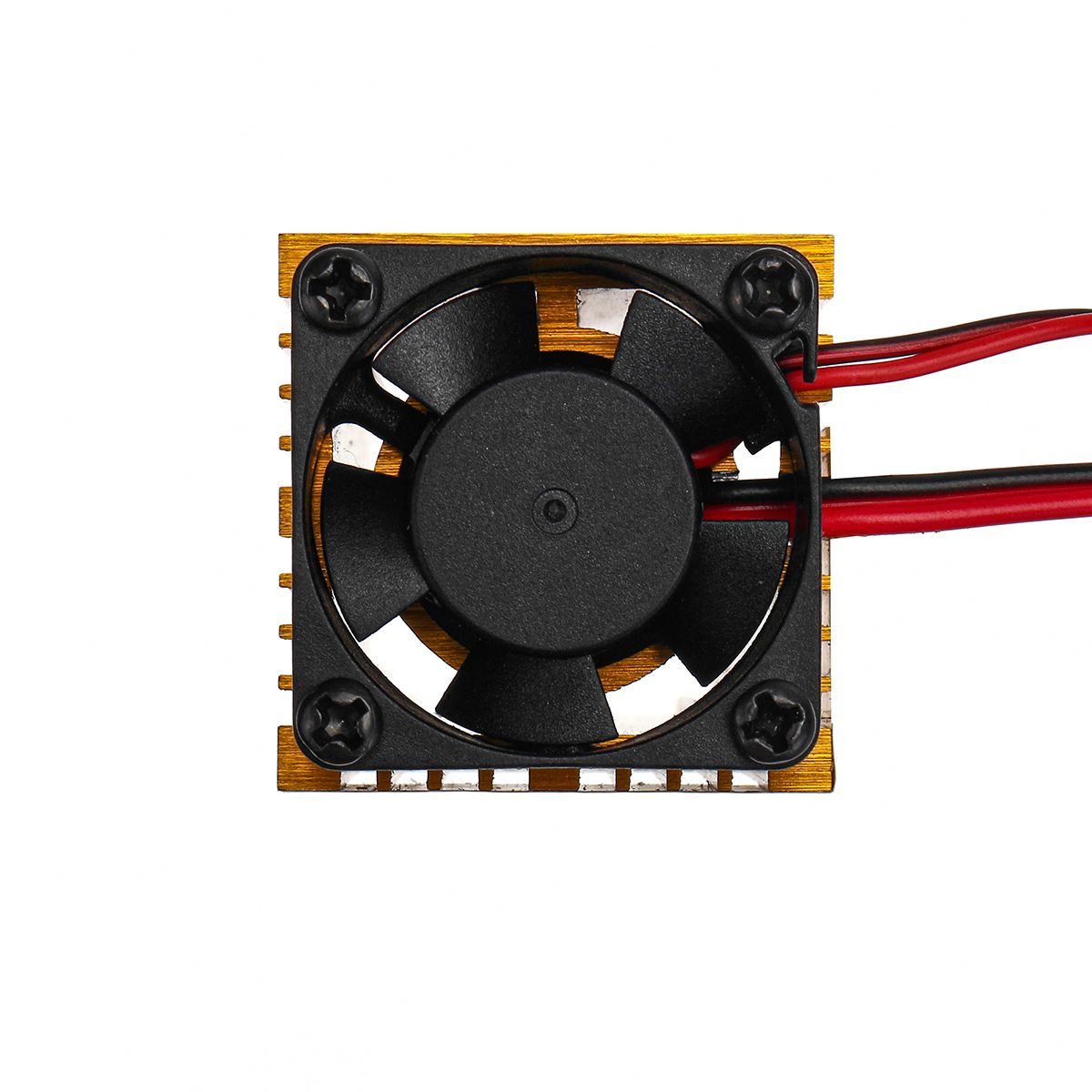

Cooling Mode Heat Sink Groove, Cooling Fan
Dimension 85 * 33 * 33mm
Adapter Plug US Plug
Adapter Input Voltage AC 100-240V
Adapter Output Voltage DC 12V 5A
Can Engrave MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters
Laser Power 5W (5000mW)
Wavelength 445nm
Beam Shape Dot
Working Voltage DC 12V
TTL&PWM Modulation YES, Compatible with Both TTL & PWM Modulation
Input Voltage DC12V (+,-, PWM/TTL) + DC5V (PWM/TTL,-)

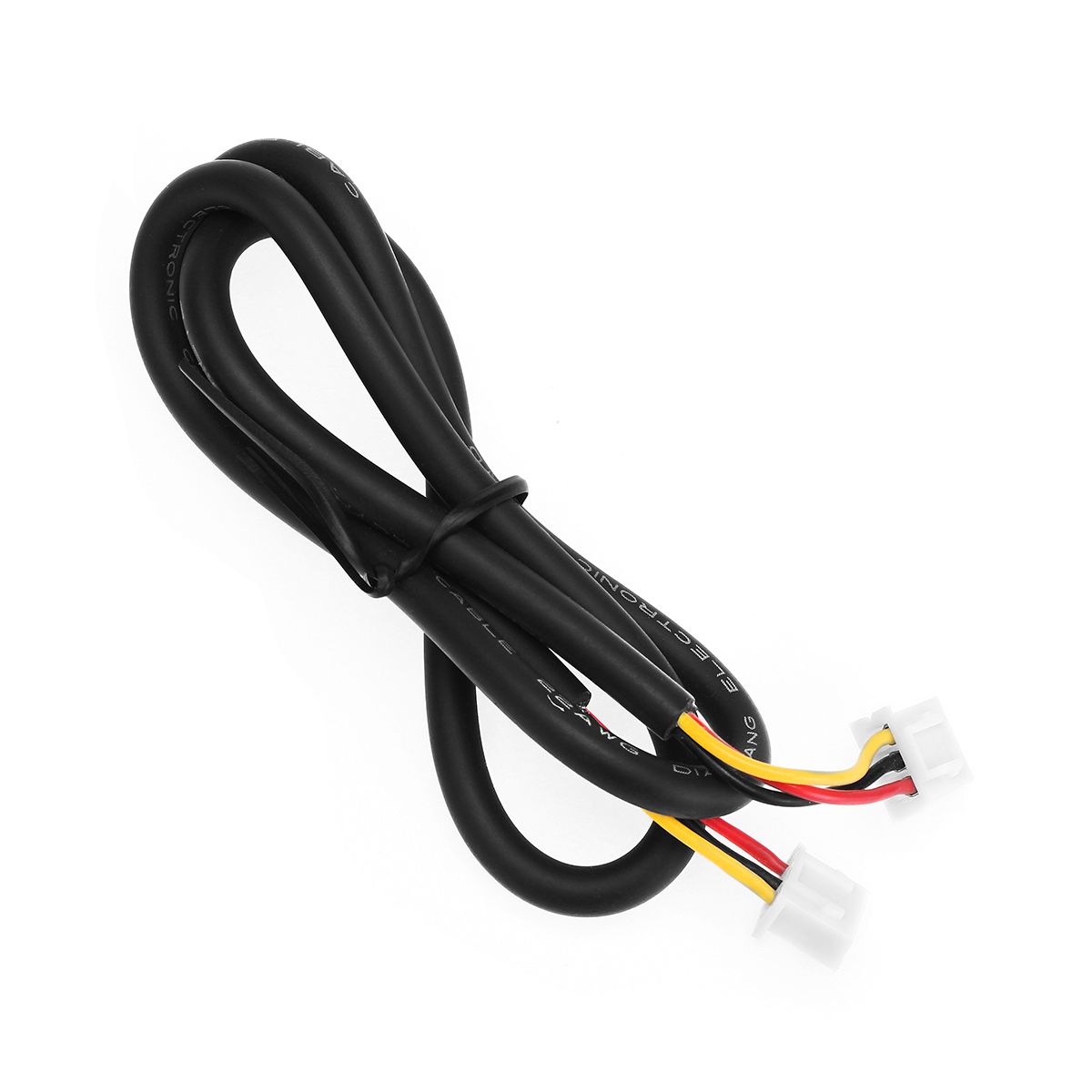

Input Interface XH2.54-3P (+,-, PWM/TTL) + XH2.54-2P (PWM/TTL,-)
Drive Mode External ACC
Life Time >10,000 hours

Features:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Make of Aluminum material,durable and solid,Adjustable focal length.

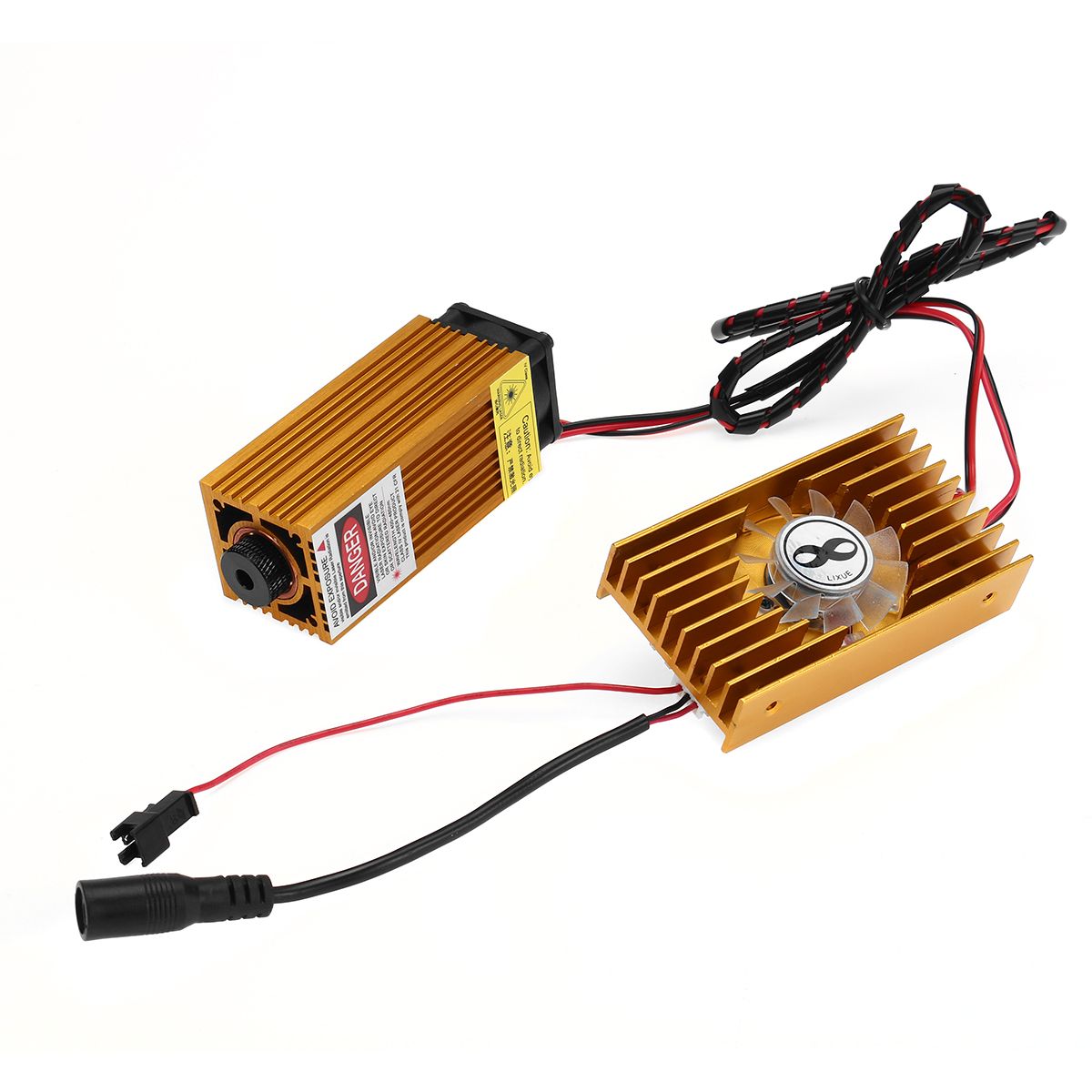

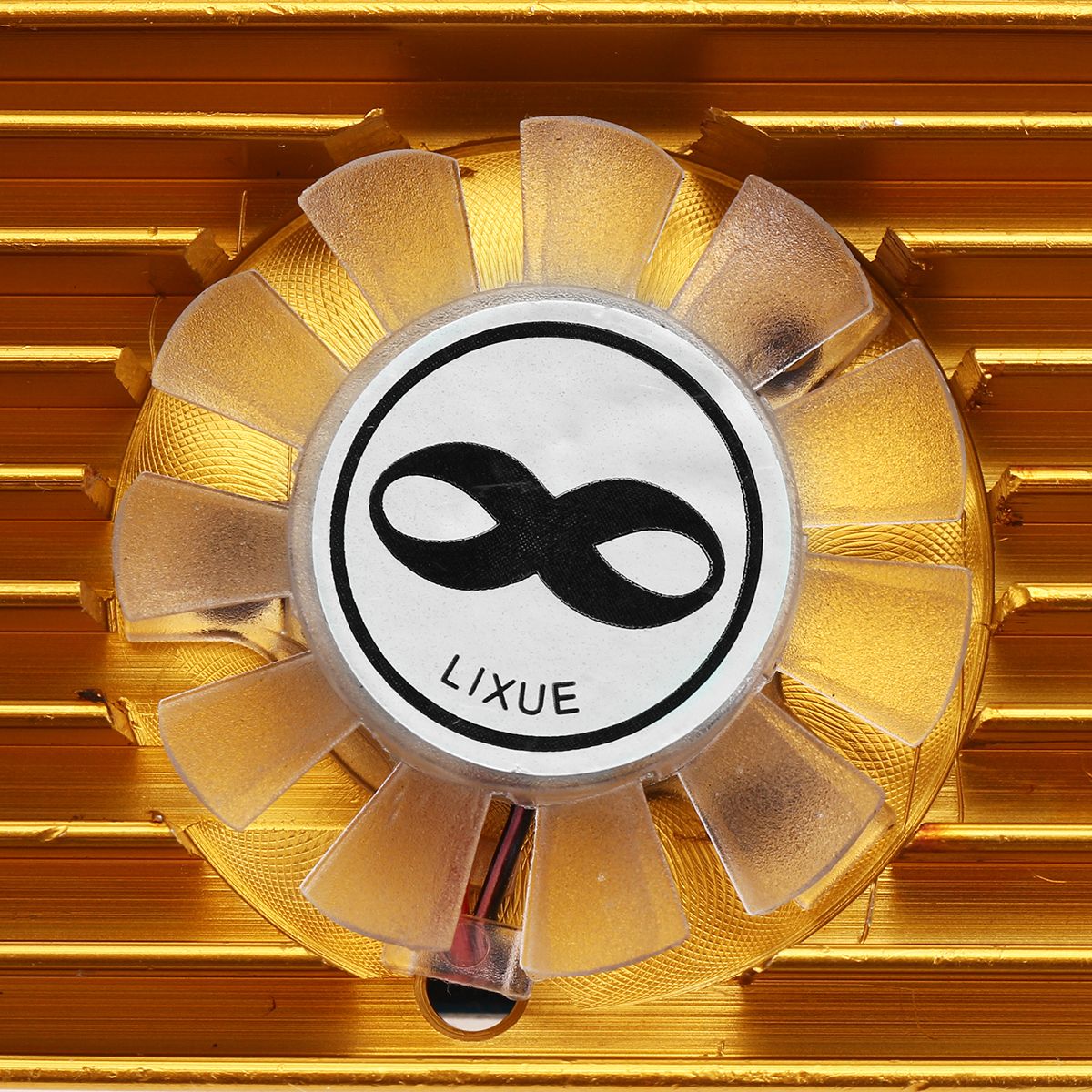

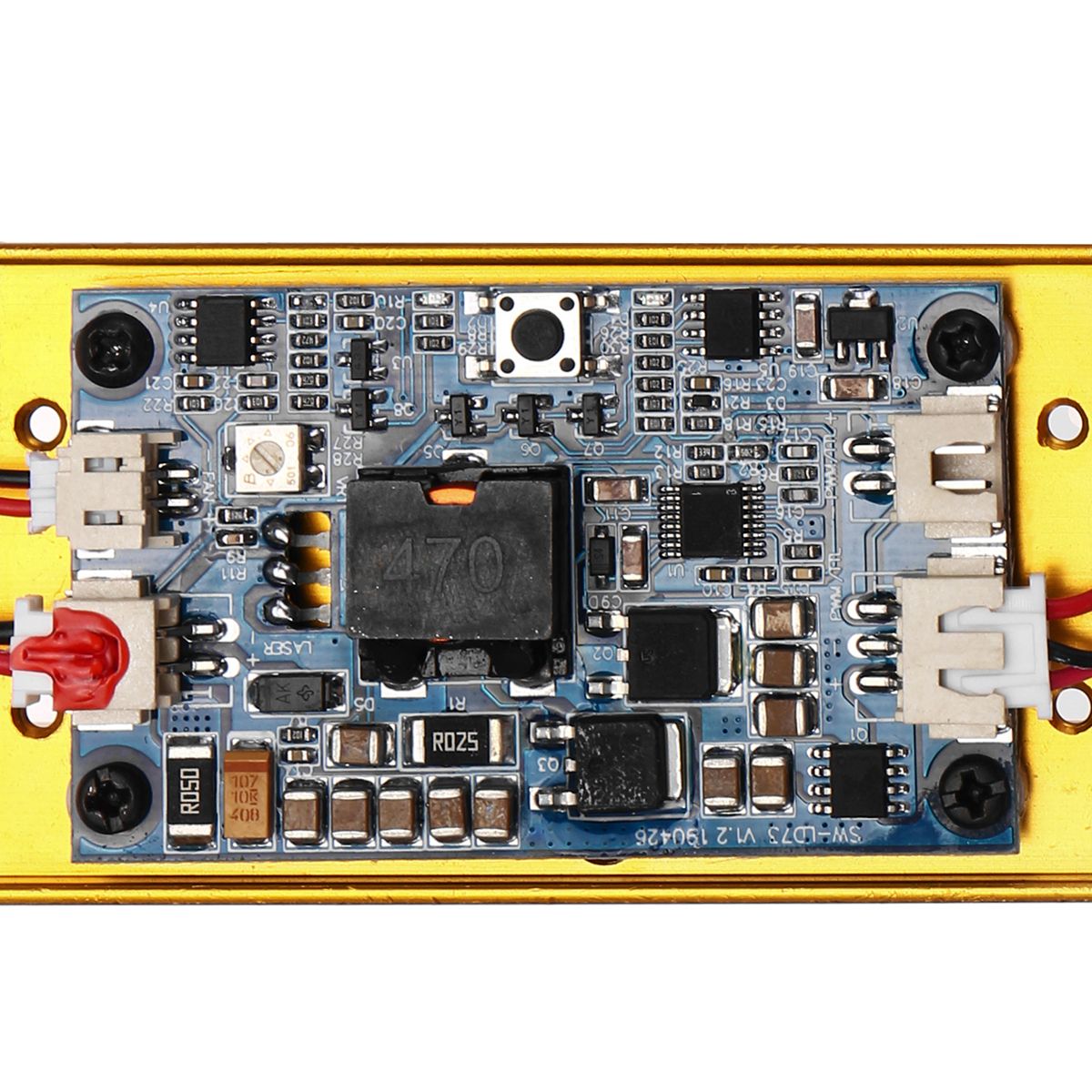

3. Aircraft aluminum TTL driver board with cooling fan ensure long working time continuously.
4. Can carving
MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)

Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
3. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
4.  If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
5. This laser module is compatible with our EleksMaker machine.


Package Included:
1 x 5W Laser Engraving Module

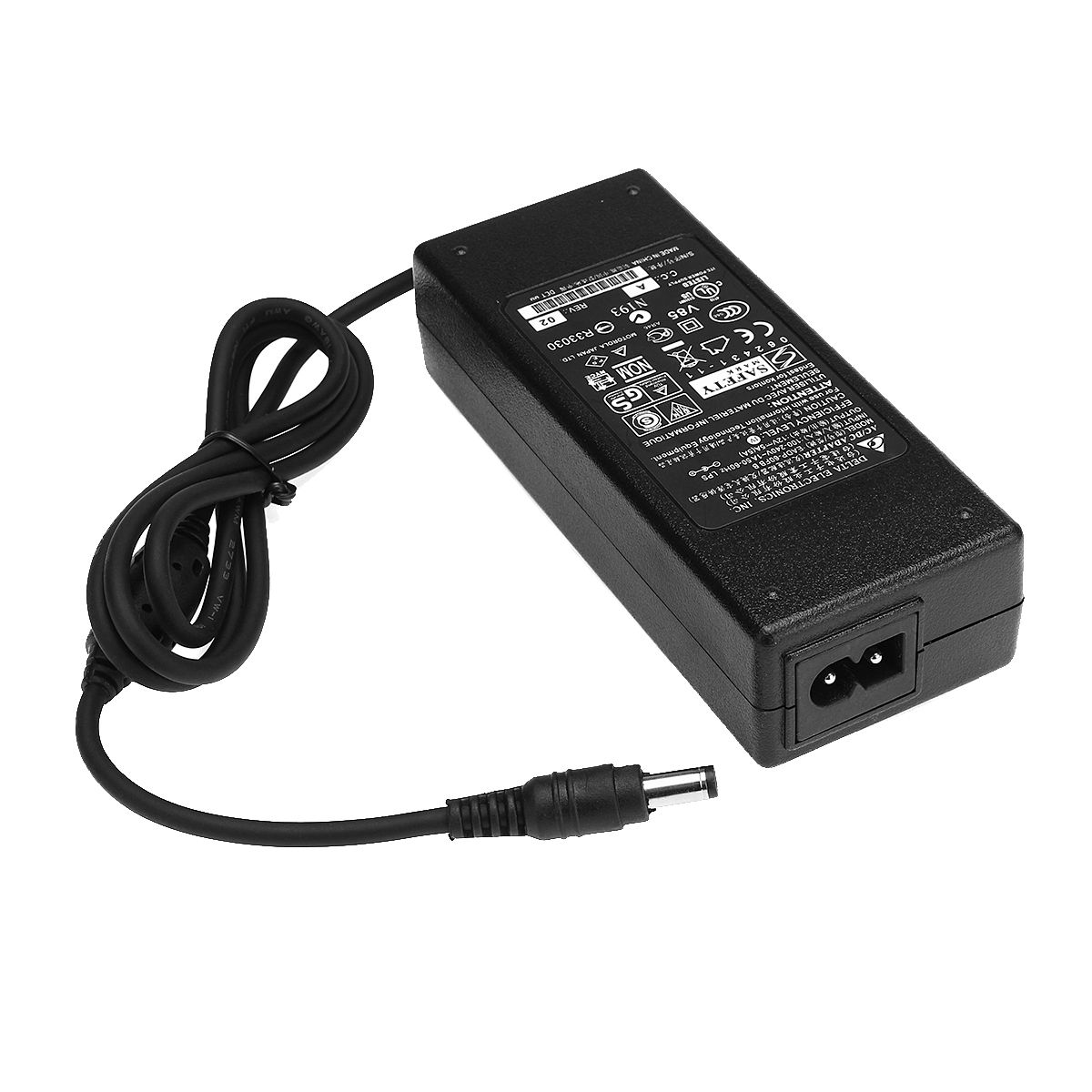

1 x Power Adapter
