150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring

150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
150mW 648nm Red Dot Laser Module Generator Variable Focus Industrial Marking Position Alignment Diode Generator w/ Locking Ring
$30.73
Ex Tax: $30.73
  • Stock: In Stock
  • Model: EB0017467
  • SKU: EB0017467
Description:

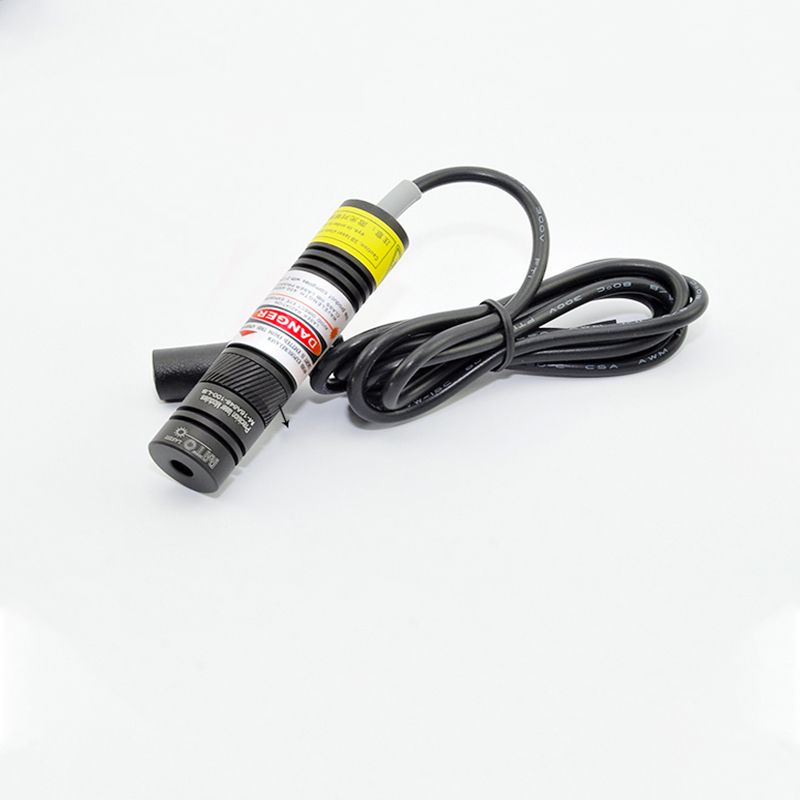

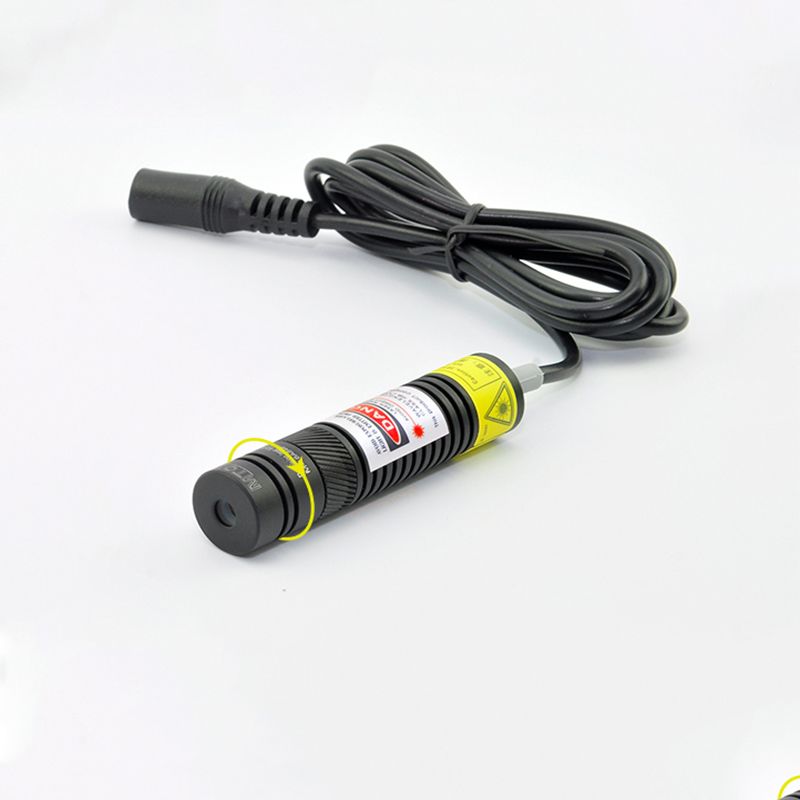

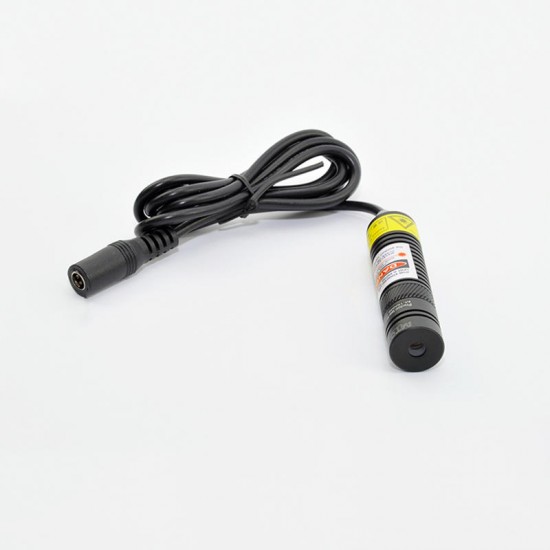

This variable focus 150mW 648nm red dot laser module employs qualified 648nm red laser diode, generates the stable and reliable red laser dot applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.

Specification:

Brand Renhotec
Laser Power 150mW
Wavelength 648nm
Beam Shape Dot
Variable Focus YES
Output Light Visible Light
Working Voltage DC 5V
Working Current 40-320mA
Optics Focus Lens
Shell Material Aviation Aluminum
Operation Temperature ±50℃
Service Life 8000h
Dimension (D*L) 16mm x 68mm (With Locking Ring)
Optimum Working Distance        0-100m
Adapter Plug US Plug
Adapter Input Voltage  AC 100-240V 0.3A 50-60Hz

Features:
1. 150mW stable output power, variable focus, 648nm red dot laser module.
2. Good heat dissipation ensures its long service life.

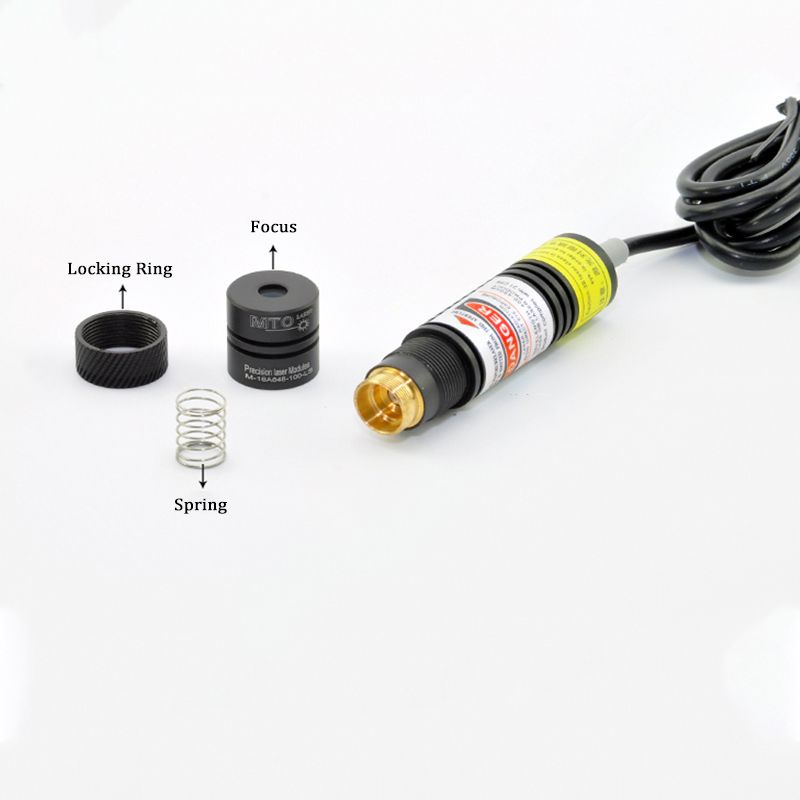

3. Designed with locking ring, ensure its anti-interference performance, high stability under vibration condition.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

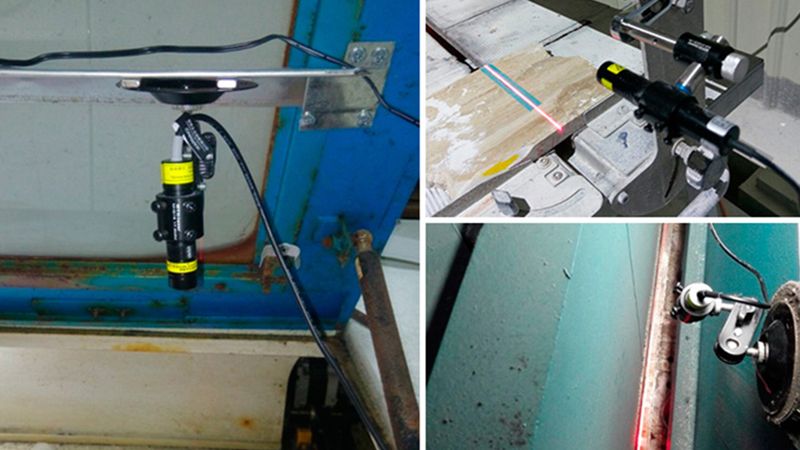

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, and other industrial, medical and laboratory equipment.
6. The specification of international standard master interface DC is 5.5*2.1mm

Caution:

1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.
3. Pay attention not to ignite black objects, be careful when using distances within tens of centimeters.

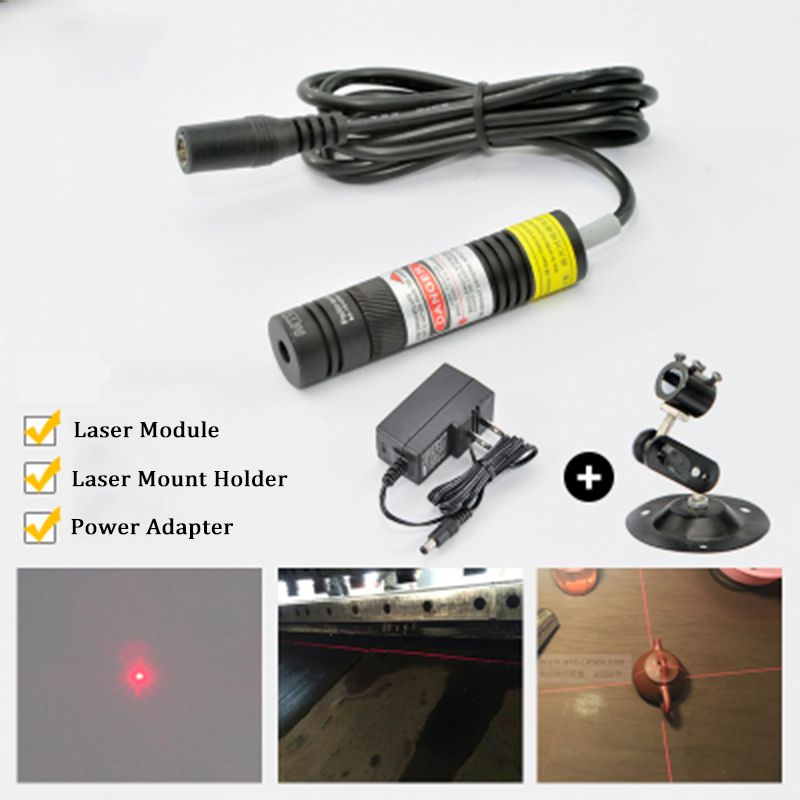

Package Included:
1 x Red Dot Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
