5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator

5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
5/10/20/50/80mW 648nm Red Dot Laser Module Variable Focus Industrial Position Alignment Diode Generator
$19.64
Ex Tax: $19.64
  • Stock: In Stock
  • Model: EB0017480
  • SKU: EB0017480

Available Options

Description:

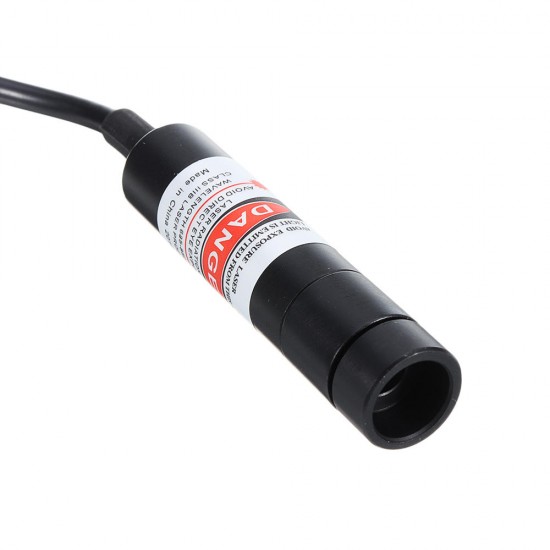

This variable focus 5/10/20/50/80mW 648nm red dot laser module employs qualified 648nm red laser diode, generates the stable and reliable red laser dot applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.

Specification:
Brand Renhotec
Laser Power 5/10/20/50/80mW for Option
Wavelength 648-650nm
Beam Shape Dot
Variable Focus YES
Output Light Visible Light
Working Voltage  DC 5V
Working Current 20-140mA
Optics PVC Focus Lens
Shell Material Aviation Aluminum
Operation Temperature ±50℃
Service Life 8000h
Dimension (D*L) 12mm x55mm
Optimum Working Distance    Within 2-4m Distance
Adapter Plug US Plug
Adapter Input Voltage  AC 100-240V

Features:
1. Constructed of high quality laser diode, small size, emitting clear laser light.
2. Rotate the laser head to adjust focus to an appropriate spot size, adaptting to different applications.
3. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

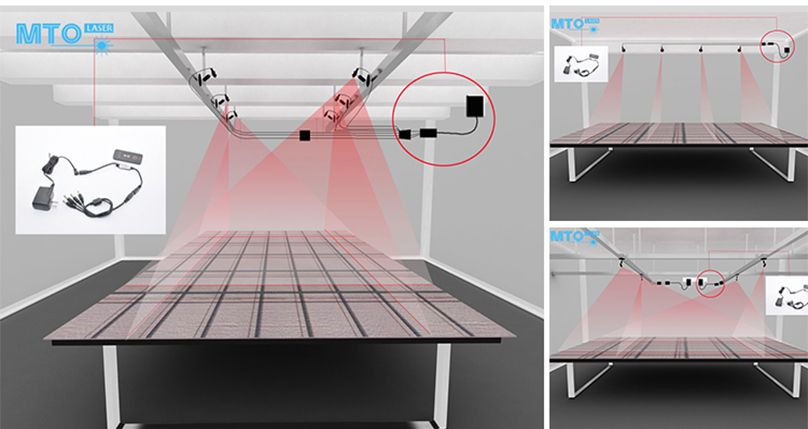

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, machine tools, woodworking machinery, and other industrial, medical and laboratory equipment.

Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.
3. Pay attention not to ignite black objects, be careful when using distances within tens of centimeters.

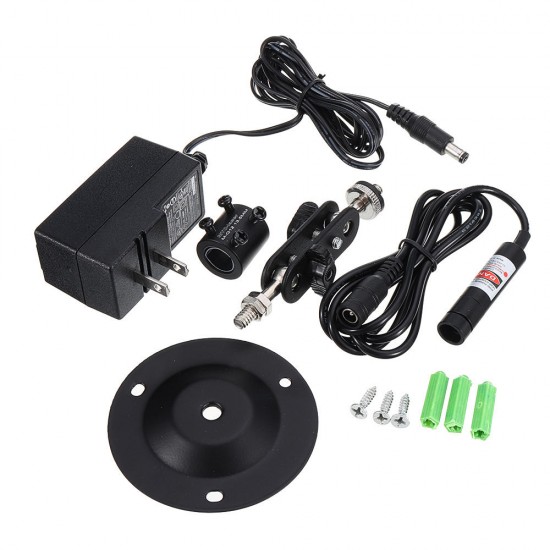

Package Included:

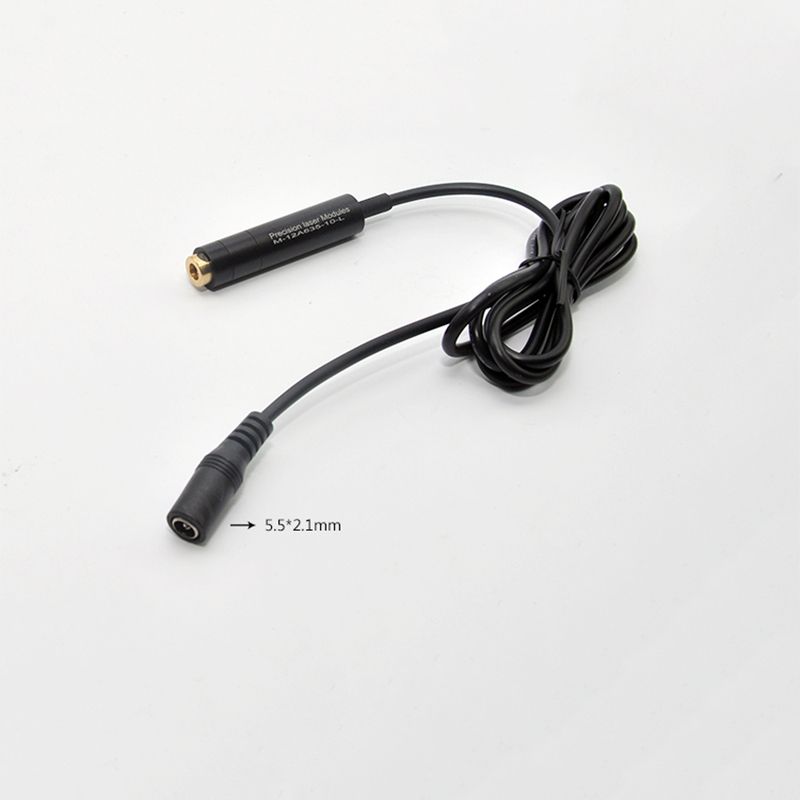

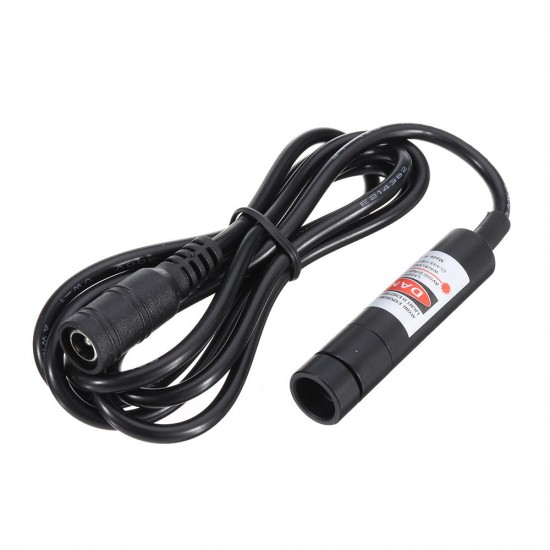

1 x Red Dot Laser Module

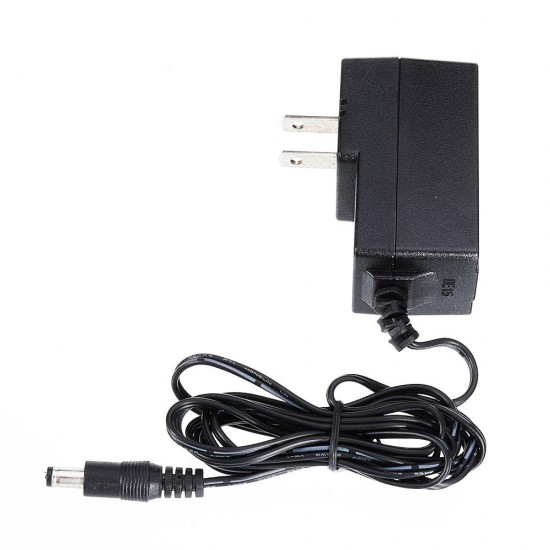

1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
