50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator

50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
50mW 405nm Blue-violet Cross Line Laser Module Variable Focus Industrial Position Alignment Diode Generator
$26.49
Ex Tax: $26.49
  • Stock: In Stock
  • Model: EB0017471
  • SKU: EB0017471
Description:
This variable focus 50mW 405nm blue-violet cross line laser module employs qualified 405nm blue-violet laser diode, generates the stable and reliable blue-violet laser cross line applicable for various industrial alignments and positioning work. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.

Specification:
Brand Renhotec
Laser Power 50mW
Wavelength 405nm
Beam Shape Cross Line
Variable Focus YES
Output Light Visible Light
Working Voltage DC 5V
Working Current 60mA
Optics Focus Lens + Glass Wave Cross Lens
Shell Material Aviation Aluminum
Operation Temperature ±50℃
Service Life 8000h

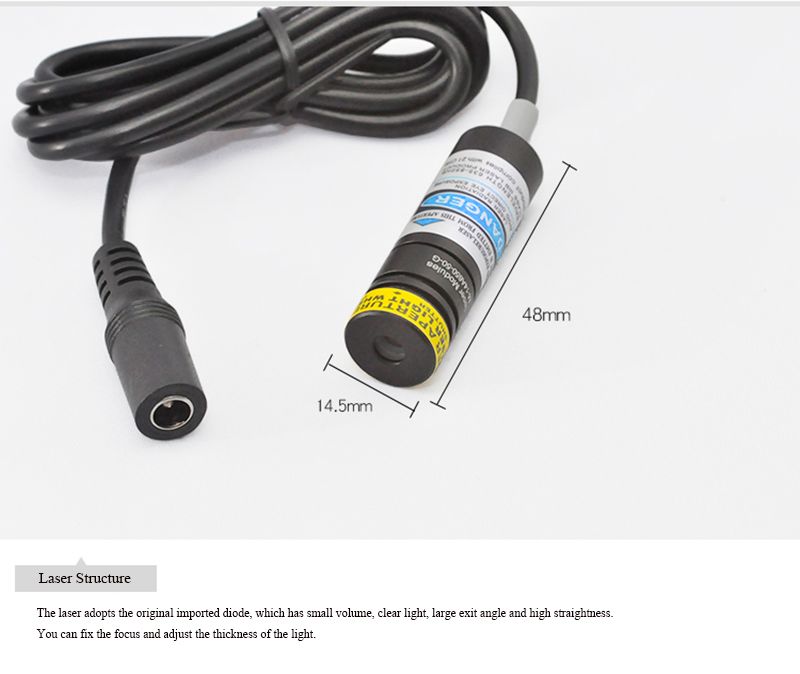

Dimension (D*L) 14.5mm x48mm
Optimum Working Distance           The brightness of 405nm blue-violet lights is weak and not suitable for long-distance use.
Adapter Plug US Plug
Adapter Input Voltage  AC 100-240V 0.3A 50-60Hz

Features:
1. Constructed of high quality laser diode, small size, emitting clear laser light.

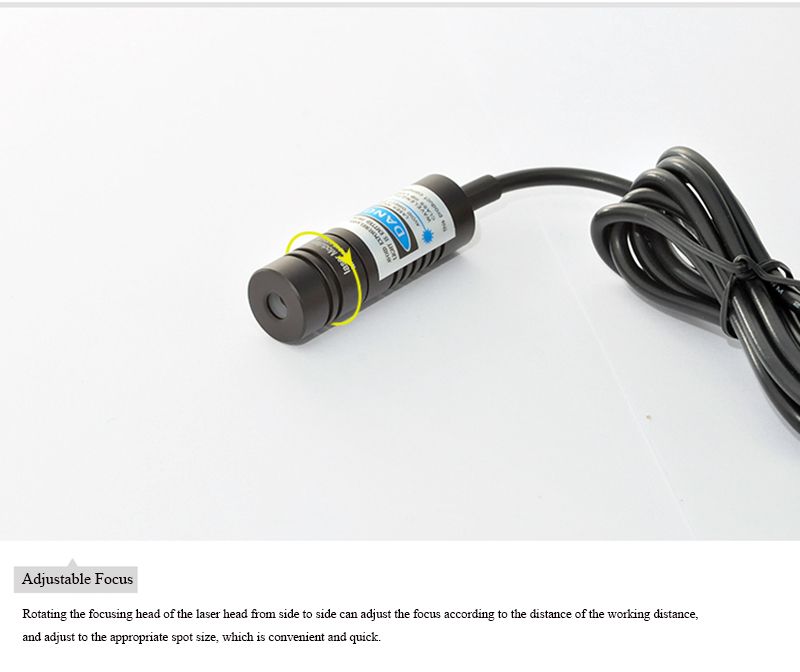

2. Rotate the laser head to adjust focus to an appropriate spot size, adapting to different applications.
3. Compact size, easy to install, multi-angle adjustment of installation, easy to operate.
4. Come with mount holder, rotate the adjust the angle for easy placement and installation.

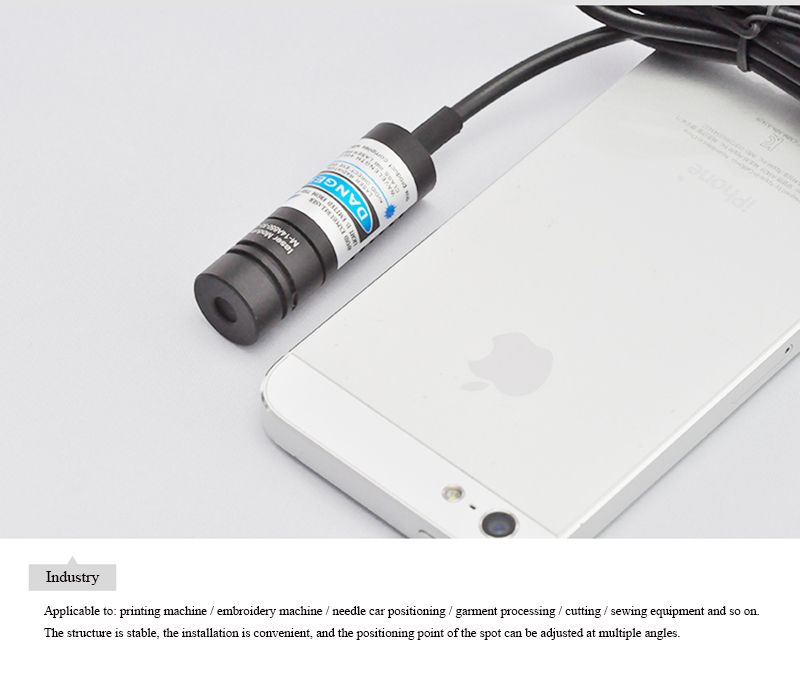

5. Widely used in laser alignment, positioning for sewing equipment, embroidery machine, machine tools, woodworking machinery, and other industrial, medical and laboratory equipment.

Caution:
1. Light is emitted from the aperture. Avoid Direct Eye Exposure. Keep Away from Children and Pets;
2. Wear protective glasses for close use.

Package Included:
1 x Blue-violet Cross Laser Module
1 x Power Adapter (AC 100-240V to DC 5.3V)
1 x Mount Holder
