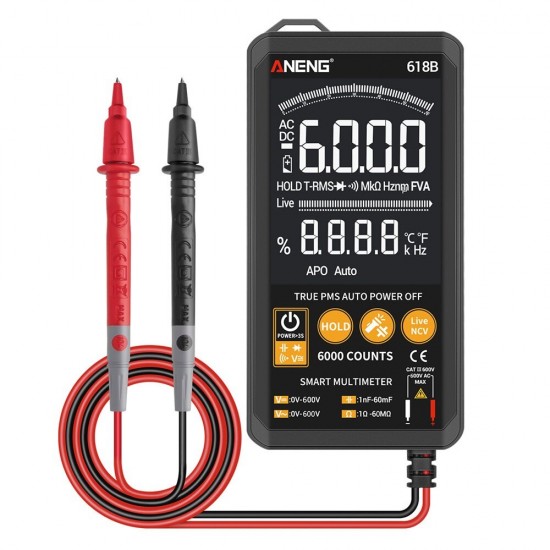

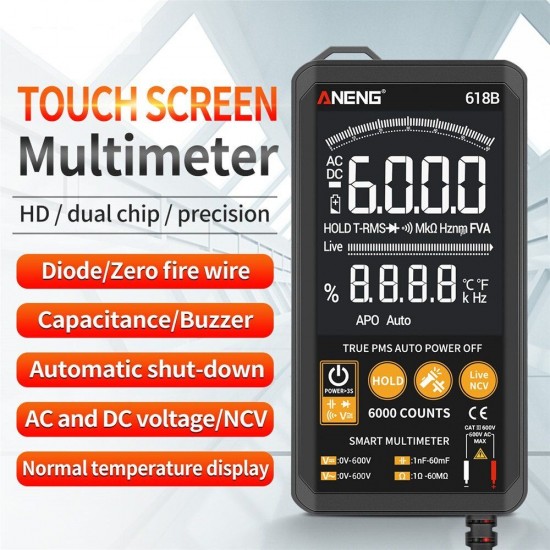

618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter

618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
618B Digital Multimeter Touch DC/AC Professional Analog Tester True RMS Multimetro Capacitor NCV Testers Meter
$22.99
Ex Tax: $22.99
  • Stock: In Stock
  • Model: EB004401
  • SKU: EB004401

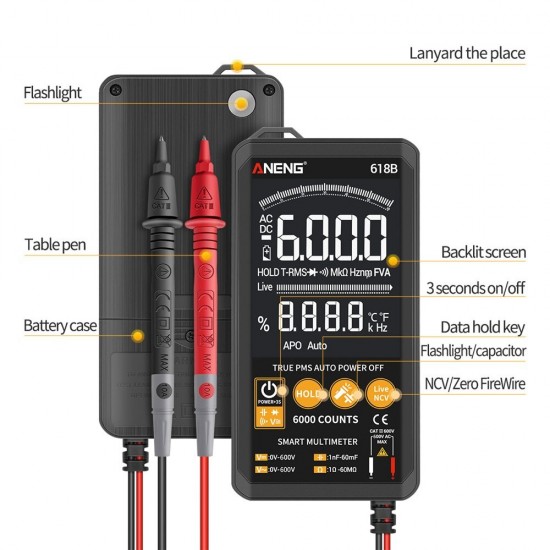

Features:

1. Display mode: triple display LCD; main display, sub display, analog bar
2. Maximum display: 5999 (5 5/6) bit automatic polarity display
3. Measurement method: double integral A/D conversion
4. Sampling rate: about 3 times per second
5. Over range display: The highest position shows "OL"
6.Continuous power operation function
7. Low voltage display
8. Working environment:(0~40)℃,relative humidity<80%
9. Power: AAA 2* 1.5V battery(Not included)

Specification:

2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%
2-2. Performance (Note "√" indicates that the meter has this function)

Function

 618A

 618B

 618C

Screen

Normal LCD

VA Screen

Color Scrren

DC voltage DCV

AC voltage ACV

Resistor

Diode / On-Off Test / Capacitor

Frequency F

Touch key

Continuous power operation

NCV

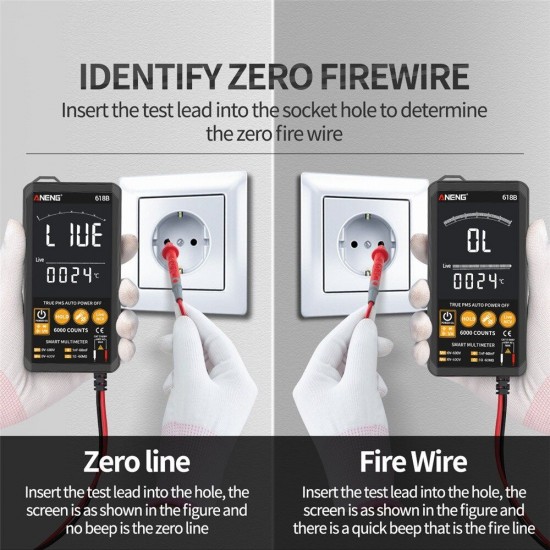

Zero line / Fire line test

Full unit symbol

Backlight manual/Auto off

True RMS measurement

Temperature(℃/℉)

Flashlight lighting

       √





Range

Accuracy

DCV / ACV

6V/60V/600V

±(0.5%+3)

DCV / ACV

DC1000V/AC750V

±(0.8%+10)

Resistance

600Ω

±(0.8%+5)



6kΩ/60kΩ/600kΩ/6MΩ

±(0.8%+3)



60MΩ

±(2.5%+3)

Capacitance

10nF/100nF /1uF/10uF/100uF/1mF/10mF

±(3.5%+20)
