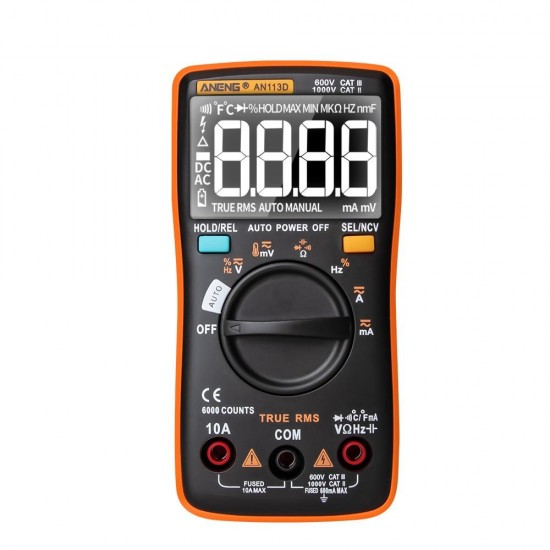

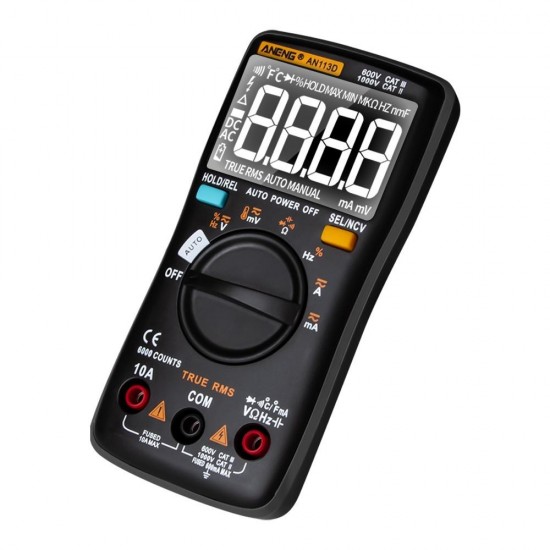

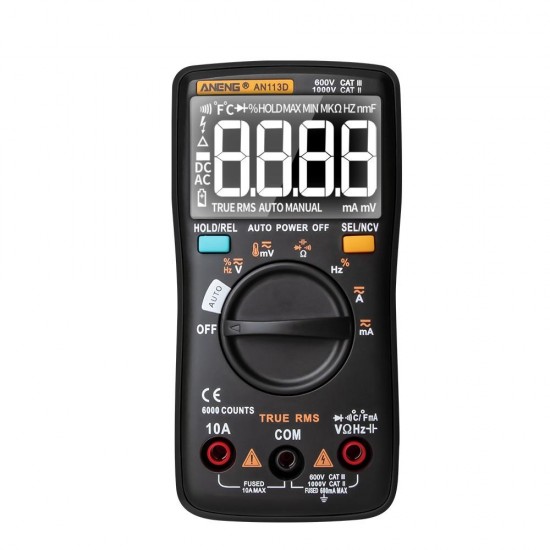

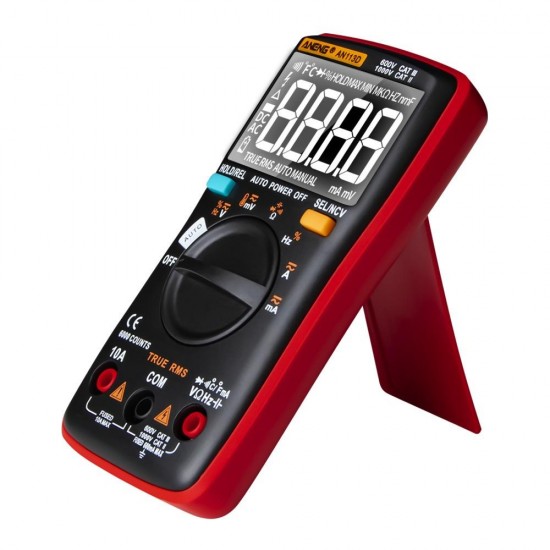

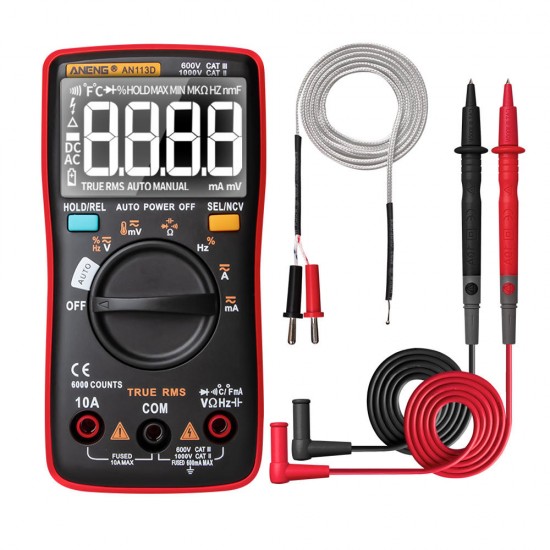

AN113D Intelligent Auto Measure True- RMS Digital Multimeter 6000 Counts Resistance Diode Continuity Tester Temperature AC/DC Voltage Current Meter Upgraded from AN8002
- Stock: In Stock
- Model: EB004103
- SKU: EB004103
Good News!
ANENG AN113D the upgrade version of ANENG AN8002 has already released.

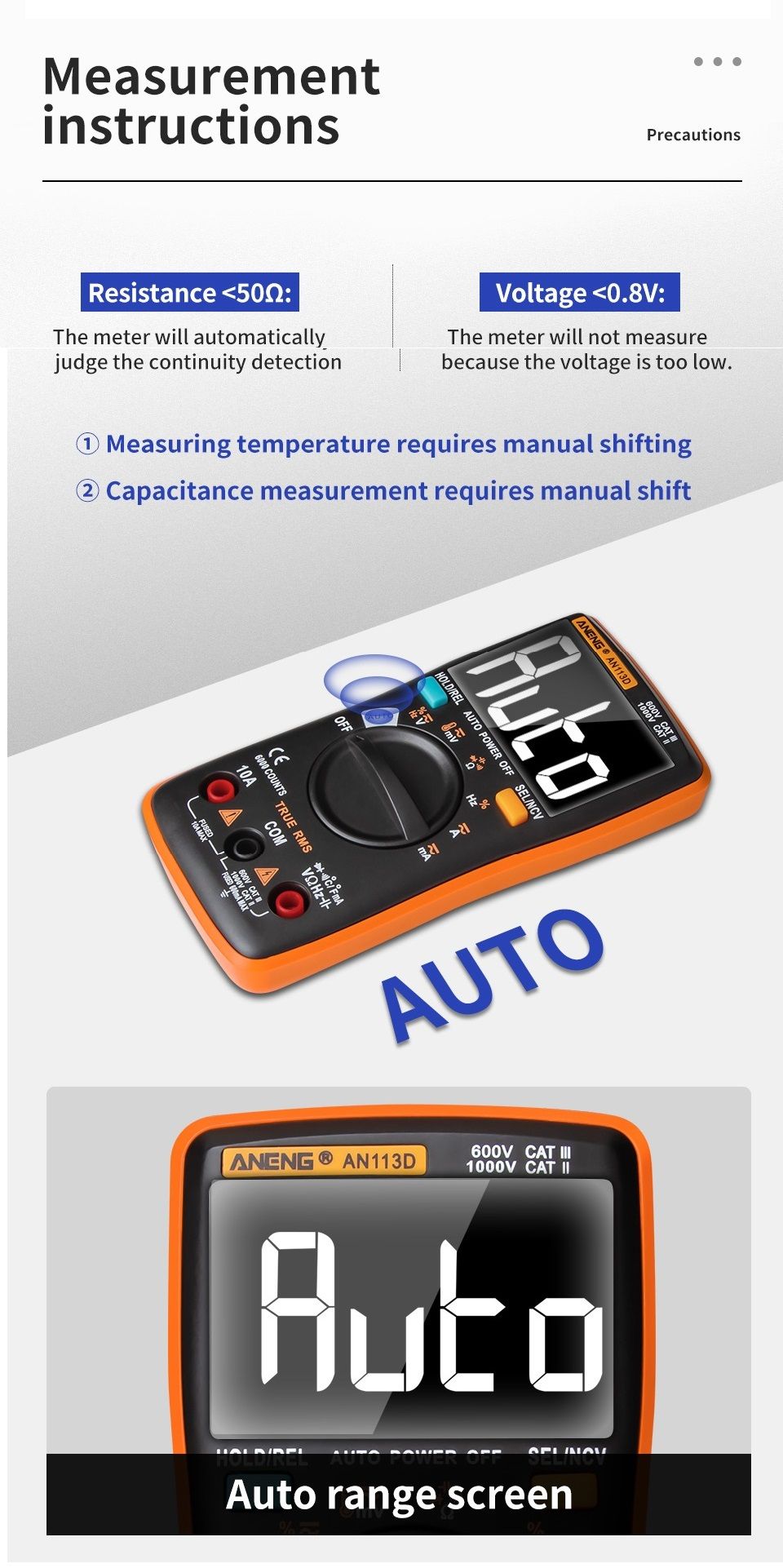

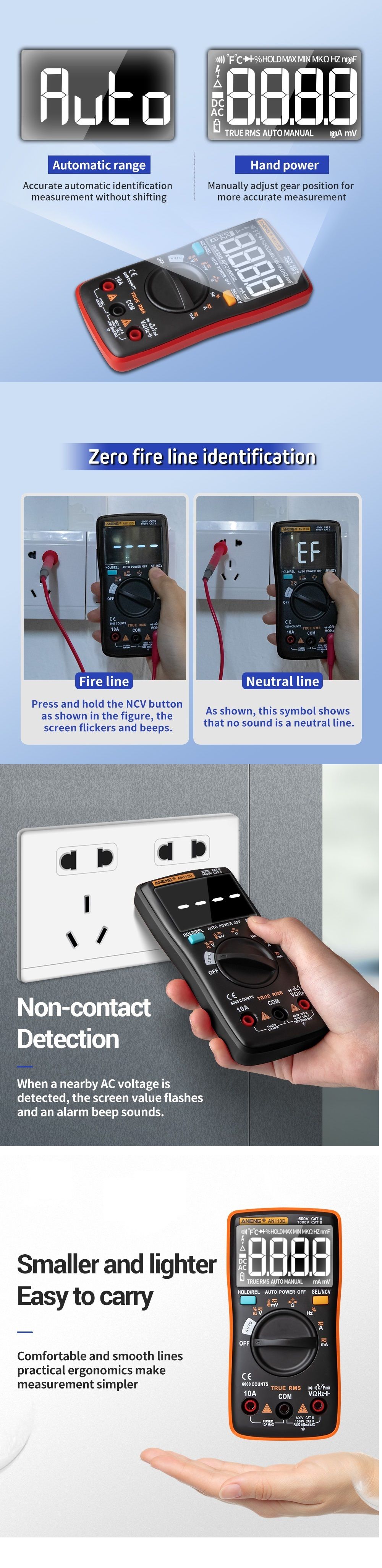

This new product not only has the Manual gear as AN8002,but also added an automatic measurement button which is more convenient measurement and more friendly operation for the novices.
Annnnd,It also equipped with a Black EBTN Screen, which can be clearly displayed without backlighting!!!
Features:
Specification:
Display(LCD): 6000 counts
OperatingStorage: Temperature 0~40℃ Humidity <75%
OperatingStorage :Temperature -20~60℃ Humidity < 80%
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)

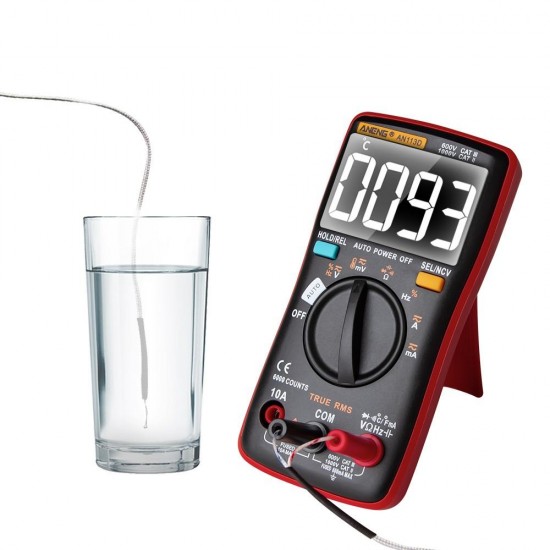

Temperature (-20~1000)℃ 1℃ ±(2.5%+5)1000℃ (-4~1832)℉ 1℉ 1832℉
Continuity :√

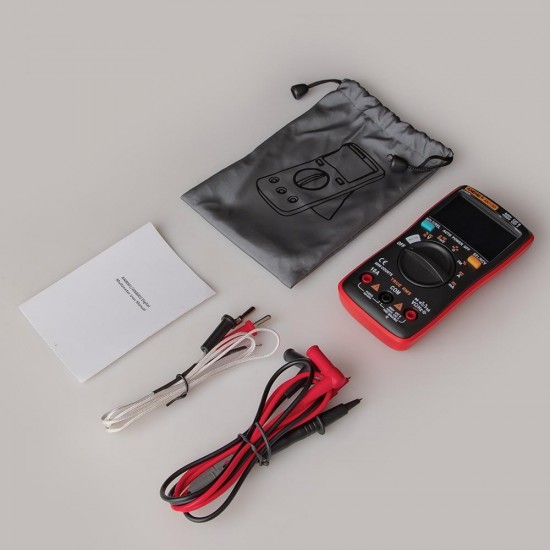

Package Includes:
1 x Multimeter
1 x Pair of test leads
1 x Thermocouple
1 x English user manual
Details Pictures:
