AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red

AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
AN302 Push-button Card Digital Multimeter AC/DC Tester With Flashlight - Red
$13.79
Ex Tax: $13.79
  • Stock: In Stock
  • Model: EB004465
  • SKU: EB004465
Features:

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 8000 counts LCD display.

Main measurements: DC/AC/Resistance/Continuity/Diode/Capacitance/Frequency
Display: 8000 counts
Update rate: 3/s
Auto/manual ranges
True RMS
Auto power off

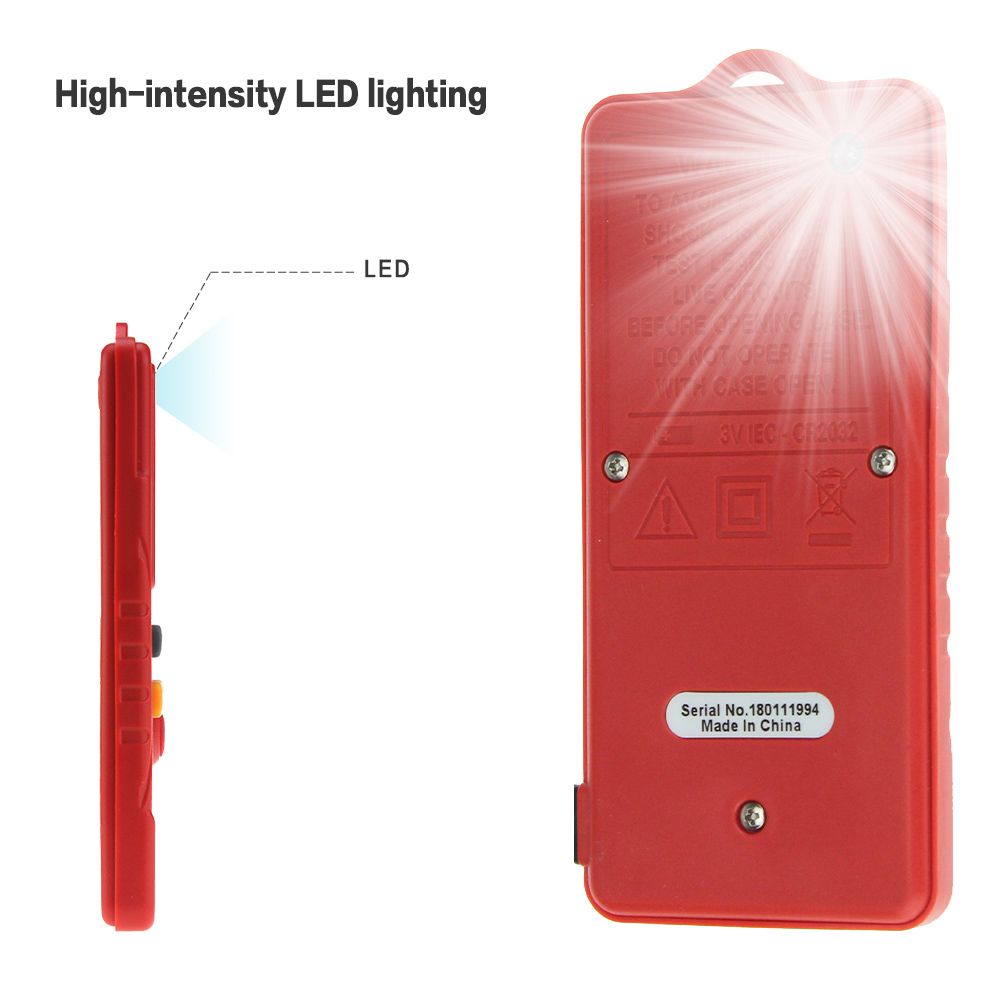

Flashlight
Low Battery indication
Date hold

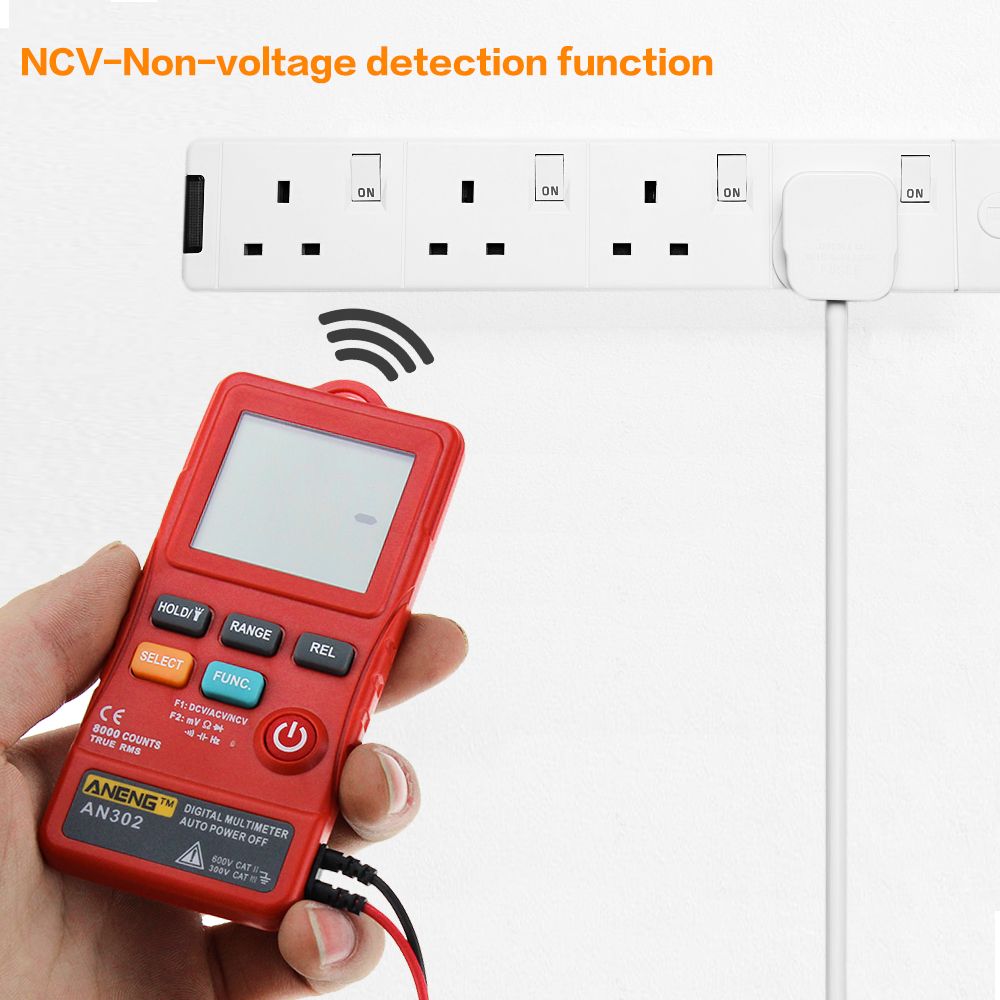

NCV detection
Power: 3V (CR-2032)


Specification:

Electrical Specifications
Function Range Resolution Accuracy MAX Value
DCV 8.000V 0.001V ±(0.5%+3) 600V
80.00V 0.01V
600.0V 0.1V
DCmV 80.00mV 0.01mV 800mV
800mV 0.1mV
ACV 8.000V 0.001V ±(1.0%+3) 600V
80.00V 0.01V
600.0V 0.1V
ACmV 80.00mV 0.01mV 800mV
800mV 0.1mV
Resistance 800.0Ω 0.1Ω ±(1.0%+3) 80MΩ
8.000kΩ 0.001kΩ ±(0.5%+3)
80.00kΩ 0.01kΩ
800.0kΩ 0.1kΩ
8.000MΩ 0.001MΩ
80.00MΩ 0.01MΩ ±(1.5%+3)
Capacitance 9.999nF 0.001nF ±(5.0%+20) 9.999mF
99.99nF 0.01nF ±(2.0%+5)
999.9nF 0.1nF
9.999μF 0.001μF
99.99μF 0.01μF
999.9μF 0.1μF
9.999mF 0.001mF ±(5.0%+5)
Diode
Continuity
NCV
Frequency response at AC modes: 40Hz ~ 1kHz

Frequency 99.99Hz 0.01Hz ±(0.1%+2) 2.000MHz
999.9Hz 0.1Hz
9.999kHz 0.001kHz
99.99kHz 0.01kHz
999.9kHz 0.1kHz
2.000MHz 0.001MHz

General Specifications
Display 8000 counts Data Hold
Ranging Auto/Manual Backlight ×
Material Renhotec Flashlight
Update Rate 3 / s Low Battery Indication
True RMS Auto Power Off

Environmental Specifications
Operating Temperature 0~40℃
Humidity  <75%
Storage Temperature -20~60℃
Humidity   <80%

Package includes:

1 x ANENG AN302 Digital Multimeter (Battery not included)
1 x Manual
1 x One pair Multimeter Test Pens
1 x Package Bag

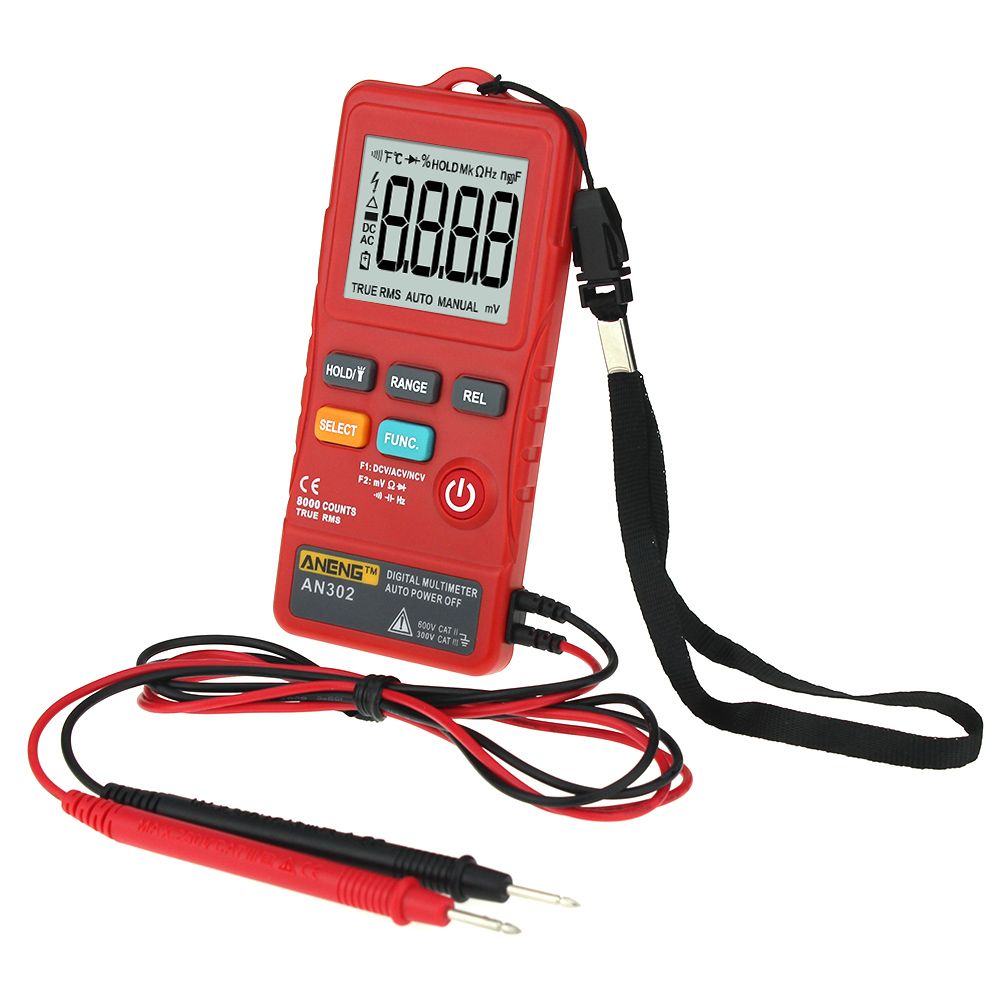

1 x Condole belt


Details pictures:

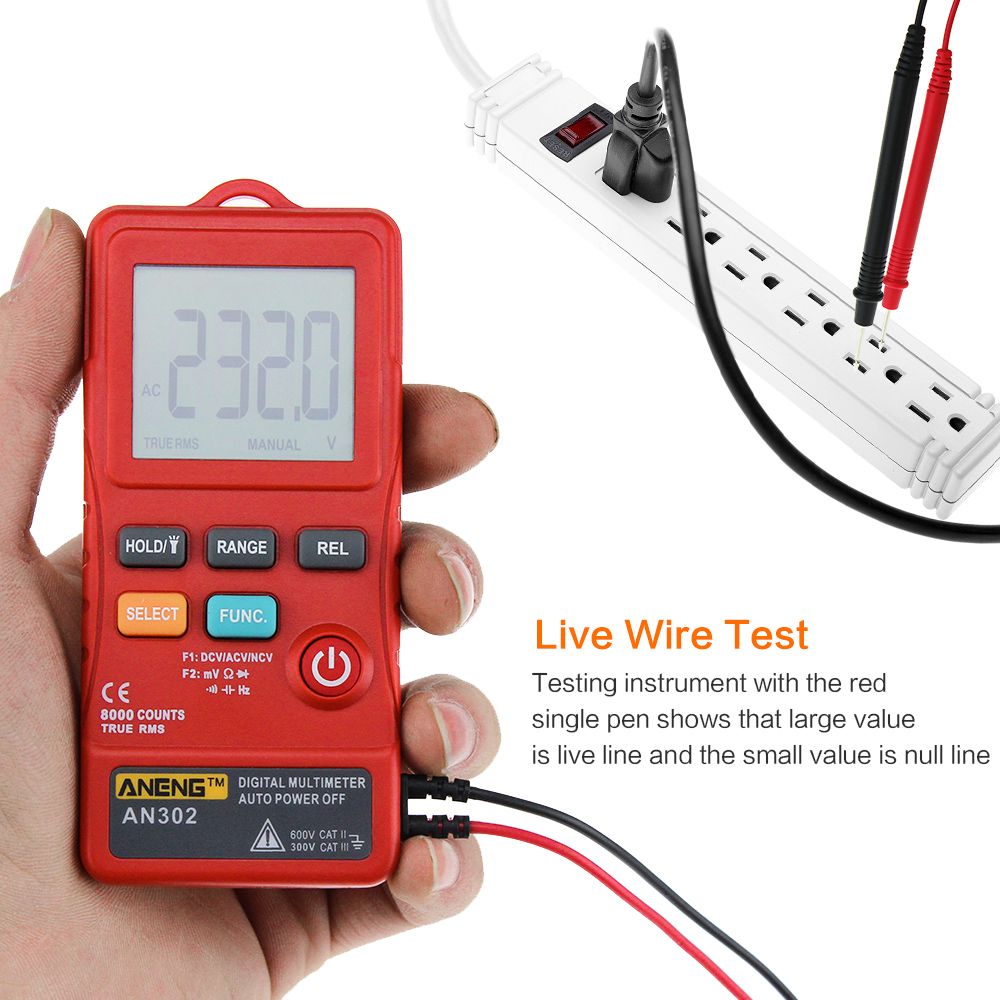

ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
ANENG-AN302-Push-button-Card-Digital-Multimeter-ACDC-Tester-With-Flashlight---Red-1339839
