AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester

AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
AN860B+ Backlight Digital Multimeter AC/DC Current Voltage Resistance Frequency Temperature °°Tester
$29.99
Ex Tax: $29.99
  • Stock: In Stock
  • Model: EB004154
  • SKU: EB004154
Features:

Auto/manual ranges.
True RMS measurement.
550V protection in resistance and capacitance ranges.
Large LCD display, MAX display 6000 counts.
Sample rate: 3 times per second.
Backlight.
MAX/MIN data hold.
Polarity identification.
Low voltage indication.
20A high current measurement is available.
Auto power off: can be cancelled manually.
Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing, Temperature, Frequency and duty cycle.

Specification:

Frequency: 1Hz to 20MHz
Temperature: -20℃ to 1000℃ (-4℉ to 1832℉)
Capacitance: 10pF to 6000uF
AC volts: 0.1mV to 750V
DC volts: 0.1mV to 1000V
AC current: 0.1uA to 20A
DC current: 0.1uA to 20A
Resistance: 0.1Ω to 60MΩ
Duty cycle: 1% to 99%

Frequency: 5/50/500/5k/50k/500k/5M/20M (±0.1+3)
Temperature: <400℃ ± (1.0%+5), ≥400℃± (1.5%+15)
                       <752℉ ± (1.0%+5), ≥752℉± (1.5%+15)
capacitance: 10nF (±5.0+20),100nF/1uF/10uF/100uF (±2.0%+5), 1000uF/10000uF (±5.0%+5)
DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)
AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)
ACA/DCA:600uA/6000uA(±1.5%+3), 60mA/600mA/20A(±1.5%+3)
Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)
Duty cycle:1% to 99%(±1%)

Measurement mode: Double-integral style A/D transform
Over range indication: OL
Working environment: 0~40℃, relative humidity < 80%

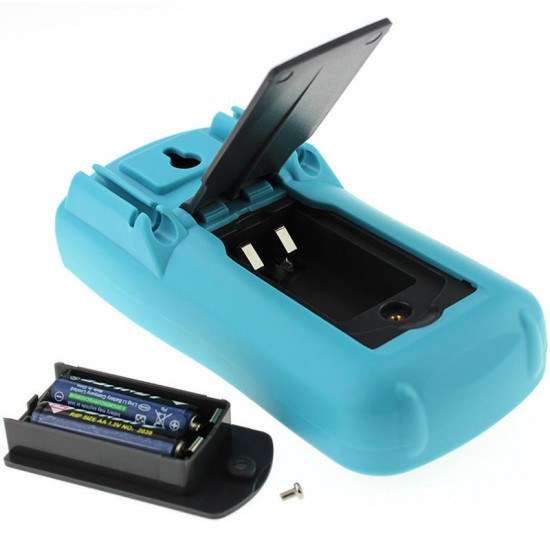

Supply power: 2 x AA batteries (Not included )
Dimension: 180 x 90.5 x 45mm
Weight: 420g

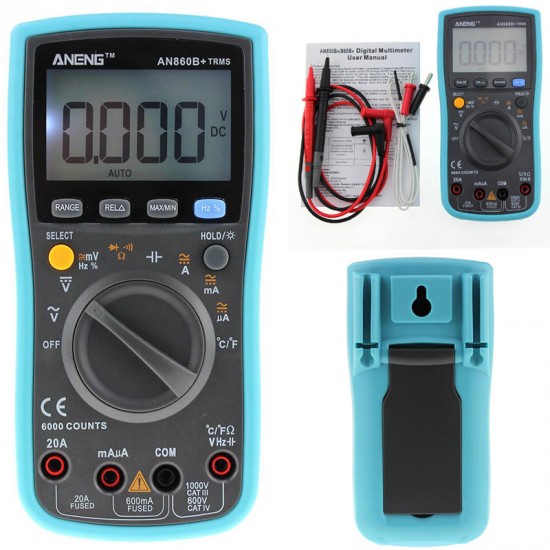

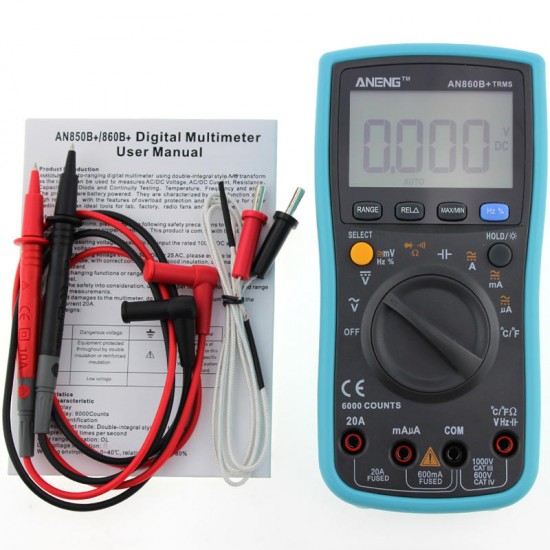

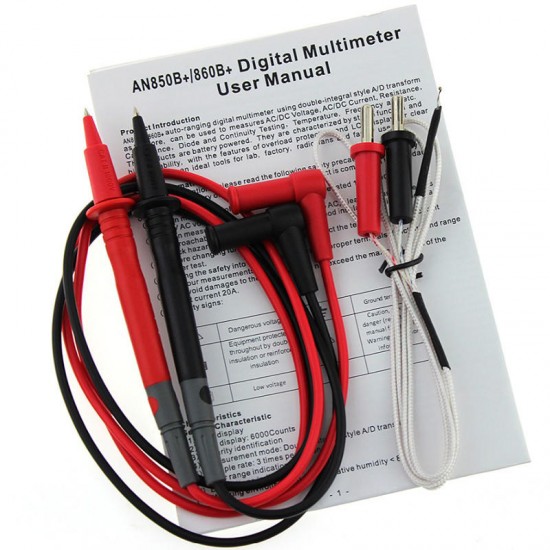

Package included:

1 x ANENG ANG860B+ Backlight Digital Multimeter

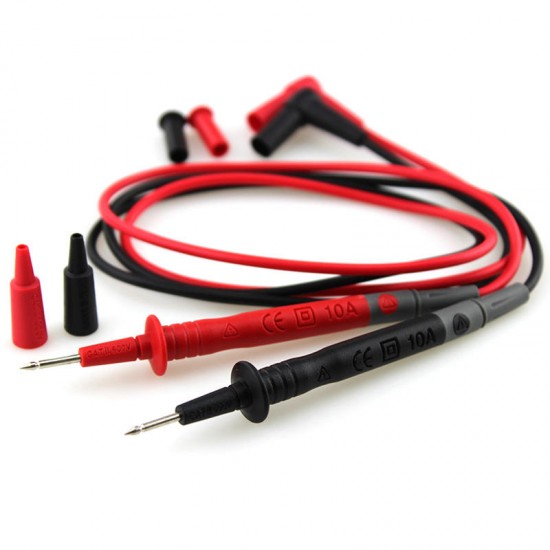

2 x Electronic Probe

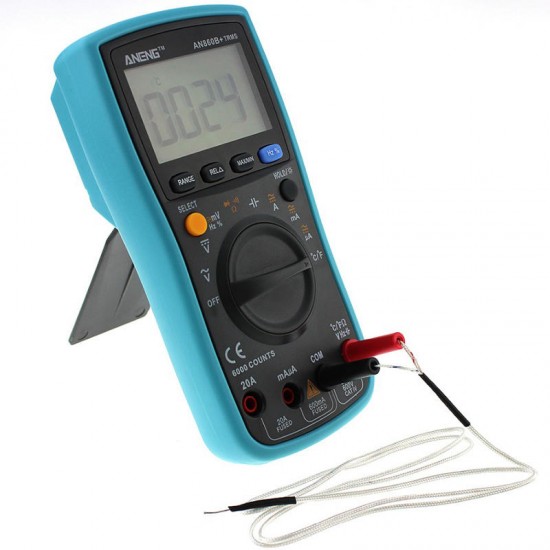

1 x TP01K thermocouple
1 x English Manual

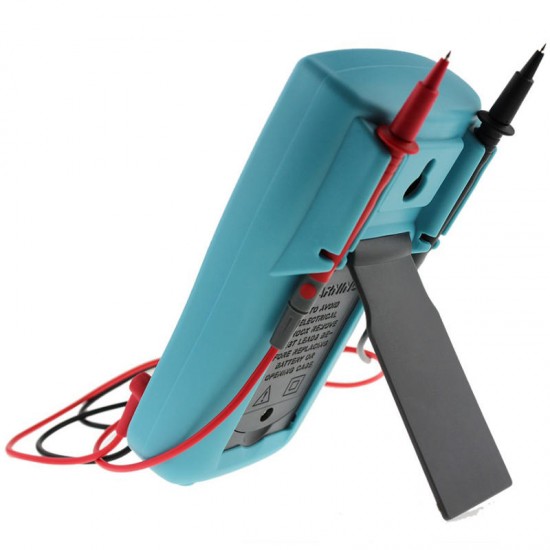

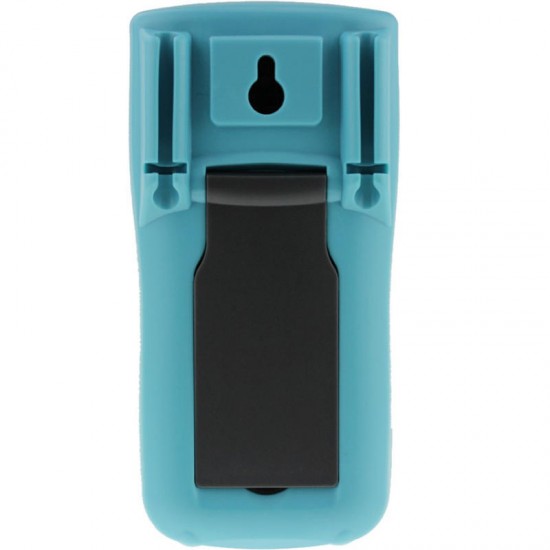

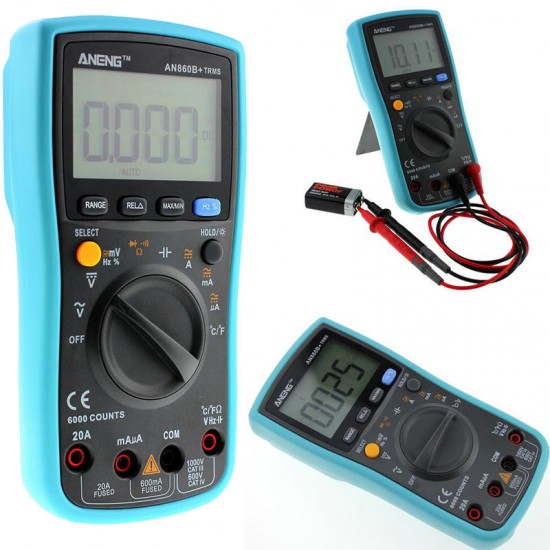

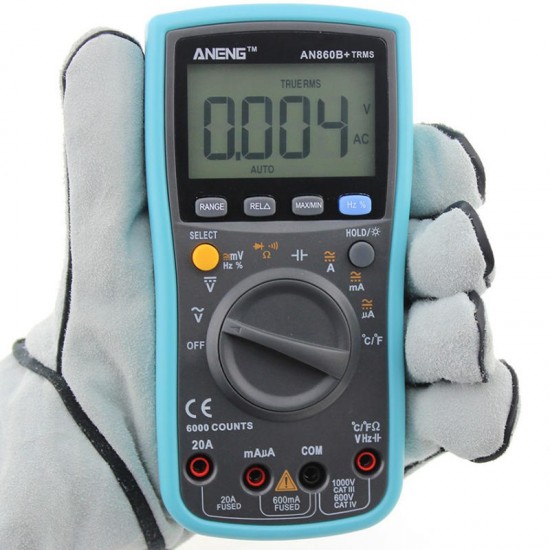

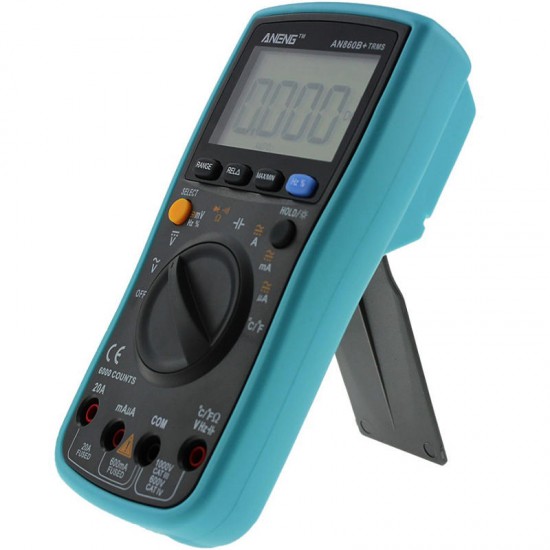

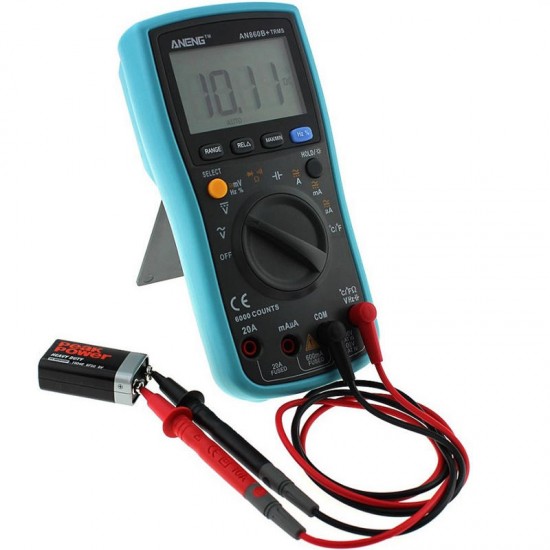

Detail Pictures:

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984

ANENG-AN860B-Backlight-Digital-Multimeter-ACDC-Current-Voltage-Resistance-Frequency-Temperature--Tes-1157984
