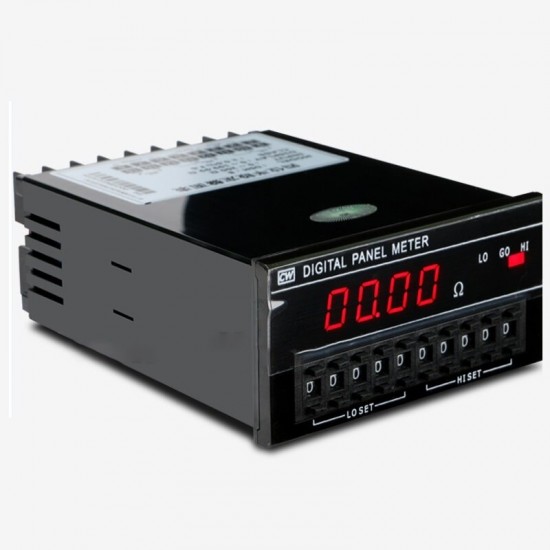

DSM-B 20KΩ/1000Ω 4 1/2 Set Alarm Impedance Resistance Meter Digital Ohmmeter Panel Meter
- Stock: In Stock
- Model: EB003267
- Dimensions: 0.00mm x 96.00mm x 48.00mm
- SKU: EB003267
Features:
- Display range: ±19999
- Double integrator circuit
- Accurate measurement
- Upper and lower limit setting, (HI, GO, LO) three groups of relay output
- Widely used for automatic detection of production lines in electronic products, machinery and other industries.
Specification:
OHM Digit Meter
Model | Range | Resolution | Measuring accuracy | Max.input | Input impedance |
DSM-B | 200Ω | 0.01Ω | ±0.5%F.S ±3digit | / | / |
DSM-B | 2KΩ | 0.1Ω | ±0.5%F.S ±3digit | / | / |
DSM-B | 1MΩ | 100Ω | ±0.5%F.S ±3digit | / | / |
Display Range | 0〜±19999 |
Setting Range | Hi and lo ± 19999~± 19999 |
Comparison Condition | Hi and lo ±19999~± 19999 (2} High limit set value> Desired value〉Low limit set value |
Output mode | Relay output type |
Relay contact capacity | AC 240V/2A; AC 120V/3A; DC 24V/3A |
Response Time | 2.5/S |
Operation Temperature/humidity | 0~60°C/20~95%RH |
Power Supply | AC110/220V, 50/60HZ |
Dielectric Strength | AC2KV,(1 Minute Between Power/Input/Output) |
Installation | Panel Mounting |
Dimension | W96 x H48 x D130mm |
Package Included:
- 1 x 4 1/2 Set Resistance Meter
Note:
1. The meter must be heating 15min with the power on before use.
2. Use in ambient temperature of 0°C to 50°C, humidifies of 85% R.H.
3. Avoid using instruments in area surrounded by vibrations of shock, dust or chemicals.
4. Input wire should not be long, use the shielded wire.

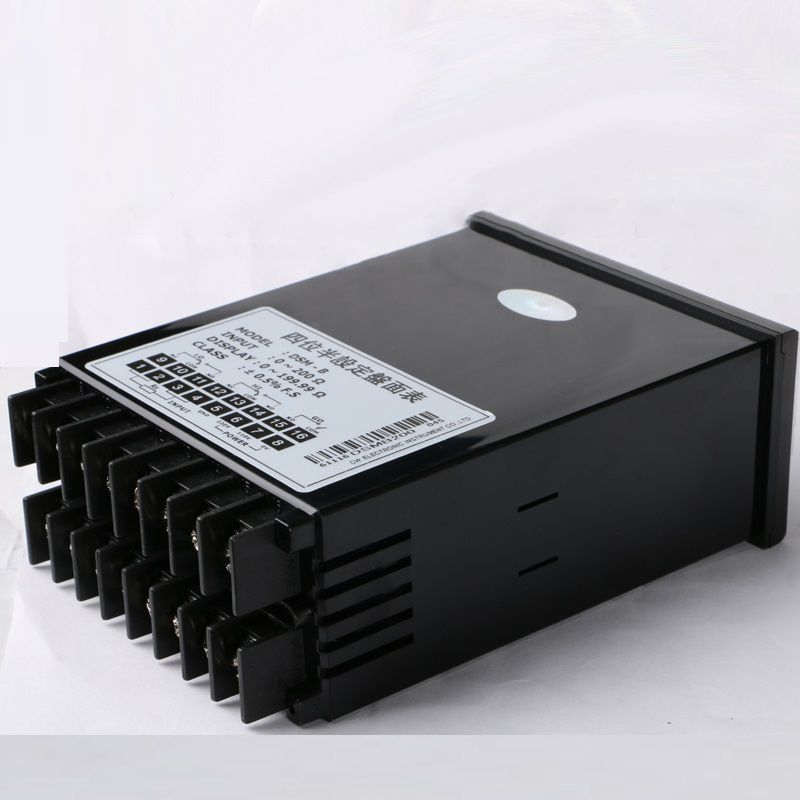

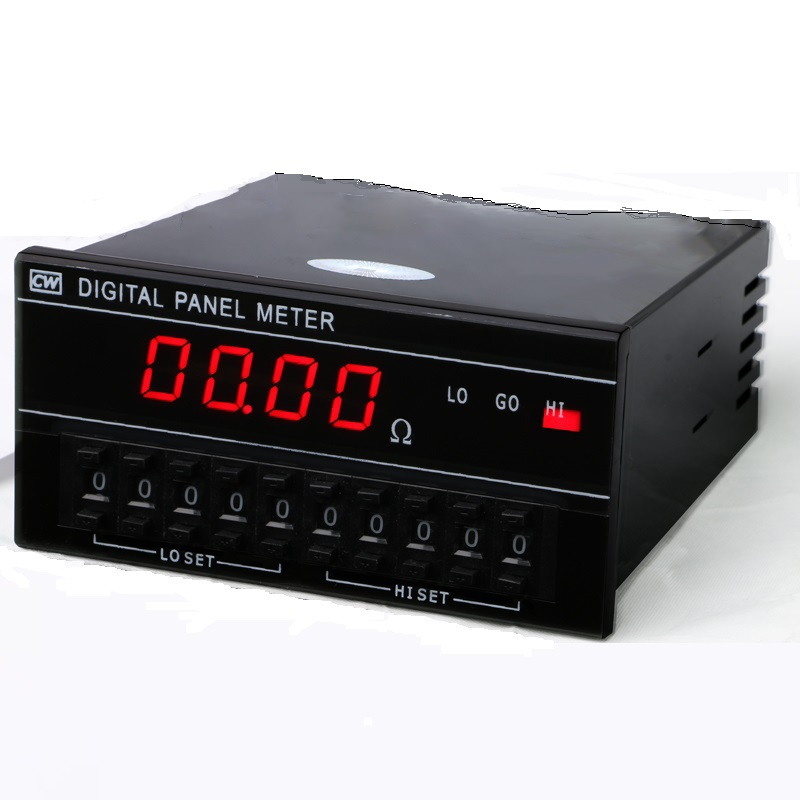

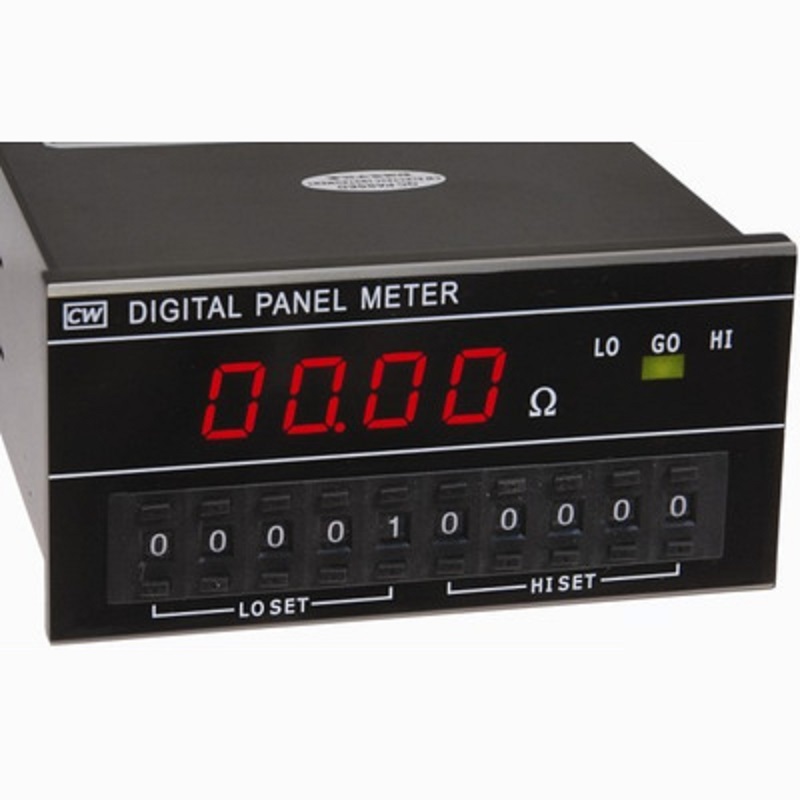

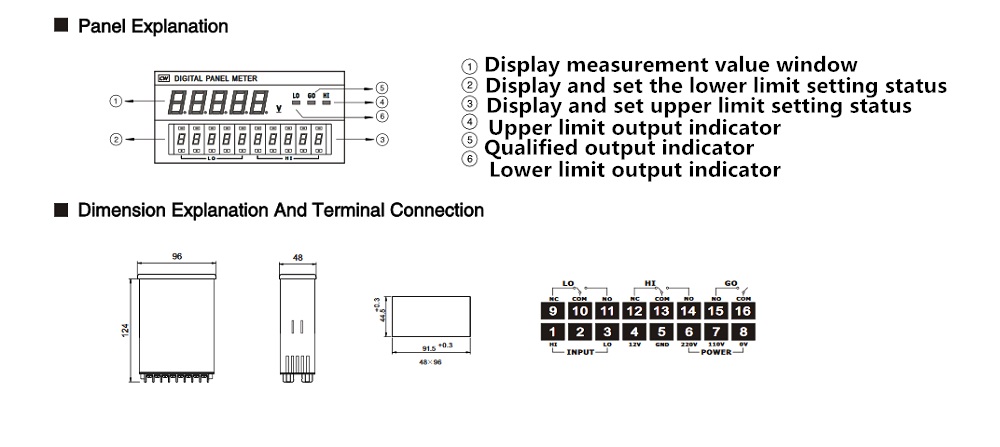

Detail Pictures:
