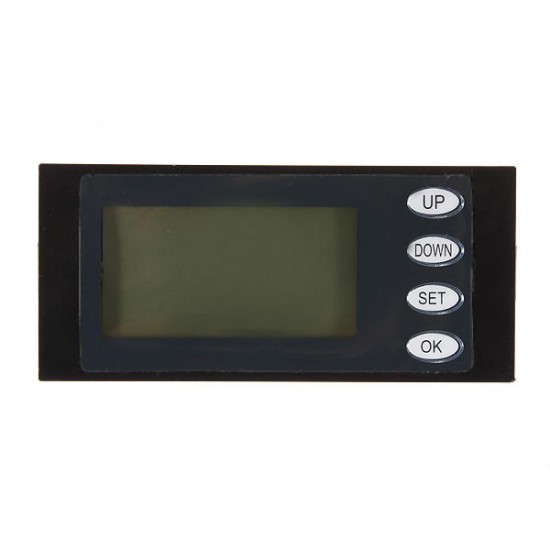

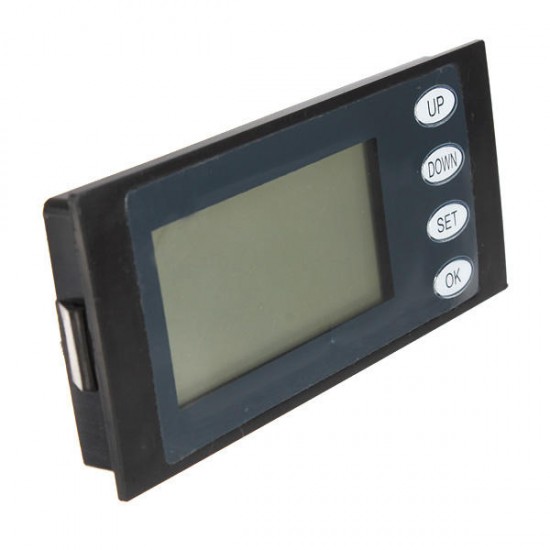

Digital LED Power Meter Monitor Voltage KWh Time Watt Energy Ammeter
- Stock: In Stock
- Model: EB003289
- SKU: EB003289
Description :
Digital LED Power Meter Monitor Voltage KWh Time Watt Energy Ammeter
Features :
Electric parameters measurement function : Energy Power Voltage Current Working Time.
Power down data storage function : Keep off before the electric power,total operation time,display items,back light out state Overload alarm function : More than power alarm threshold backlight flashing alarm.
Power alarm threshold preset functions : Can set power alarm threshold Electricity, operation time key reset Backlight function.
Specifications :
Voltage Measuring Range : AC 80 - 260V
Current Measuring Range : 20A(The Current range can be increases up to 50A by use of heavier gage wire.)
Rated power : 30A/6600W
Operating frequency : 45-65 hz
Energy Measuring Range : 0-9999.99KWh
Power Measuring Range : 0 - 9000W
Working Time : 0 - 9999.59hours
| Button | Functions |
| Up | 1.In normal display situation,Time, current, electric quantity, power ,voltagewill be displayed reverse circulation when short press |
| | 2.In the condition of power alarm threshold setting, short press the digital will plus one. |
| | 3.In power and short time reset condition short press will retreat to the reset state. |
| Down | 1.In normal display situation,Time, current, electric quantity, power ,voltagewill be displayed sequence circulation when short press |
| | 2.In the condition of power alarm threshold setting, short press the digital will Subtract one. |
| | 3.In power and short time reset condition short press will retreat to the reset state. |
| Setting | 1.In the condition of power display,the device will enter into power alarm threshold setting condition after 3seconds long pressing |
| | 2.n the condition of power or time display, the device will enter into Power or time reset condition after 3seconds long pressing |
| OK | 1.In normal display situation, short press will open or close the backlight |
| | 2.In the condition of power alarm threshold setting, short press will change the number |
| | 3.In power and short time reset condition, short press reset power and time,and exit reset situation |
Size :
Note on 2014-12-17th

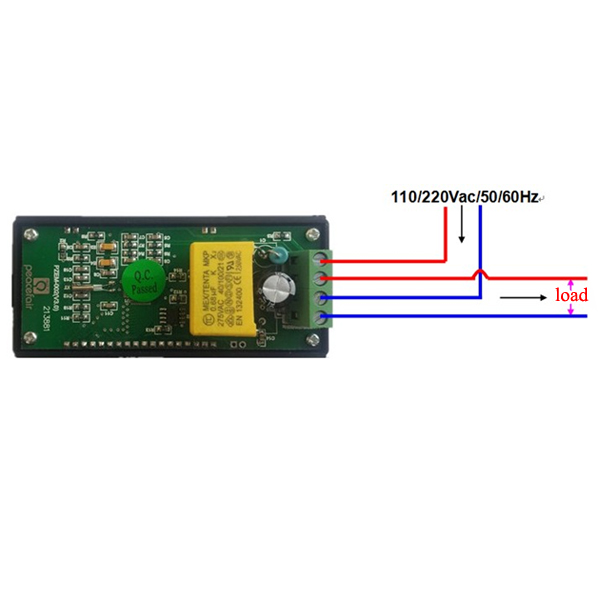

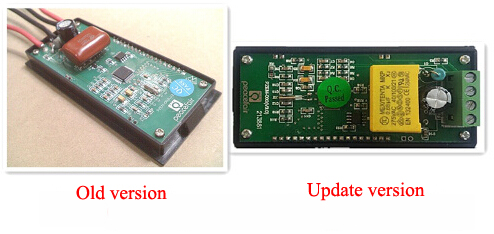

This meter have been updated to new version, and the appearance and connection diagram update as following :
Package included :
1 x AC Digital LED power Meter

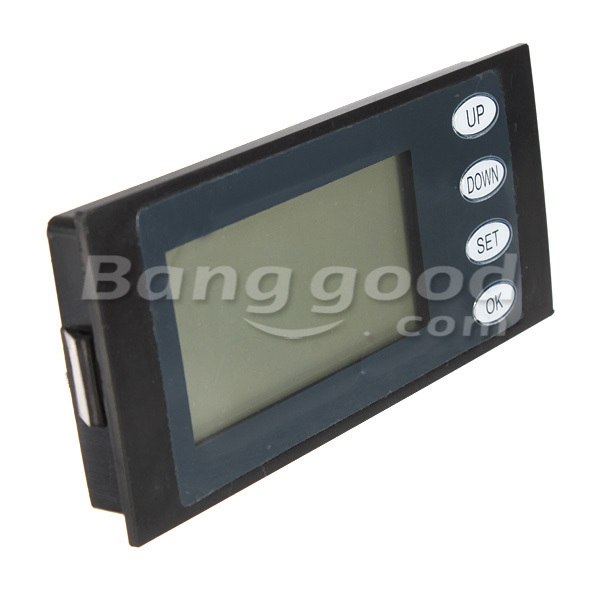

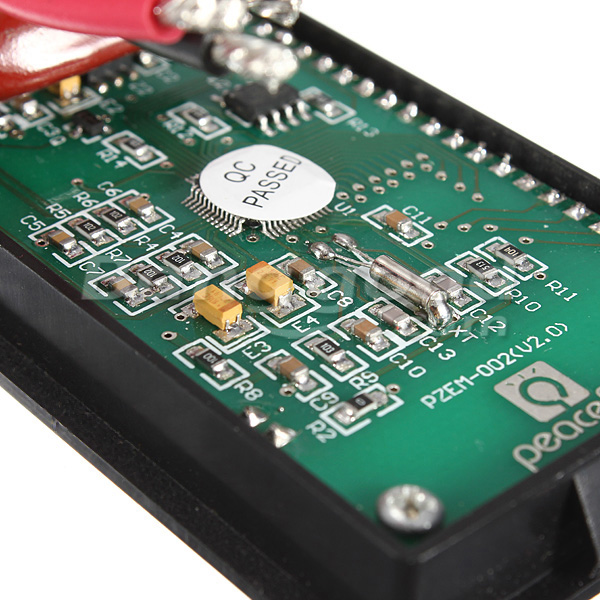

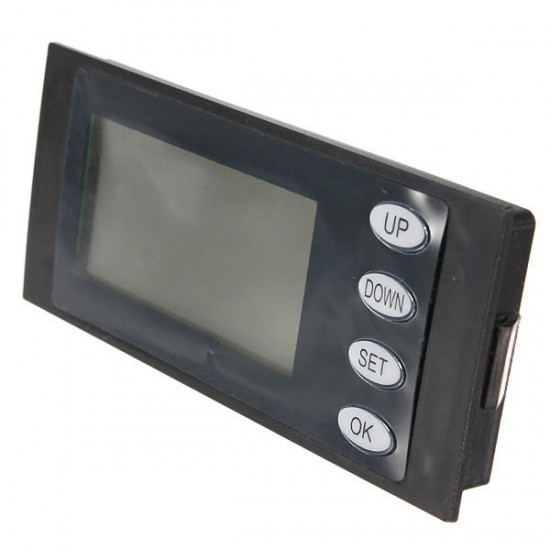

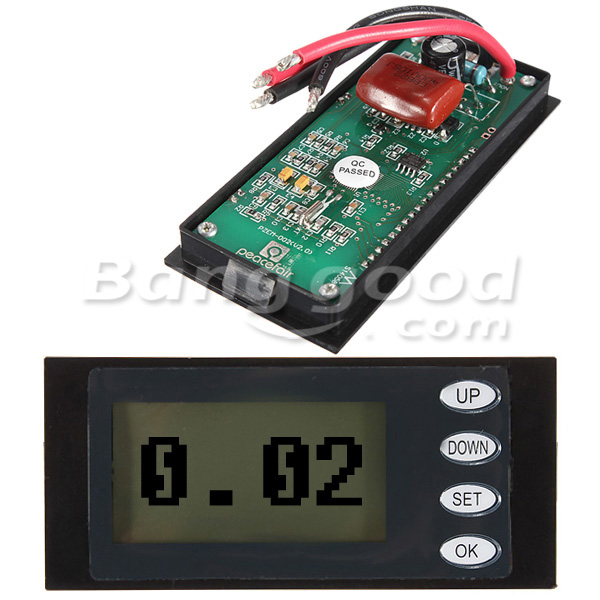

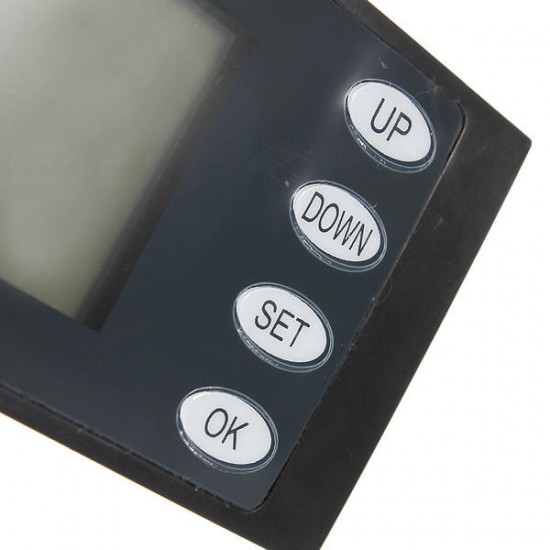

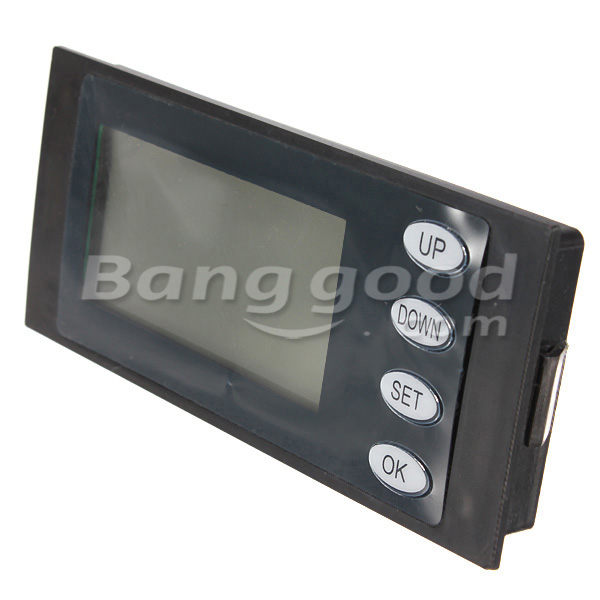

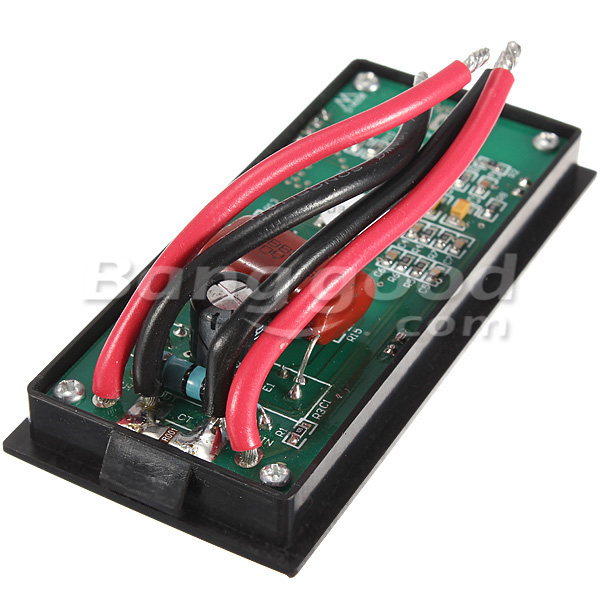

Details pictures :

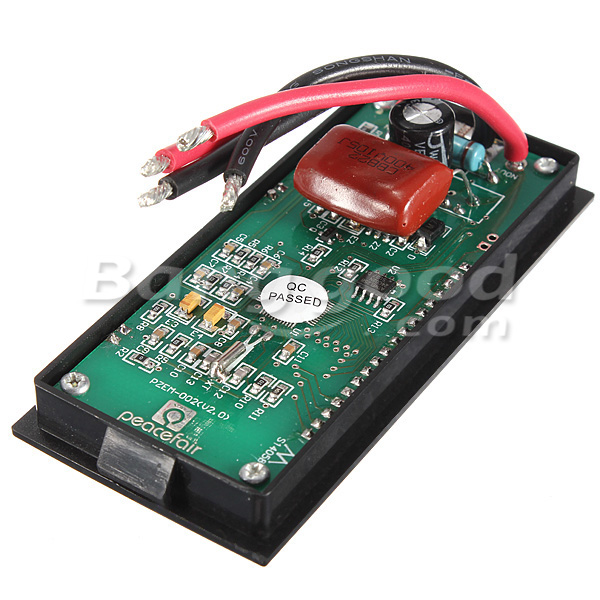

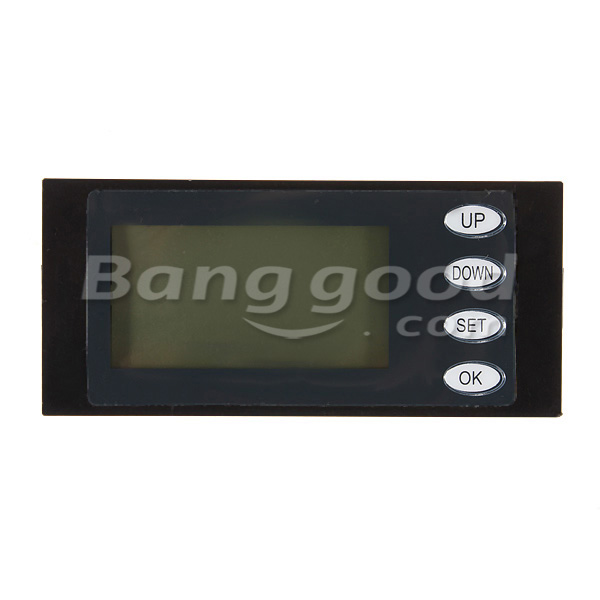

(Old version)
(Old version)
(Old version)

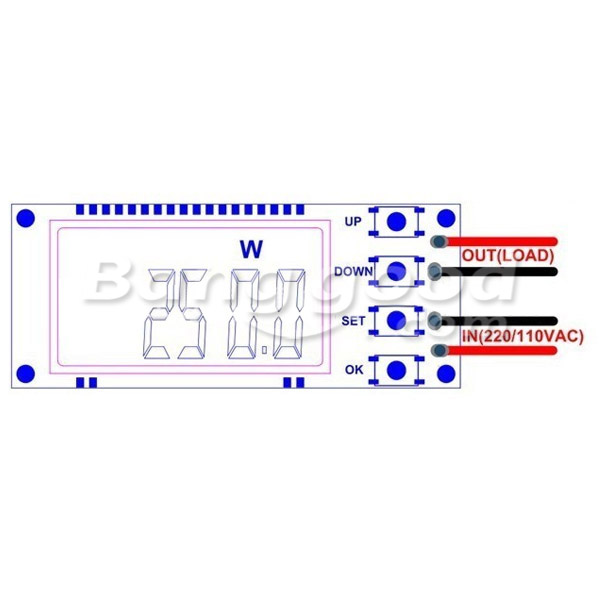

(Old version connection)
