TM190 Multi-Field EMF Meter Gauss 3-axis Magnetic Electric RF Field Strenght Digital Electromagnetic Radiation Detector

Based on 0 reviews. - Write a review

$176.99

Ex Tax: $176.99

Stock: In Stock
Model: EB006700
SKU: EB006700

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

- 4 digits, 2.4 inches color TFT LCD.

- 3 measurements in one meter: Electromagnetic Field (3 - axis), Electric Field, RF Strength Field.

- Data Hold (HOLD).

- Language Selection (choose your language): English; Traditional Chinese; Simplified Chinese; Japanese; Spanish

Specifications:

Electromagnetic Field:

- Sensor type: Low Frequency, Magnetic Fields, Triple axis (X, Y, Z)

- Range: 0.02~2000mG, 0.02 to 200µT

- Resolution: 0.01/0.1/1 mG or 0.01/0.1/1 µT

- Frequency: 50/60 Hz

- Accuracy: ±(15%+100dgt)

Electric Field:

- Sensor type: LF Electric Fields

- Range: 50V/m to 2000V/m

- Resolution: 1 V/m

- Frequency: 50/60Hz

- Accuracy: ±(7%+50dgt)

RF Strenght Field:

- Sensor type: RF Strength

- Range: 0.02µW/m² ~ 554mW/m²

- Resolution: 0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB

- Frequency: 50MHz to 3.5GHz

- Accuracy: ± 2dB at 2.45GHz

Other Information:

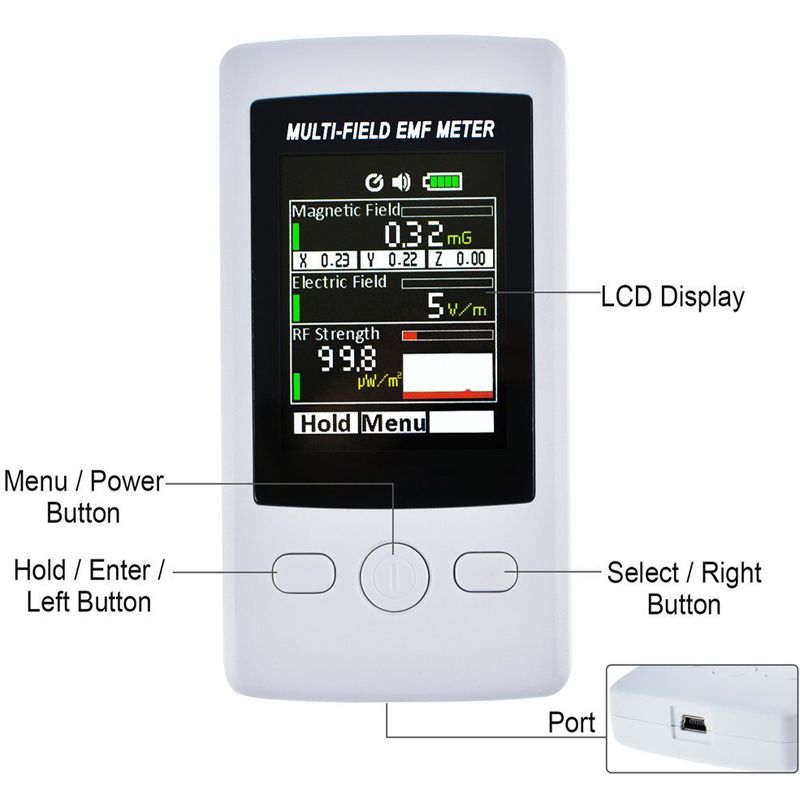

- Display: 4 digits, 2.4 inches color TFT LCD.

- Sample rate: 6 seconds per time.

- Battery life: approximate 8 hours.

- Battery: 1.5V AAA alkaline battery*3 (NOT Included)

- Audible key tone alarm: buzzer

- Operating temperature & humidity: 5°C to 40°C, below 80% RH.

- Storage temperature & humidity: -10°C to 60°C, below 70%

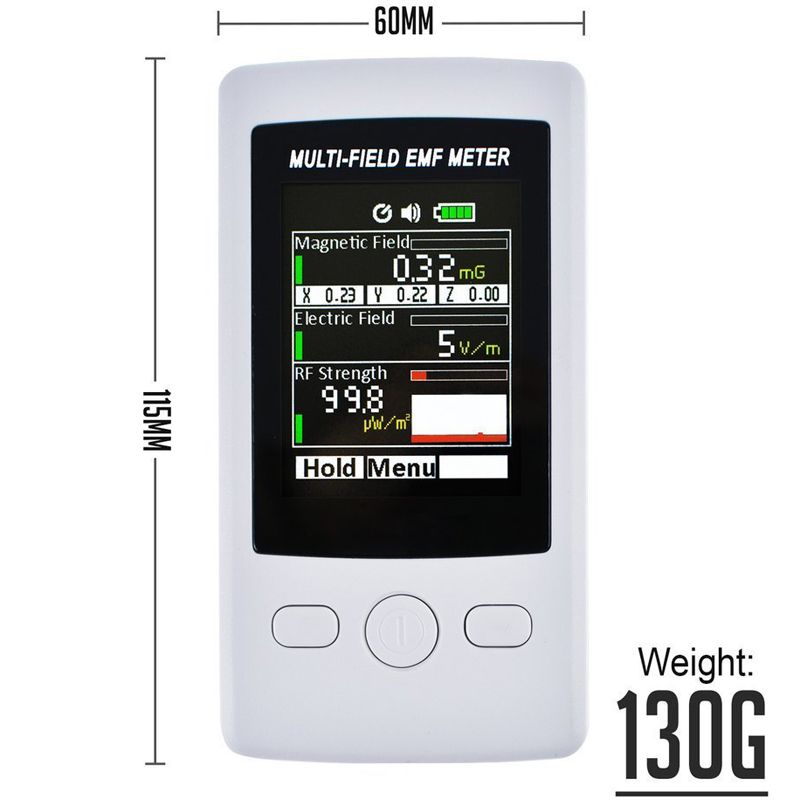

- Dimensions: 115(L) x 60(W) x 21(H) mm

Remarks: TM-190 can be powered via USB mini-B (5 pin) connection, user’s external power supply (voltage DC 4.8 ~ 5.2V; current ≧ 500mA)

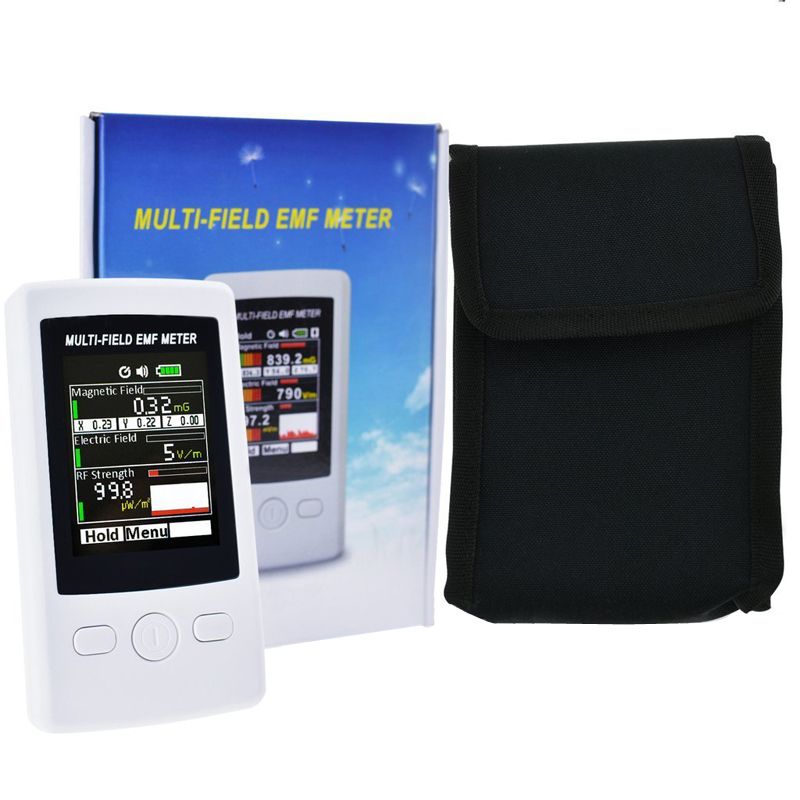

Package Included:

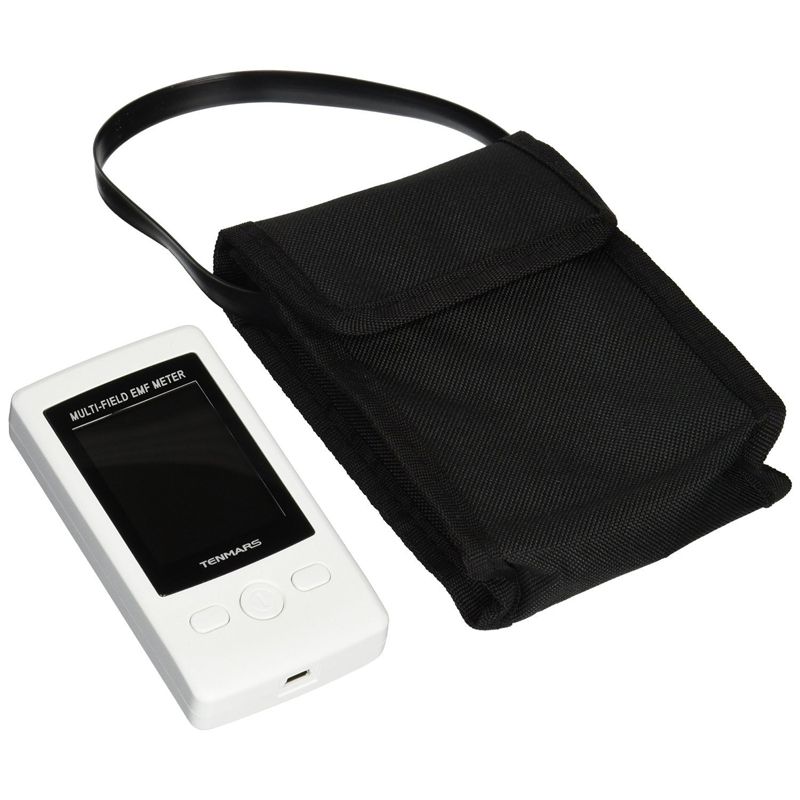

1 x TM190 Multi-Field EMF Meter

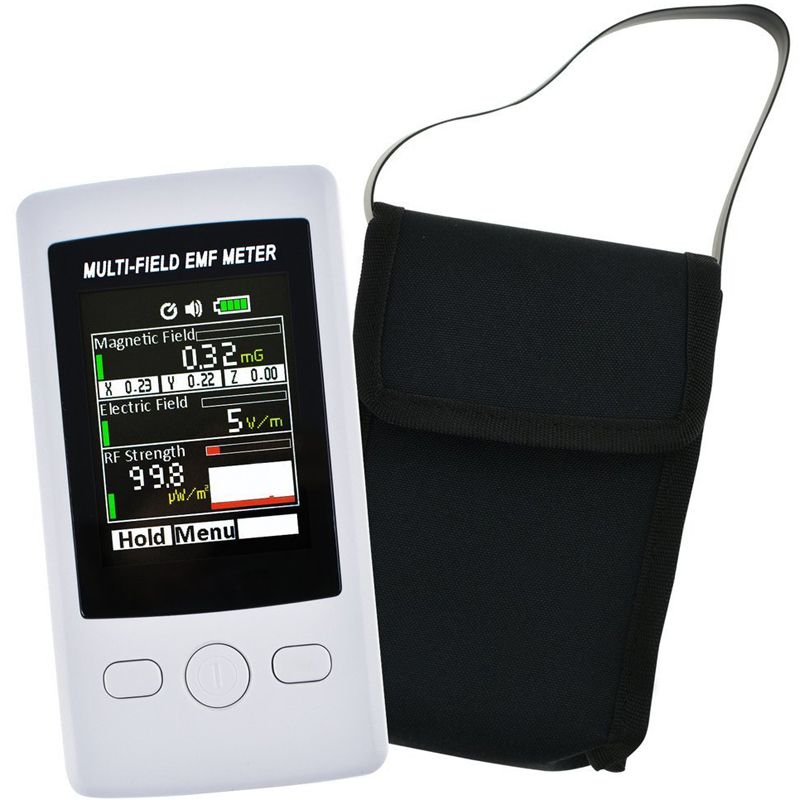

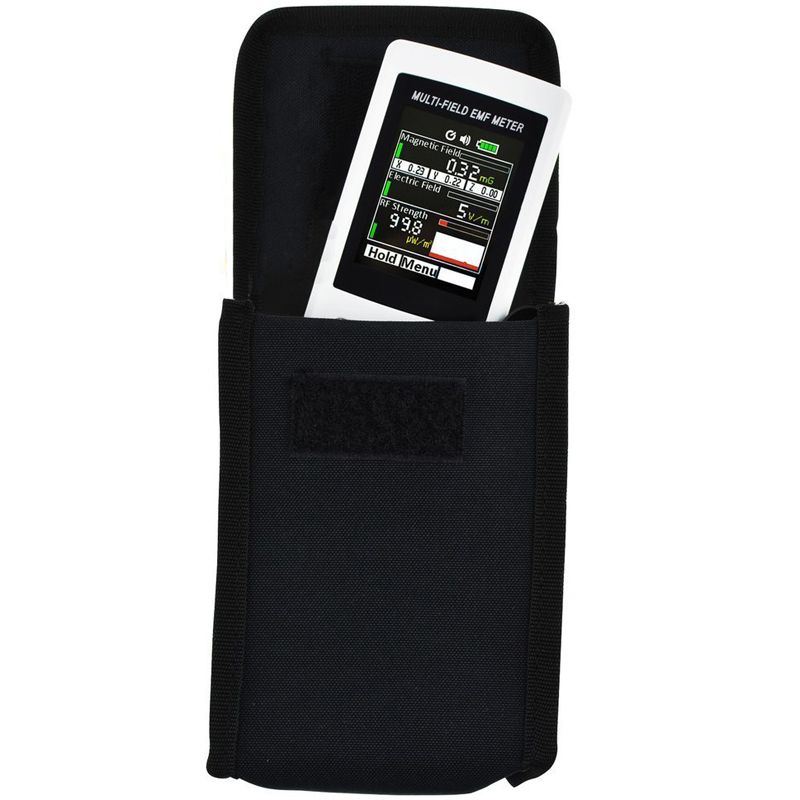

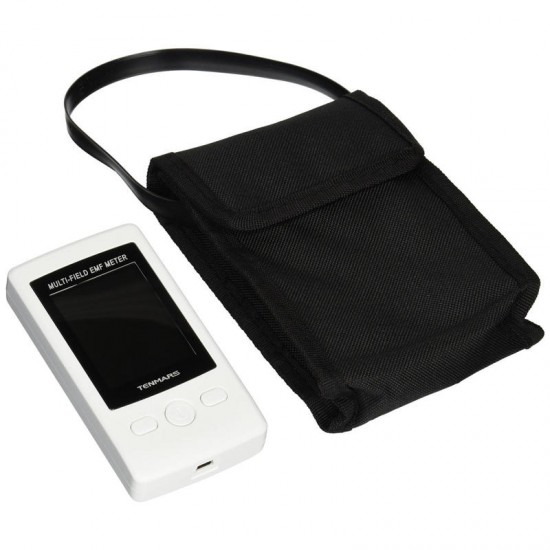

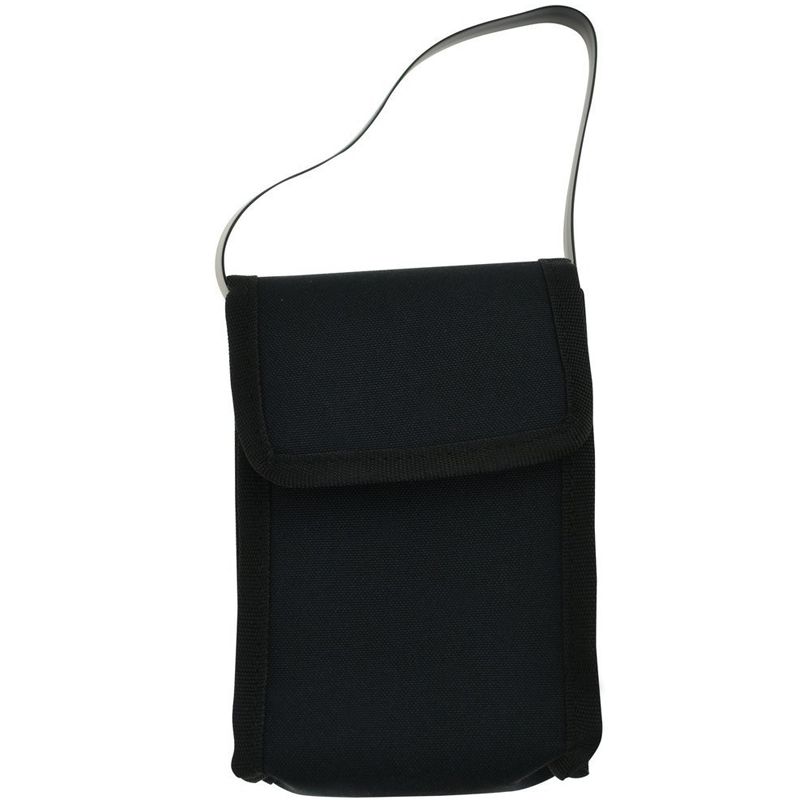

1 x Portable Bag
1 x Gift Box

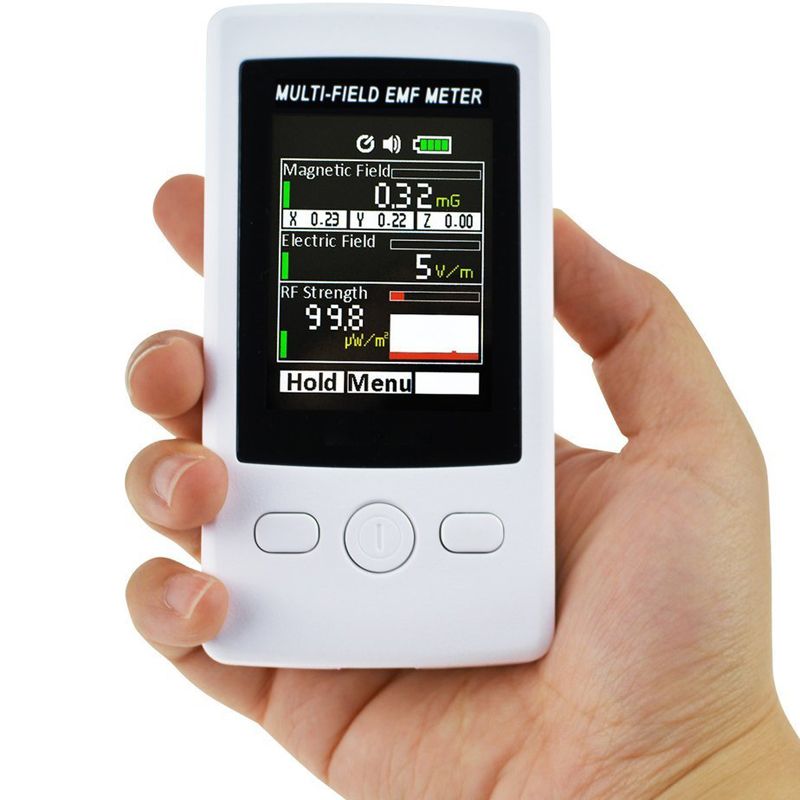

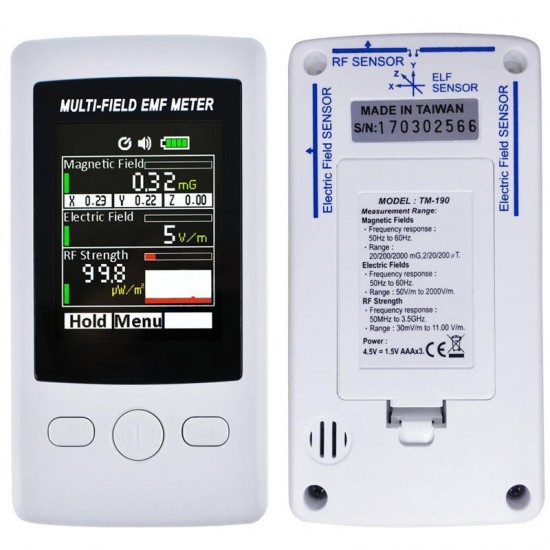

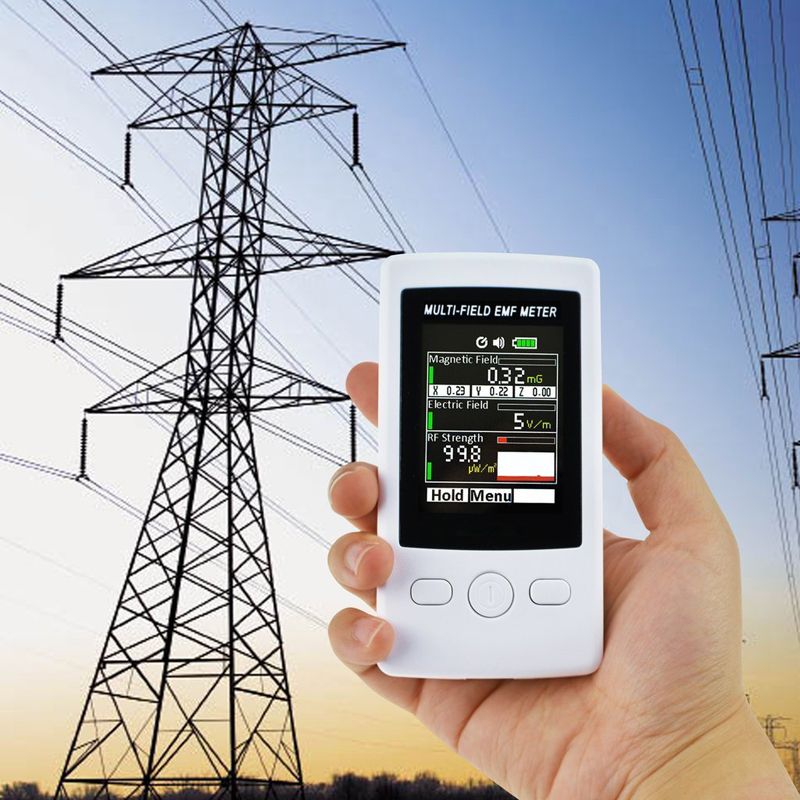

Detail Pictures:

TM190-Multi-Field-EMF-Meter-Gauss-3-axis-Magnetic-Electric-RF-Field-Strenght-Digital-Electromagnetic-1259358
