UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool

UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
UT661B 30M Wall Pipe Blockage Detector Wall Scanner Pipeline Blocking Clogging Scanner Plumbers Diagnostic-tool
$96.99
Ex Tax: $96.99
  • Stock: In Stock
  • Model: EB006130
  • SKU: EB006130
Specification:

Model UT661A UT661B
Transmitter
Signal line length 20m 30m
Receiver
Measuring distance (depth) >50cm >50cm
Transmitter current Shutdown current<2uA, Working current 230~310mA
Receiver current Shutdown current <2uA, Standby current <40mA
Maximum operating current 150~450mA (distance 1cm)
Chargeable
Recharging current 450~550mA

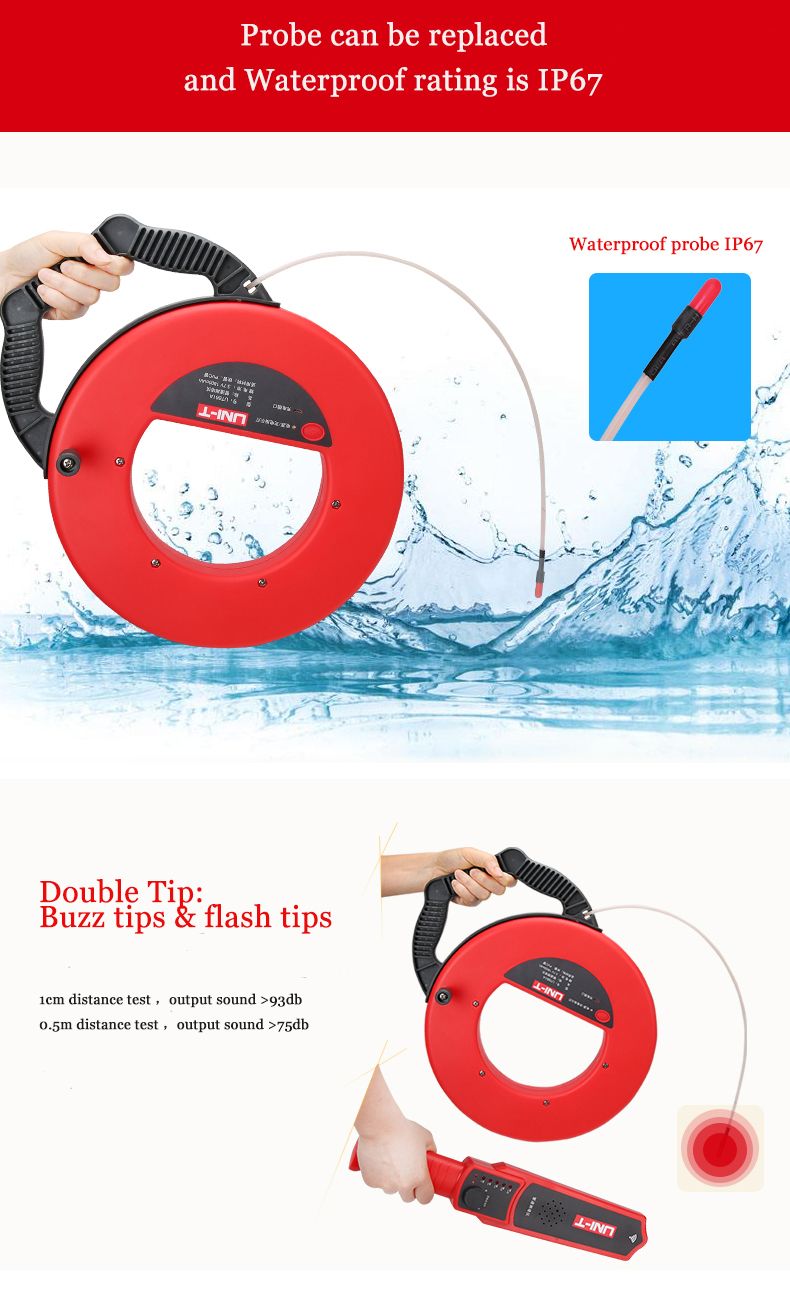

1cm distance test output sound >93dB
0.5m distance test output sound >75dB
General Information

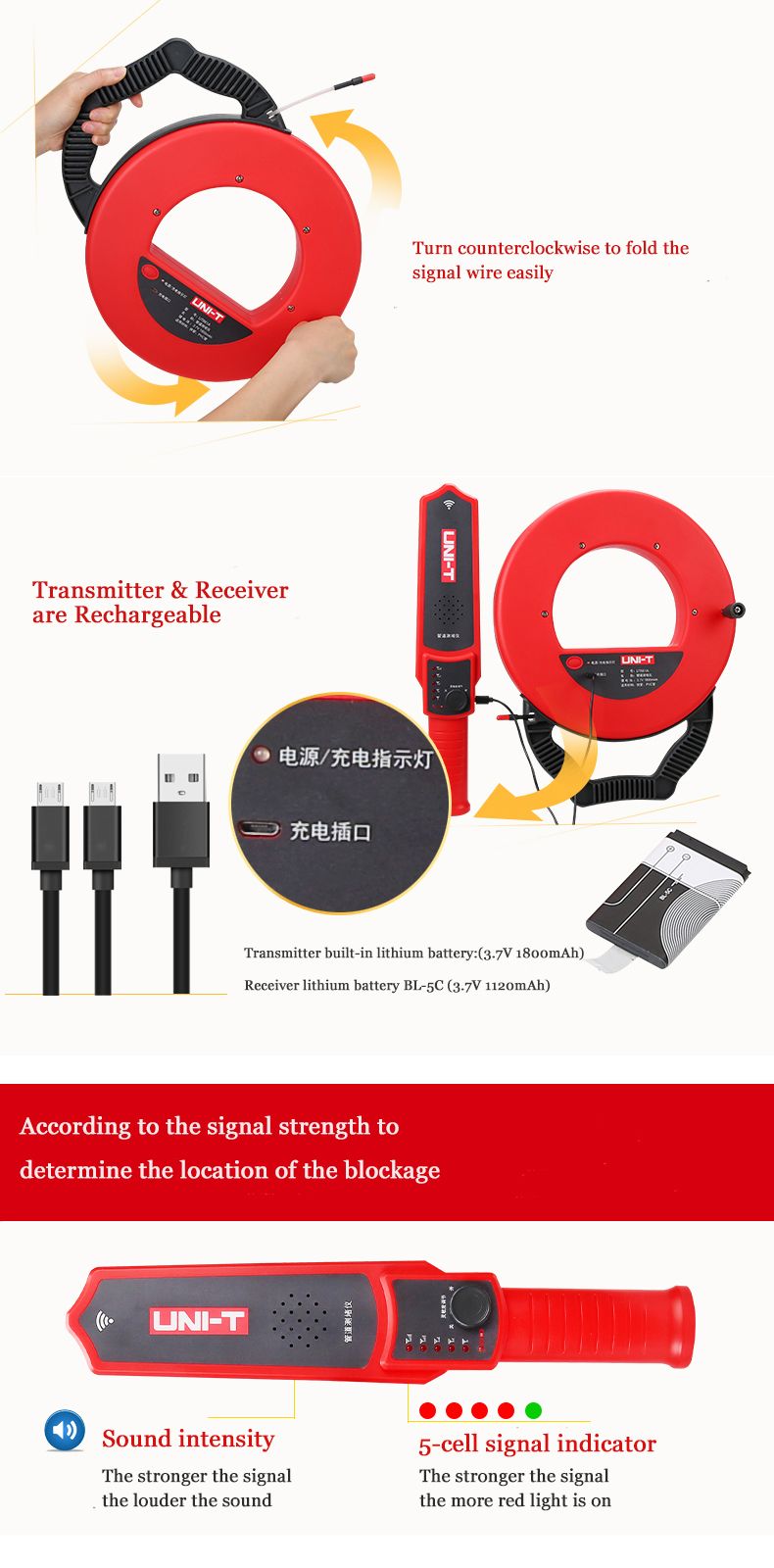

Transmitter battery Built-in lithium battery(3.7V1800mAh)
Receiver battery lithium battery BL-5C(3.7V 1120mAh)
Usage time About 10 hours
Operating temperature -10°C~50°C10~80%RH
Storage temperature -20°C~50°C10~70%RH
Measurable pipe material Plastic, Metal

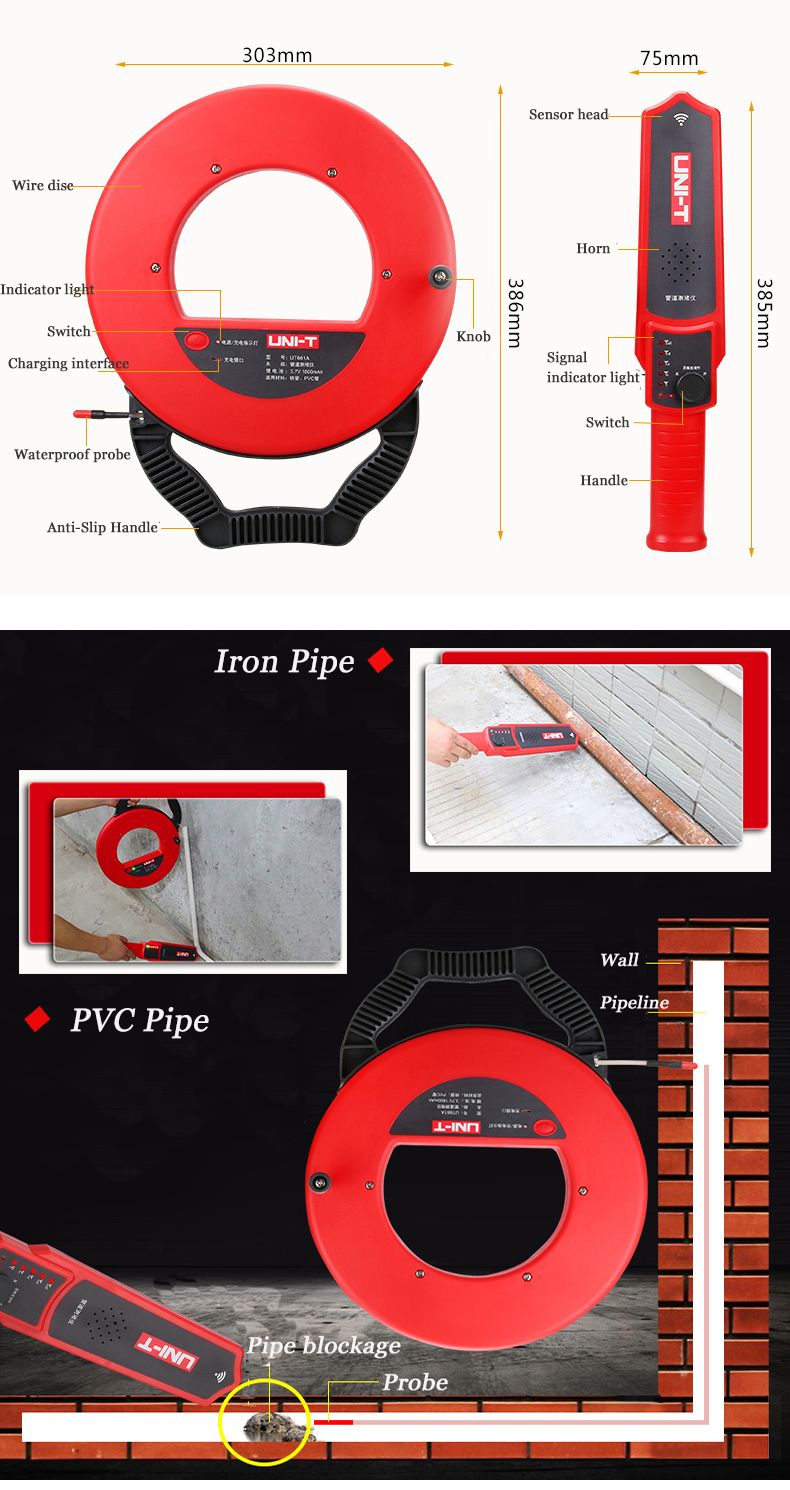

Dimensions Transmitter Dimensions 386 x 303 x 42mm
Receiver Dimensions 385 x 75 x 44mm
Weight Transmitter 1.10KG Transmitter 1.28KG
Receiver 0.23KG Receiver 0.23KG

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

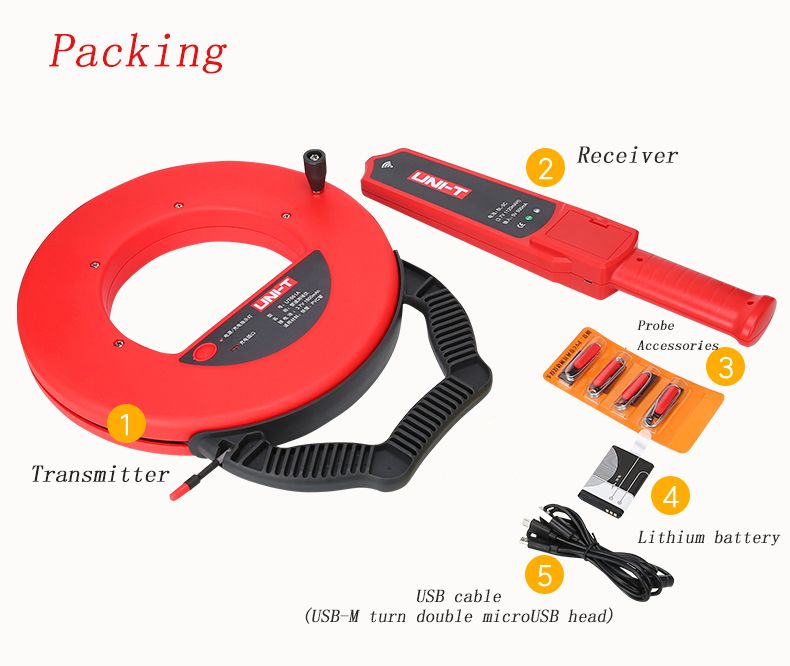

Package Included:

1 x UNI-T UT661B Transmitter
1 x UNI-T UT661B  Receiver
1 x User Manual
1 x USB Cable
1 x Probe Set

Detail Pictures:


UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310

UNI-T-UT661B-30M-Wall-Pipe-Blockage-Detector-Wall-Scanner-Pipeline-Blocking-Clogging-Scanner-Plumber-1263310
