2MP Industrial Camera Microscope 1080P VGA Output Industrial Camera PCB Inspection Repairing Electronic Camera Magnifier

Based on 0 reviews. - Write a review

$42.72

Ex Tax: $42.72

Stock: In Stock
Model: EB005064
SKU: EB005064

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Descriptions:

VGA output mode: 1024X768 60Hz, 1280X1024 60Hz, 1600X1200 60Hz, 1920X1080 60Hz

With CS lens mount, you can choose any CS interface shots.

Power input: +5V DC permissible deviations 10%, the maximum operating current of 900mA, standby current of 100mA.

4 Cross, optional cross number, color, line width, full screen display, you can move to any location, you can hide all cross.

Menu in English, concise, and easy to operate.

Directly connected to the computer monitor, watch real-time video images, image clarity, stability, no Flash, close eye fatigue in watching for a long time.

Image Adjusting

More bright brightness of the light source, press the POWER key, on the upper left corner of the screen will display "manual exposure", "manual exposure" disappears on the screen, and then to adjust the brightness of the light, until you think is good.

Application:

Wide range of applications in the field of electronics and precision machinery to enlarge image; Micro IC electronic components and Assembly quality testing; PCB and SMT plants production testing;

Hospitals, schools, and scientific research departments for research, experiments, tests and analyses; production, jewelry identification, and other fields

Camera parameters:

Product number: 200VGA

Sensor type: 1/3-inch 2 million pixel CMOS color

Effective pixels: 1600H*1200V

Number of data bits: 8bit

Pixel dimensions: 2.8 μ m*2.8 μ m

Frame rate: 15 fps @1600X1200, 30 frames per second @1024X768

Definition: 1024X768 60Hz resolution 600TV lines above; in 1600X1200 60Hz resolution 800TV lines

Scanning mode: line-by-line

Type of shutter: electronic shutter

Dynamic range: 71dB

Signal to noise ratio: 44dB

Sensitivity: 1.0 V/lux-sec (550nm)

Exposure time: 10 μ s-60ms, automatic exposure

White balance: automatic

Lens mount: C/CS

Video interface: standard VGA interface

VGA output resolution: 1024X768 60Hz (the default), 1280X1024 60Hz,1366X768 60Hz;1440X900 60Hz,1600X1200 60Hz,1680X1050 60Hz,1920X1080 60Hz

Menu functions: brightness, contrast, color saturation, brightness exposure, in English, automatic exposure, manual exposure, vertical, horizontal mirror, negative, cross number, cross colors, cross the line width

Operating temperature: 0-60 c

Power supply: external 5V DC allows 10% deviation

Working current: 600mA

Power: 3W

Size: 50*50*60 (mm)

Packing list:

1 x Camera
1 x 5V power supply
1 x Manual

Details Pictures:

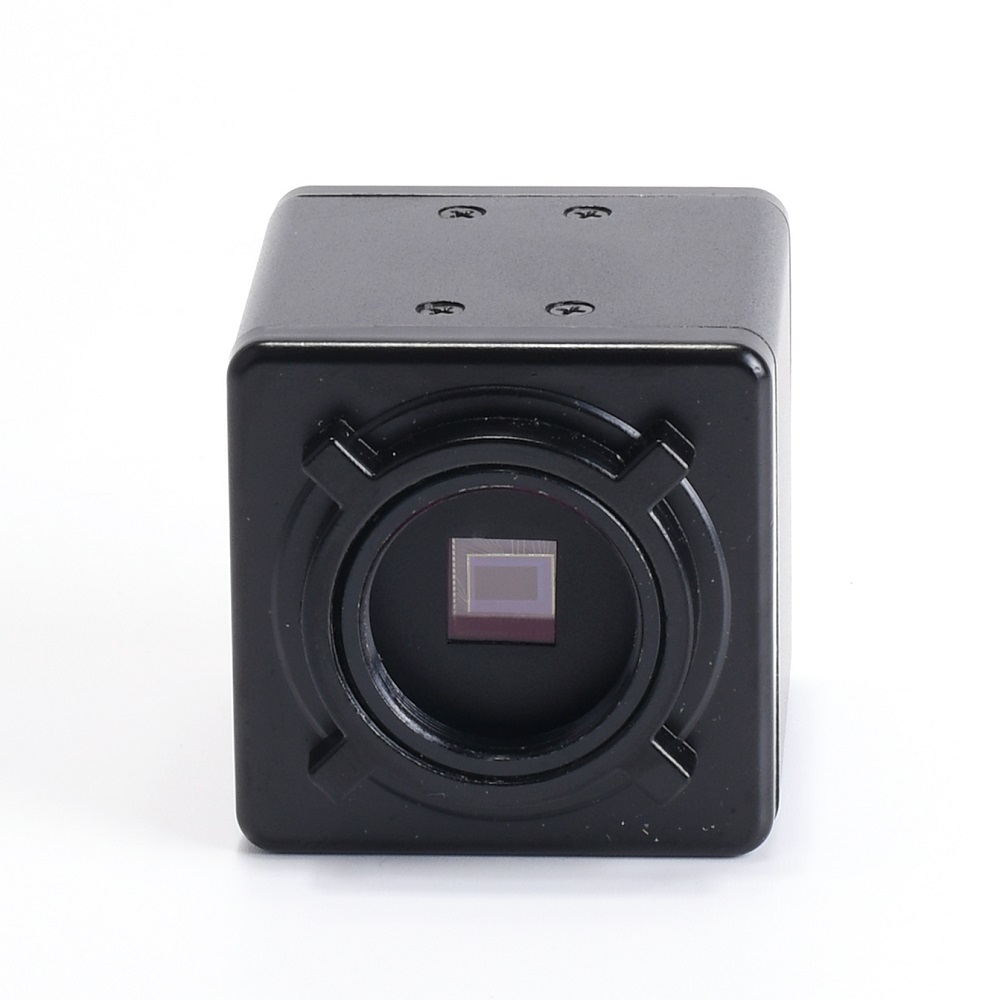

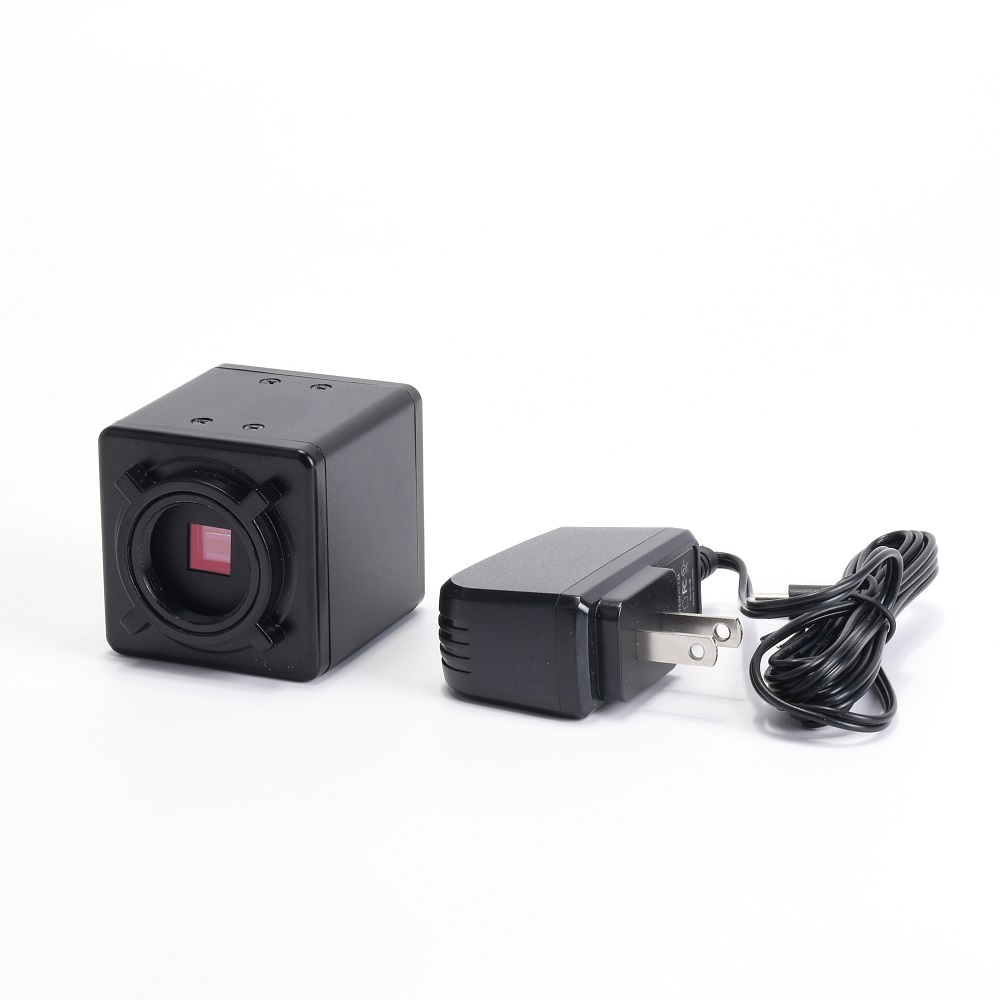

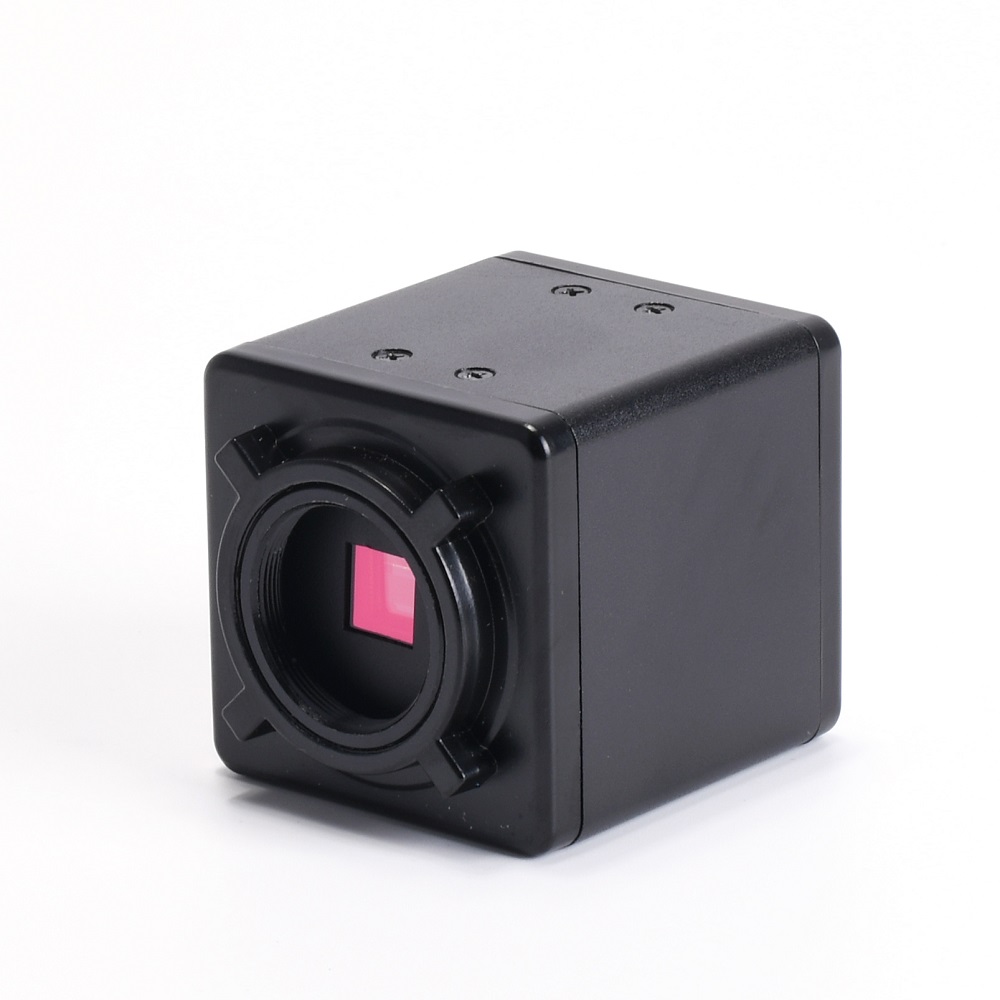

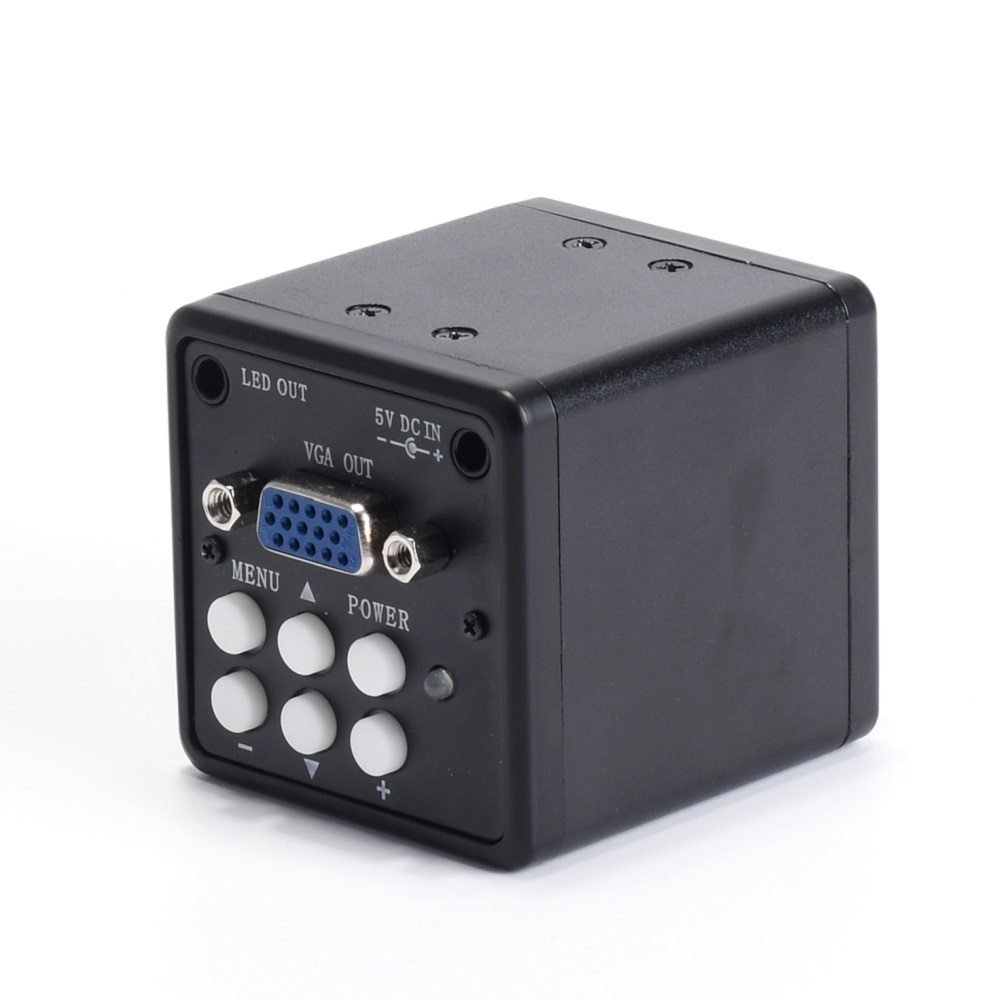

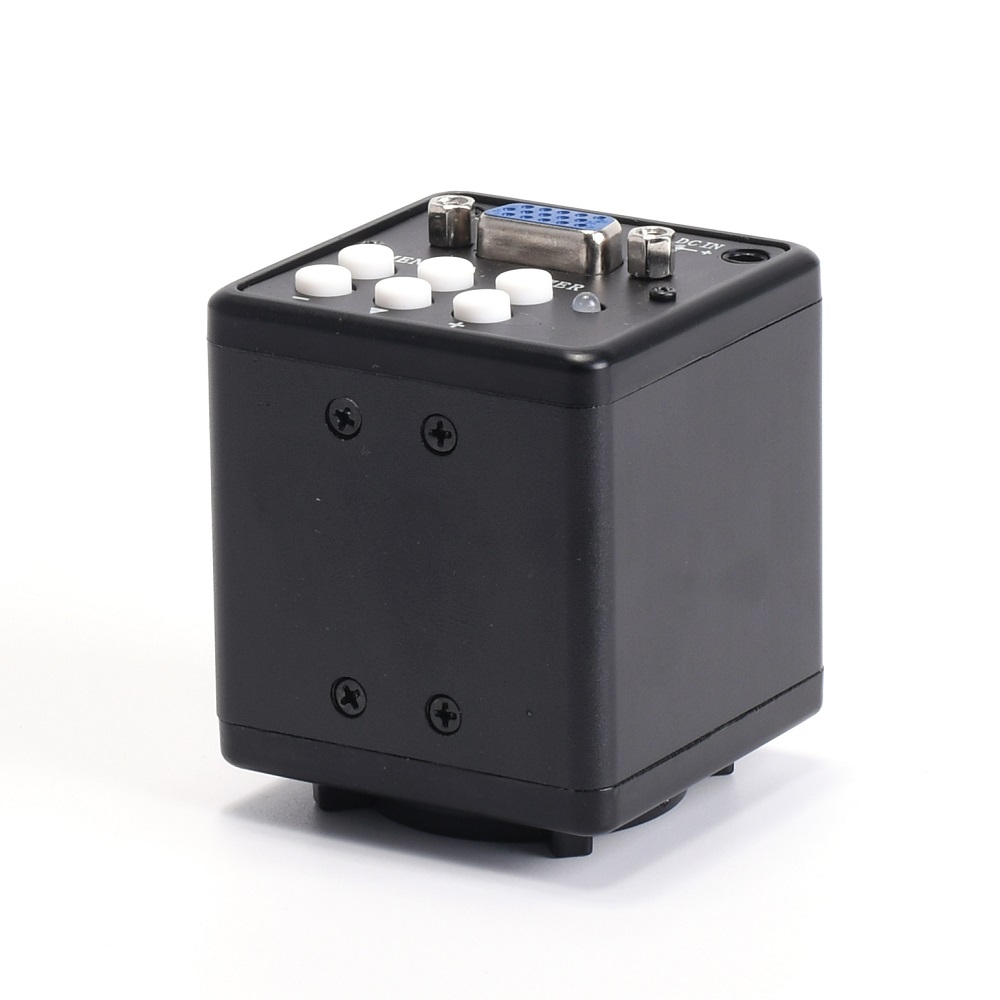

2MP-Industrial-Camera-Microscope-1080P-VGA-Output-Industrial-Camera-PCB-Inspection-Repairing-Electro-1640232
