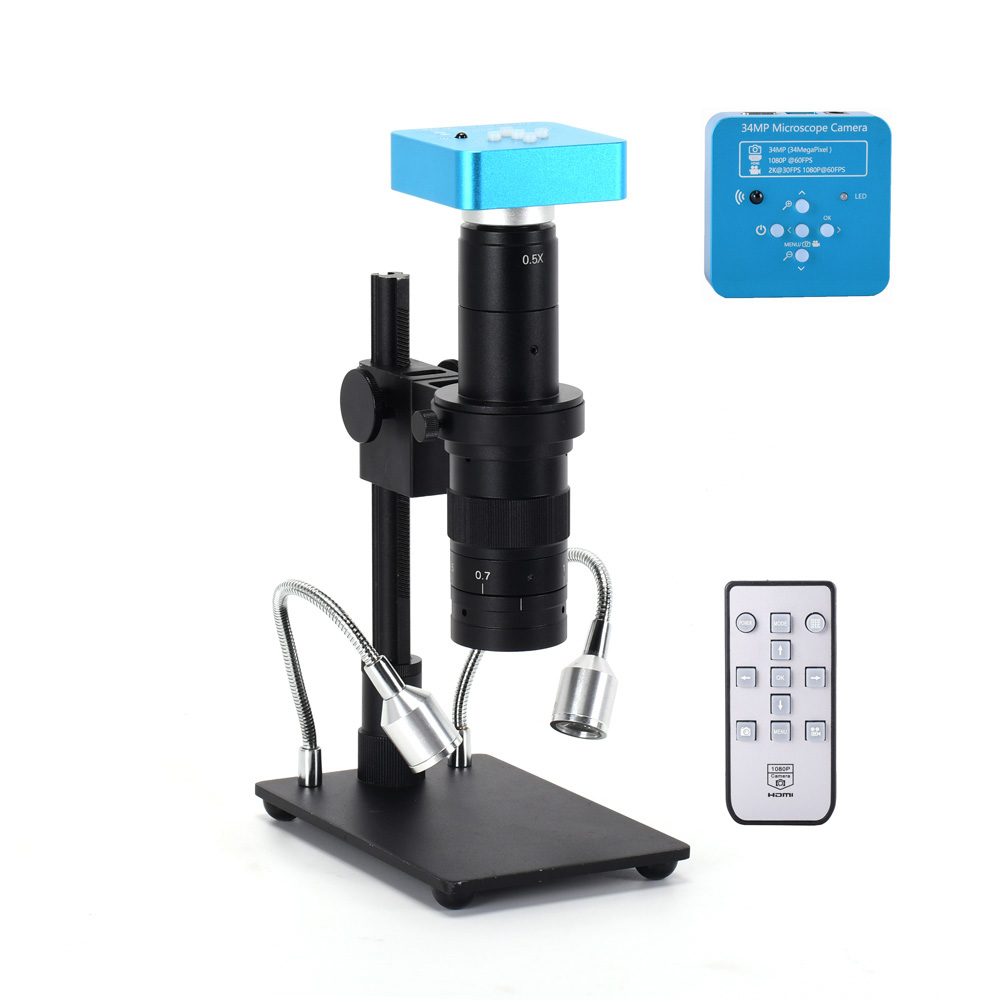

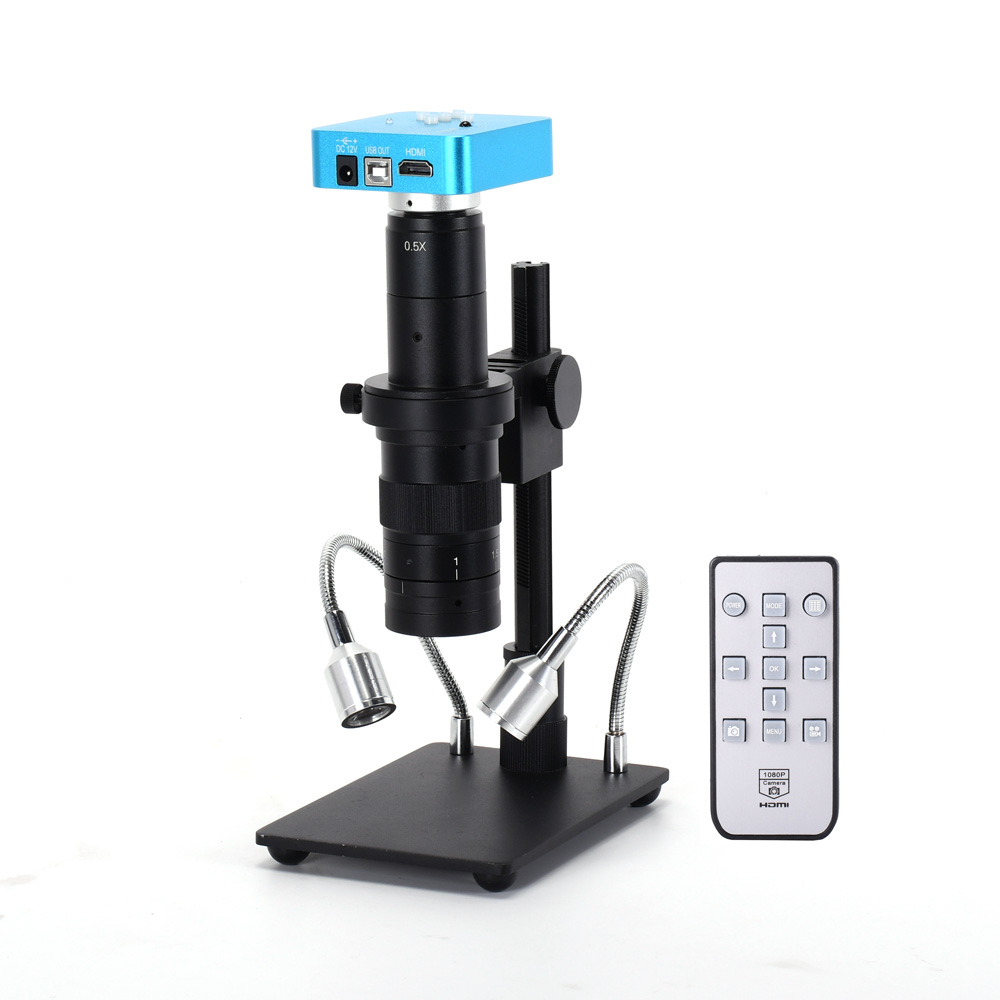

34MP 2K Industrial Microscope Camera HDMI USB Outputs 180X C-mount Lens LED Light Small Boom for PCB Repair Soldering
- Stock: In Stock
- Model: EB004978
- SKU: EB004978
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34 MegaPixel
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Morror: Left/right,Up/Down
Freeze: Renhotec
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor: 34 megapixel CMOS sensor 1/2.33 inch
Effective pixel: 34 megapixel
Pixel size: 1.335μm × 1.335μm
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital Zoom: Renhotec
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Renhotec
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

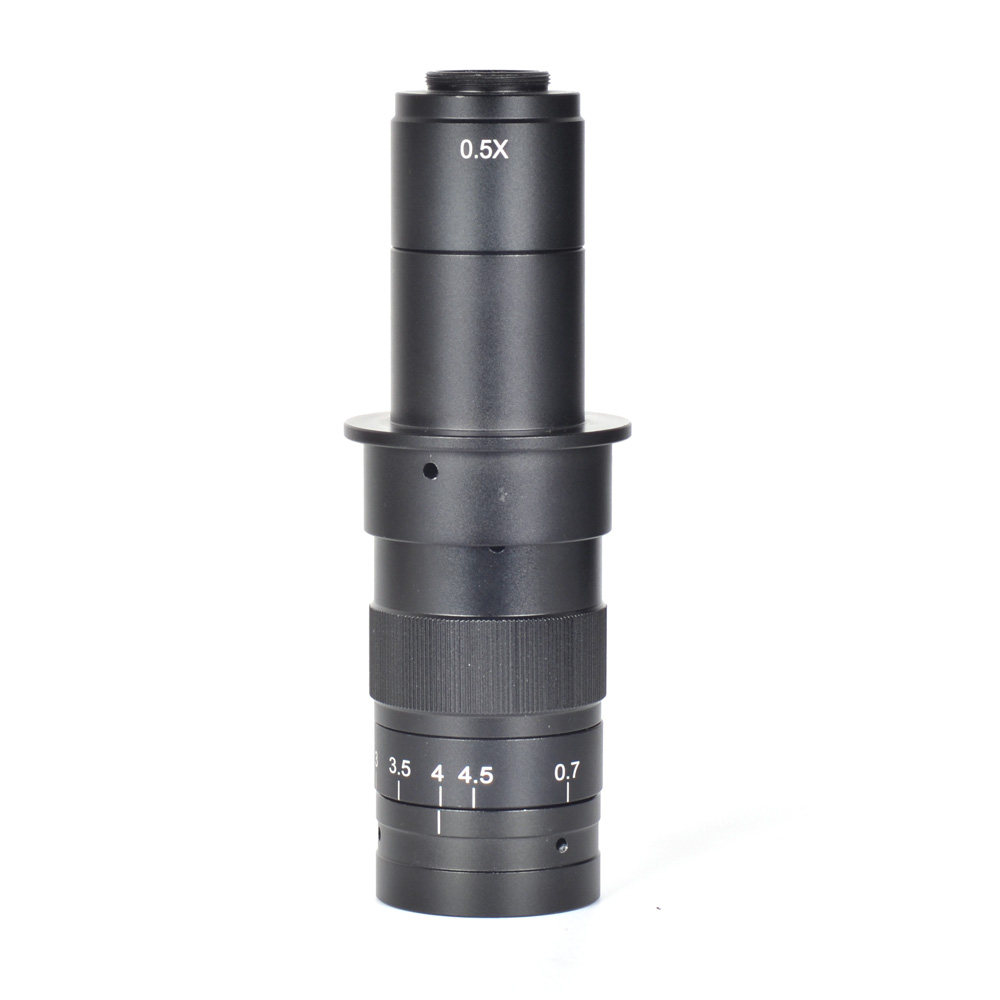

180X C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)

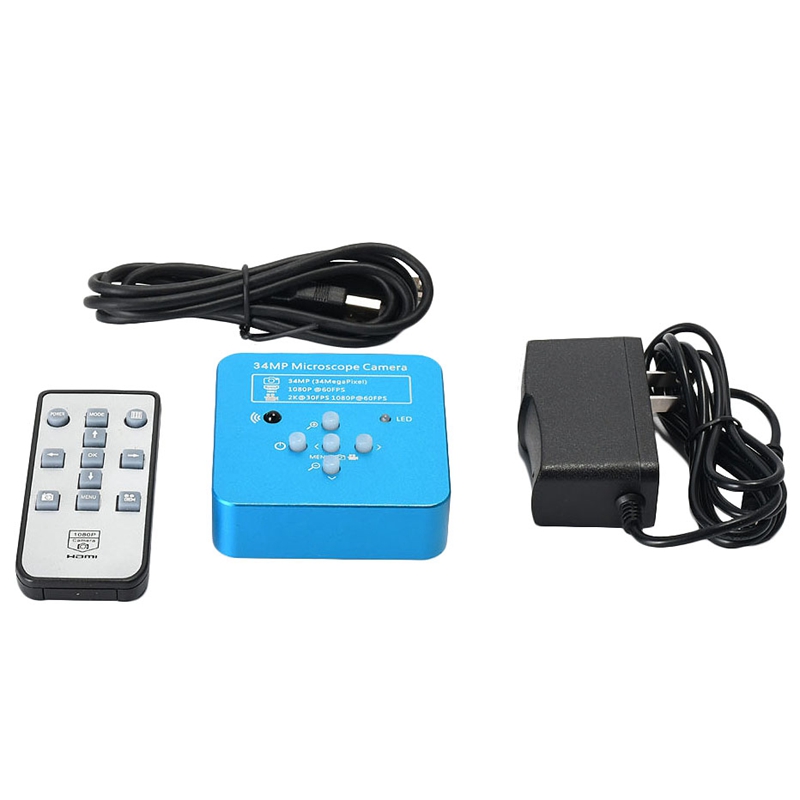

Package included:
1 x 34MP Microscope Camera
1 x 180X C-mount lens
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control

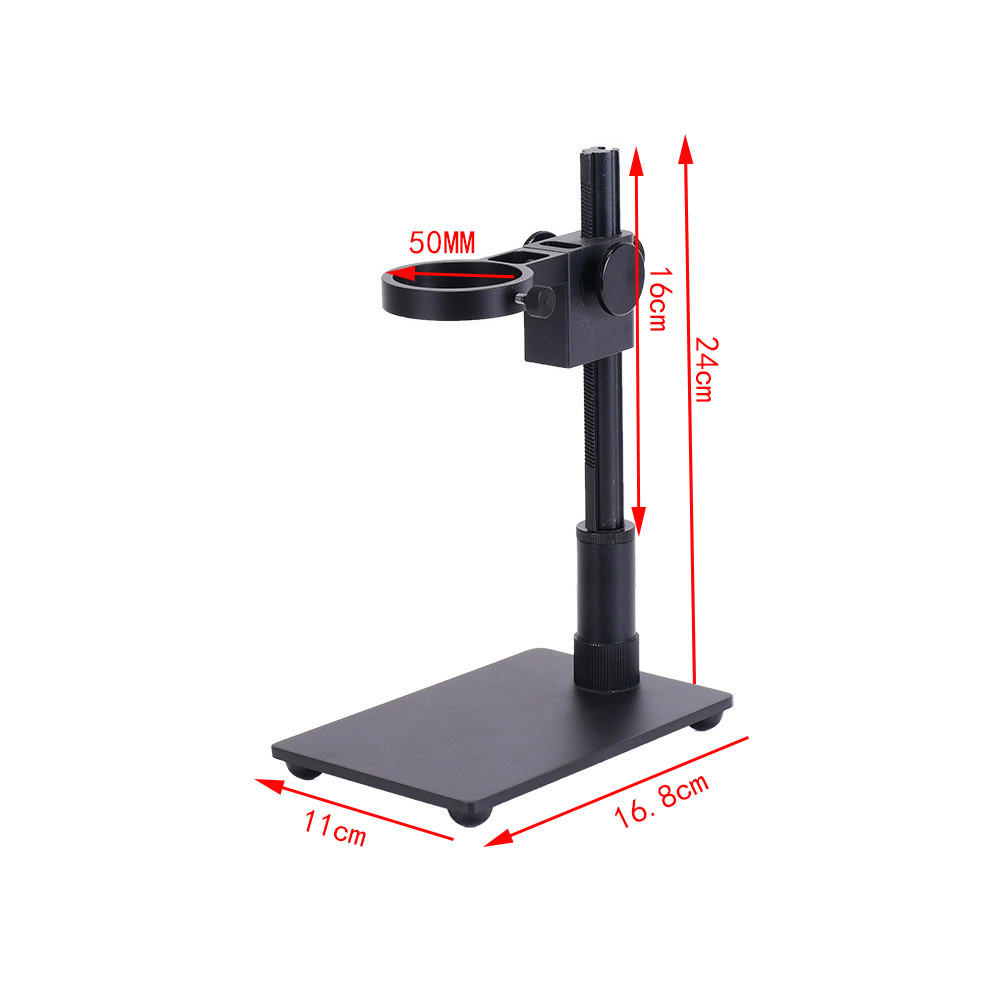

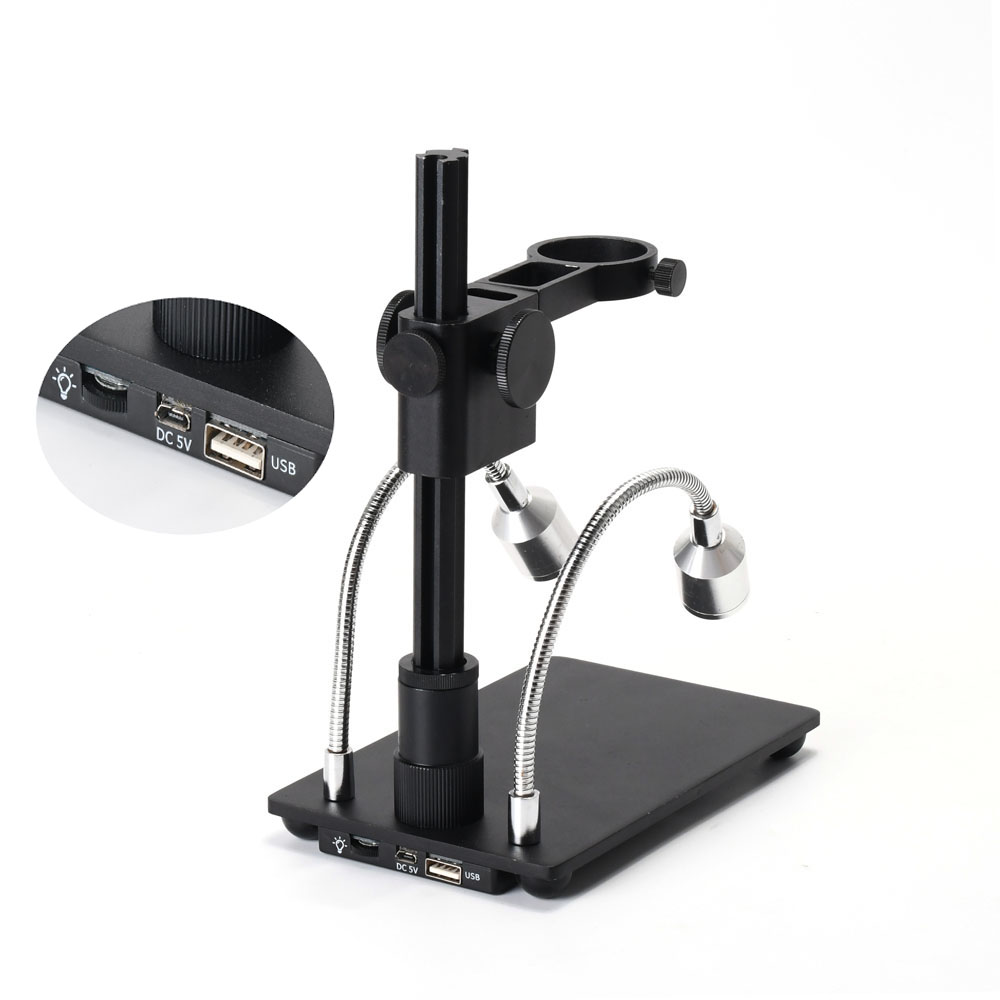

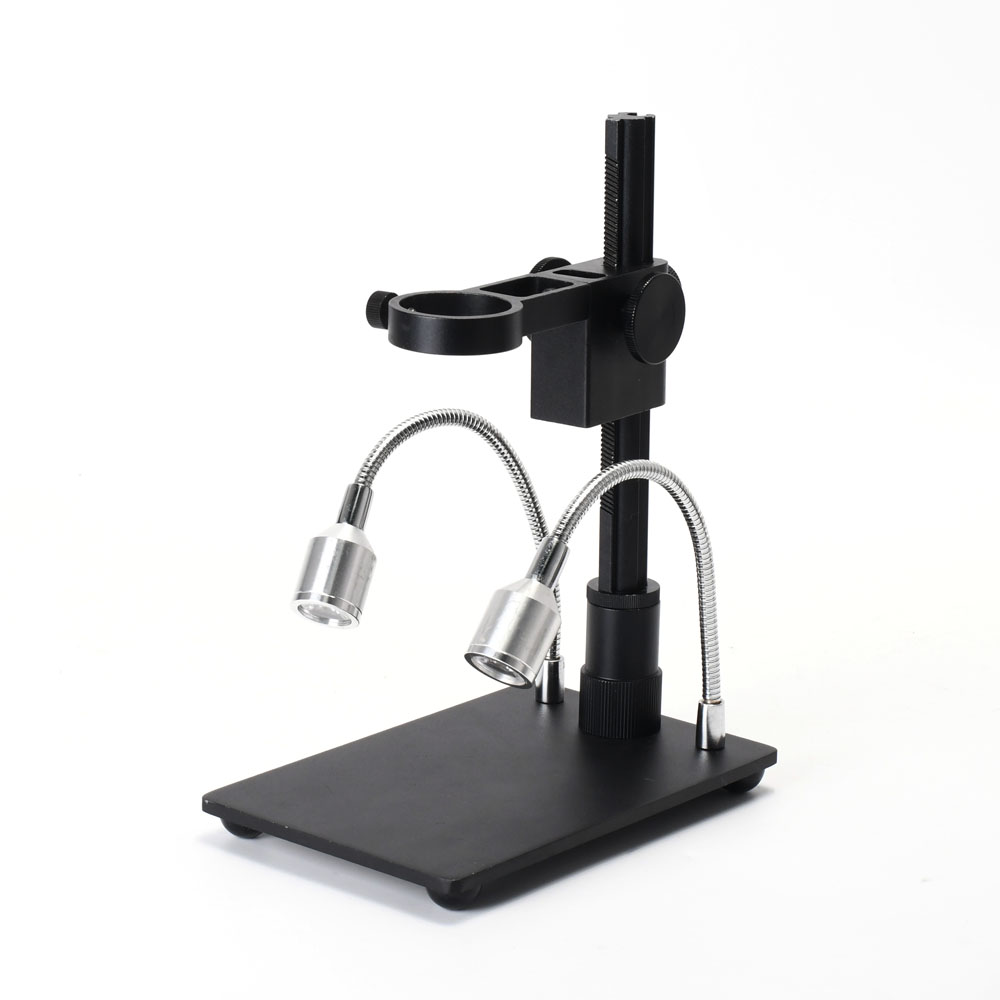

1 x Stand
1 x HDMI line
Details Pictures:
