38MP Industrial Microscope Camera with 0.5X Eyepiece 23.2mm to 30mm 30.5mm Adapter for Phone CPU PCB Repair

Based on 0 reviews. - Write a review

$106.99

Ex Tax: $106.99

Stock: In Stock
Model: EB005006
SKU: EB005006

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

1. 38MP industrial microscope camera with 0.5X electronic eyepiece is easy to use.

2. Enlarge the field of view for photography, suitable for biological microscope.

3. It supports for manual adjustment of horizontal mirror and vertical mirror.

4. Support 7X digital zoom, set automatic / manual exposure to set exposure value.

5. Made of high quality material, which is sturdy and durable for long time use.

Specification:

Condition: 100% Brand New

Item Type: Industrial Microscope Camera

Material: Aluminum + Iron + ABS

Feature: Enlarge the field of view for photography

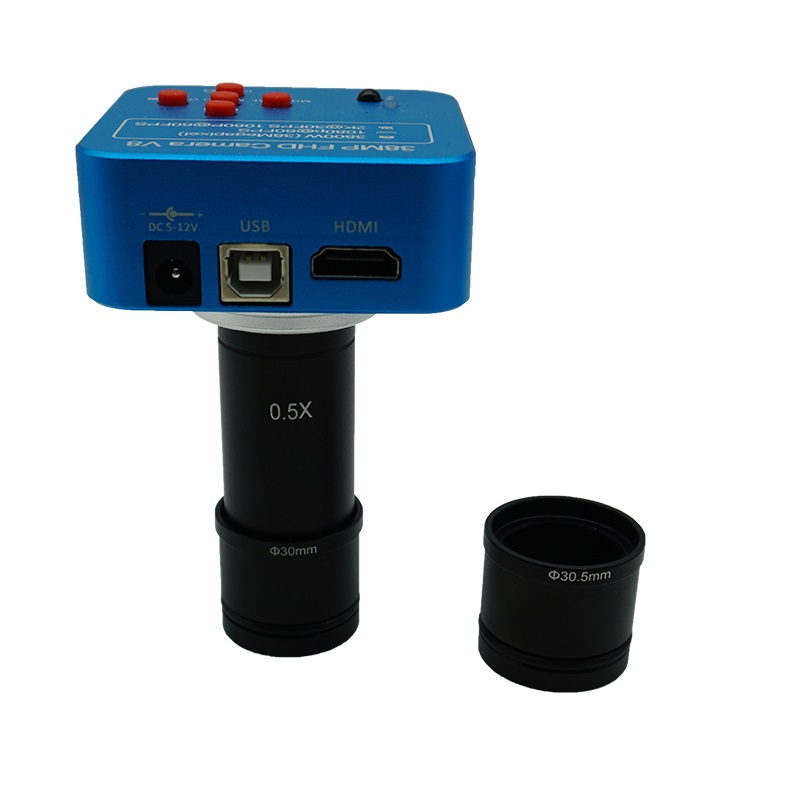

Two Ring Adapters: Including 23.2mm to 30mm and 30.5mm

Project: 0.5X C-Mount Lens Adapter

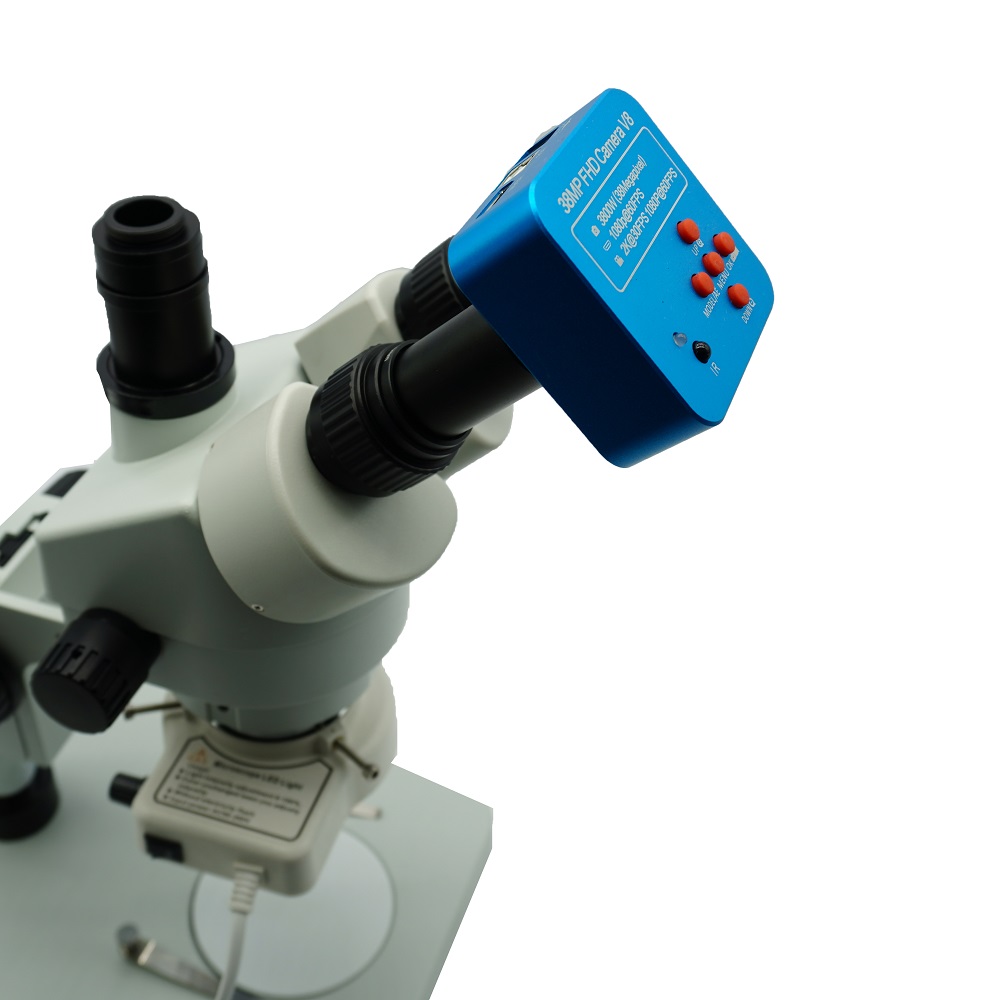

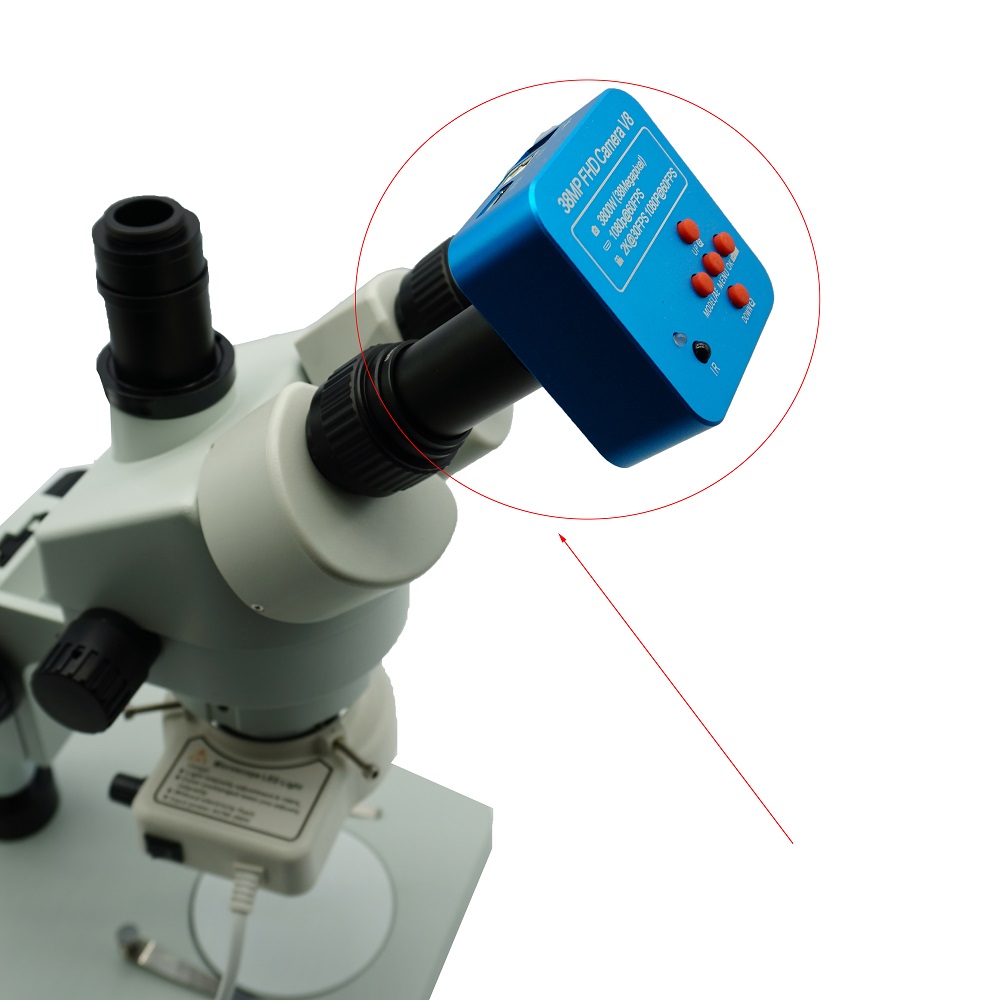

Application: Suitable for stereo microscope and biological microscope

Suitable for: 23.2mm to 30mm and 30.5mm

Output Interface: High Definition Multimedia Interface, USB

Sensor: 38MP CMOS Sensor

Optical Format: 1/2.3 Inches

Pixels Size: 1.335μm x 1.335μm

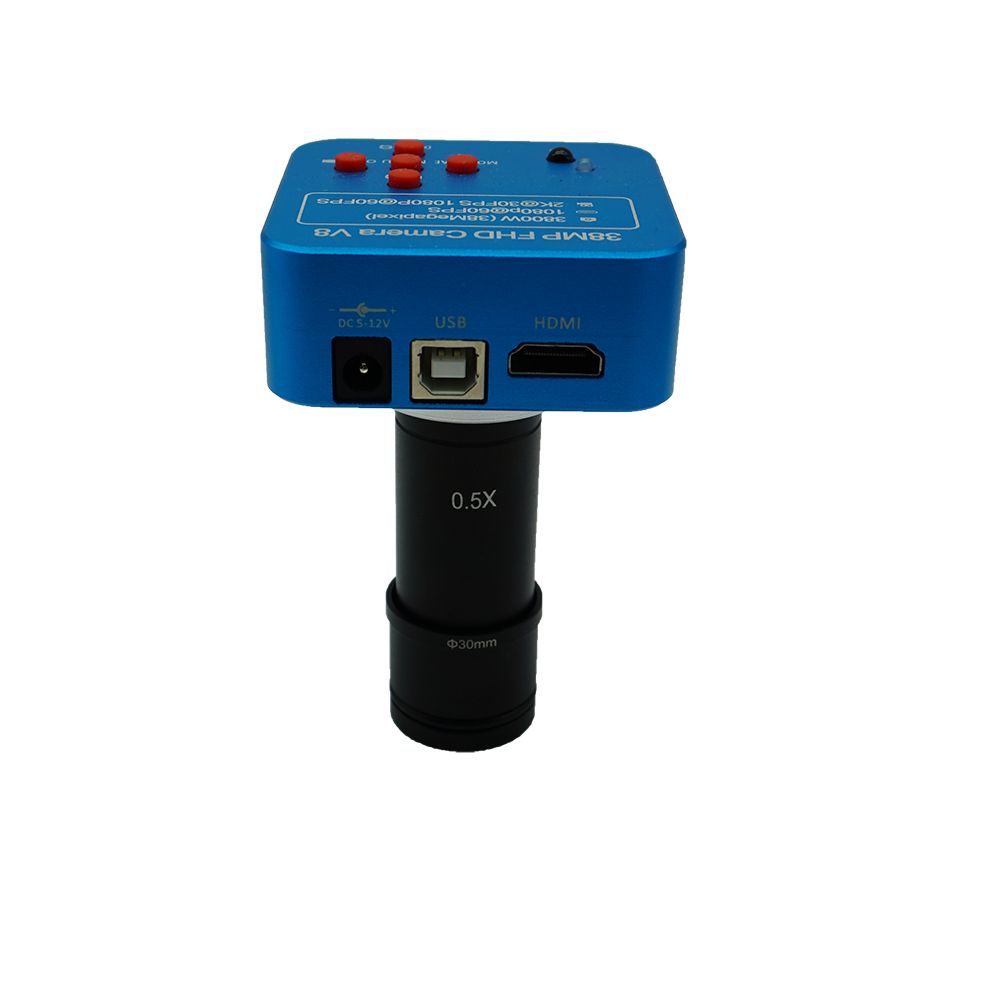

Interface: High Definition Multimedia Interface (Type A), USB (Type B), Memory Card

Image Resolution: 38MegaPixel (For Memory Card)

Video Resolution: 2K at 30FPS, 1080p at 60FPS

High Definition Multimedia Interface Resolution: 1920 x 1080p 60FPS

High Definition Multimedia Interface Ratio Support: 4:3, 16:9, 16:10 Screen

USB2.0 (Free Driver): 1920x1080 at 30 1280x720 at 30 640x480 at 30

Memory Card: Maximum 64GB (Not Included)

Exposure Can Be Set: Automatic / Manual Exposure to Set the Exposure Value

Sharpness: Manual Adjustment

Saturation: Manual Adjustment

Contrast: Manual Adjustment

Play: Support Picture Playback

8 Horizontal Lines, You Can Set the Color, Width and Position

Zoom the Marking Line 2 Lines

Dotted 2 Lines, You Can Set the Color, Width and Position

Black and White: Renhotec

Negative: Renhotec

Flashing: 50HZ, 60HZ

Horizontal Mirror: Manual Adjustment

Vertical Mirror: Manual Adjustment

Language: English / Simplified Chinese

Digital Zoom: Support 7X

Play: Pictures and Videos

Note:

1. PC Support: Support for Windows XP/7/8/10 system.

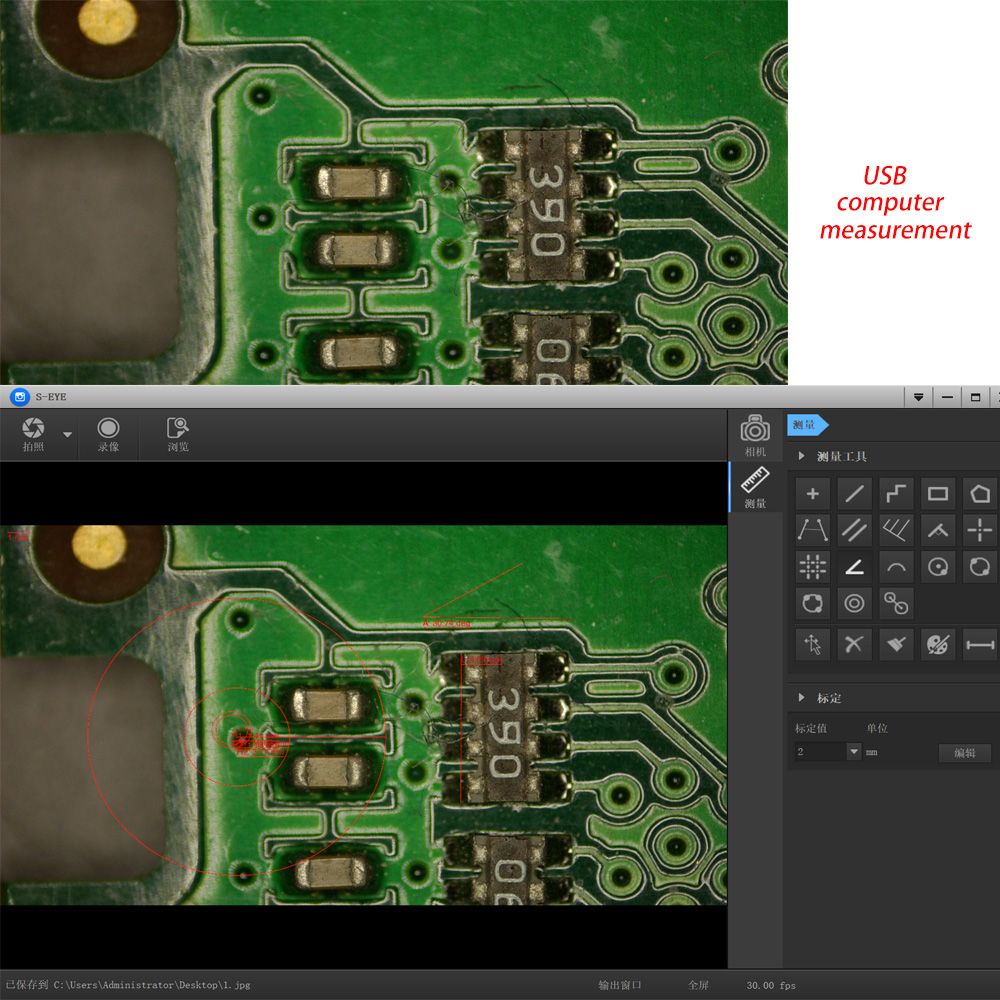

2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. （The camera keys are not available Remote control cannot operate ）

3. For high-definition multimedia interface output, the function can adjusted when connected to the monitor.（Camera keys available The remote control can be operated wirelessly）

4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.

5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).

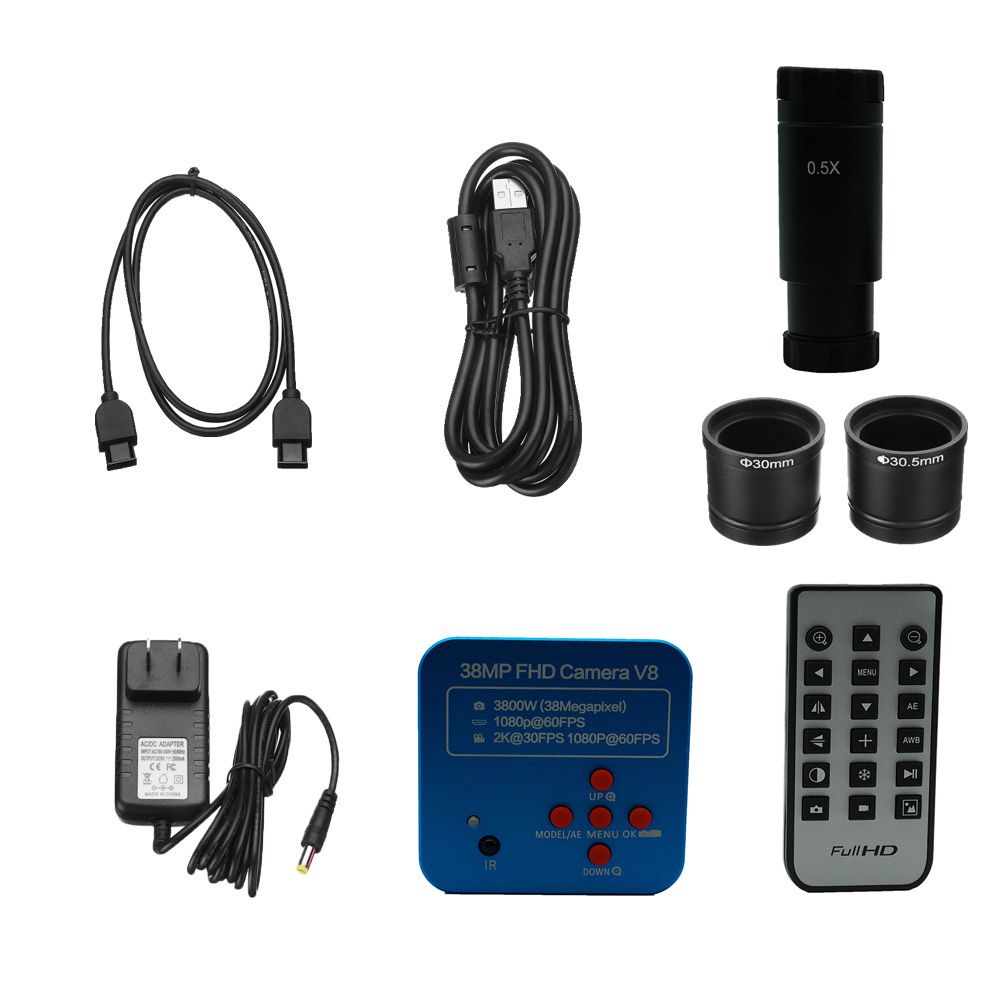

Package includes:

1 x 38MP Industrial Microscope Camera

1 x Adapter

1 x Remote Control (Battery Not Included)

1 x High Definition Multimedia Interface Cable

1 x USB Cable

1 x 30mm Ring Adapter

1 x 30.5mm Ring Adapter

1 x 0.5X C-Mount Lens Adapter

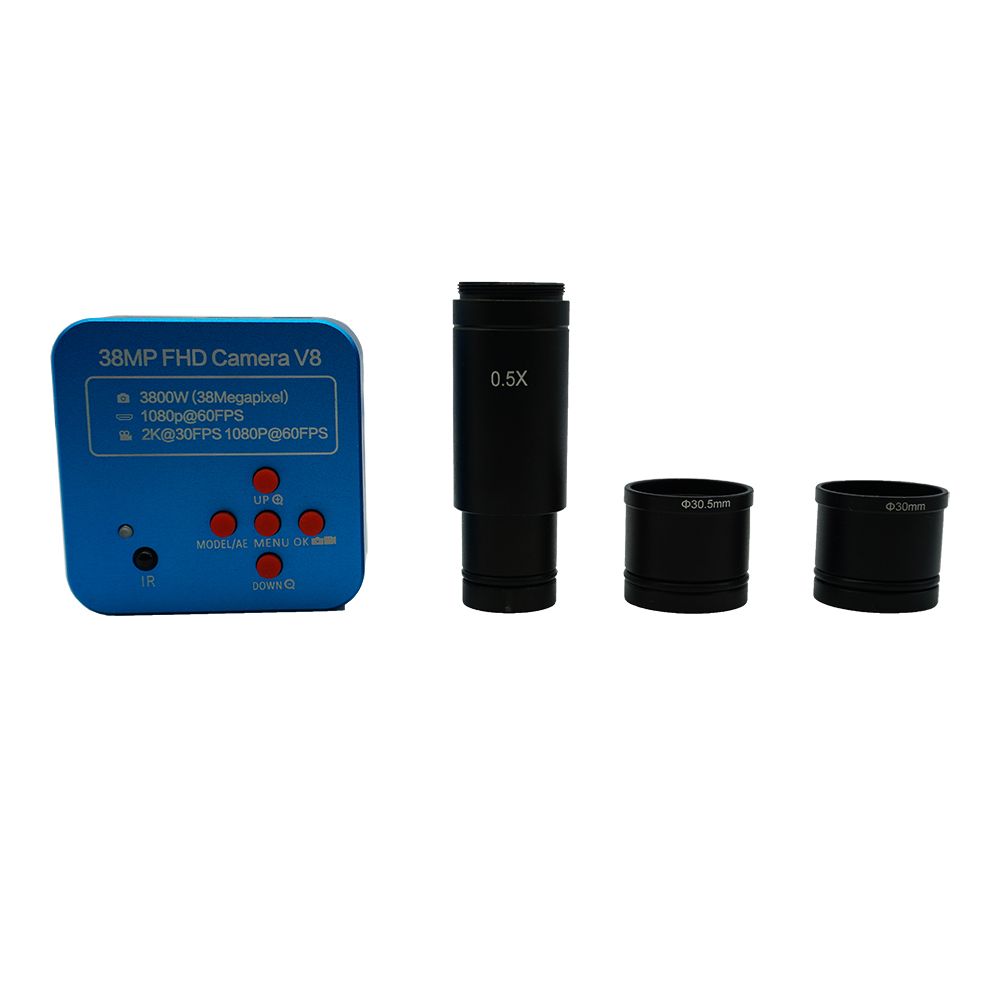

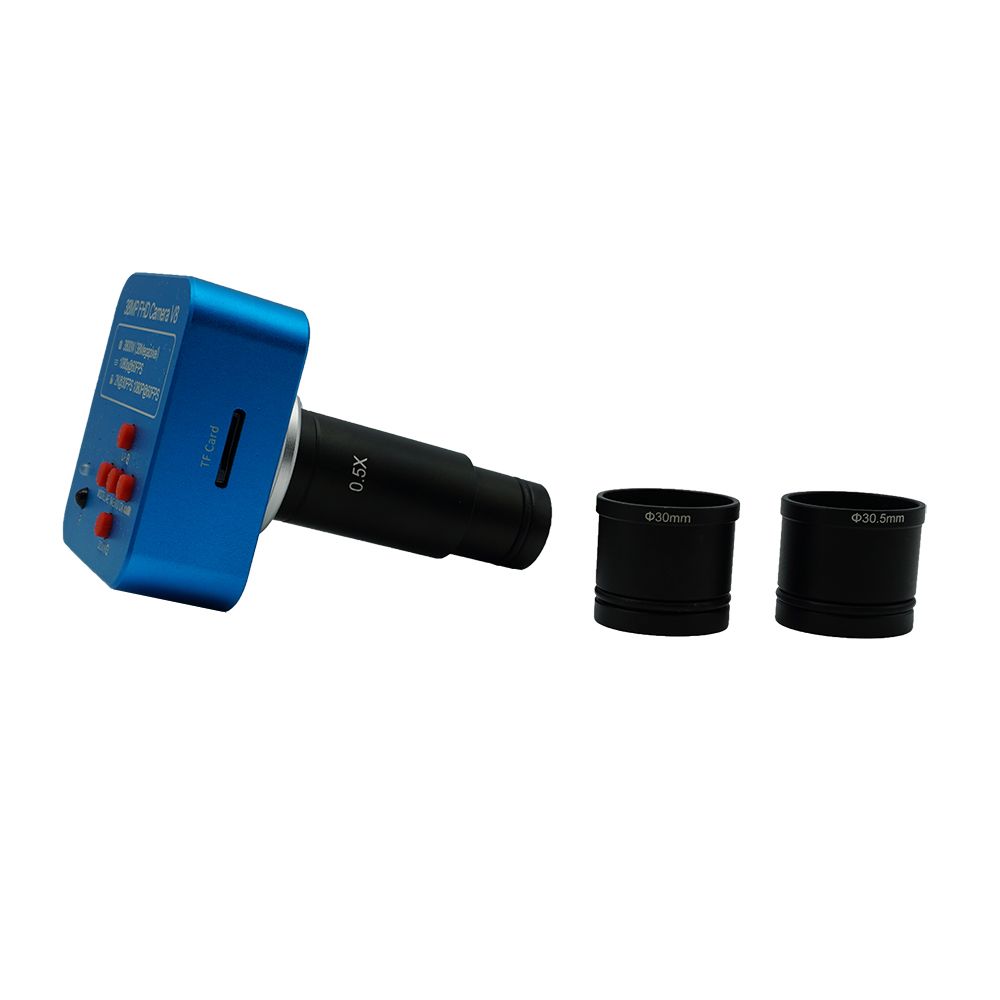

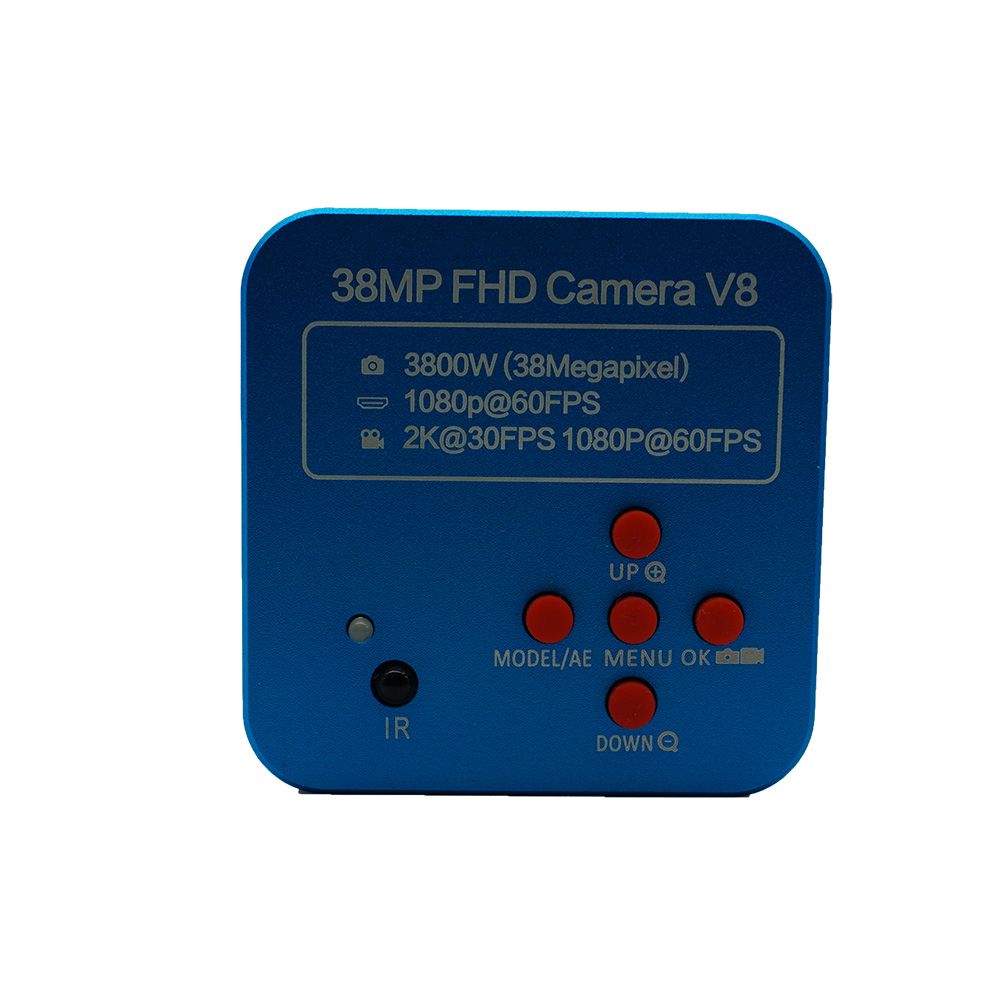

Details pictures:
