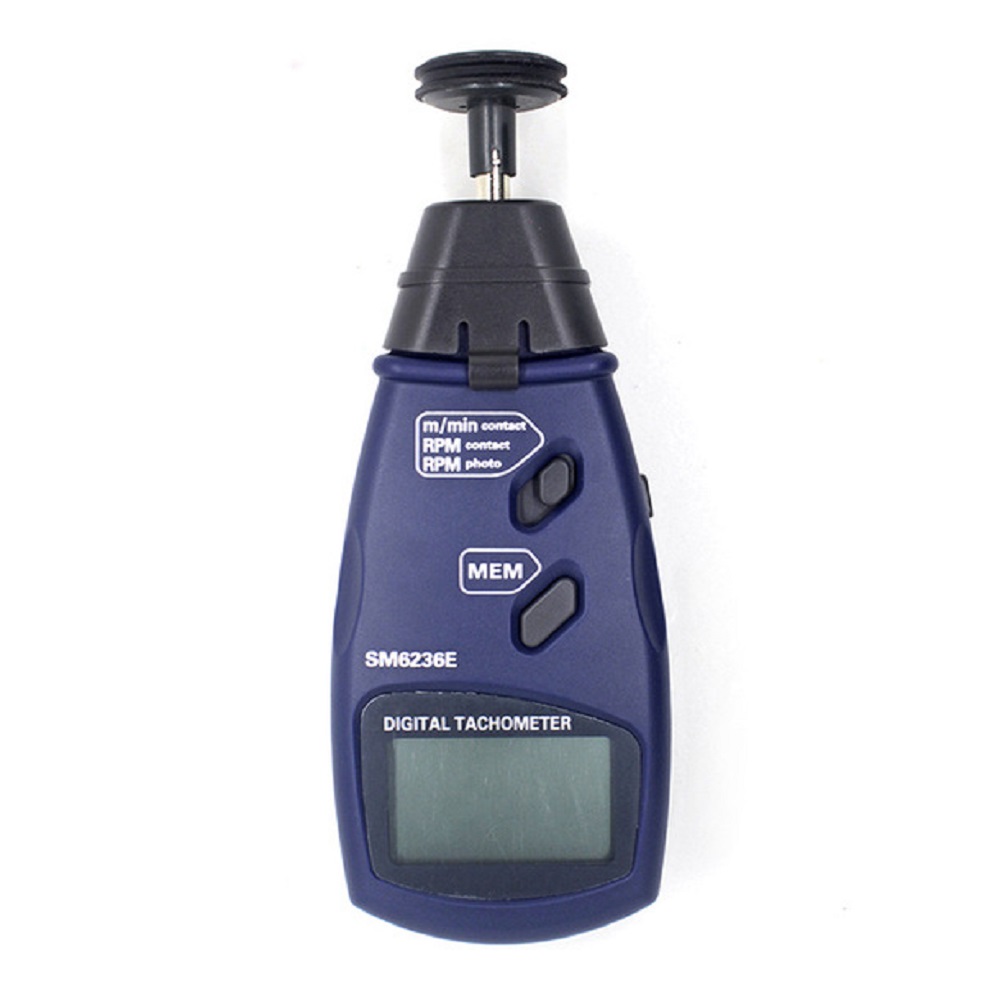

SM6236E Portable Photo Tachometer Non-contact Surface Speed Meter Digital Tachometer Data Hold
- Stock: In Stock
- Model: EB006125
- SKU: EB006125
This item is used the microcomputer (CPU) technique, photoelectric technology, anti-jamming technique and junction laser technique for non-contact measurement of Rotation speed (RPM), Frequency (Hz), and total cycle (Total).
Photo tachometer
Contact tachometer
Surface speed meter
Wide measuring range and high accuracy
Memory: Max value, Min value, Last value. Can store 96s data
LCD backlight
Low battery indication
Smooth housing design, comfortable to be held.
Auto range
Specification:
| Model | SM6236E |
| 5 digits 18mm(0.6")LCD | YES |
| white backlight LCD | YES |
| Accuracy | ±(0.05%+1 digit) |
| Sampling time | 0.5sec(over 120RPM) |
| Range Select | Auto-switch |
| Memory | max.value,min.value,last value can store 96s data |
| Measuring Range | photo tach:2.5~99,999RPM |
| contact tach:0.5~19,999RPM | |
| surface speed:0.05~1,999.9m/min | |
| Resolution | photo tach:0.1RPM(2.5~999.9RPM) 1RPM(Over 1,000RPM) |
| contact tach:0.1RPM(0.5~999.9RPM) 1RPM(Over 1,000RPM) | |
| surface speed:0.01m/min(0.05~99.99m/min) 0.1m/min(over 100m/min) | |
| Total test range | 1-99999 |
| Detecting Distance | 50˜500mm |

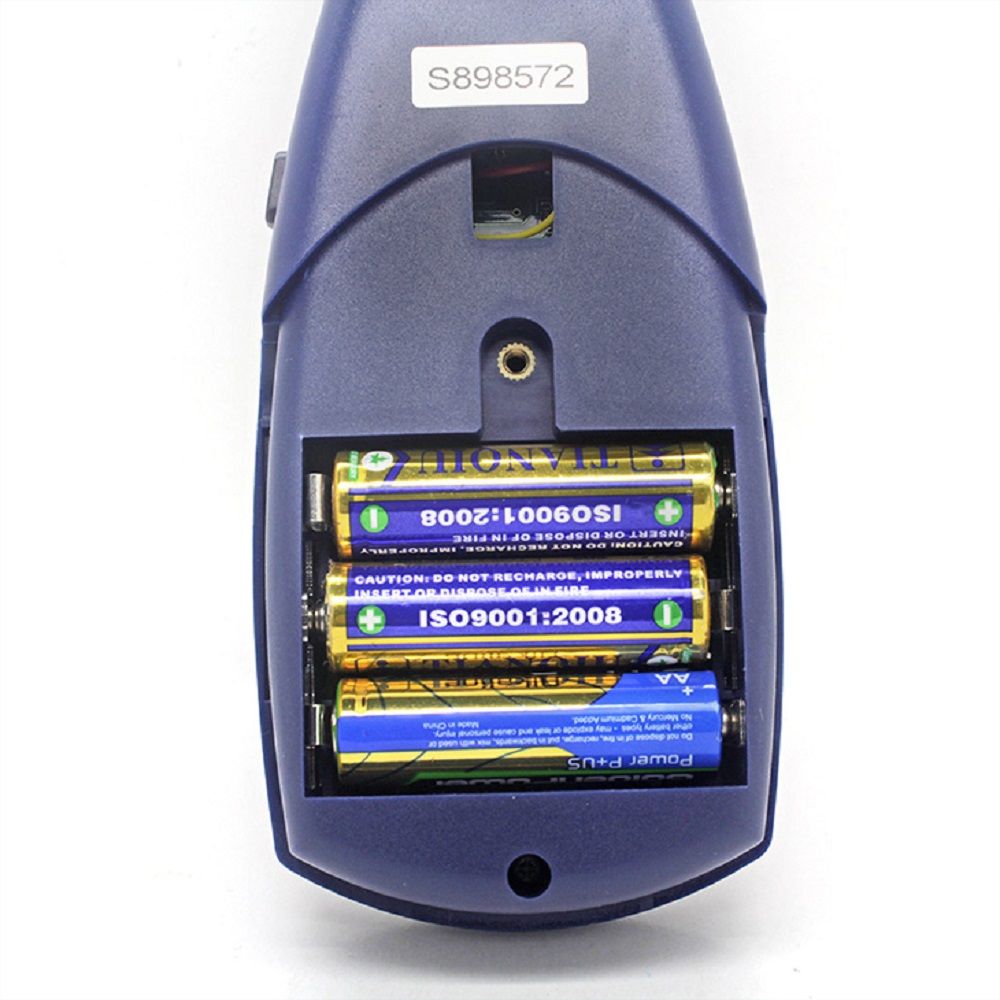

| Power | 3 x 1.5V AAA battery(Battery not included) |
| Frequency Range | 1-1666.6Hz |
| Time Base Accuracy | 6MHz Quartz crystal |
| Power Consumption | Approx 55mA |
| Dimension | 160L*72W*37H(MM) |

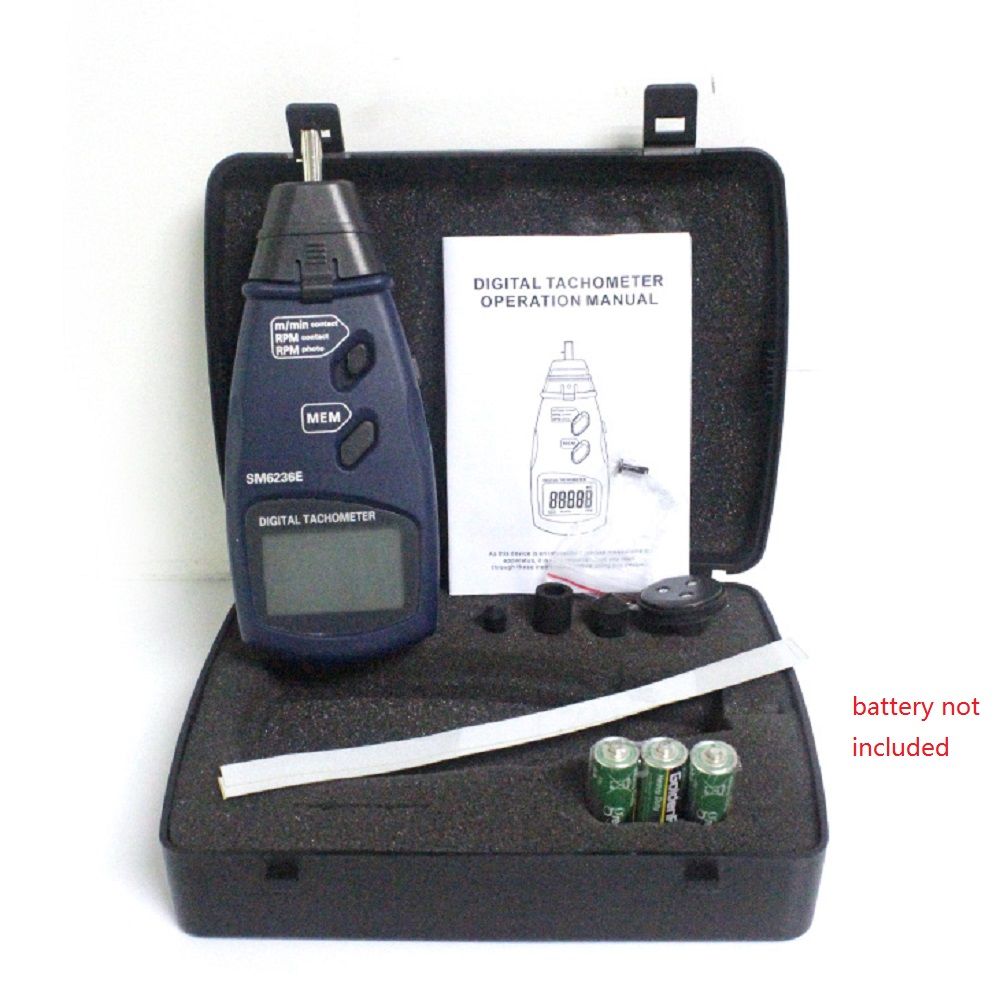

Package Includes:
1 x Tachometer(Batteries not included)
1 x English user manual
2 x reflective strip

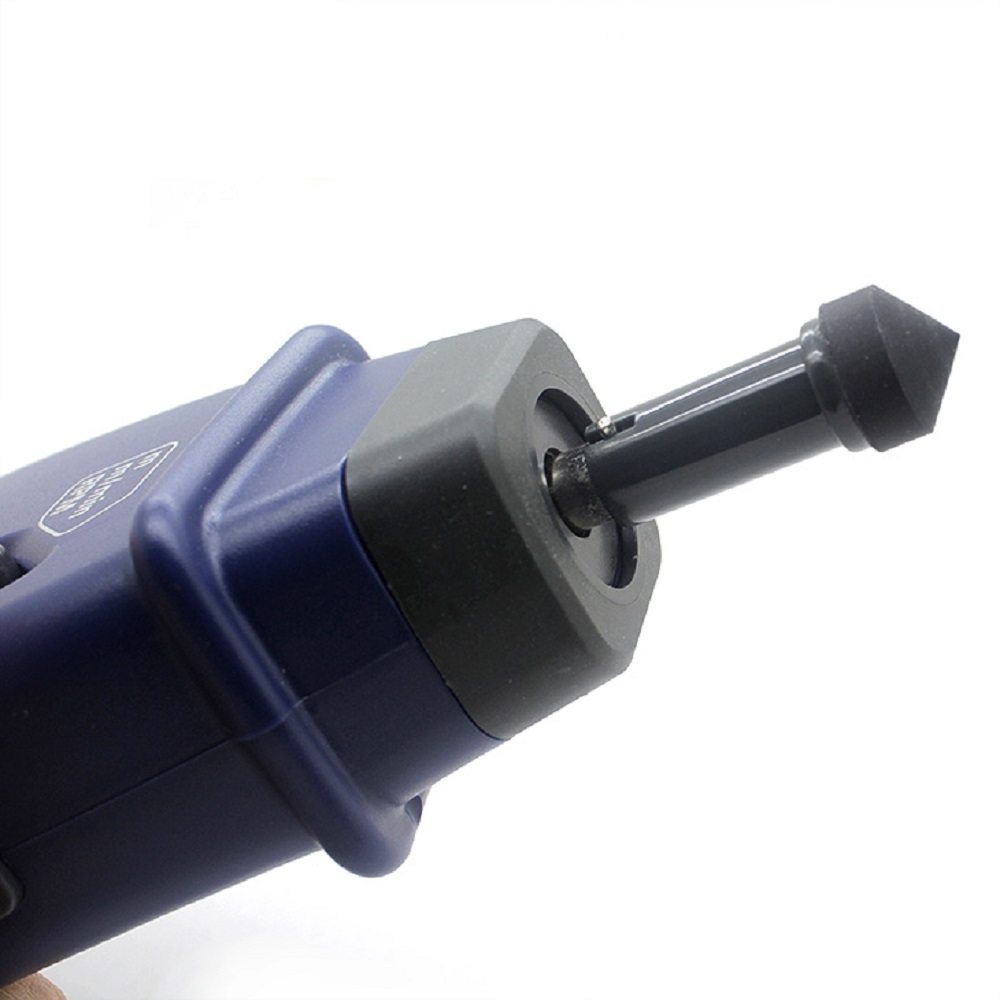

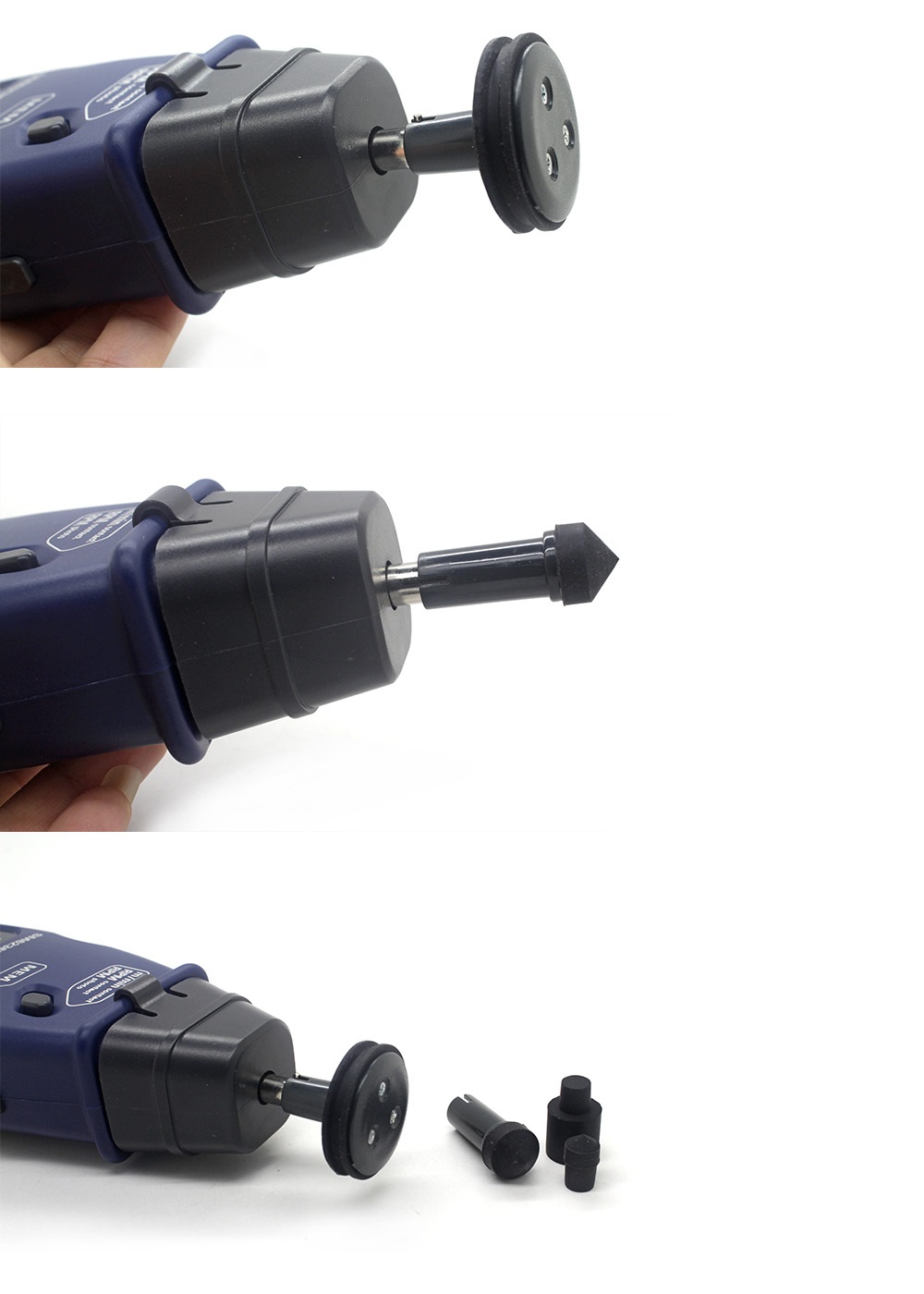

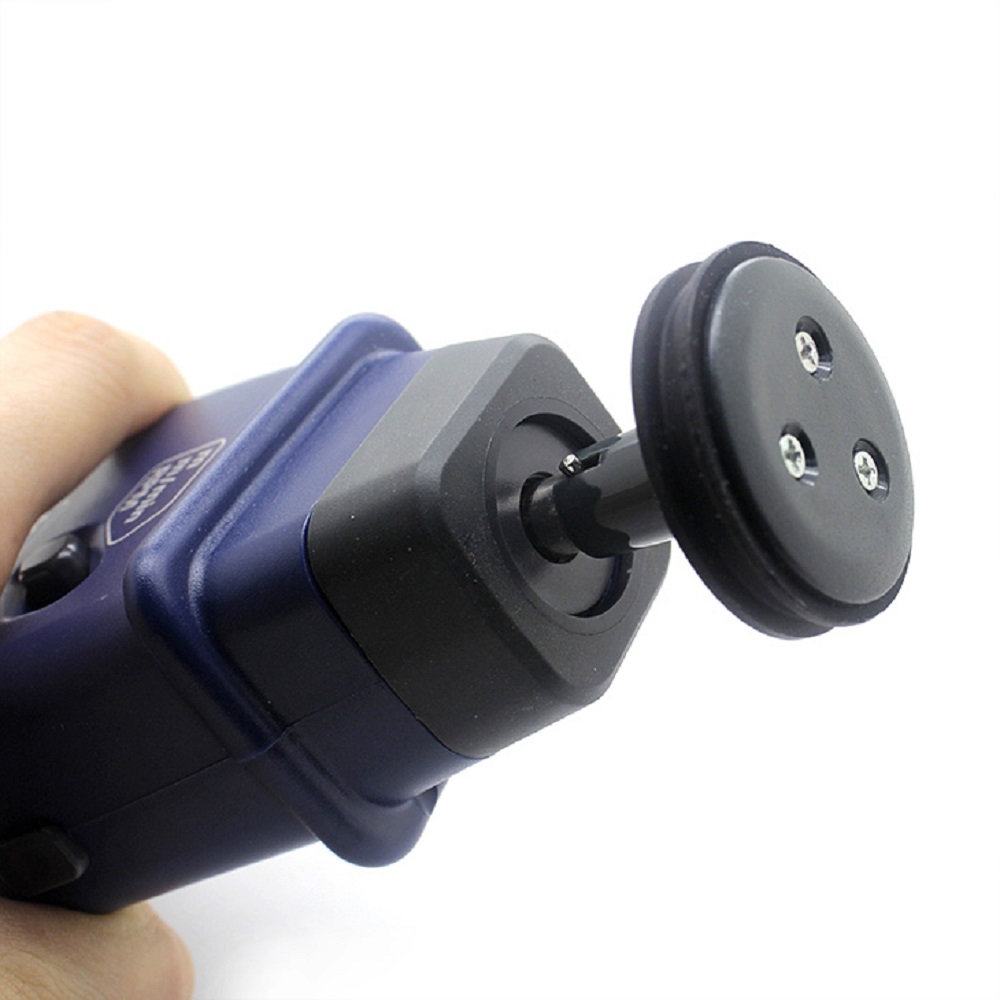

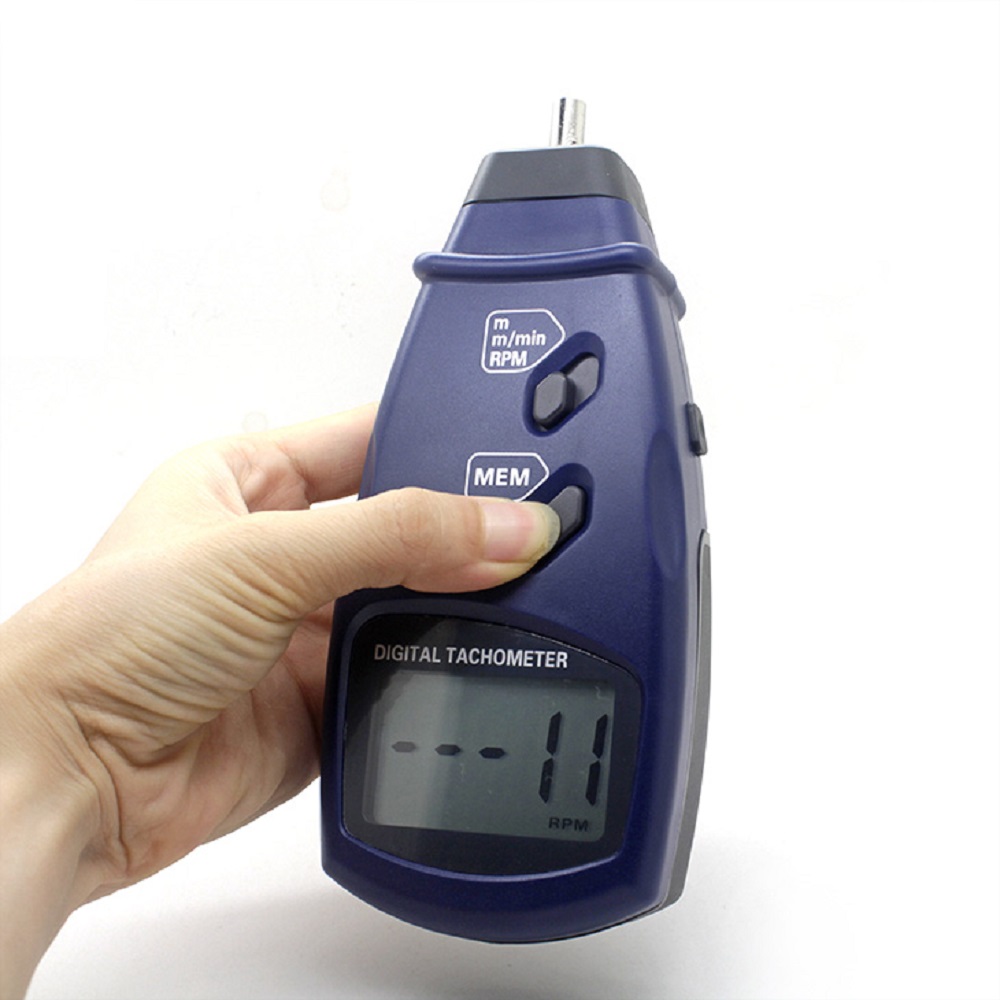

Details Pictures:
