Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case

Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
Assembled MMDVM V1.7 Hotspot Support P25 DMR YSF NXDN + Raspberry pi Zero w +OLED +Antenna + 16G SD Card + Case
$174.99
Ex Tax: $174.99
  • Stock: In Stock
  • Model: EB003024
  • SKU: EB003024
Demo Video

Best version  :
 1.Latest version  V1.7, and the firmware is latest
 2. original cystal :  Original ECS-TXO-3225-147.4-TR from USA
 3. With white on-board antenna

PLS note: the RXofffset is : -475(minus 475)

Product Description:

- Jumbo-SPOT-RTQ is a completely self-contained digital hotspot supporting DMR,Dstar,P25 and System Fusion communications.Fully assembled and tested in a ruggedized aluminum enclosure.All that's required for operation is a micro usb (android phone's cable)power source and a WiFi based internet connection.
- Pi-Star Digital Voice Software pre-loaded and easily upgraded via software.

Product Features:

- Supports PI-STAR's web based digital voice dashboard and configuration tool
- Supports all four digital amateur modes DMR,D-Star,P25 and System Fusion
- Built-in WiFi: 802.11b/g/n

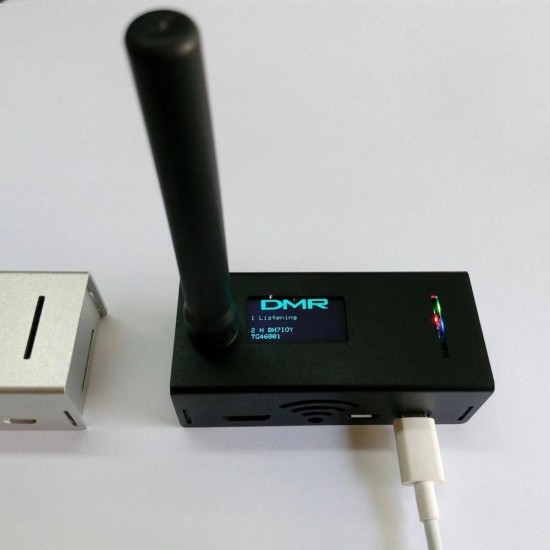

- Built-in OLED system status display indicating Mode,Talk Group and Call Sign
- Built-in LED indicators for status of Power,PTT,COS and Mode
- Console port SSH 22 for root level access to the operating system
- Quad Core A7 1.2GHz Processor,512mb DDR3 RAM and 8gb TF Card
- Pocket size aluminum enclosure

Features:

· High performance 32-bit ARM processor
· Fully tested
· Supports DMR, P-25, D-Star and System Fusion
· Onboard LEDs to show status (Tx, Rx, PTT, Mode)
· Up to 10mW RF power

 SMA antenna connector, UHF antenna included
· Mounts cleanly on all current  Raspberry Pi’s including the Pi Zero
· The firmware is pre-loaded and is easily upgraded via software.
  Please do not upgrade the firmware by yourself
· Open source 3D printable case available
  ​Support and tested with  PI-STAR

UHF420-450MHz
VHF 144-146MHZ
Test ID 460xxxx, test frequency 439.600MHZ, test mode DMR, test WIFI: TZB/13902982913

>>Please click here to download the manual<<

Package Includes:

Fully assembled and tested Jumbo-Spot-RTQ

1.  OLED display x1
2.  raspberry pi zero  x1

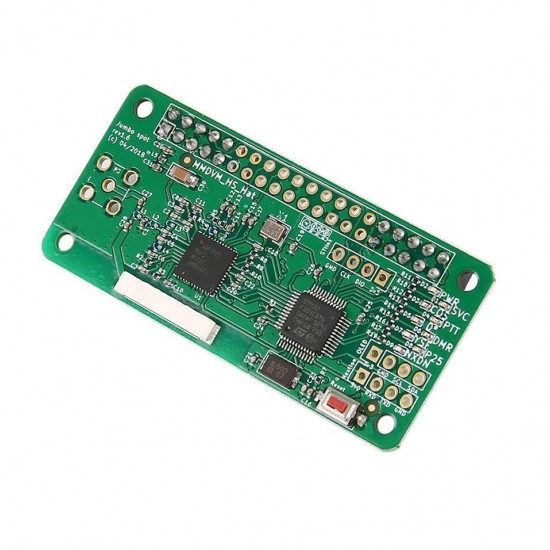

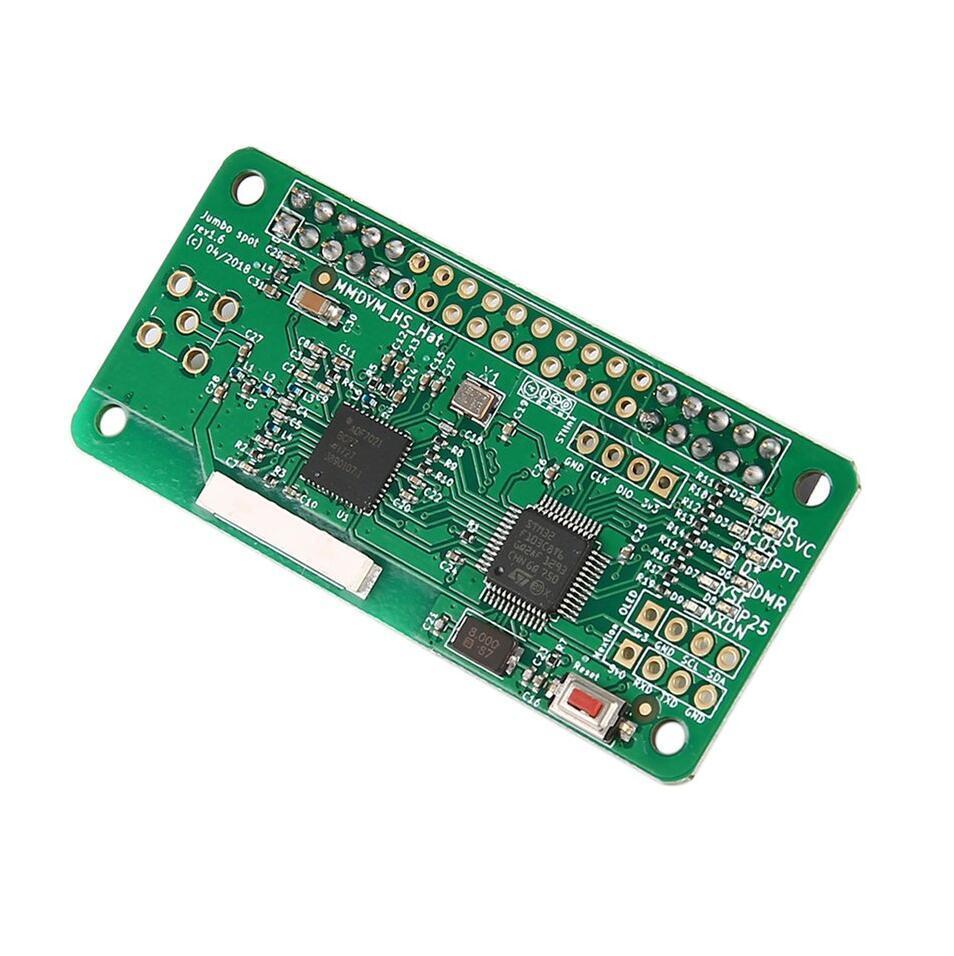

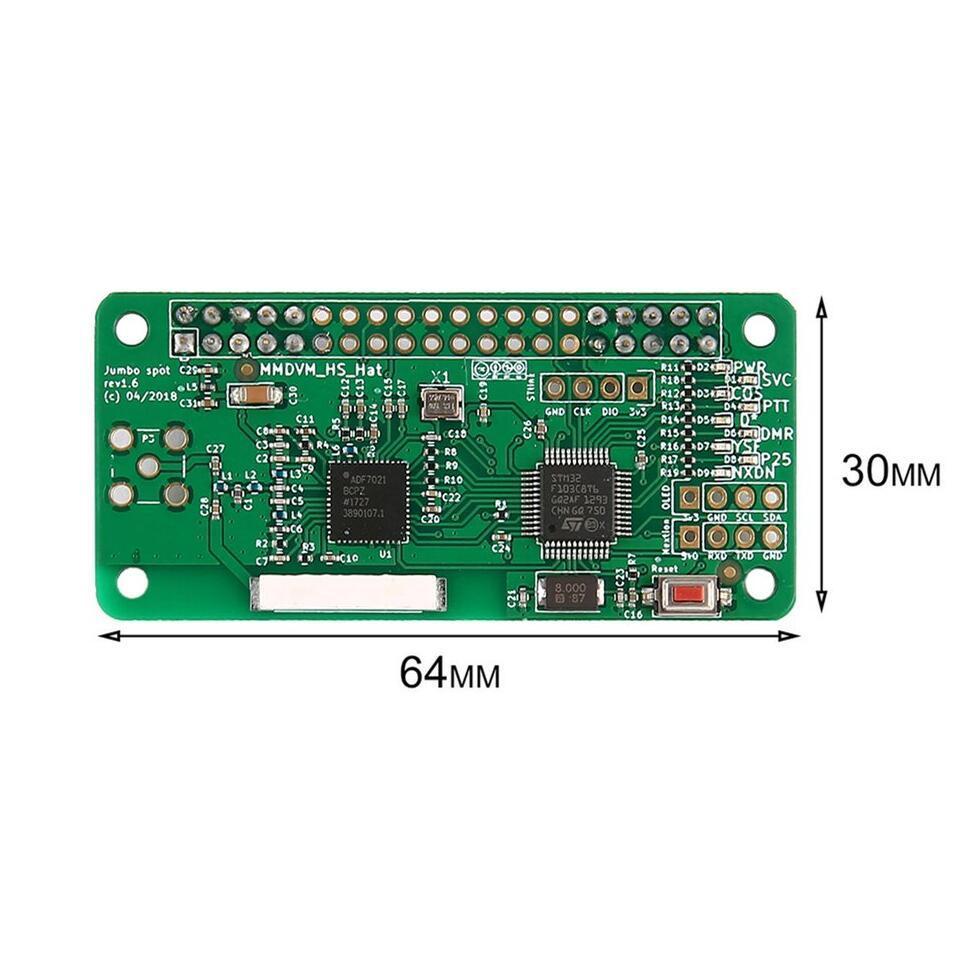

3.  MMDVM hotspot  board  x1
4.  16G TFT card x1

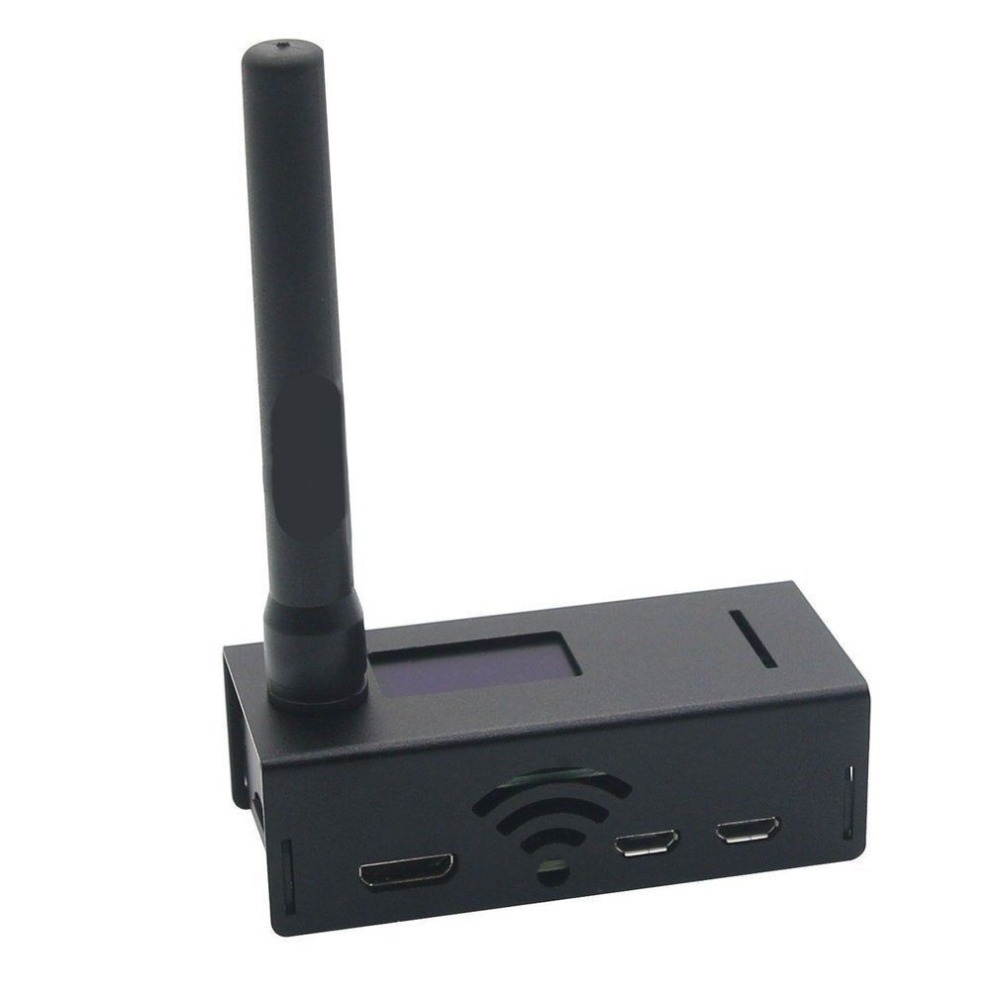

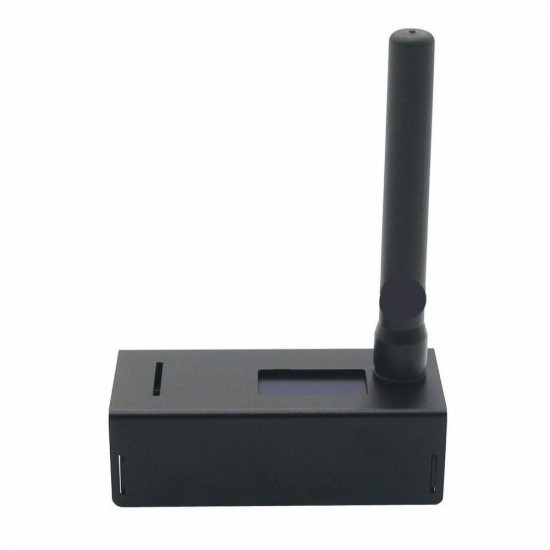

5. case x1
6. 433Mhz antenna x1
Case color : Black or silver , default is Black, if no meesage left, will send black ,  if you want silver, pls send me message

Details Pictures:


Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674

Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674

Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674

Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674

Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674

Assembled-MMDVM-V17-Hotspot-Support-P25-DMR-YSF-NXDN--Raspberry-pi-Zero-w-OLED-Antenna--16G-SD-Card--1618674
