DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter

DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
DC6-120V Waterproof Electricity / Voltage / Temperature Three-in-one Table Vehicle Multi-function Meter
$8.20
Ex Tax: $8.20
  • Stock: In Stock
  • Model: EB003206
  • SKU: EB003206

Available Options

Features:

This table can be used to set the battery type by button: lead-acid battery, lithium battery, nickel-metal hydride battery, or set the number of batteries by the button (the number of batteries in series)
It is suitable for: 12V, 24V, 36V, 48V, 56V, 60V, 64V, 72V, 84V battery car, electric car, battery pack, balance car, inverter, electric forklift, sightseeing car, electric car, car battery, battery power Used for mobile devices, etc., can also be used for other voltage and power test purposes.
It can test the display of real-time temperature, voltage, power, and percentage of electricity.
"12 kinds" display mode is optional:
The default is: C V % loop display
C V %——F——F V——F %——F V %——V——%——V %——C——C V——C %——C V %
 C: Representation - Celsius temperature; V: Representation - Voltage; %: Representation - Percentage of electricity; F: Representation - Fahrenheit temperature
Display mode power off has memory function
Two-wire system, wide supply voltage, wide test voltage: DC6-120V, simple and convenient wiring
With reverse connection protection, reverse connection will not burn
High and low battery flashing alarm reminder function, high temperature alarm,
LED color display, high-grade atmosphere

Technical Parameters:

Supply voltage: DC6-120V (wide range), note: the maximum input voltage can not exceed 120V, otherwise there is danger of burning
Test voltage: DC6~120V (small point automatic movement)
Minimum resolution below 100V: 0.1V
Minimum resolution above 100V: 1V
Voltage measurement accuracy: 1% (±2 words)

Temperature test range:

Celsius: -50 ~ +120 °C (decimal point is automatically moved)
The minimum resolution of -9.9~99.9 degrees is: 0.1 degree
The minimum resolution for other ranges is: 1 degree
Fahrenheit: -58~245°F (decimal point automatic movement)
The minimum resolution of -9.9~99.9 degrees is: 0.1 degree
The minimum resolution for other ranges is: 1 degree
Temperature type: NTC
Temperature "air probe" line length: >120mm
Power resolution: 1%
Working current: <20mA
Display mode: LED color screen
Dimensions: L54*W30*H27mm
Installation opening: 47.2*27.3mm
Measurement rate: ≥500mS/time
Power supply, button switch lead length: >150mm
Extreme working conditions:
Minimum supply voltage: +6 V
Maximum supply voltage: +120 V
Working temperature: -10 ~ +55
Working humidity: 10~80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight: no direct illumination

Note:

This table is easy to operate. There is no separate paper manual. Please check the detailed operation instructions on the website. If you have any questions, please contact customer service.
If the customer does not specifically address, the lithium battery in the option refers to: 3.7V polymer battery
Regarding the power meter option, in order to facilitate the customer, please take the photo according to your own battery. We set up the shipment directly, and the customer can use it without setting it.
If the battery type, number of sections (number of strings) is set incorrectly, the battery and percentage power display will be inaccurate. Please set it correctly.......
This watch is not suitable for installation on a line with a xenon lamp. The xenon lamp will have a high voltage of several thousand volts at the moment of opening. It has the opportunity to directly burn the meter head. If it must be installed, it cannot be installed on the same line. Keep your head away from xenon lights
The pictures taken on the Internet are very beautiful. The display is very beautiful. It is not very clear during the day when the sun is shining. This is a normal phenomenon (no matter how bright the product is, it will not shine in the sun).
The power and percentage power are designed according to the principle of the test battery voltage method. The power is changed with the voltage. During the use of the electric vehicle or other equipment, the percentage will change and the voltage will change. This is normal, not fixed.
The above temperature probe is shipped by default - air probe, can not be immersed in water for a long time
Cycle display effect: voltage, percentage power; can also be set to "only" to display temperature, voltage or percentage power, there are "12" display modes available

Package Inlcudes:

1 x Voltage Meter

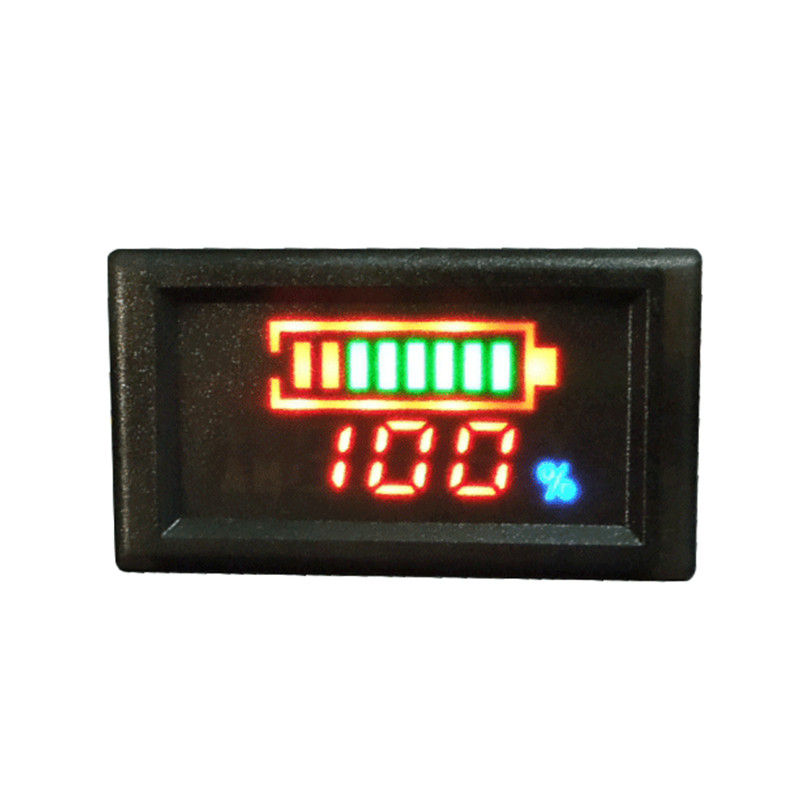

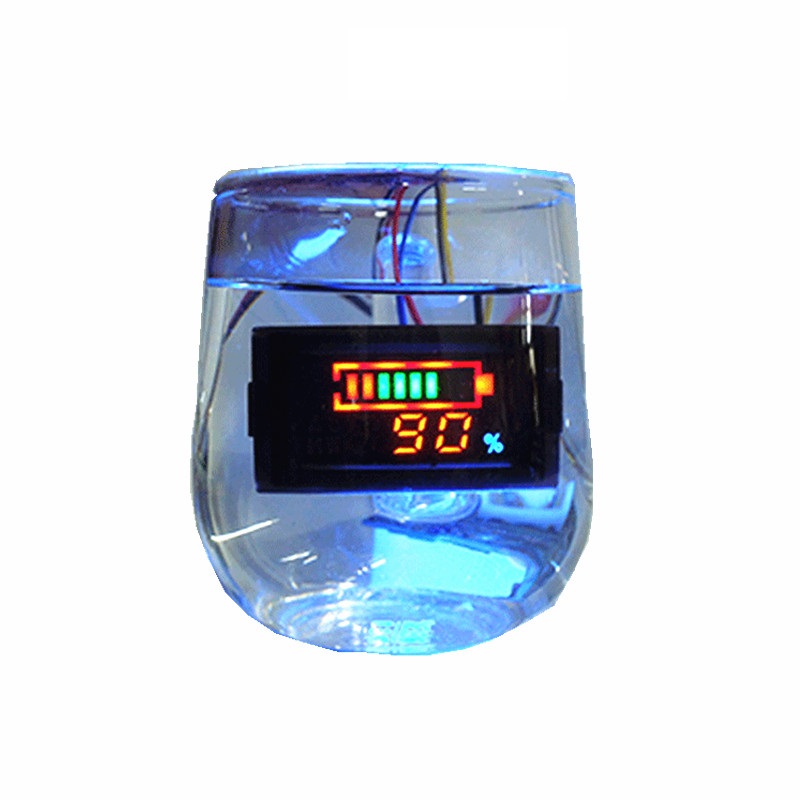

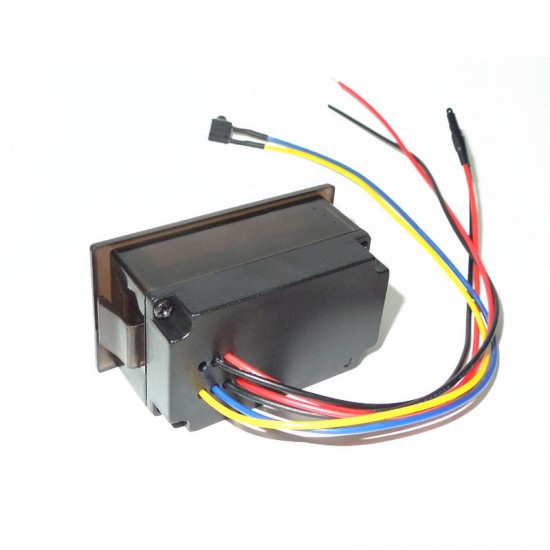

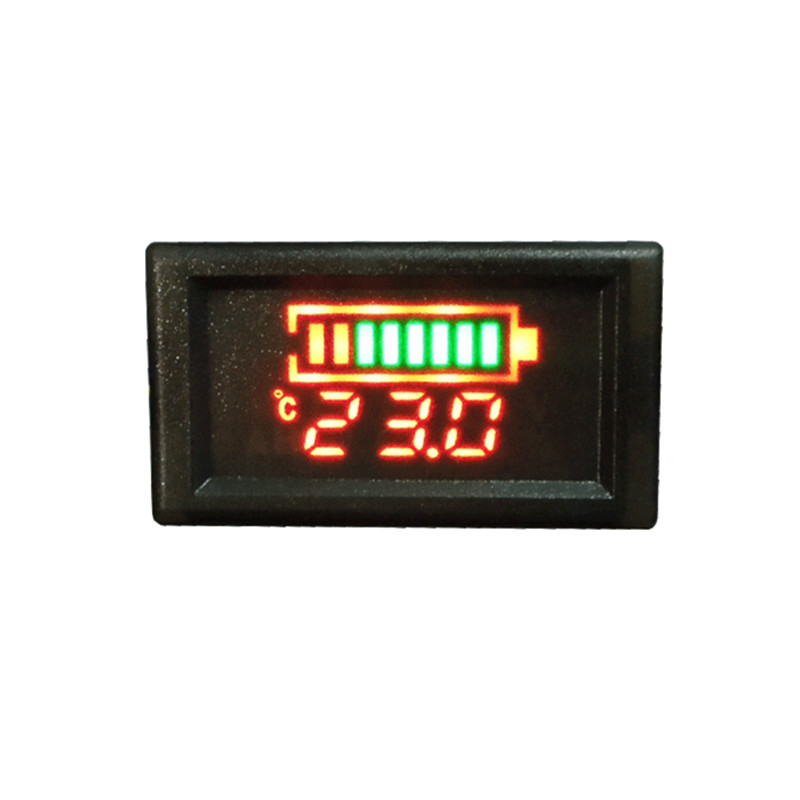

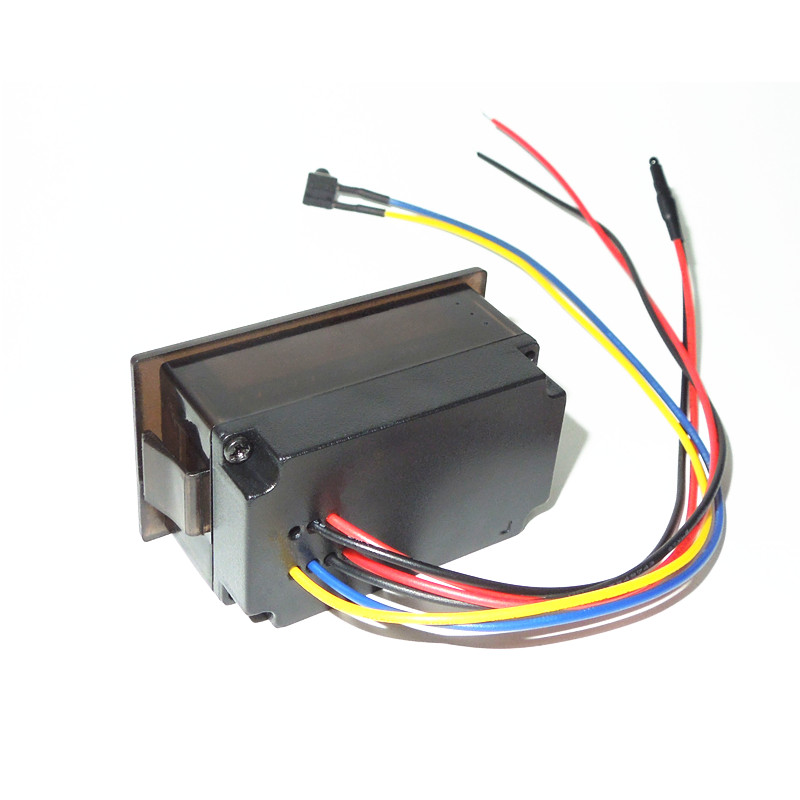

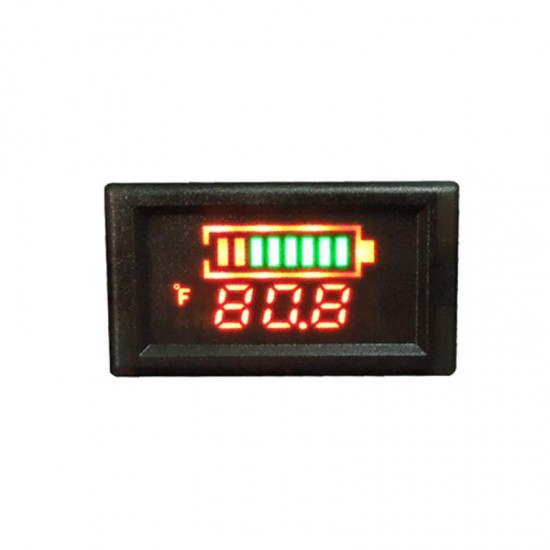

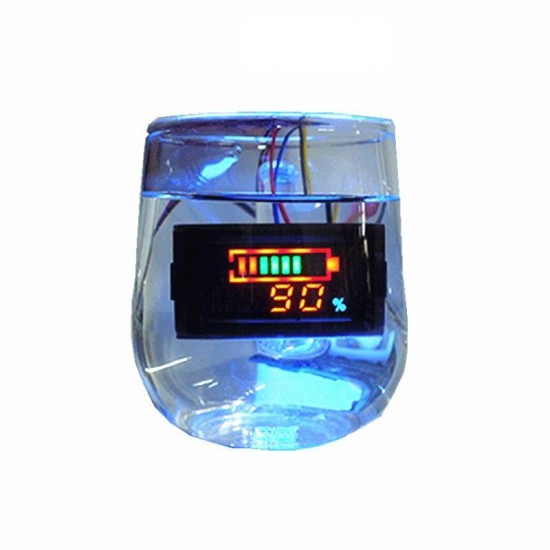

Detail Pictures:






DC6-120V-Waterproof-Electricity--Voltage--Temperature-Three-in-one-Table-Vehicle-Multi-function-Mete-1416905

DC6-120V-Waterproof-Electricity--Voltage--Temperature-Three-in-one-Table-Vehicle-Multi-function-Mete-1416905

DC6-120V-Waterproof-Electricity--Voltage--Temperature-Three-in-one-Table-Vehicle-Multi-function-Mete-1416905

DC6-120V-Waterproof-Electricity--Voltage--Temperature-Three-in-one-Table-Vehicle-Multi-function-Mete-1416905

DC6-120V-Waterproof-Electricity--Voltage--Temperature-Three-in-one-Table-Vehicle-Multi-function-Mete-1416905
