ET44 Series Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge LCR Meter
- Stock: Out Of Stock
- Model: EB004800
- SKU: EB004800
Features:
| ● Measurement frequency up to 100kHz ● Test level 100 ~ 2000mV ●Support the measurement of DC resistance and electrolytic capacitor ●Internal bias voltage output (1mV-1500mV) ●Automatic identification of component measurement ●3.5-inch TFT display, 5 and a half bits display ●USB, RS232 communication interface, Handle sorting ● Data recording function (maximum and minimum values, average value) | ● Support SCPI communication protocol ● Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users. ● Basic accuracy 0.2% ● Manual and automatic range ● Be equipped with open circuit and short circuit correction ● Comparator has sorting and alarm function ● Provide a variety of test ports |
Specifications:
| Model | ET4401 | ET4402 | ET4410 |
| Digits | Main parameter: 5 digits; secondary parameter: 5 digits | ||
| Measurement Parameter | Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR | ||
| Measurement Range(L) | 0.01μH - 9999H | ||
| Measurement Range(C) | 0.01pF - 99999μF | ||
| Measurement Range(R) | 0.0001Ω - 99.99MΩ | ||
| Basic Accuracy | 0.2% | ||
| Test Frequency (Hz) | 100~10kHz 10 point | 100~20kHz 12point | 100~100kHz 20 point |
| Measurement Display Speed | 2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast) | ||
| Internal Bias | 0-1500mV adjustable, 1mV stepping | ||
| Test Level | 100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV | ||
| Correction Function | Open circuit correction, short circuit correction | ||
| Screening function | The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20% | ||
| Selection of comparator | Five gear sorting, third gear qualified, one gear failed, one ancillary gear | ||

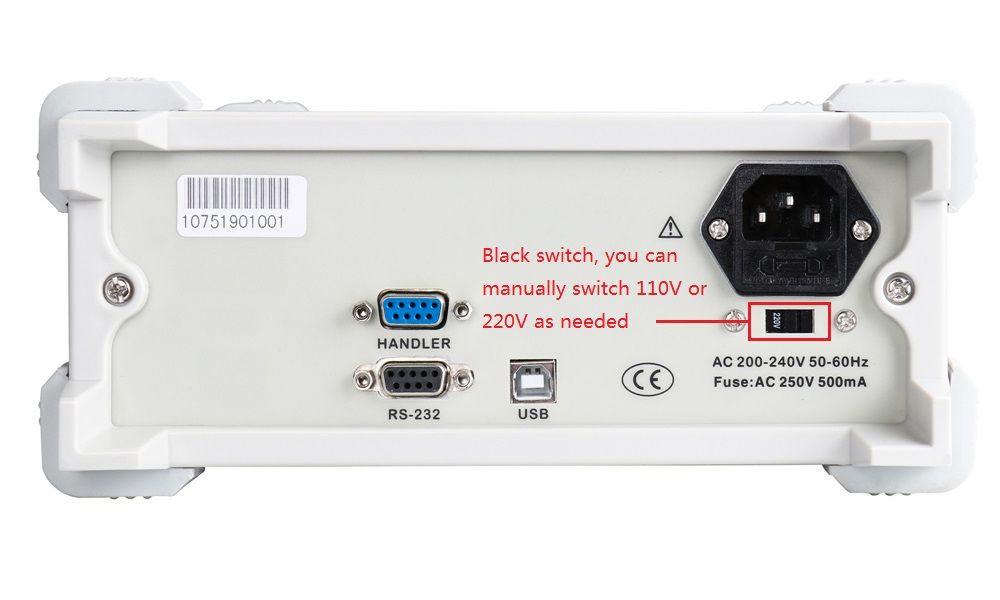

| Communication Interface | Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host | ||
| Others | Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese | ||
Package Includes:
1 x ET4401 LCR Tester

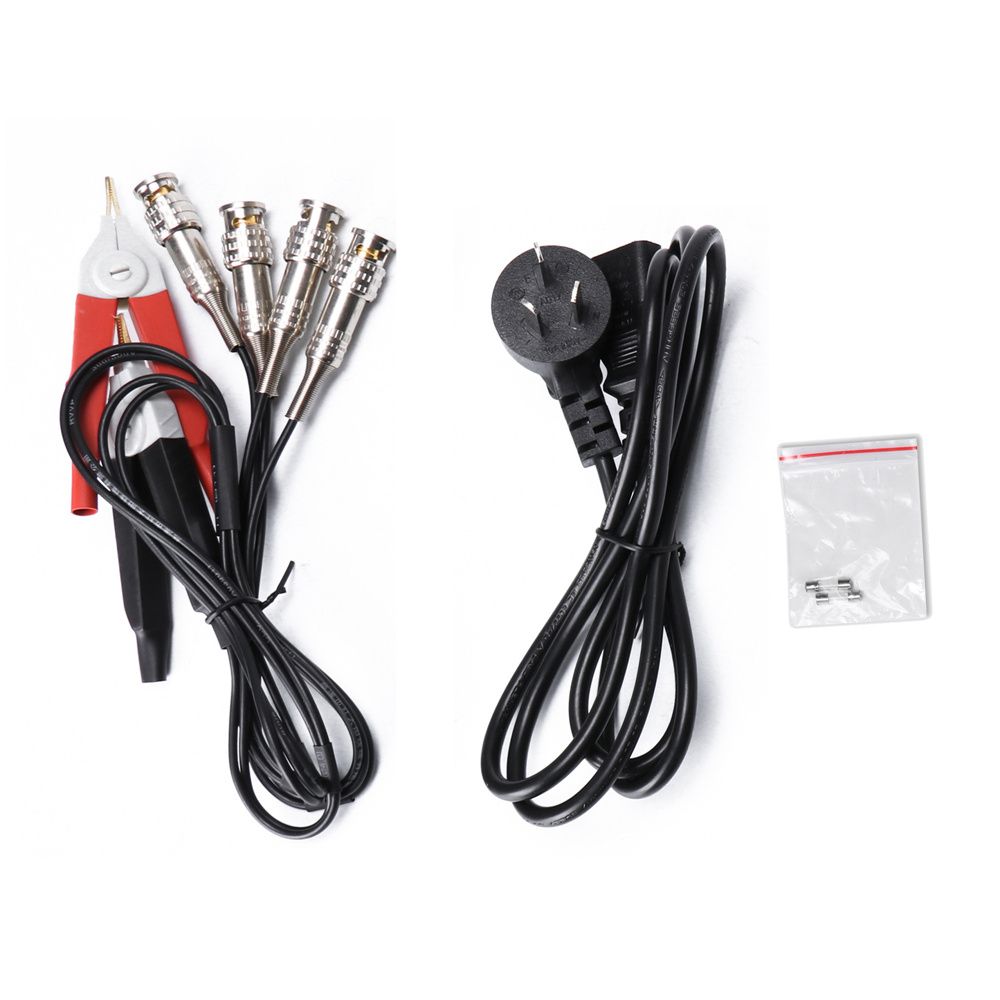

1 x Set of accessories

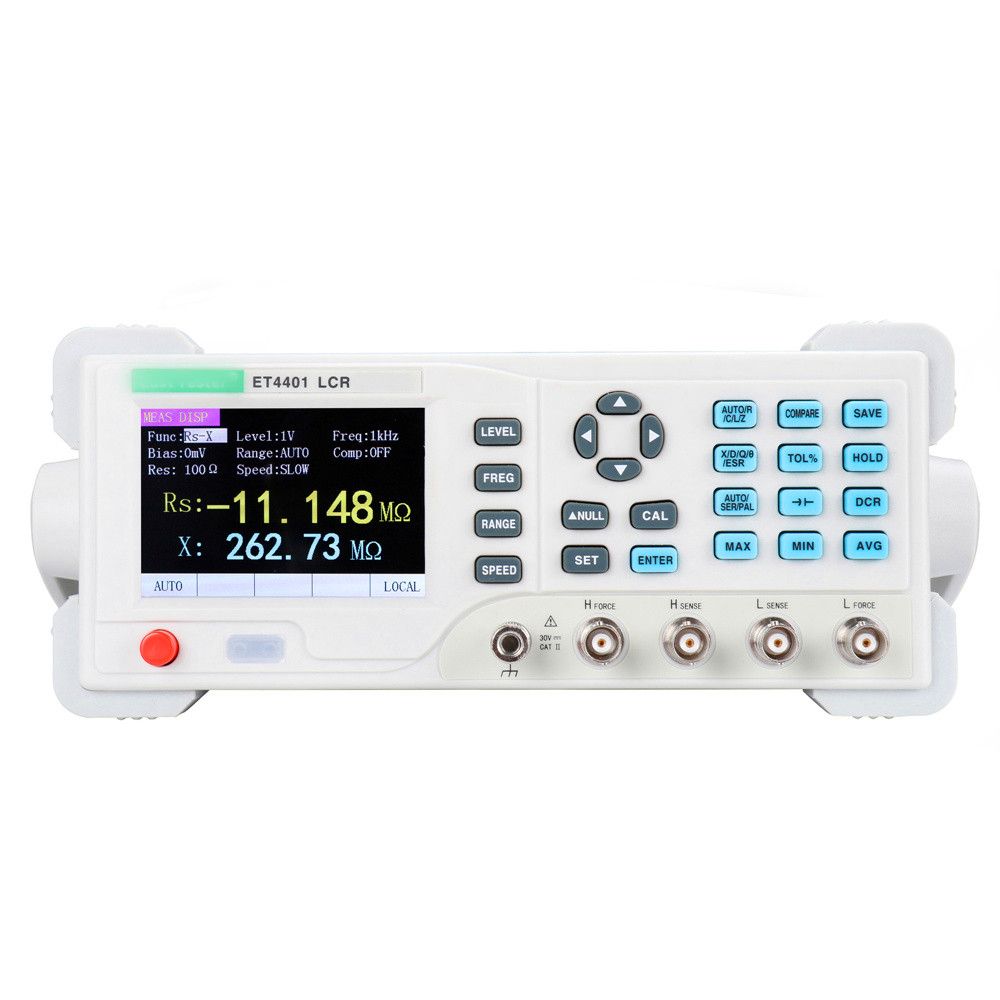

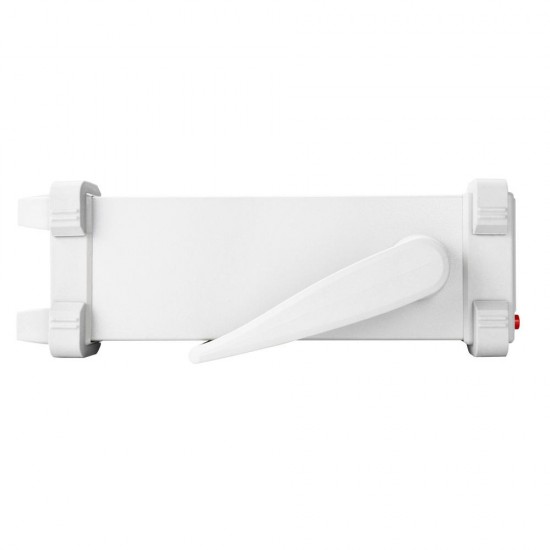

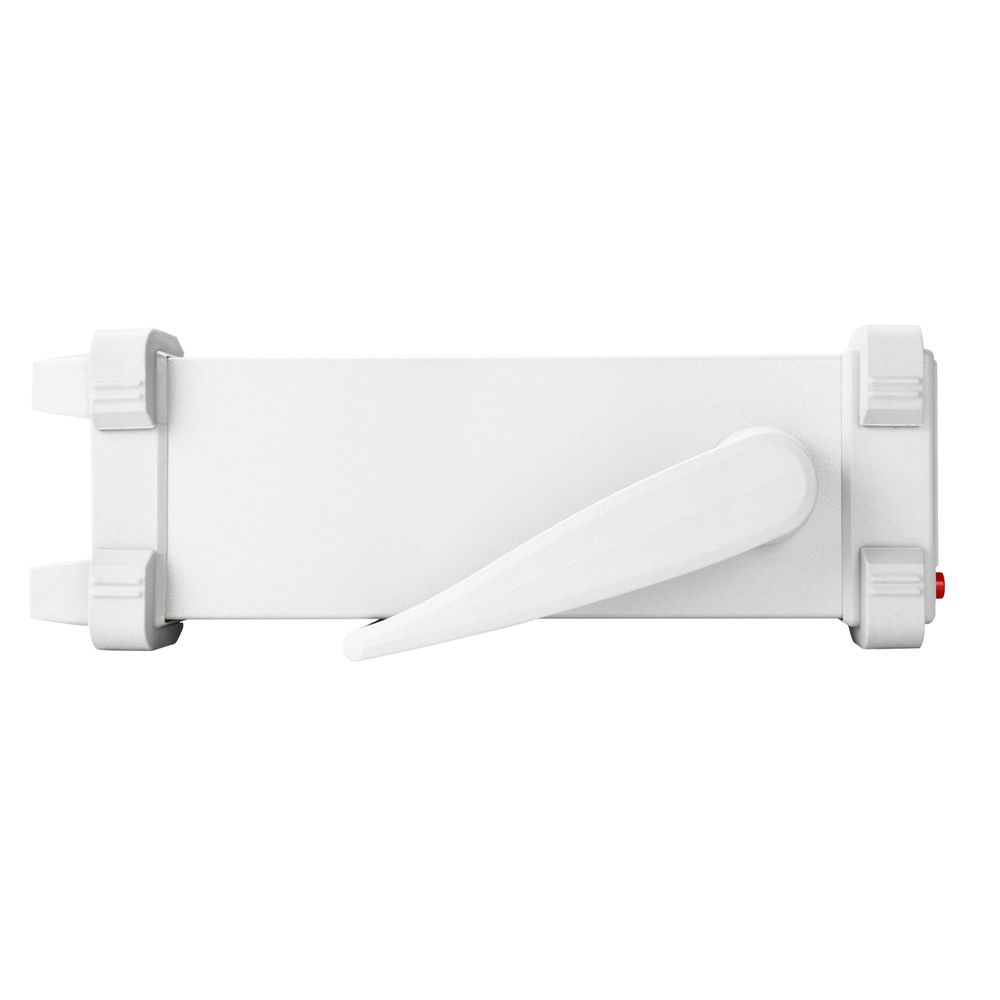

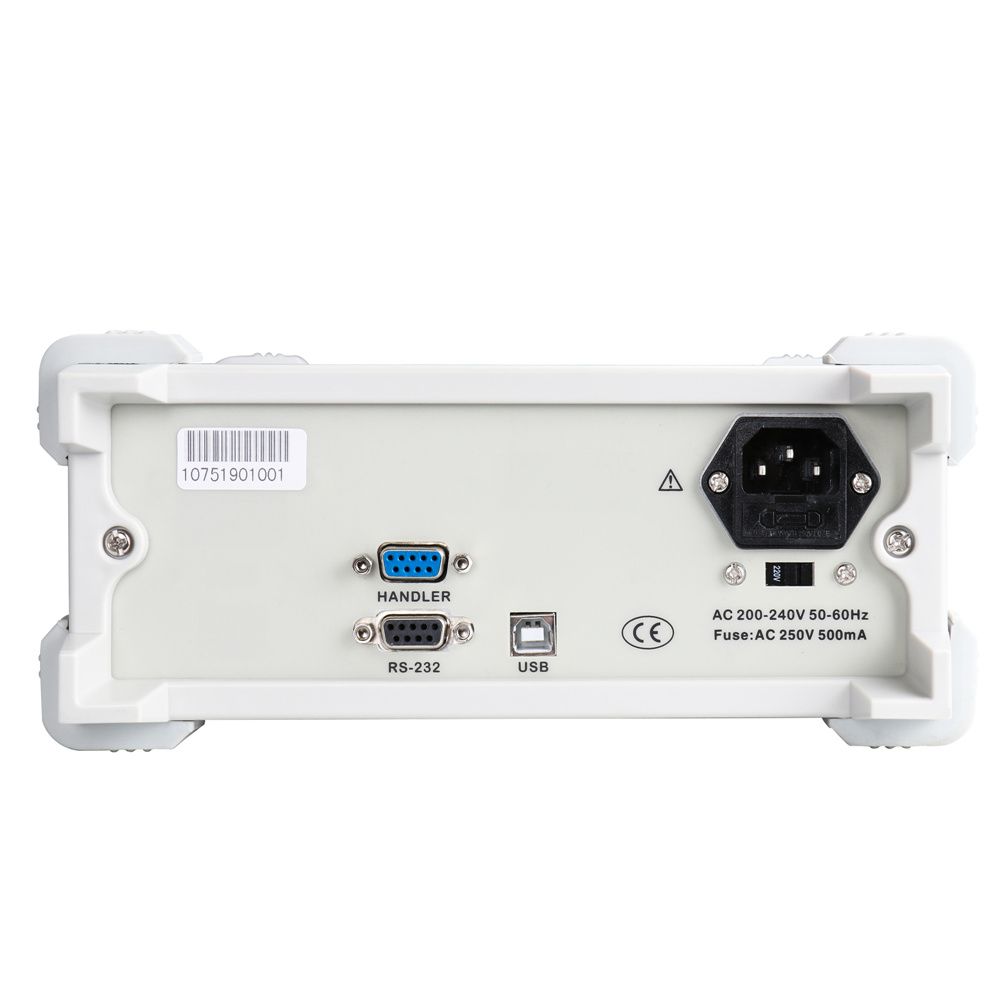

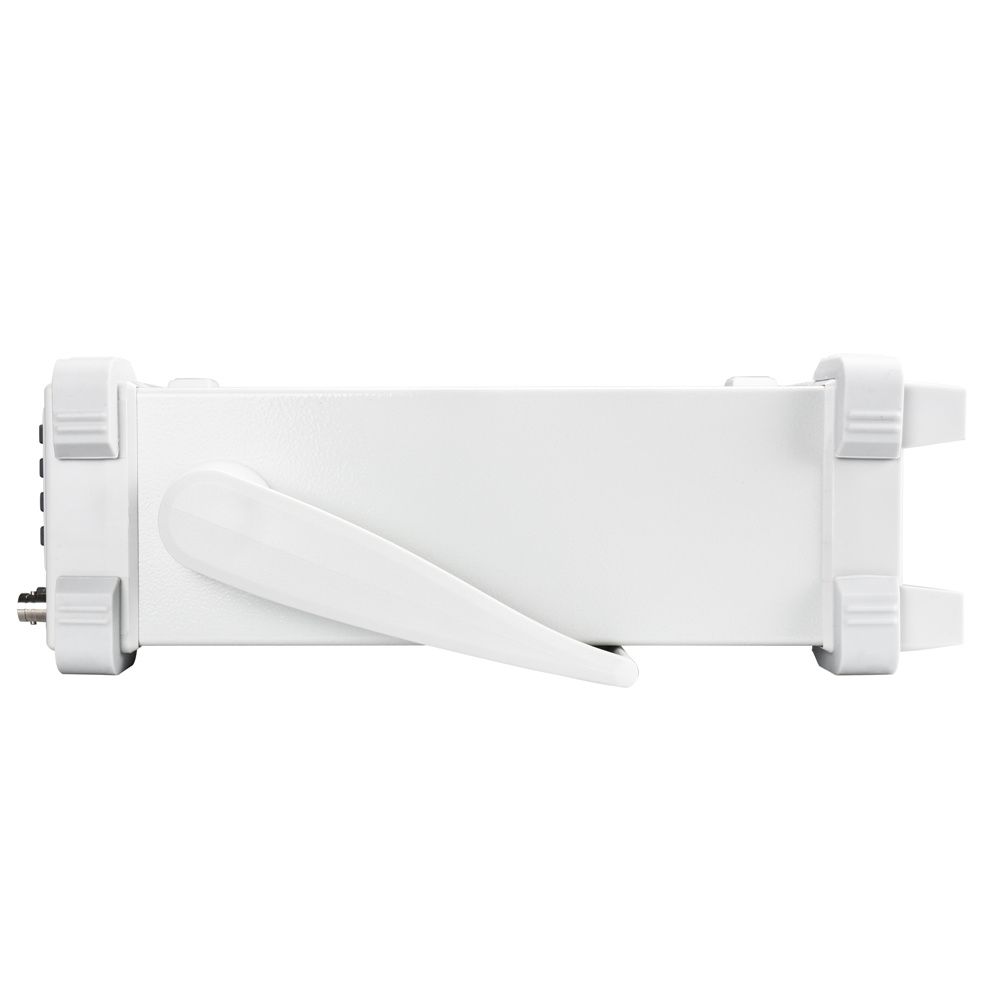

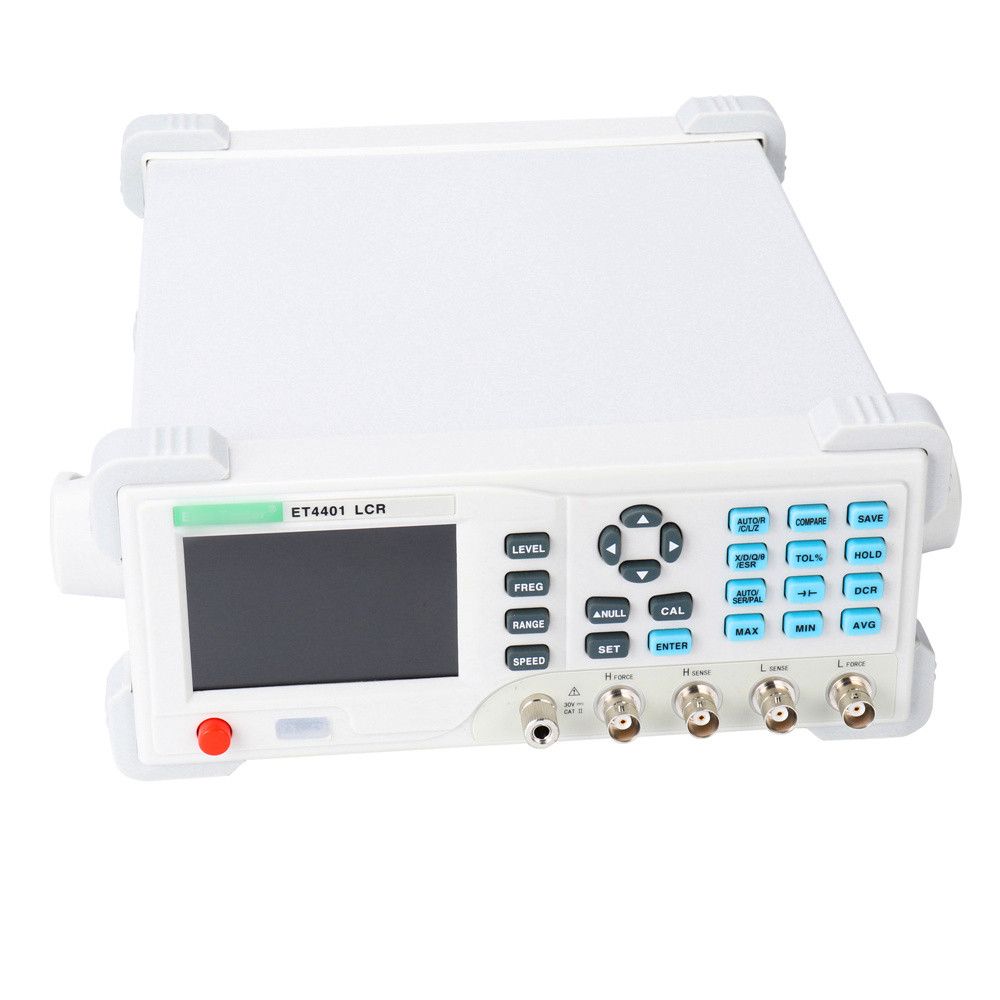

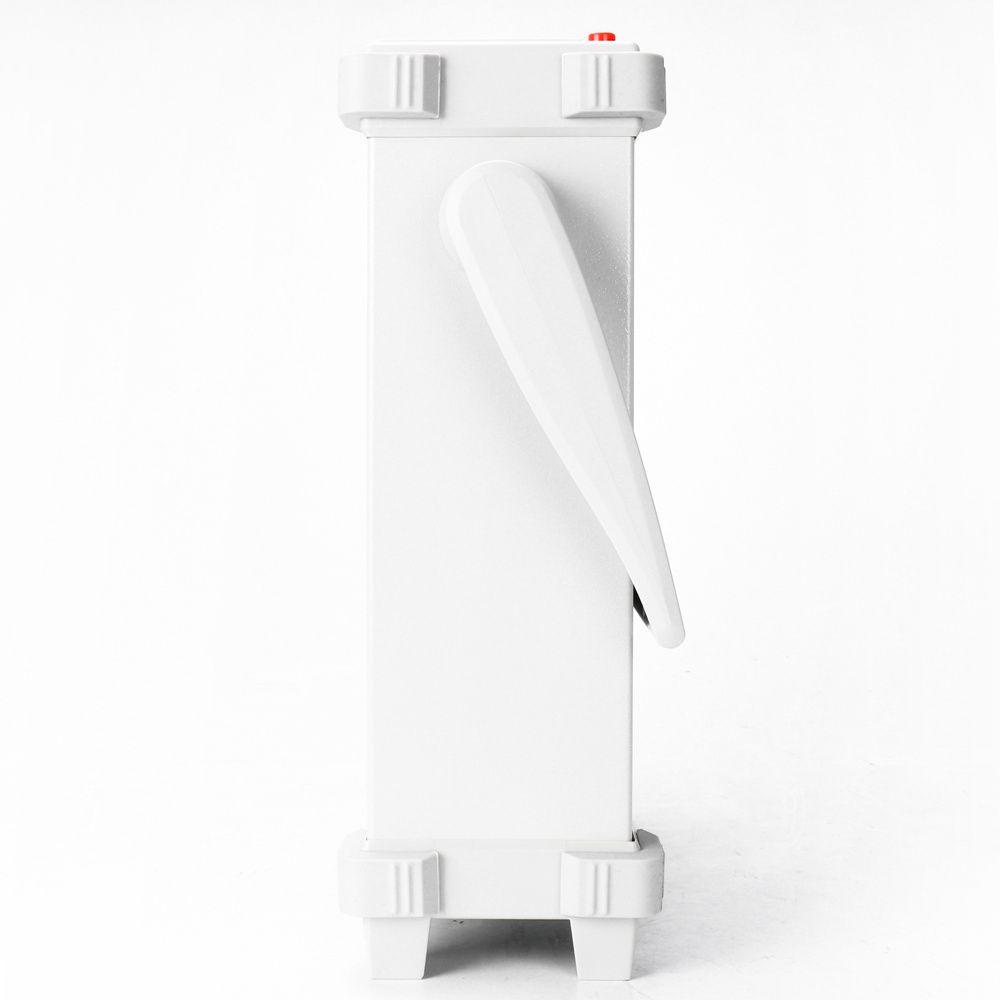

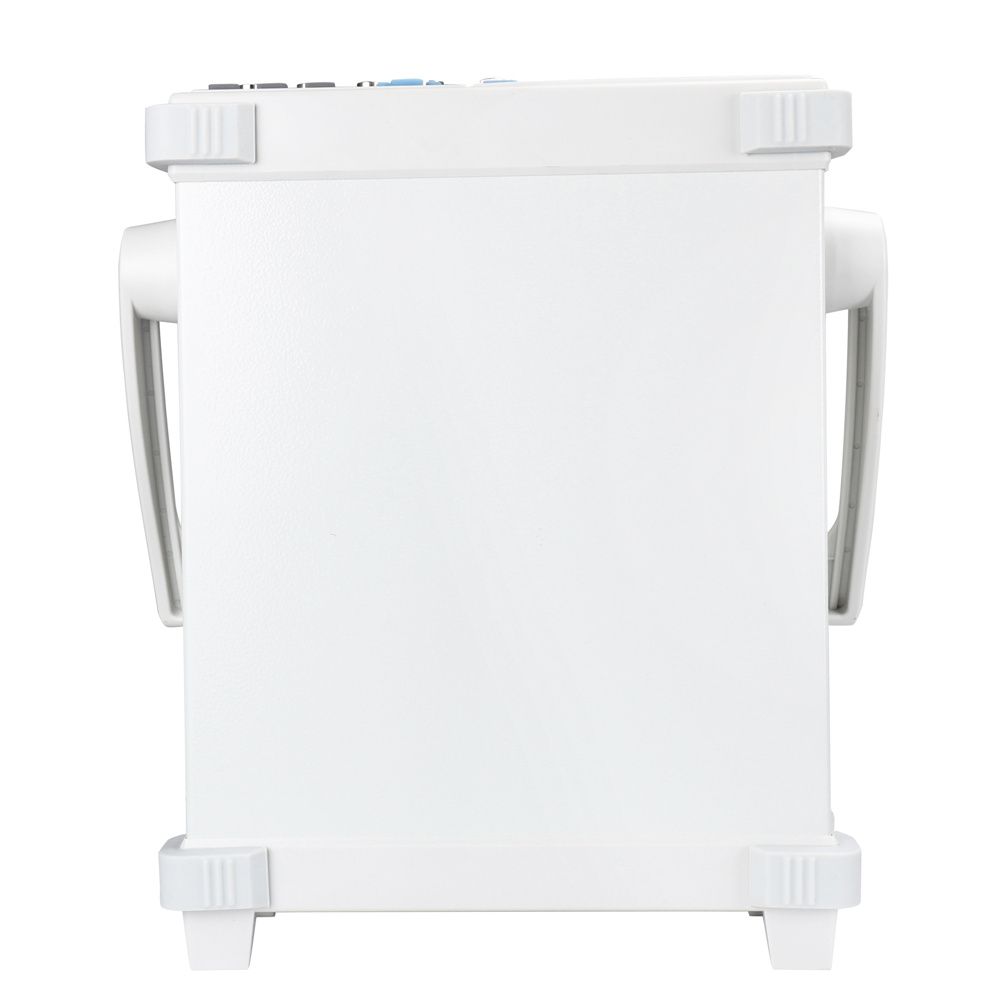

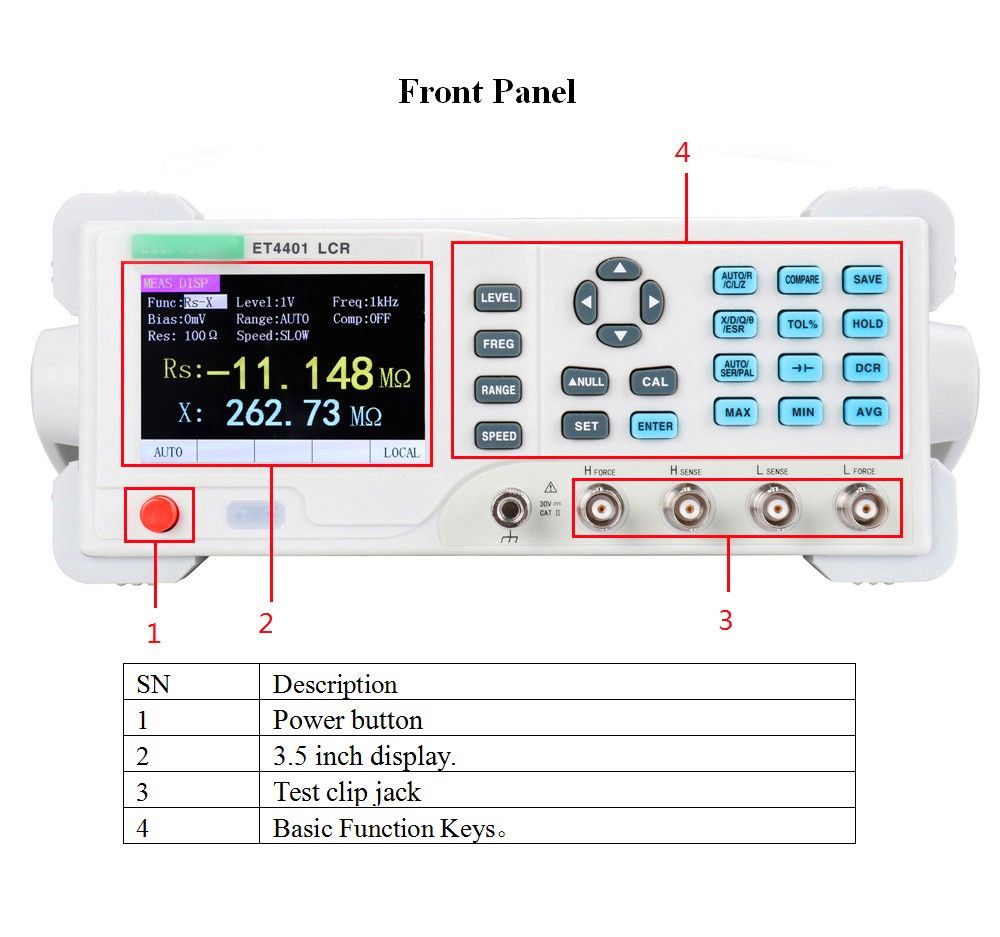

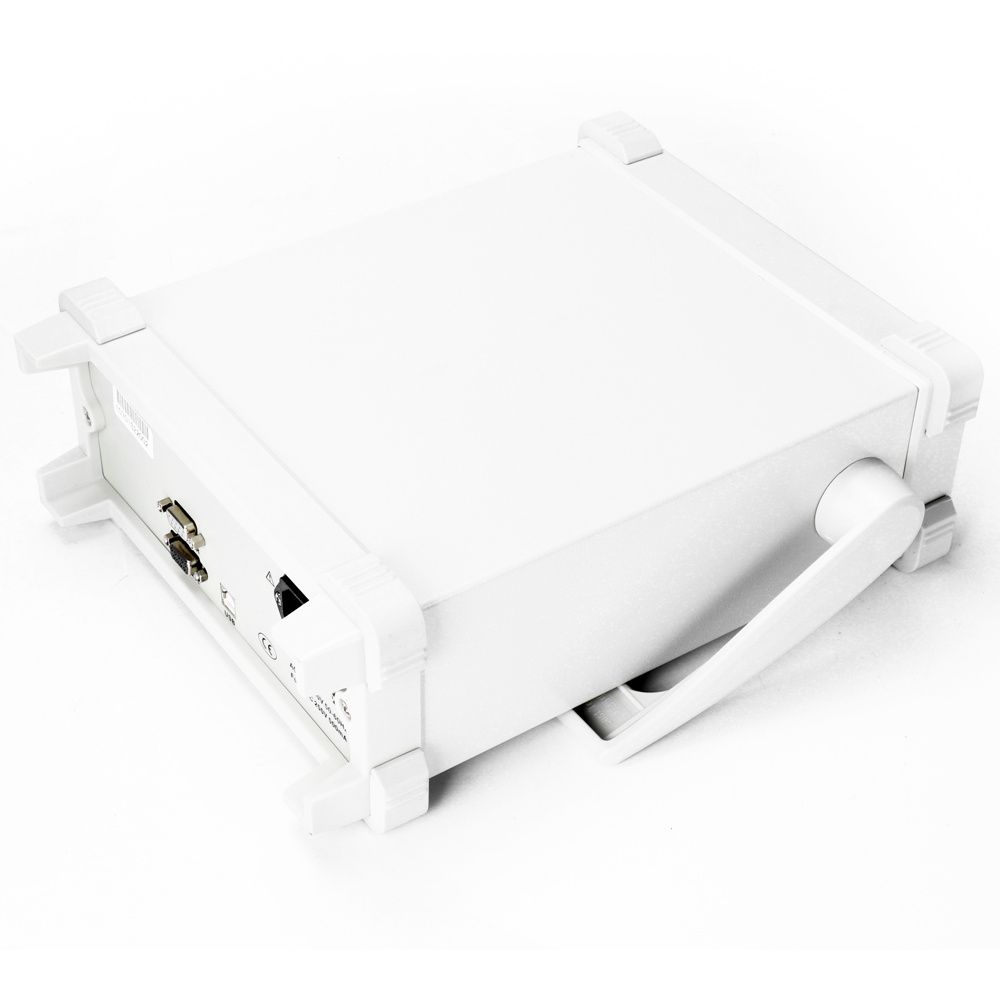

Detail Pictures:
