U822A/U822C Handhel LCR Meter Digital Bridge Measurement of Inductance Resistance Capacitance Inductance Tester
- Stock: In Stock
- Model: EB004828
- SKU: EB004828
Description:
Specification:
| Function | |||
| Test Parameter | Primary parameters: L / C / R / Z Secondary parameters: D / Q / R /0/ ESR | ||
| Equivalent Circuit | Serial, Parallel | ||
| Parameter and Equivalent Mode | Hold/ Auto | ||
| Range Mode | Auto | ||
| Measurement Terminals | 3-terminal, S-terminal | ||
| Measuring Speed | lOmeas/sec(Fast), 5meas/sec(MkJ), 2meas/sec(Slow) | ||
| Calibration Function | Open, short | ||
| Comparator Function | 1%,5%,10%,20% | ||
| Input fuse | 0.1A/250V | ||
| Communication interface | Mini-USB (virtual serial port) | ||
| Test signal | |||
| Test Frequency | U822 | 100Hz. 120Hz, 1kHz | |
| U822A | 100Hz, 120Hz, 1kHz, 10kHz | ||
| U822C | 100Hz, 120Hz, 1kHz, 10kHz, 100kHz | ||
| Test Level | 0.6Vrms | ||
| Output impedance | 100Ω | ||
| Display | |||
| Display | LCD dual display of Primary-Secondary parameters | ||
| Backlight | Battery-powered: when the backlight is on, the brightness is reduced by one half after 15 seconds and the light is automaticaHy off after 30 Power adapter: the backlight is normaVy on, manual shutoff is needed | ||
| Reading | Max. reading of primary parameters; 40,000 counts, secondary parameters: D/Q/ 6 Minimum resolution: 0.0001 | ||
| Hightest test accuracy | 0.10% | ||
| Display Range | L | 0.001 uH — 1000.0 H | |
| C | 0 001pF~-20 000mF | ||
| R/Z | 0.000m — 10.000MΩ | ||
| Equivalent Series Resistance (ESR) | 0.0000Q - 999 9Ω | ||
| Loss factor D | 0 0000 - 9.999 | ||
| Quality factor Q | 0.0000 - 9999 | ||
| Phase angle 9 | -179.9°一 1799° | ||
| Power Requirements | ||
| 8atlery model | 7.2V Ni-MH 600mAH rechargeable battery | |
| AC power adapter | I 叩 ut:220V(1±10%),50Hz(1±5%);Output:12VDC | |
| Working current | Maximum: 28 mA Typical working condition of 1kHz frequency: 25mA (1000 load) | |
| Standby Current | Max : 2mA | |
| Battery life | 24 hours (typical), nickel - hydrogen battery, with backlight off | |
| Charging time and current | Single continuous charging time: 200min (maximum) Charging current: 42mA | |
| Auto power off(Effective battery) | 5min, 15min, 30min, 60nin, OFF available; Factory Default: 5min | |
| Battery capacity indicator | Real-time battery capacity indication | |
| General specification | ||
| Working Environment | Temperature | 0°C- 40°C |
| Relative humidity | <90%RH | |
| Weight | 460g | |
| Dimension (H x W x D) | 192mm x 93mm x 44mm | |
| Safety and electromagnetic compatibility | IEC 61010-1:2001; IEC 61326-2-1:2005 | |
| Model | U822 | U822A | U822C | |
| Instrument Accessories | ||||
| Operation Manual | √ | √ | √ | |
| U26031 | 7.2V NI-MH rechargeable battery | √ | √ | √ |
| U26028 | AC adapter | √ | √ | √ |
| U26026 | Bananer plugs-crocodile clip test leads | √ | Optional | Optional |
| U26010 | Short-circuit plate | √ | √ | √ |
| U26027 | 4-terminal Kelvin test leads | Optional | √ | √ |
| U26029 | SMD 4-terminla Kelvin test Tweezers | Optional | Optional | √ |
| U26030 | Mini-USB communication cable | Optional | Optional | Optional |

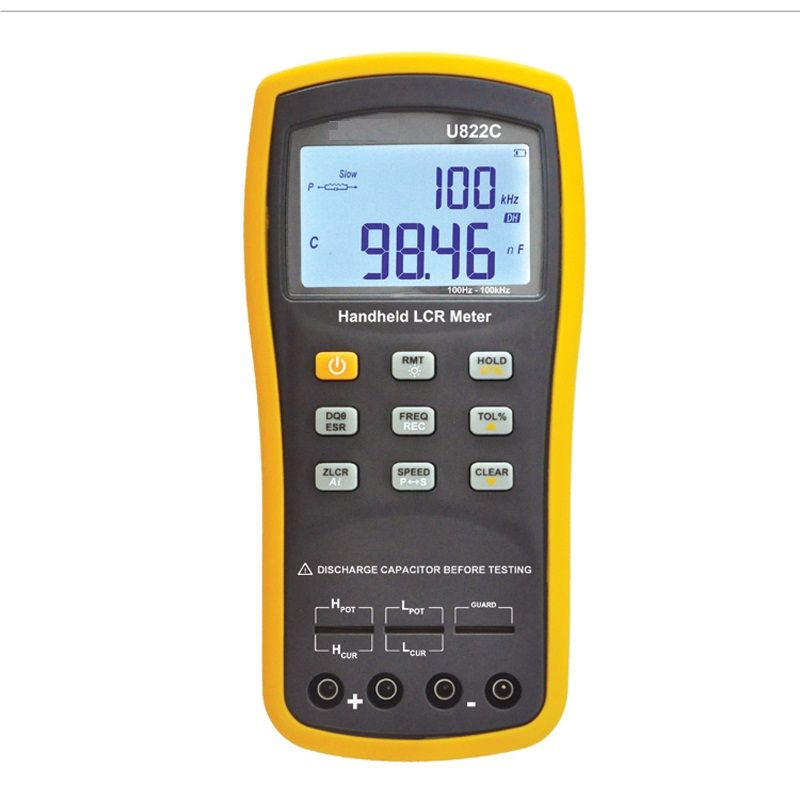

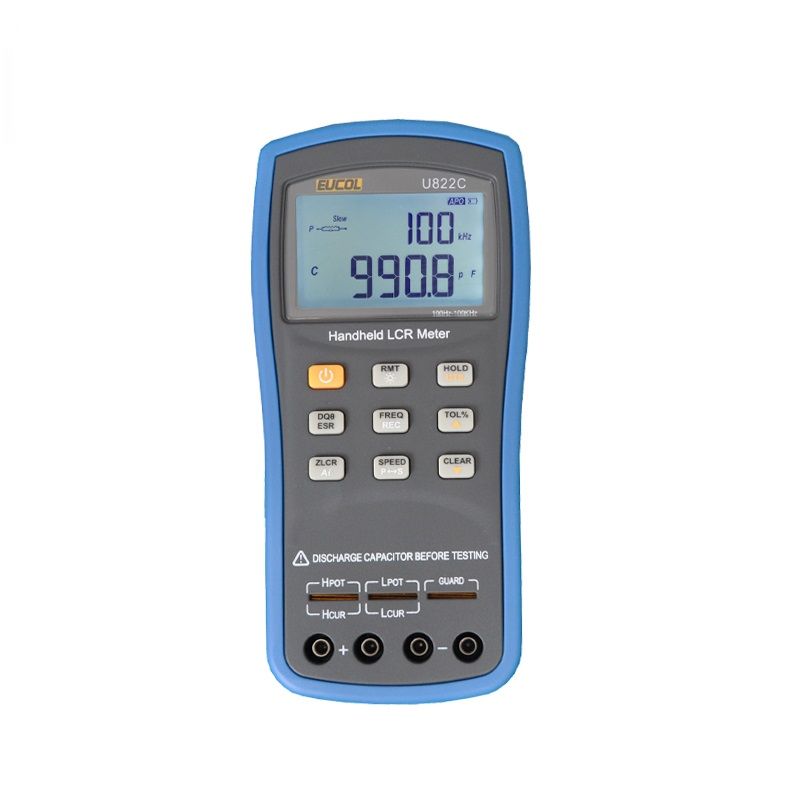

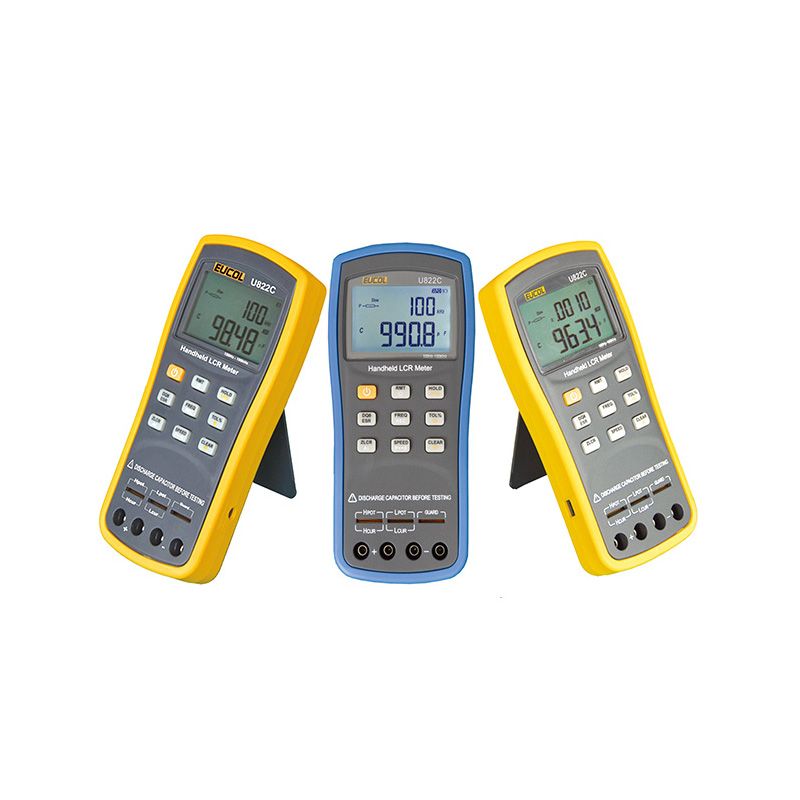

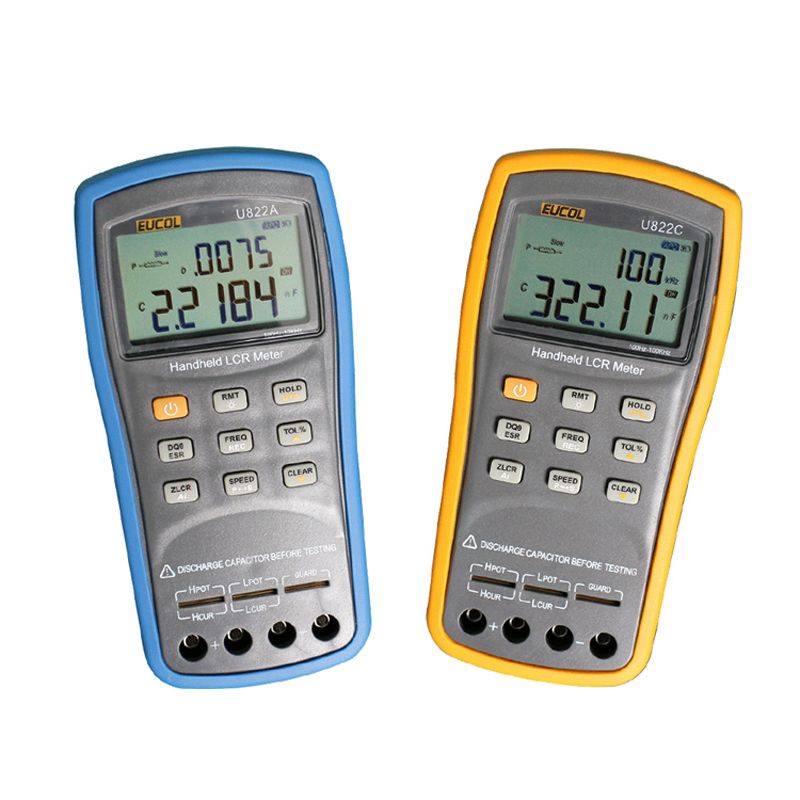

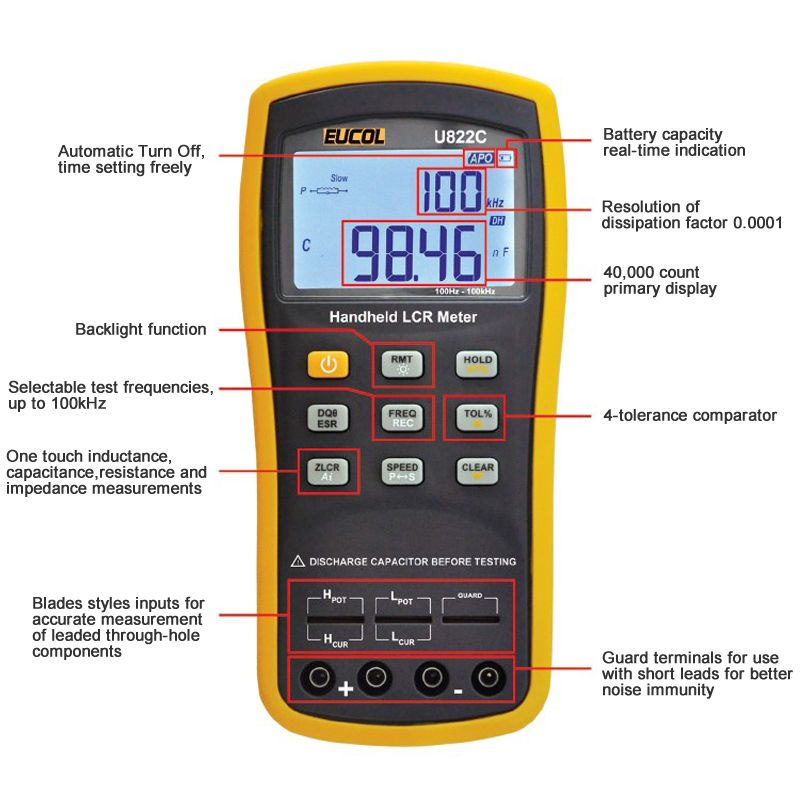

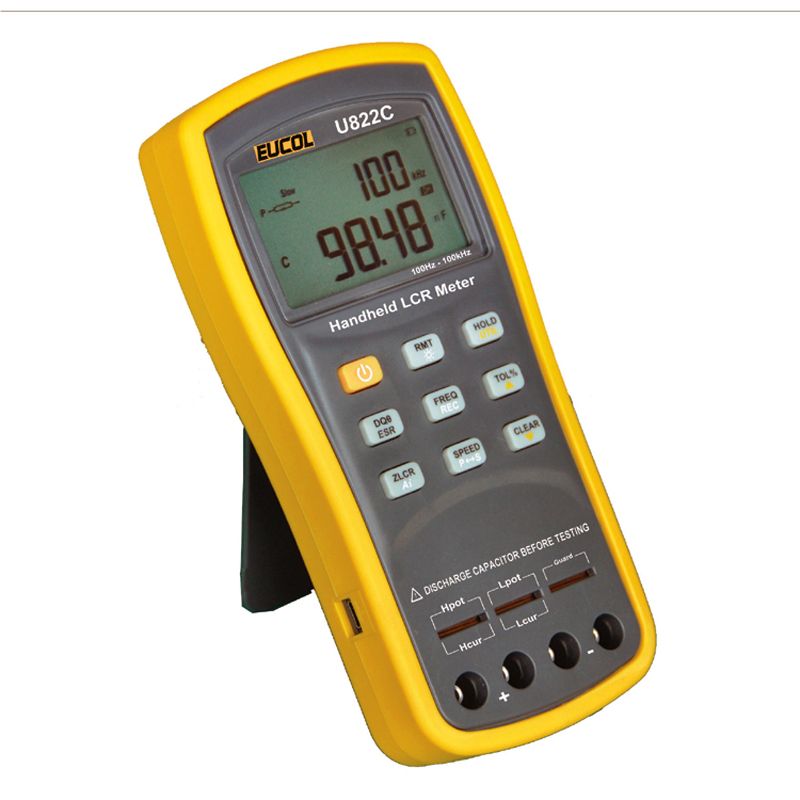

Details Pictures:
