UT123 3999 Counts Residential Multimeter HD ENTB Color Screen AC/DC Current and Voltage Test Resistance+Continuty+NVC+C/F Test Full Featured Protection Intelligent Battery Detection Function
- Stock: In Stock
- Model: EB004425
- SKU: EB004425
The UT123 is a pocket-size residential multimeter specially designed for home use. The compact structure makes it easy to hold in one hand, and the EBTN screen allows users to obtain clear readings at maximum angle. The multimeter is designed according to EN61010-1:2010,EN61010-2-030:2010, and EN61326-1:2013 safety standards and is able to safely operate within the CAT III 600V environment.
Specification:
| Function | Range | Resolution | Accuracy | Max measured value | Bandwidth | Overload protection | Input impedance |
| DC voltage | 4.000V | 0.001V | ± (0.5%+2) | ±600V | 600Vrms | 10MQ | |
| 40.00V | 0.01V | ||||||
| 400.0V | 0.1V | ||||||
| 600V | 1V | ± (0. 7%+3) | |||||
| AC voltage | 4.000V | 0.001V | ±(1.0%+3) | 600V | 40Hz—400Hz | 600Vrms | 10MQ |
| 40.00V | 0.01V | ||||||
| 400.0V | 0.1V | ||||||
| 600V | 1V | ||||||
| Resistance | 400.0Q | 0.10 | ±(1.0%+2) | 21 MQ | 600Vrms | ||
| 4.000kn | 0.001 kQ | ±(0.8%+2) | |||||
| 40.00kn | 0.01 kQ | ||||||
| 400.0kn | 0.1 kQ | ||||||
| 4.000MO | 0.001 MQ | ±(1.2%+3) | |||||
| 20.00MQ | 0.01 MQ | ±(1.2%+3) | |||||
| Centigrade | -40 〜4〇-C | rc | ±4 | 350*C | 600Vrms | ||
| 40 〜300 •0 | rc | ±(1.0%+5) | |||||
| Fahrenheit | -40〜104°F | 1°F | ±6T | 662T | |||
| 104〜572T | 1°F | ± (2.0%+6) |
| Operating conditions | |
| Operating temperature | 0°C~40°C (32°F~104°F) |
| Storage temperature | -10°C~50°C (14°F-122°F) |
| Relative humidity | 0 °C~ below 30 °C; <75% 30°C~40°C: <50% |
| Altitude | 0~2000m |
| Battery | AAA battery 1.5V x 2(not included) |

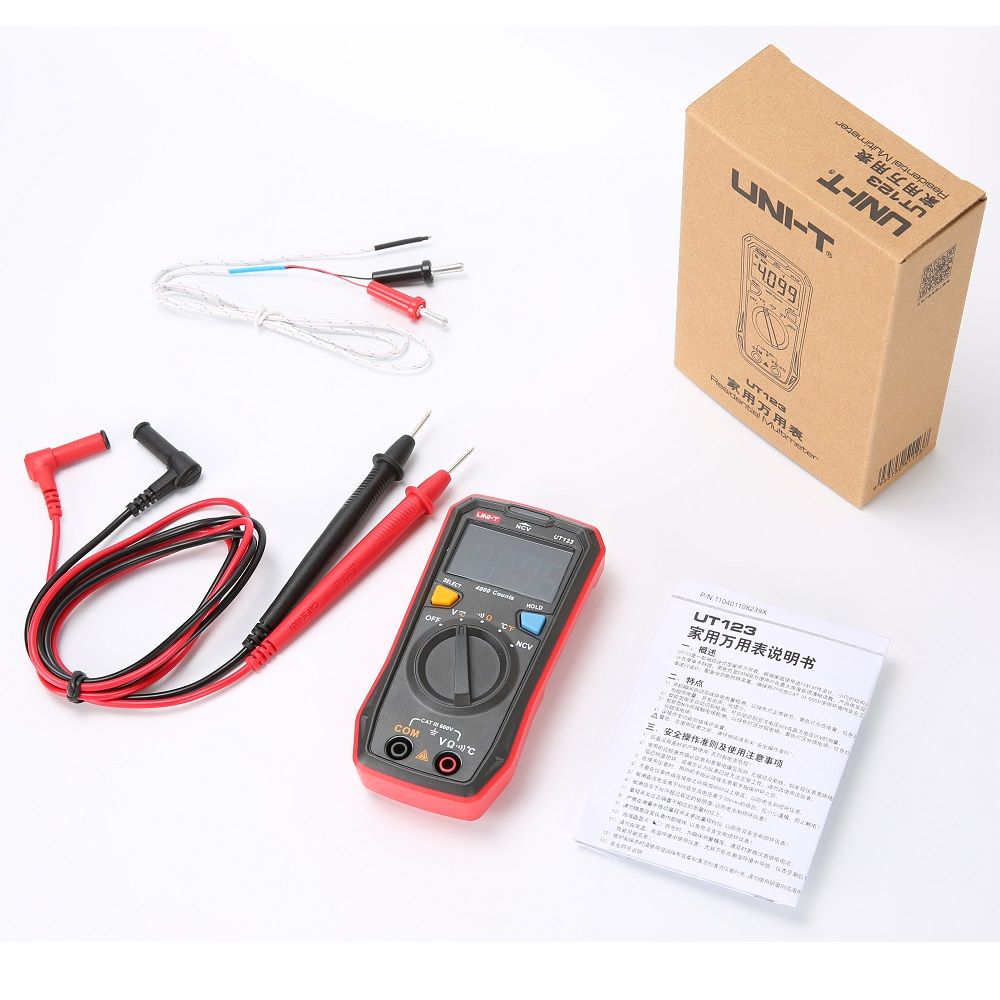

1 x Multimeter
1 x One Pair of Test Pens
1 x English User Manual
1 x Temperature Probe

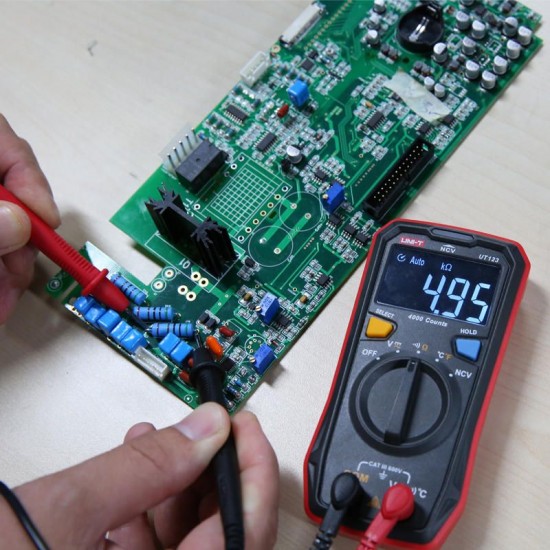

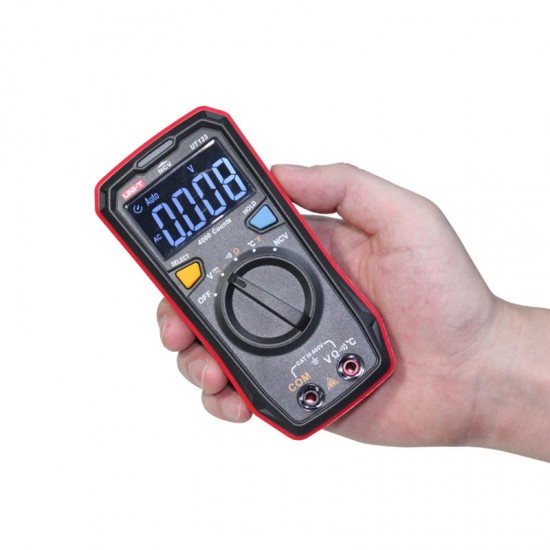

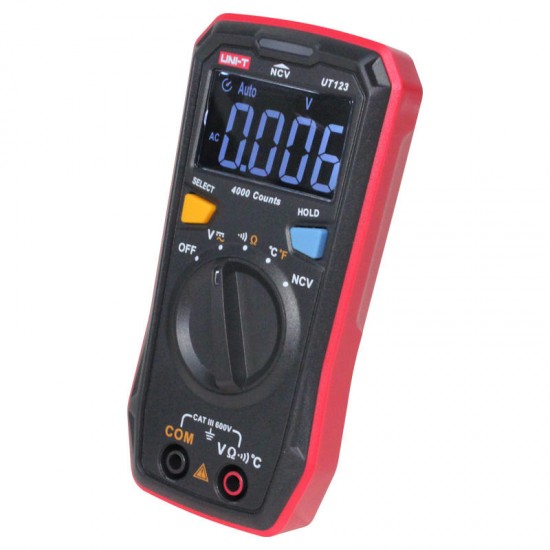

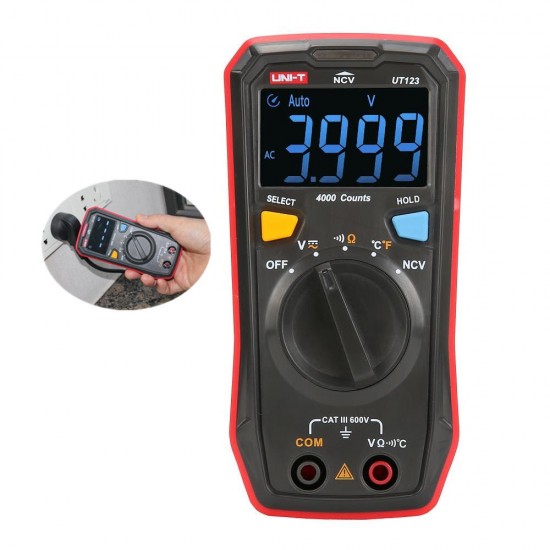

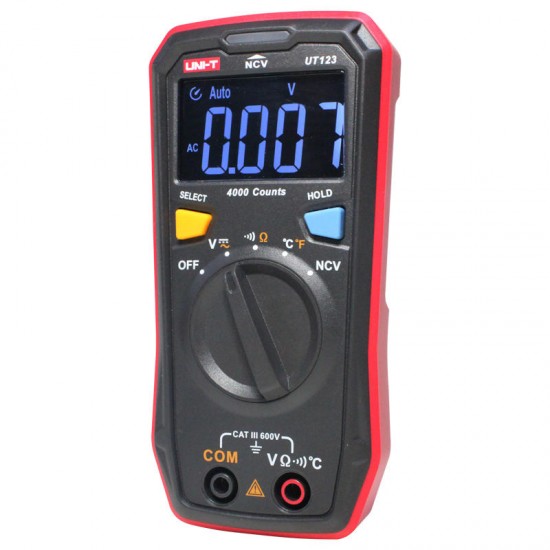

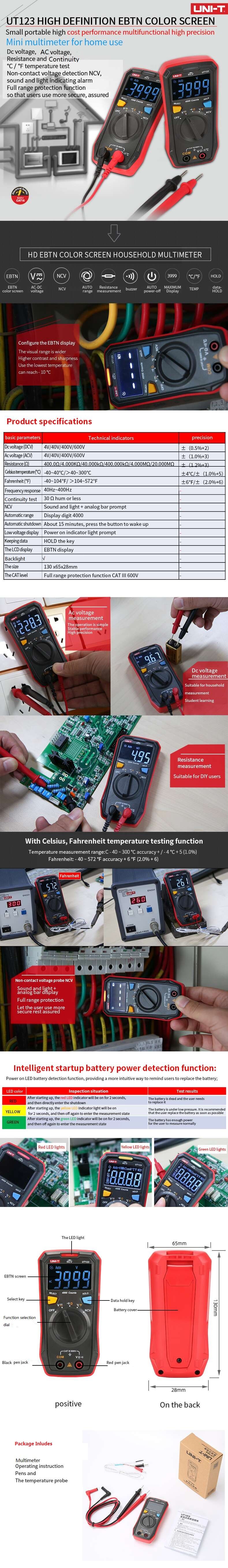

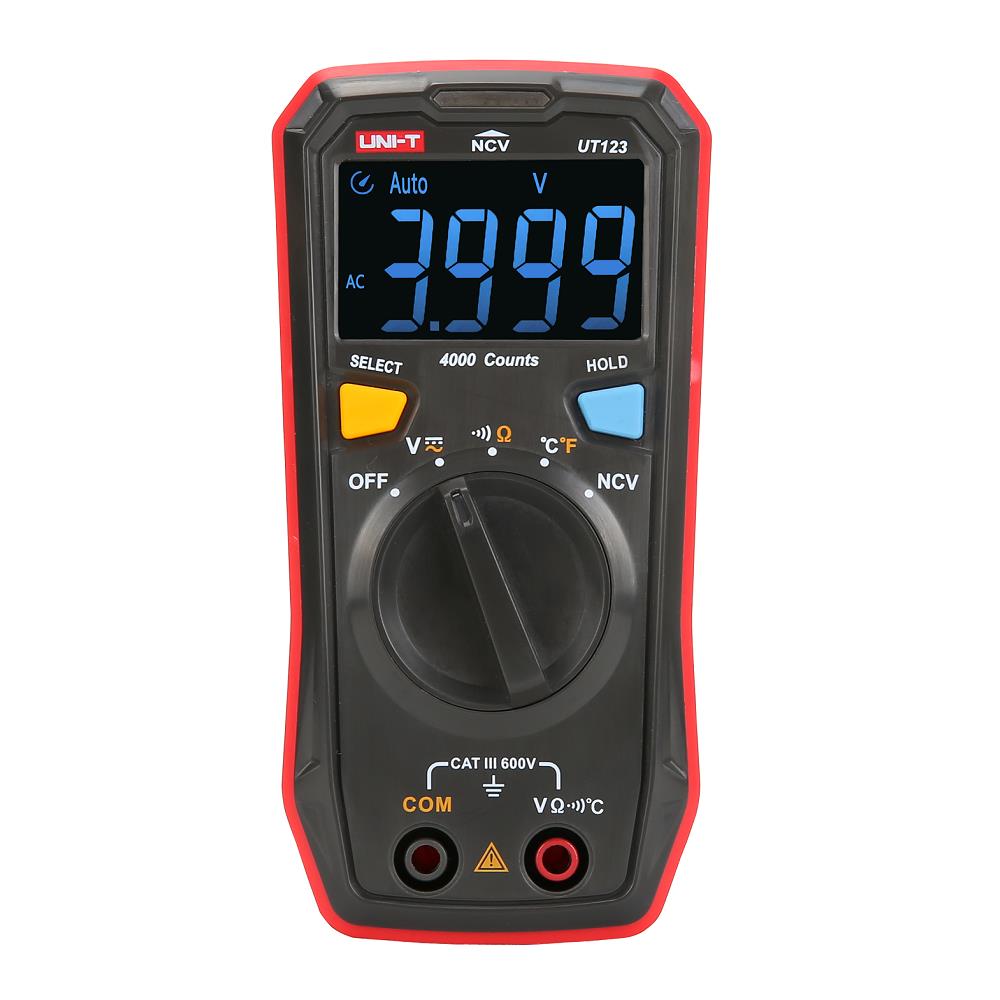

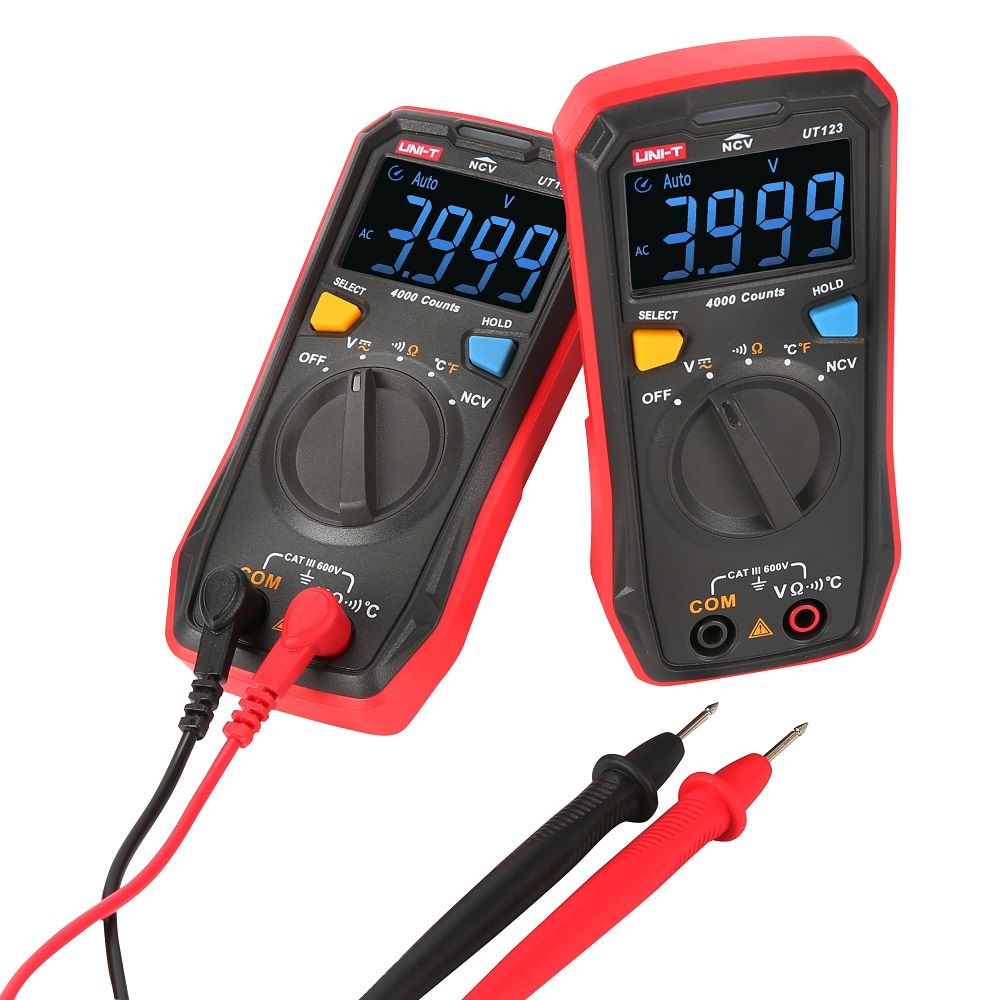

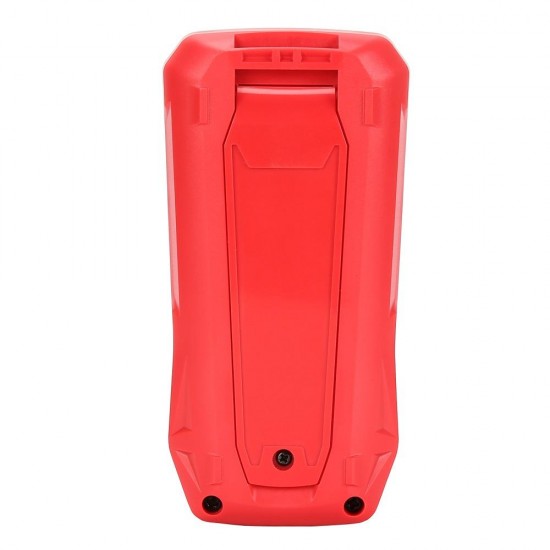

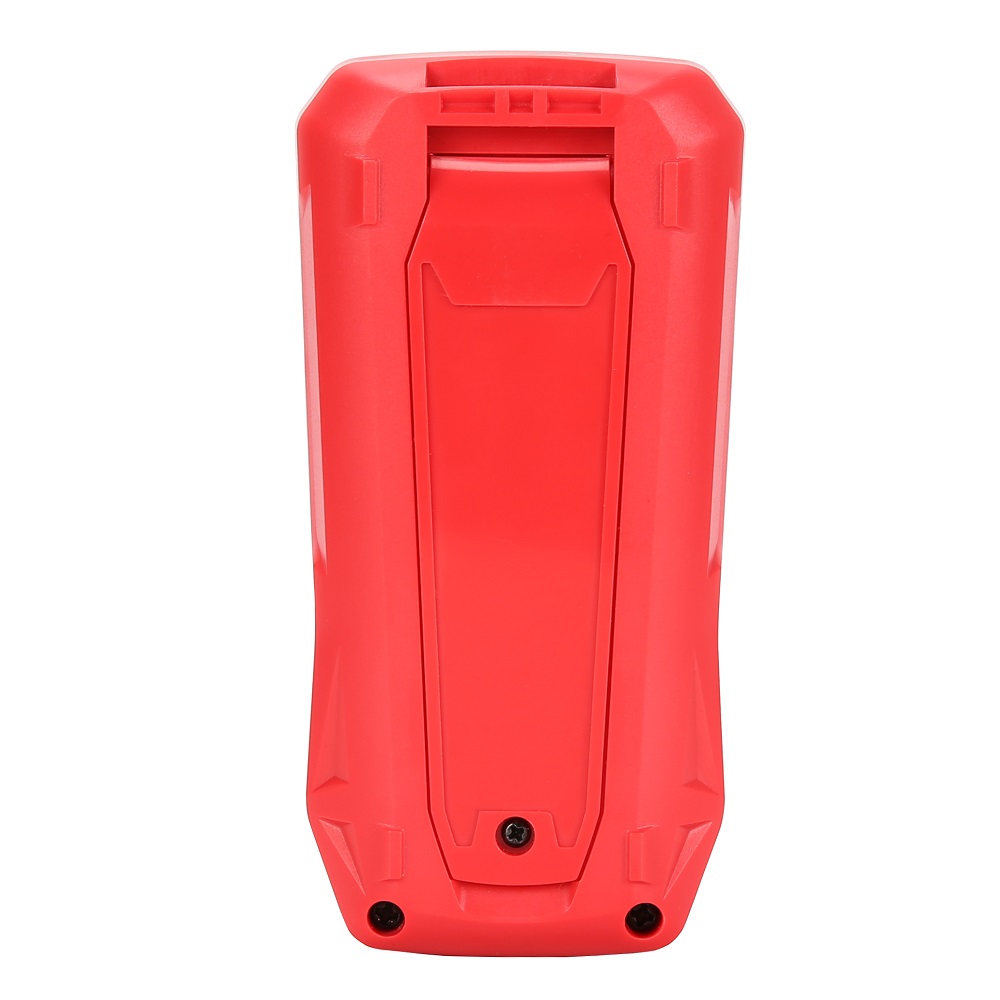

Details pictures:
