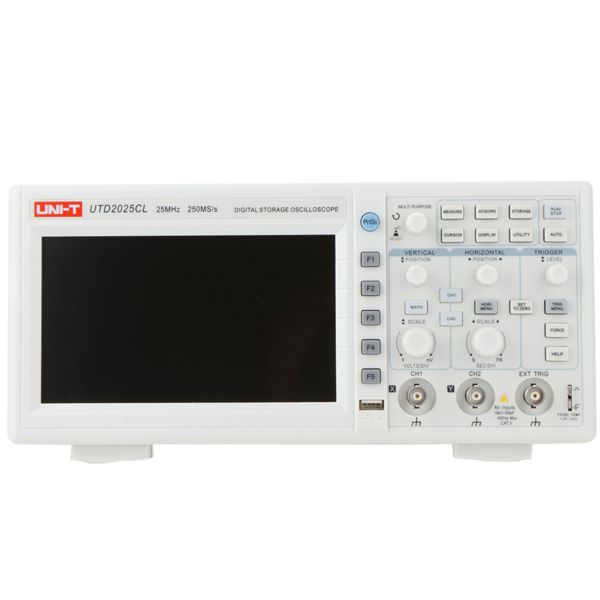

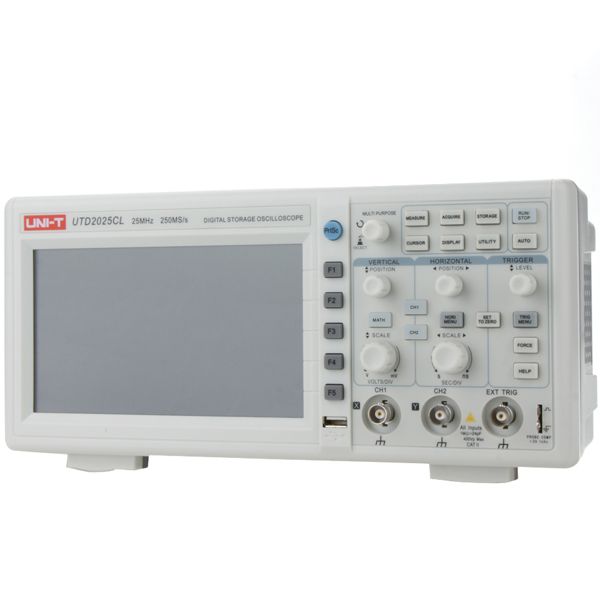

UTD2025CL 25MHz 250Ms/s Digital Storage Oscilloscope DSO 2Channels 7inch TFT LCD Scopemeter
- Stock: In Stock
- Model: EB004617
- SKU: EB004617

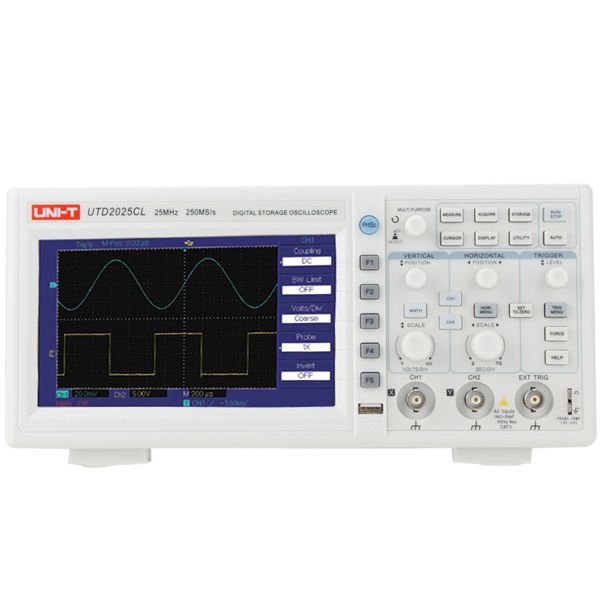

UNI-T UTD2025CL 25MHz 250Ms/s Digital Storage Oscilloscope DSO 2Channels 7'inch TFT LCD Scopemeter with USB OTG
Brand: Renhotec
Features:
| Specification | UTD2025CL |
| Channels | 2 |
| Bandwidth | 25MHz |
| Sample Rate | 250Ms/s |
| Rise Time | ≤14ns |
| Memory Depth | 25kpts |
| Waveform Acquisition Rate | ≥2000wfms/s |
| Vertical Sensitivity | 1mV/div~20V/div |
| Timebase Range | 10ns/div~50s/div |
| Storage | Setup,Wave,Bitmap |
| Trigger Modes | Edge, Pluse, Video, Alternate |
| Interface | USB OTG,Pass/Fail |
| General Characteristic | |

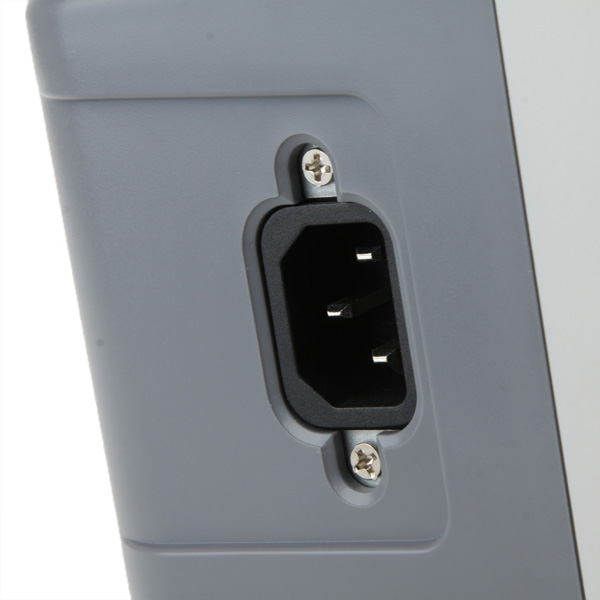

| Power | 100-240VAC, 40-440Hz |
| Display | 7 Inches 64K Color TFT LCD, 400×240 |
| Product Color | White and Gray |
| Product Net Weight | 2.2 Kg |
| Product Size (W×H×D) | 306mm ×147mm × 122mm |

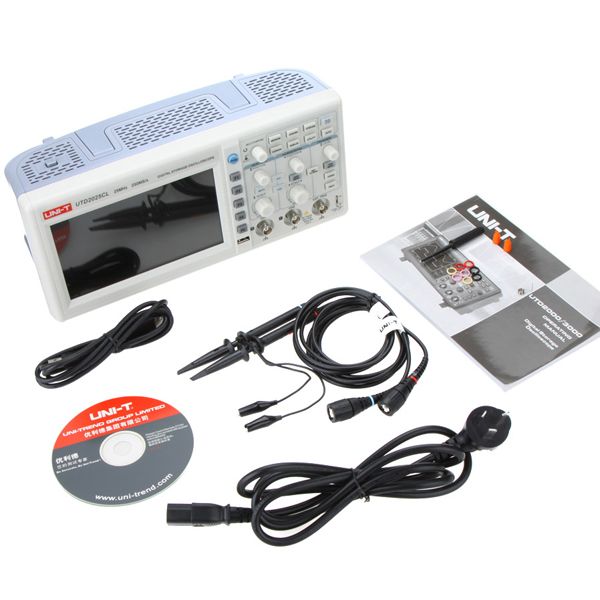

| Standard Accessories | Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2 PCs |
| Standard Carton Measurement (L×W×H) | 450mm × 420mm × 280mm |
| Standard Carton Cross Weight | 8.5 Kg |
