UTD2102CEX Digital 2 Channels 1G 100MHz 7 Inch TFT LCD Storage Oscilloscope
- Stock: In Stock
- Model: EB004561
- SKU: EB004561

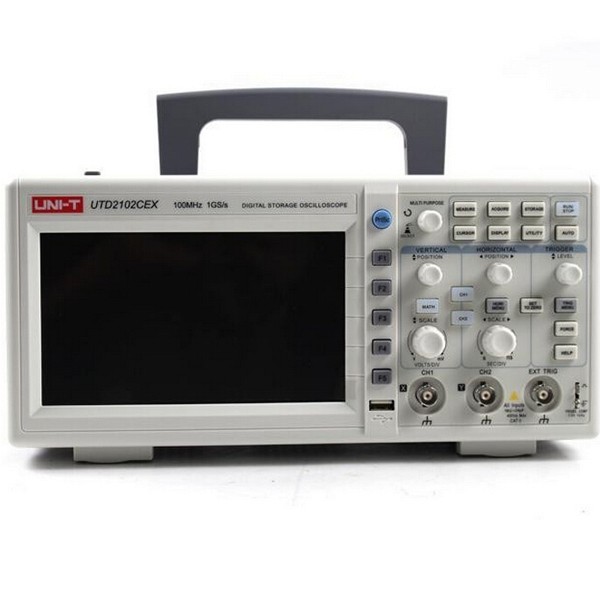

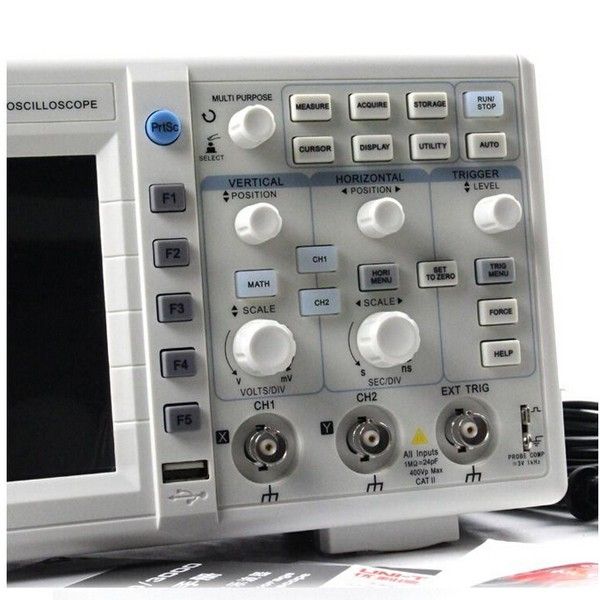

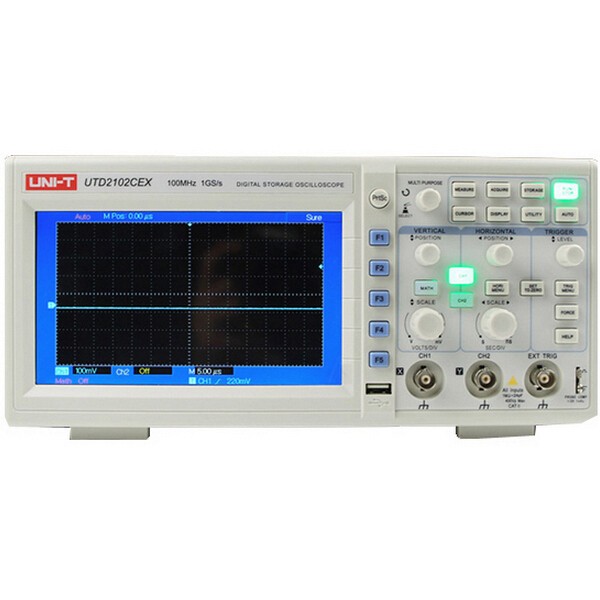

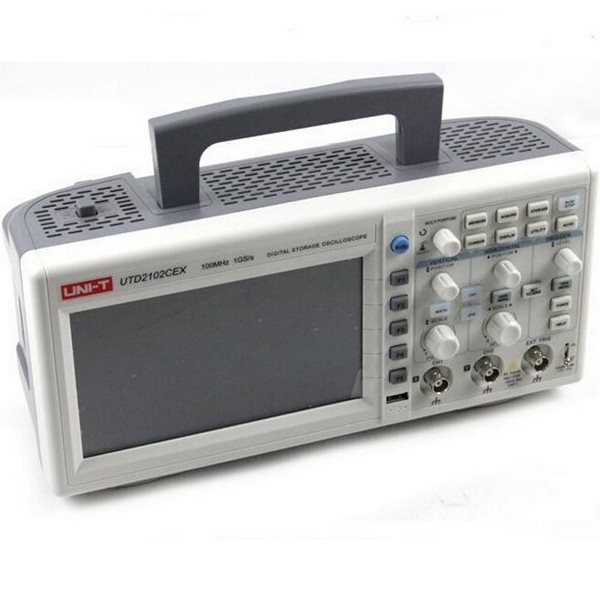

UNI-T UTD2102CEX Digital 2 Channels 1G 100MHz 7'' TFT LCD Storage Oscilloscope
Features:
1. Dual analog channels width range 1mV/div~20V/div;
Specification:
| Model | UNI-T UTD2102CEX |
| Channels | 2 |
| Bandwidth | 100MHz |
| Sample Rate | 1Gs/s |
| Rise Time | ≤3.5ns |
| Memory Depth | 25kpts |
| Waveform Acquisition Rate | ≥2000wfms/s |
| Vertical Sensitivity(V/div) | 1mV/div~20V/div |
| Timebase Range(s/div) | 2ns/div~50s/div |
| Storage | Setup,Wave,Bitmap |
| Trigger Modes | Edge, Pluse, Video,Slope,Alternate |
| Interface | USB OTG |
| General Characteristic | |
| Power | 100-240VAC, 45-440Hz |
| Display | 7 Inches 64K Color TFT LCD, 800×480 |
| Product Color | White and Gray |
| Product Net Weight | 2.2 Kg |

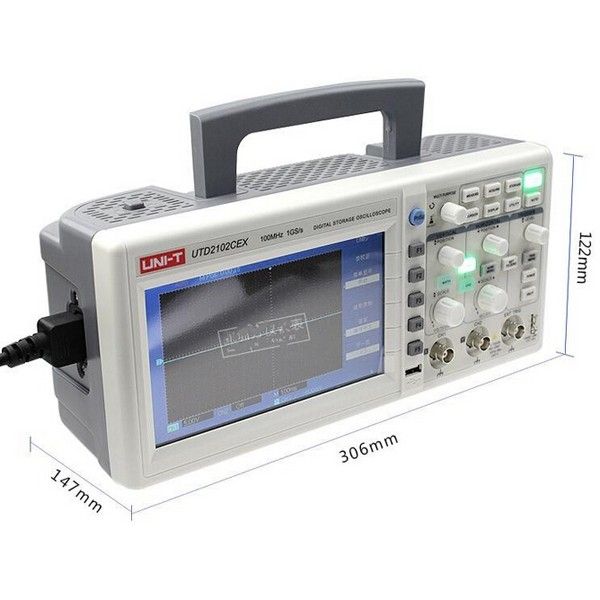

| Product Size (W×H×D) | 306mm ×147mm × 122mm |

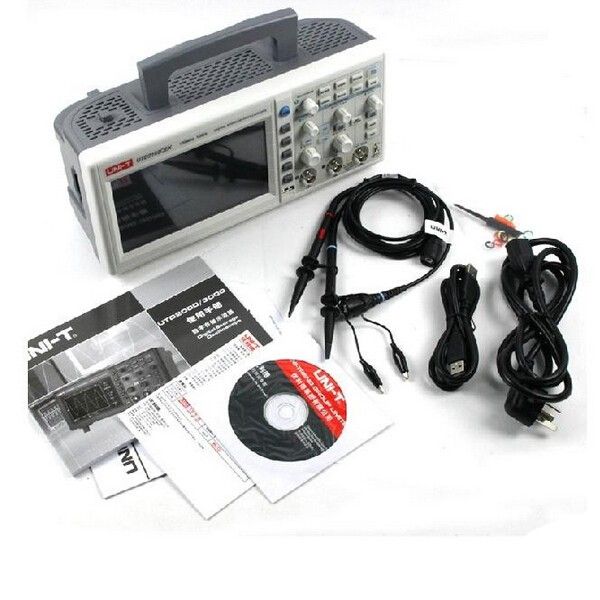

| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD |
| Standard Individual Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 2 PCs |
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm |
,
,
,
,
,
,
