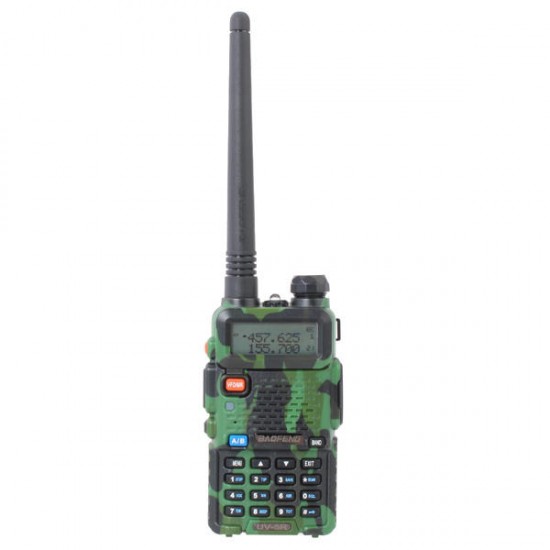

UV-5R Dual Band Handheld Transceiver Radio Walkie Talkie
- Stock: In Stock
- Model: EB0024971
- Dimensions: 8.00in x 4.00in x 5.00in
- SKU: EB0024971
Description :

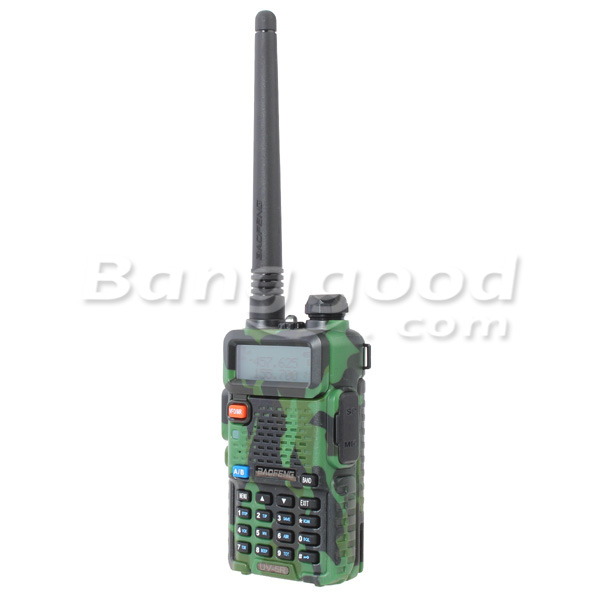

BAOFENG UV-5R Camouflage Dual Band Handheld Transceiver Radio Walkie Talkie in GREEN CAMOUFLAGE
Features :
Frequency Range : 136-174 / 400-480MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
A/B band independent operation
128 groups channels storage
VFO & Memory channels scan
Shortcut menu operation mode
FM Radio (65.0MHz-108.0MHz)Built-in VOX Function
1750Hz Brust Tone
LED Flashlight
Large LCD Display
Battery Saver
Low Battery Alert
Emergency Alarm
Monitor Channel
ROGER SET
Tri-color background light selectable
0-9 grades VOX selectable
PTT & ANI ID FM radio
Keypad Lock
Channel Step : 2.5/5/6.25/10/12.5/25KHz
PC programmable
Voice companding 50 CTCSS/ 104DCS coder & tone searching
Wide/Narrow Band Switchable (25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low RF / TX power selectable
Busy channel lock-out(BCLO)
Specifications :
Brand : Renhotec
Model : UV-5R
Language : Can set to English
Frequency Range : 65-108MHz(FM) 136-174MHZ and 400-480HZ (TX/RX)
Channel No. : 128
Frequency Stability : ±2.5ppm
Antenna : High gain DualBand antenna
Antenna Impedance : 50Ω
Operating Voltage : DC 7.4V
Mode of operation : Simple or semi-duplex
Dimension(W x H x D) : 100 x 52 x 32 mm
Weight : about 560g (including battery, antenna)

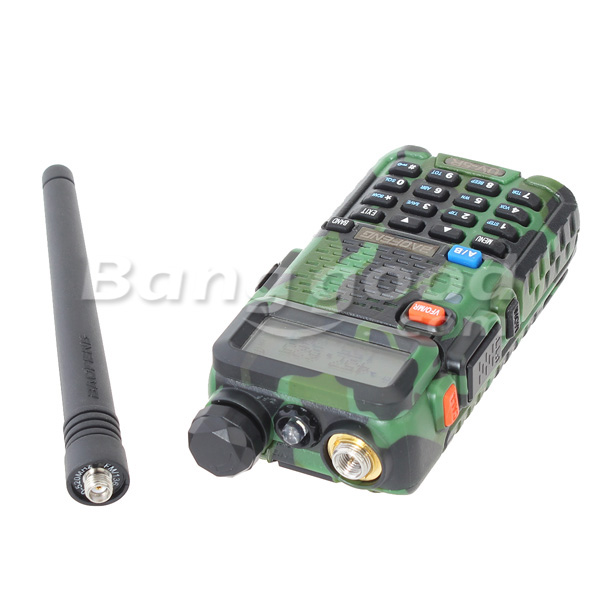

Antenna : SMA -Female
Earpiece / mic type : Kenwood Plug type
Transmitter
Output power : 4W / 1W (Max 5W)
Modulation Mode : 16kΦF3E / 11kΦF3E
Maximum deviation : 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation : 7μW
Adjacent Ch. power : ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics : 6dB
Current : ≤1.6A(5W)
CTCSS/DCS deviation : 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity : 8-12mv
Intermediation distortion : ≤10%
Package included :
1 x Baofeng UV-5R Camouflage Dual Band Handheld Radio

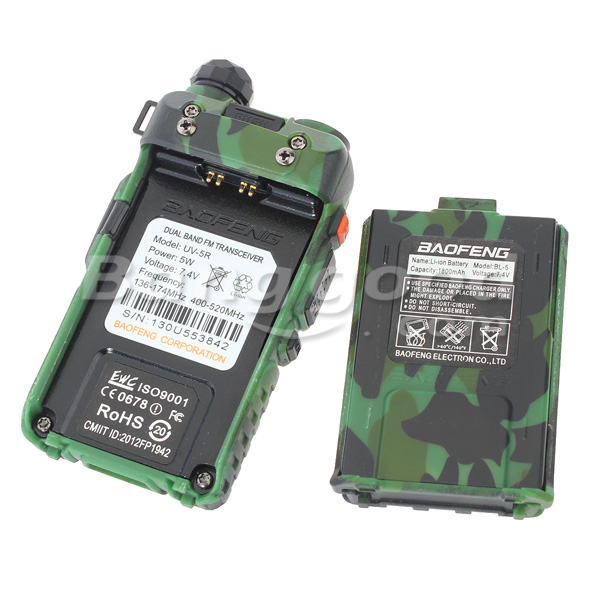

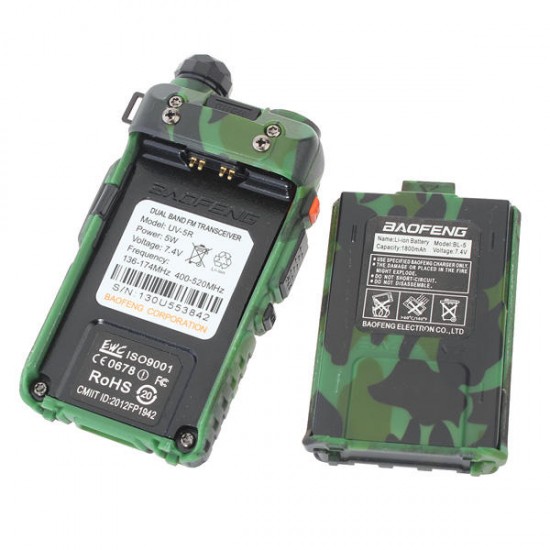

1 x 7.4V 1800mah Battery Pack
1 x Band Antenna

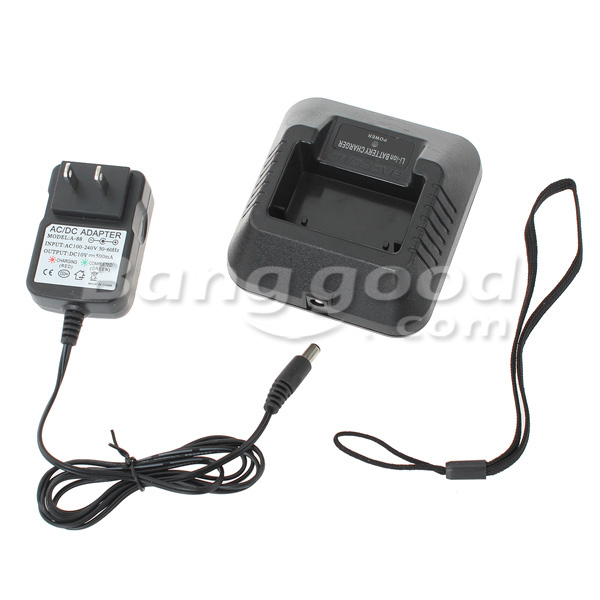

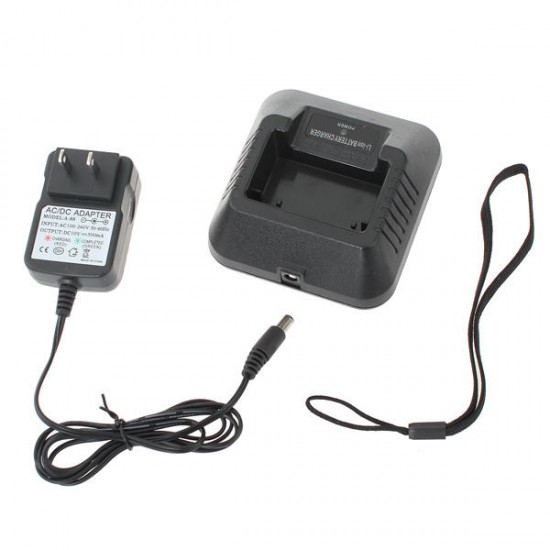

1 x Desktop Charger
1 x AC/DC Adapter (100-240V)
1 x Belt Clip

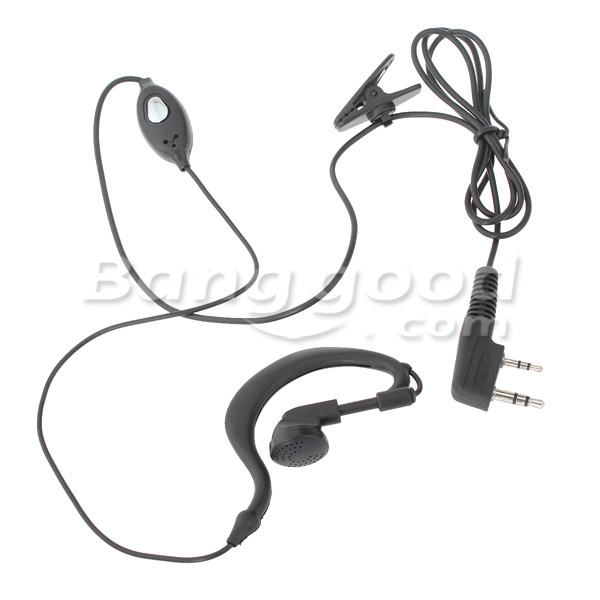

1 x Earphone for free
1 x Hang Rope
1 x English user Manual
This SKU103387 will sell as : Green Camouflage
And SKU103711 will sell as : Blue
And SKU103390 will sell as : Yellow
And SKU103712 will sell as : Red
And SKU050668 will sell as : Black
please choose the one suit for you, hope our customer love it :)

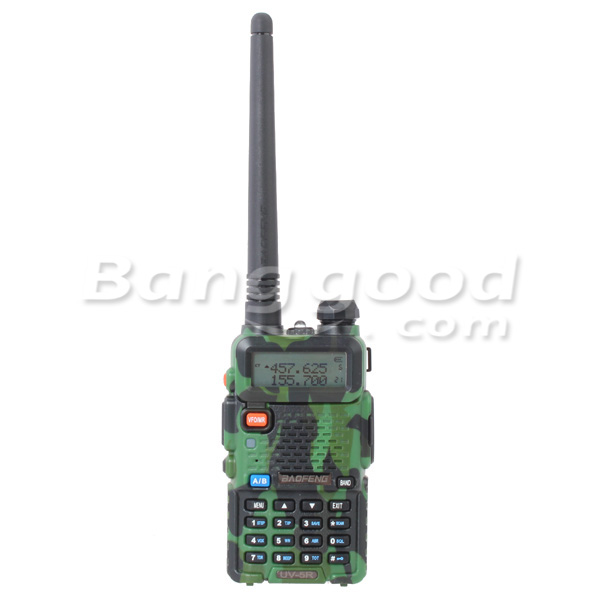

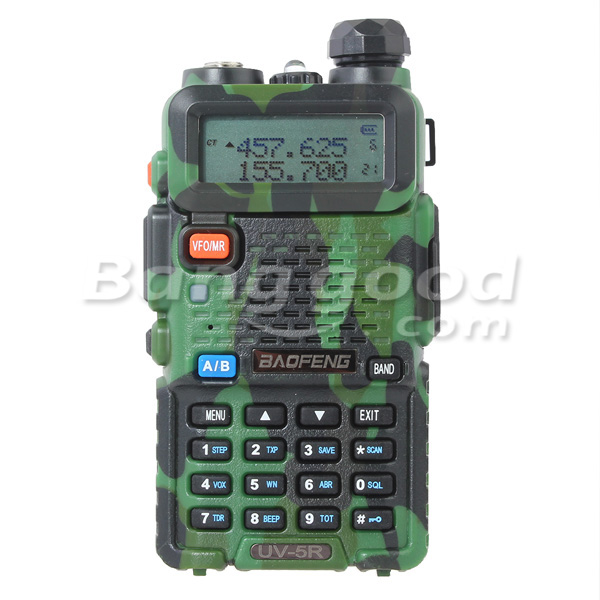

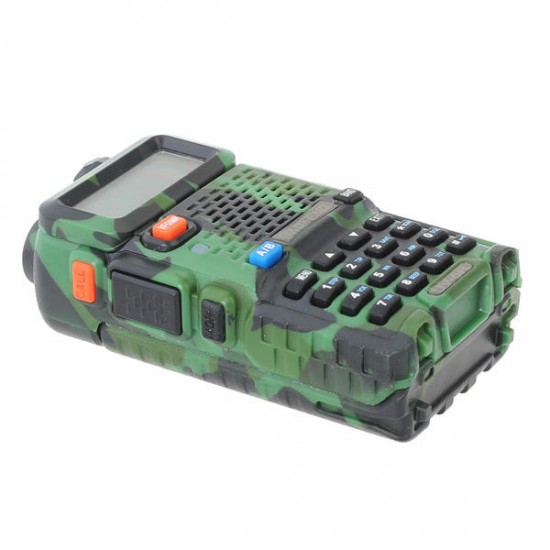

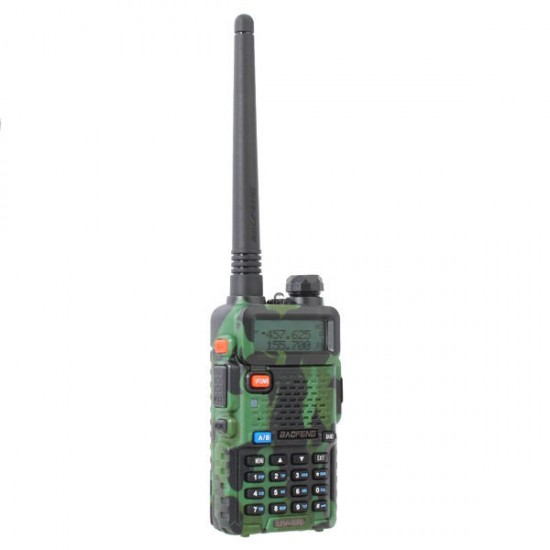

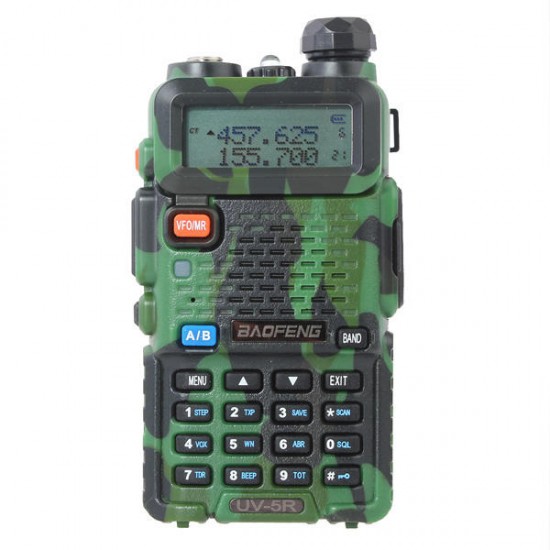

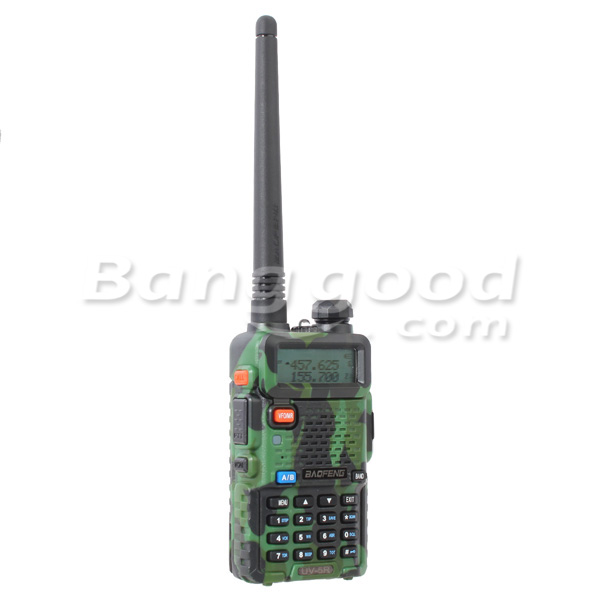

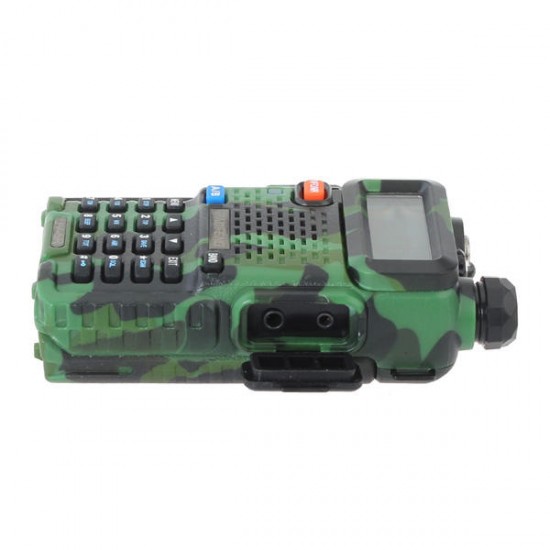

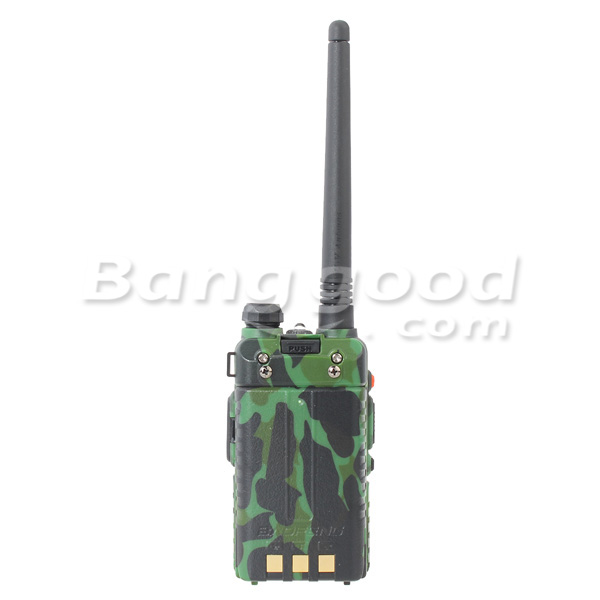

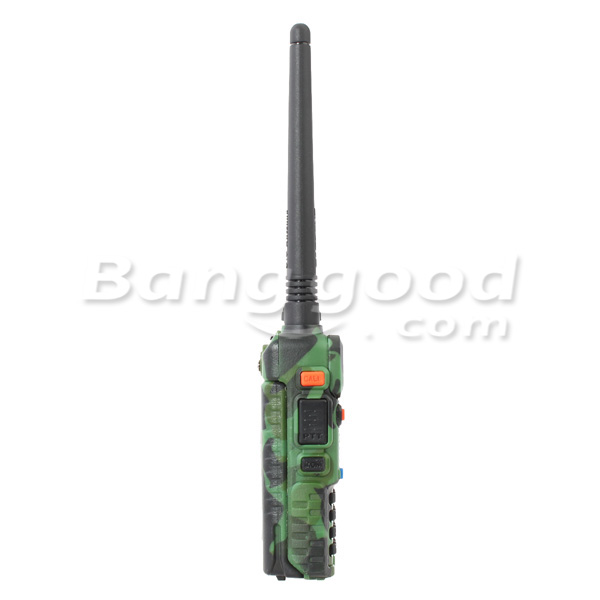

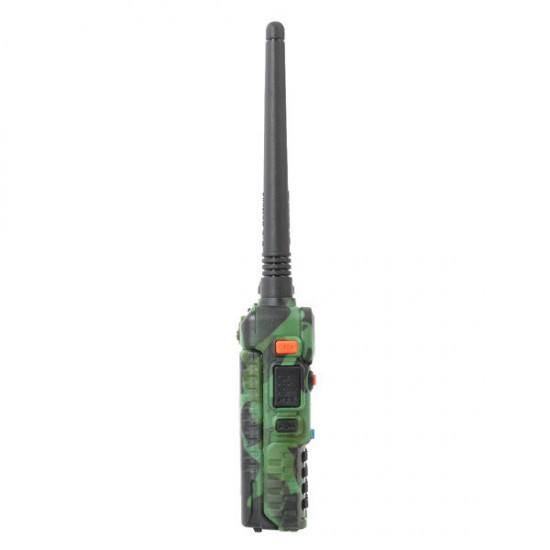

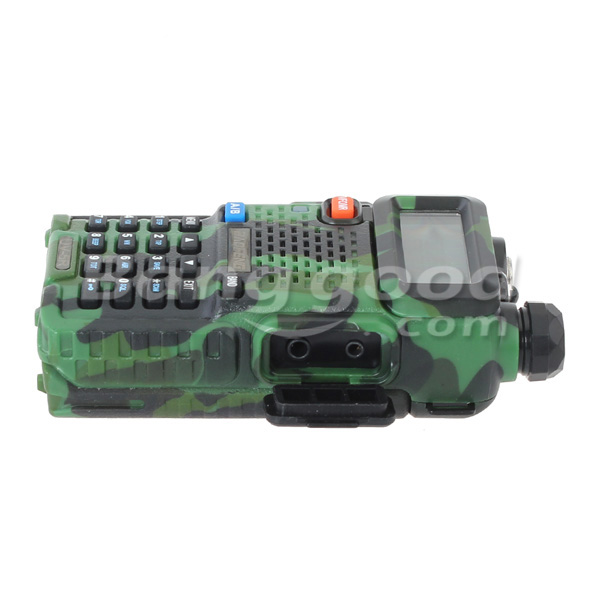

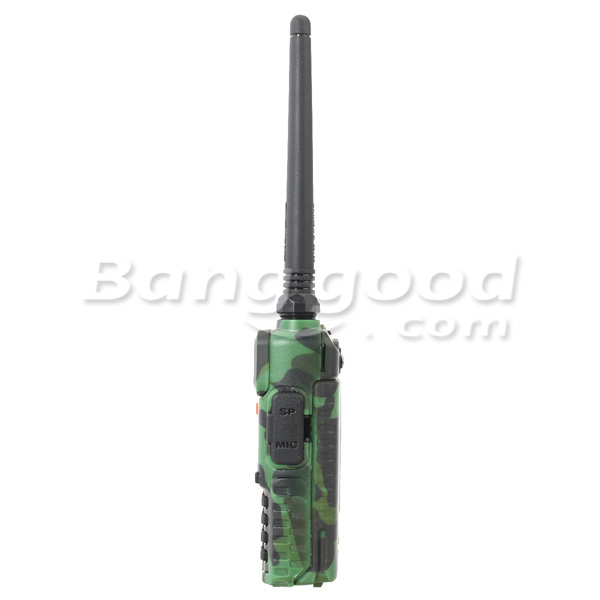

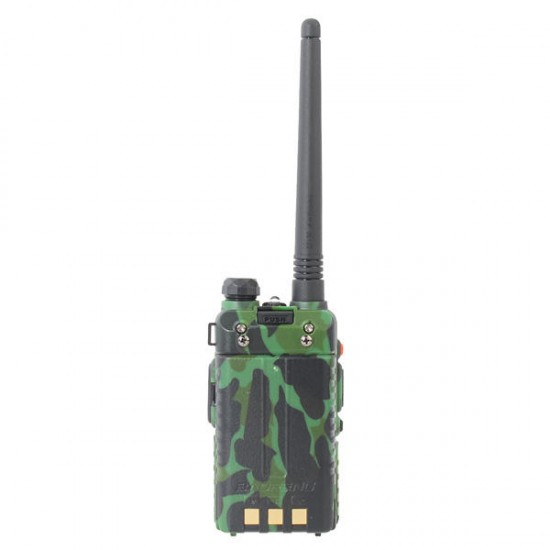

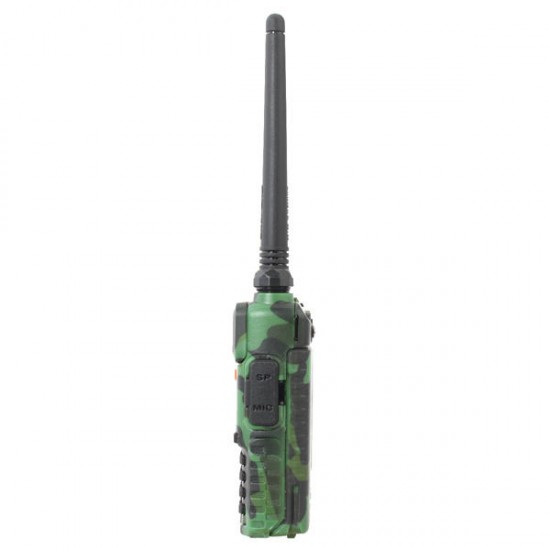

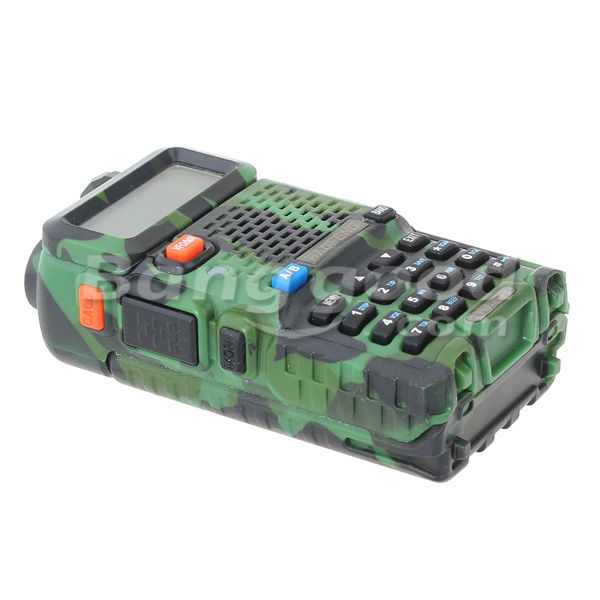

Details pictures :
