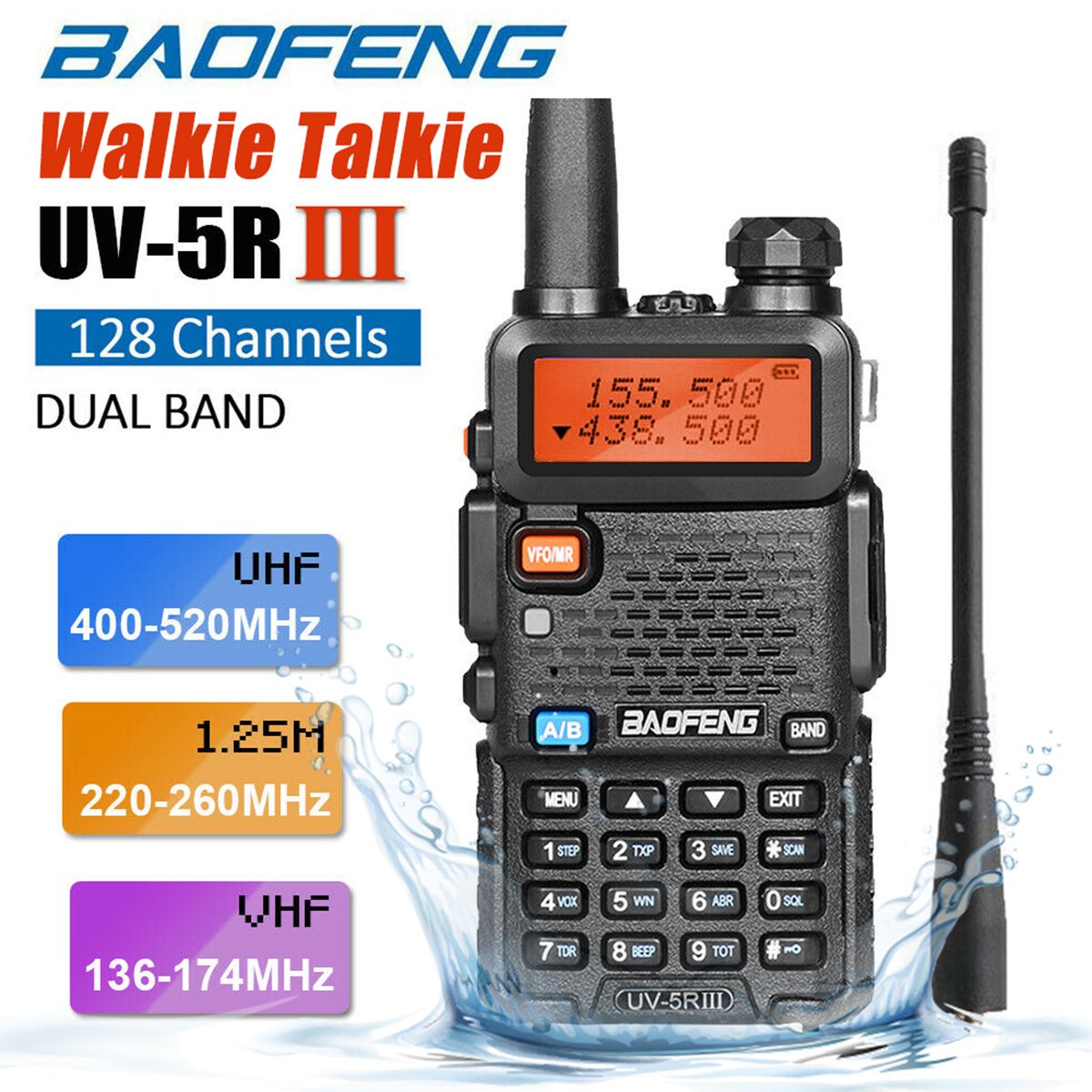

UV-5R ?Walkie Talkie 136-174MHz 220-260MHz 400-520MHz Two Way Radio

Based on 0 reviews. - Write a review

$41.03

Ex Tax: $41.03

Stock: In Stock
Model: EB0024860
Dimensions: 5.80cm x 3.20cm x 11.00cm
SKU: EB0024860

Available Options

Plug

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

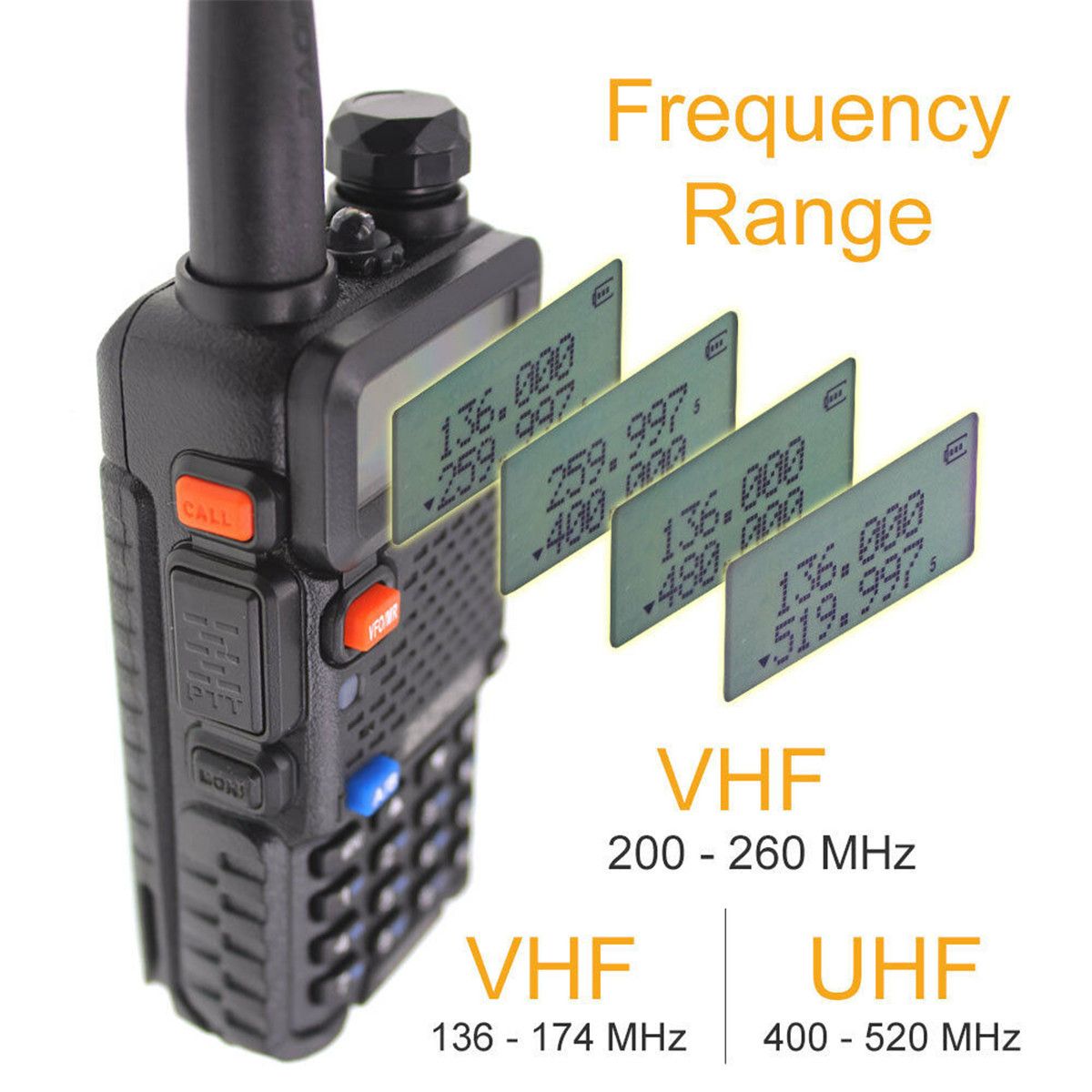

Frequency range in 136-174/220-260(maixmum259.975MHz)/400-520MHz

Software same as UV-5R Dual band( please notice)

Tri-band Dual-display dual standby

FM radio 65-108MHz and 25 stations storage

VFO & Memory channels

Time-out Timer (TOT)

PTT & ANI ID

Voice companding

High/Low TX power selectable

DTMF function

Shortcut menu operation mode

Emergency Alarm

0~9 grades selectable

Busy channel lock-out(BCLO)

OFF SET function

Scanning function

Monitor function

Channel name display and editing

Signal strength indicator

Keypad lock function

Built-in Led torch

Low battery alarm

Power saving function

ROGER SET

English voice prompt

PC software programmable

50 CTCSS/104 DCS

Specification:

Frequency (TX& RX): 136-174MHz 220-260MHz 400-520MHz

Channel: 128

Rated Voltage: 7.4V DC±10%

Output power: ≤ 5W /1W

Battery type: Li-ion battery

Battery capacity: 1800mAh

Working temperature: -20~+50°C

Antenna Impedance: 50Ω

Weight: 255g

Dimension(L × W × H): 5.8 × 3.2 × 11cm/2.83" x 1.26" x 4.33" (Not Antenna)

Channel Step: 2.5/5/6.25/10/12.5/25KHz

Frequency stability: ±2.5ppm

Carrier wave tolerance: 5ppm

Modulation: 16kΦF3E / 11kΦF3E

Max frequency deviation: < 5kHz(Wide)/ < 2.5kHz(Narrow)

Emission current: < 1.6A(5W)

CTCSS / DCS: 0.5±0.1kHz(Wide)/ 0.3±0.1kHz(Narrow)

Sensitivity: < 0.16μV(12dB SINAD)

Silent sensitivity: < 0.2μV

Intermediation Distortion: <10%

Inter modulation: 8-12mv

Adjacent channel selectivity( wide/narrow): <-65dB(Wide)/ <-60dB(Narrow)

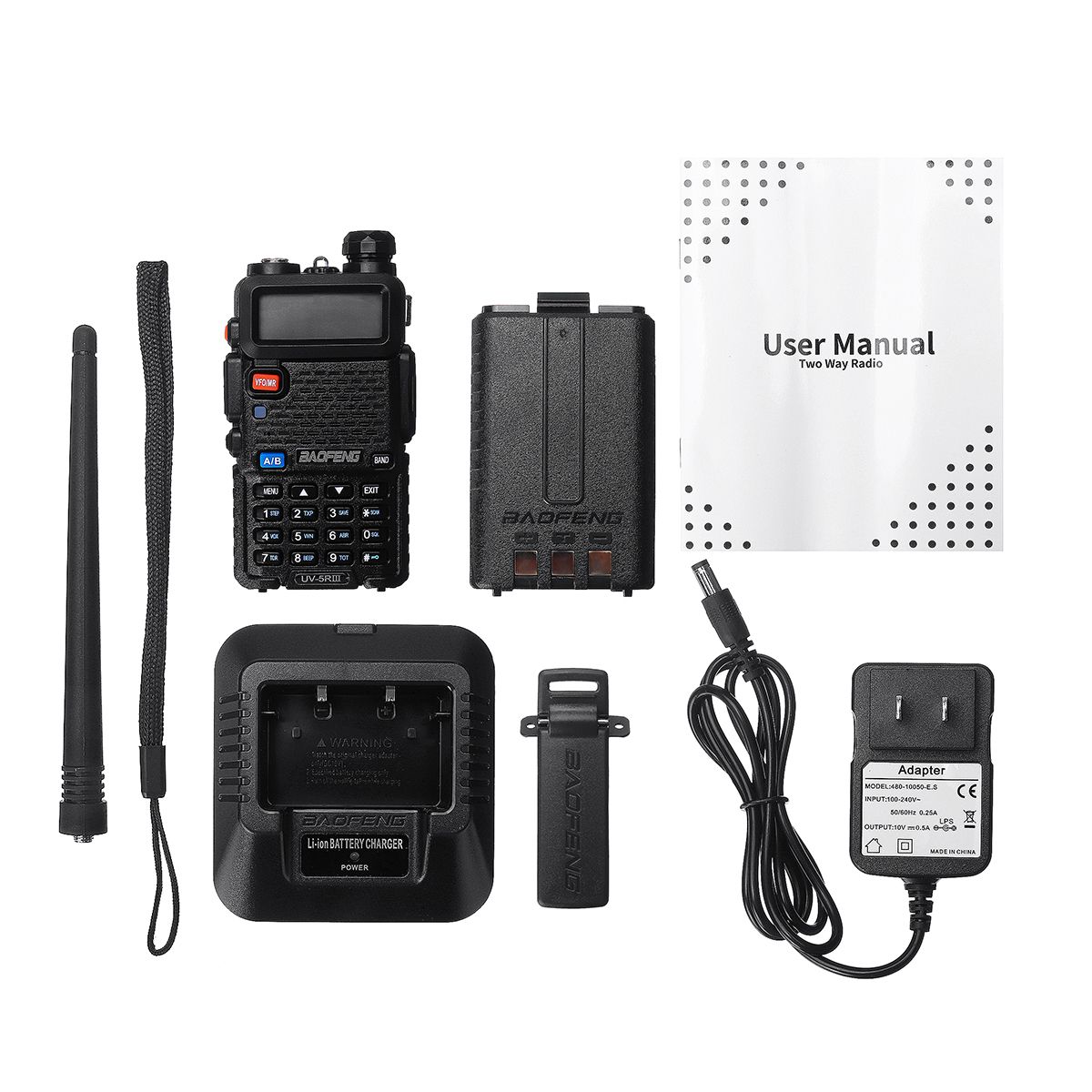

Package Included:

1 x Portable Radio

1 x Li-ion Battery

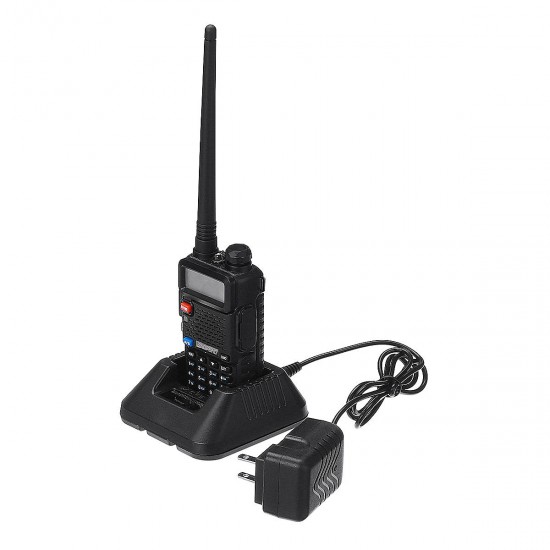

1 x Desktop Charger ( 100V ~ 240V )

1 x Belt Clip

1 x Hand Strap

1 x Ear Hock Earpiece

1 x English Manual

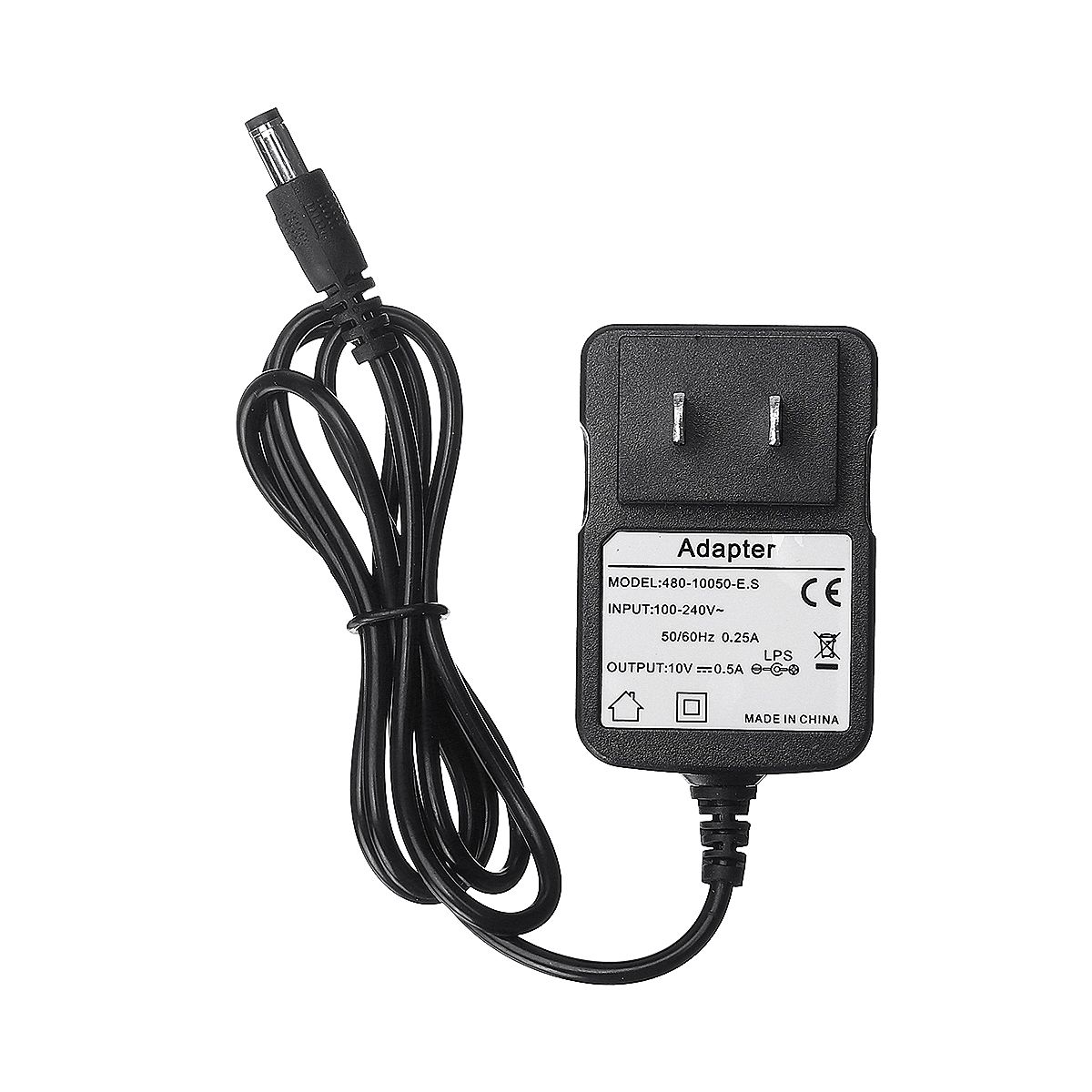

1 x Power Adapter(According to different countries, we will send corresponding adapter.)

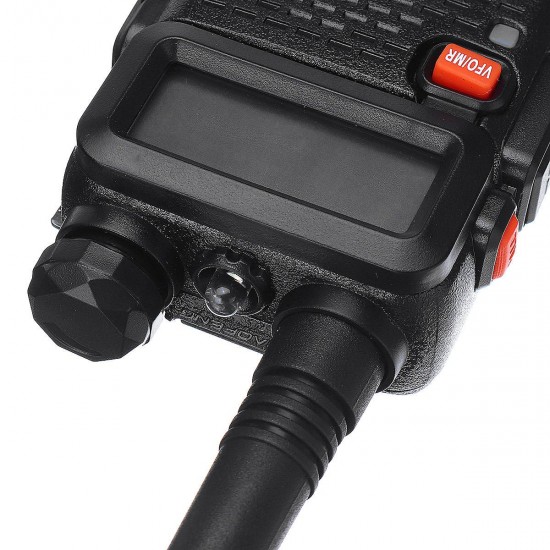

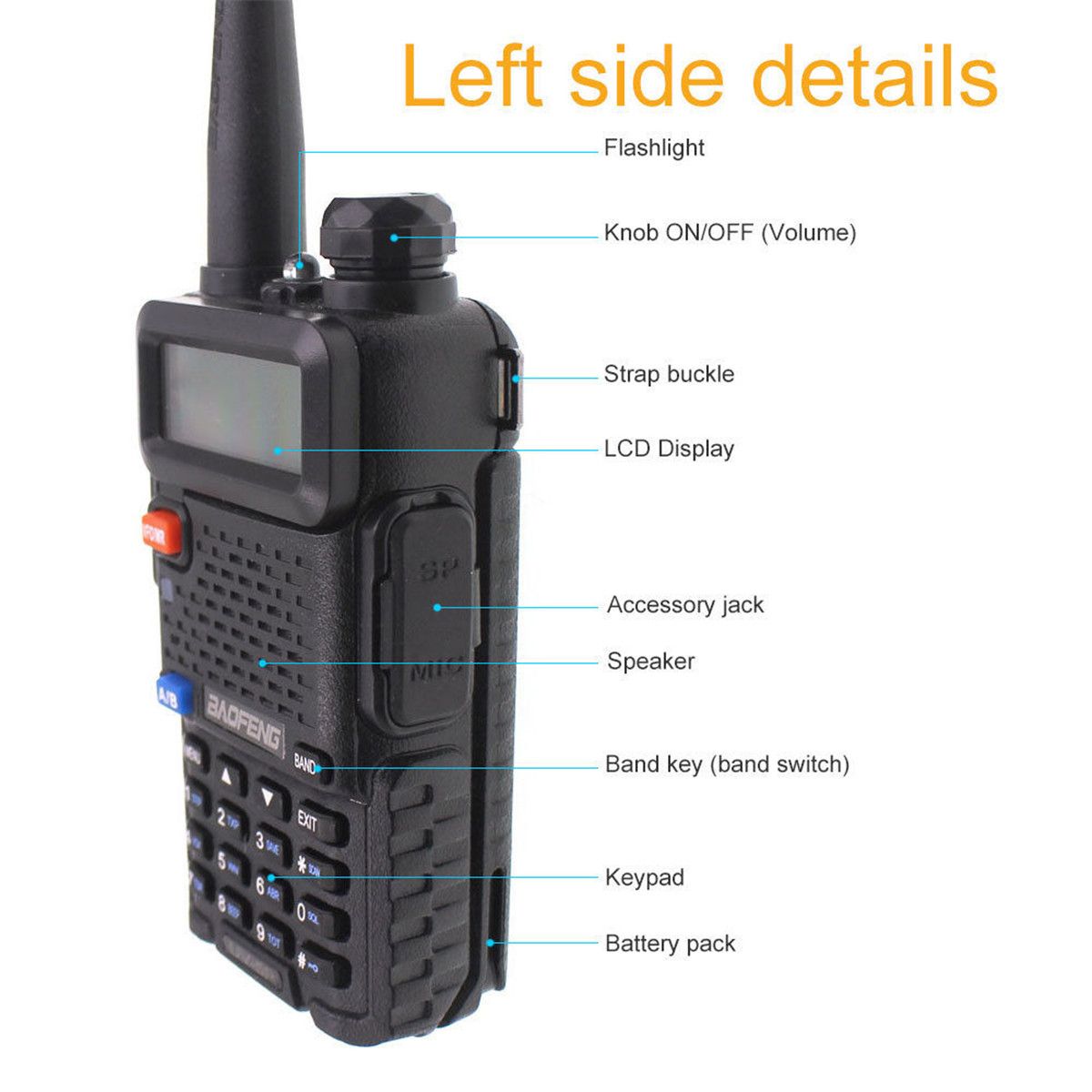

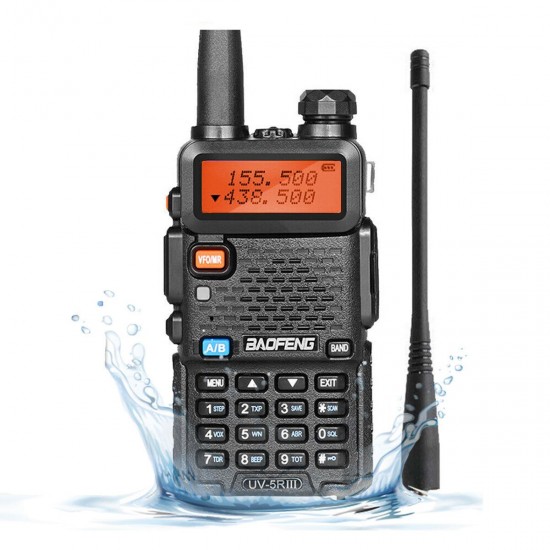

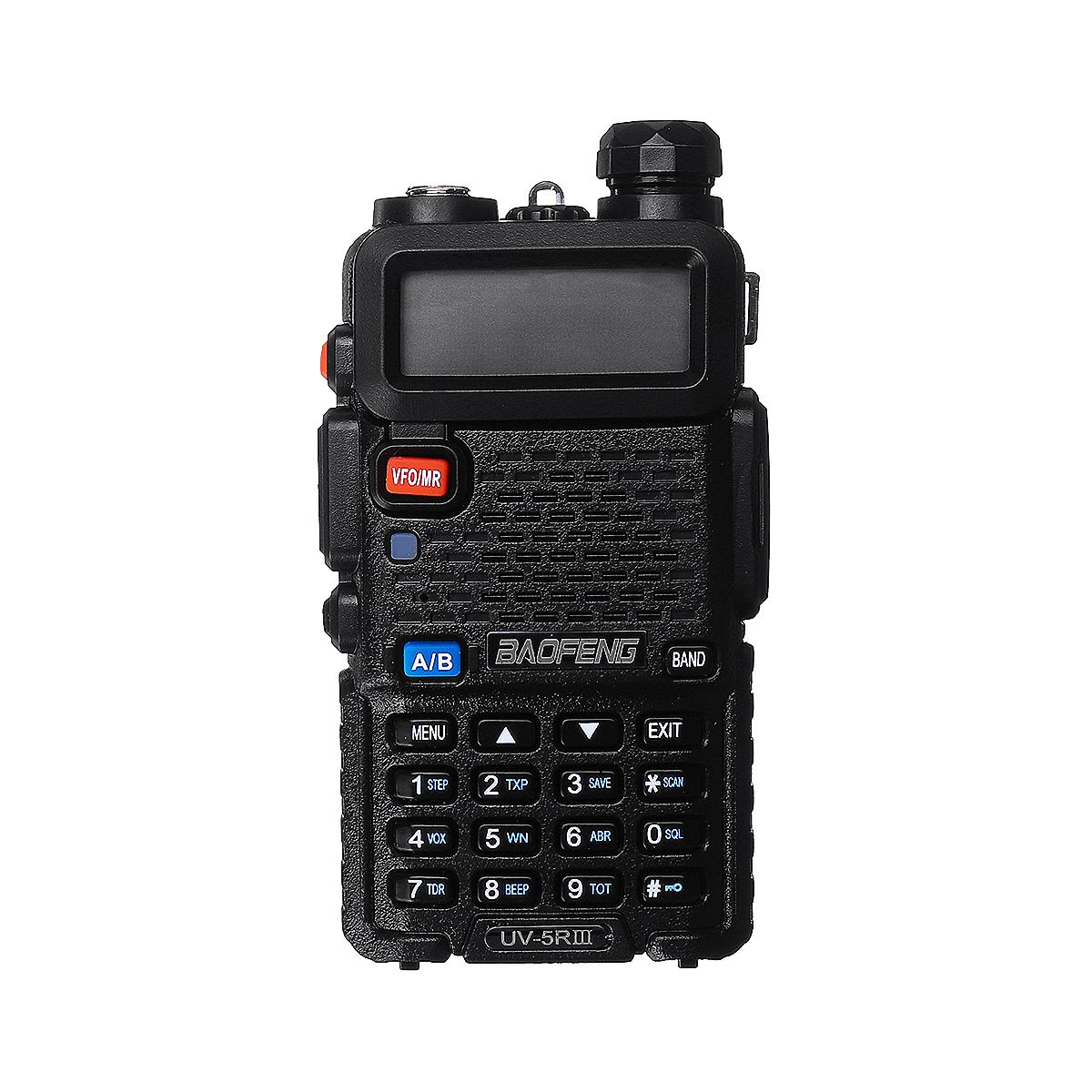

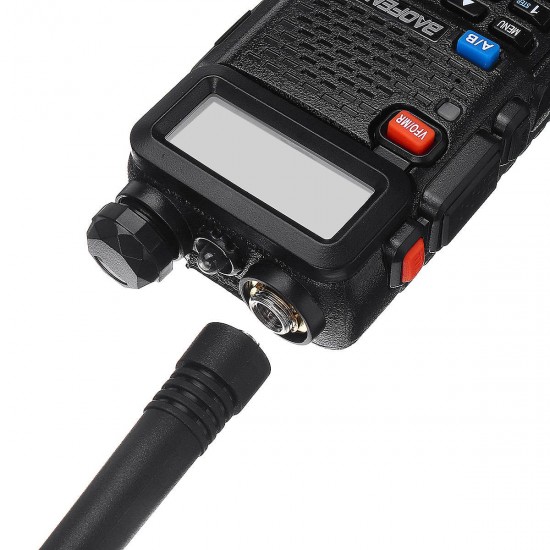

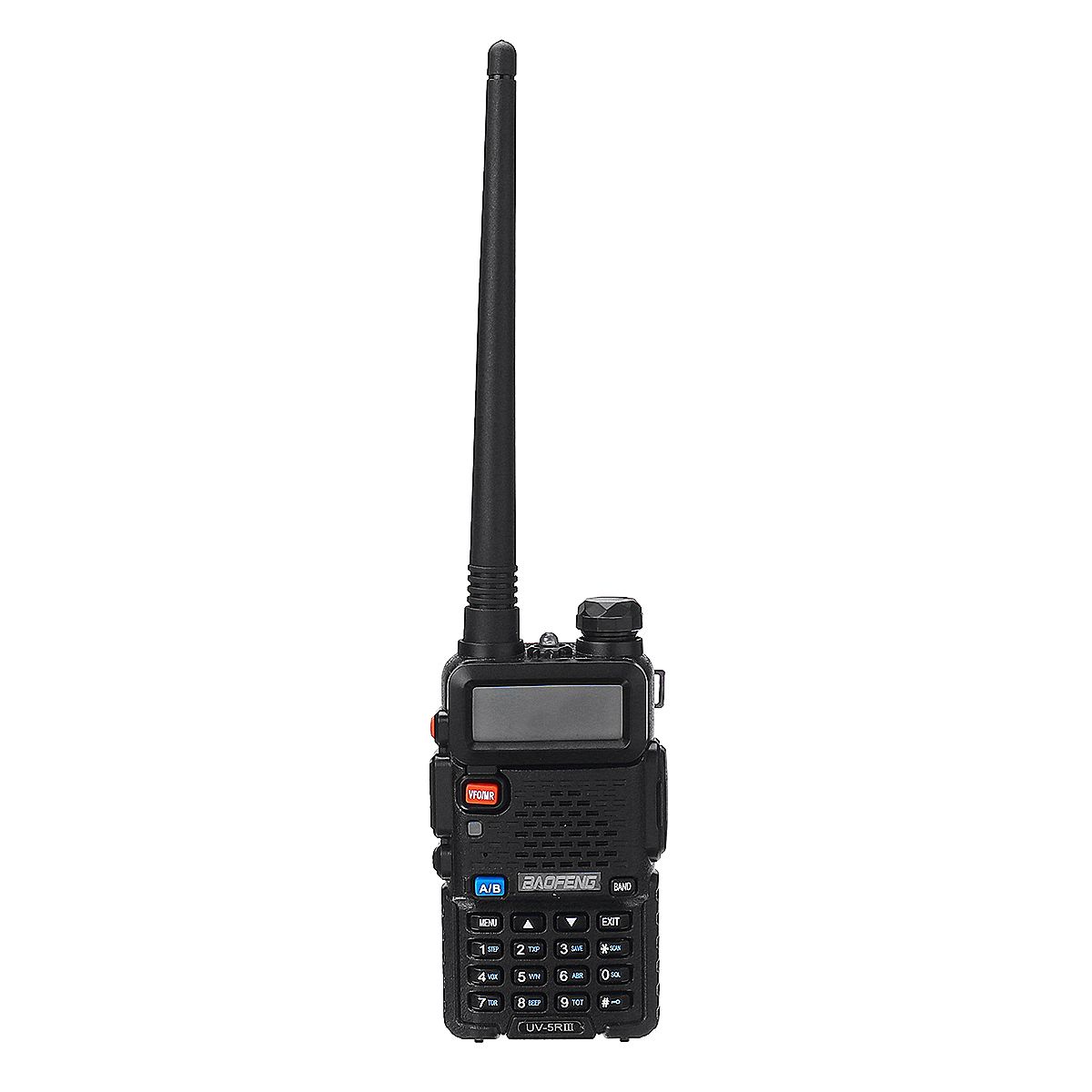

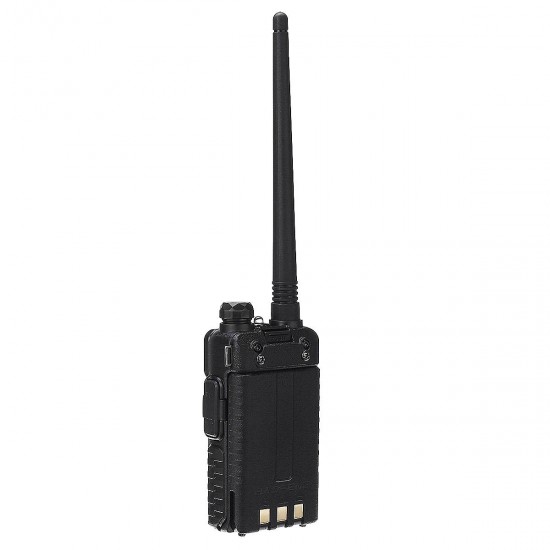

Detail Pictures:

Baofeng-UV-5R--Walkie-Talkie-136-174MHz-220-260MHz-400-520MHz-Two-Way-Radio-1565910
